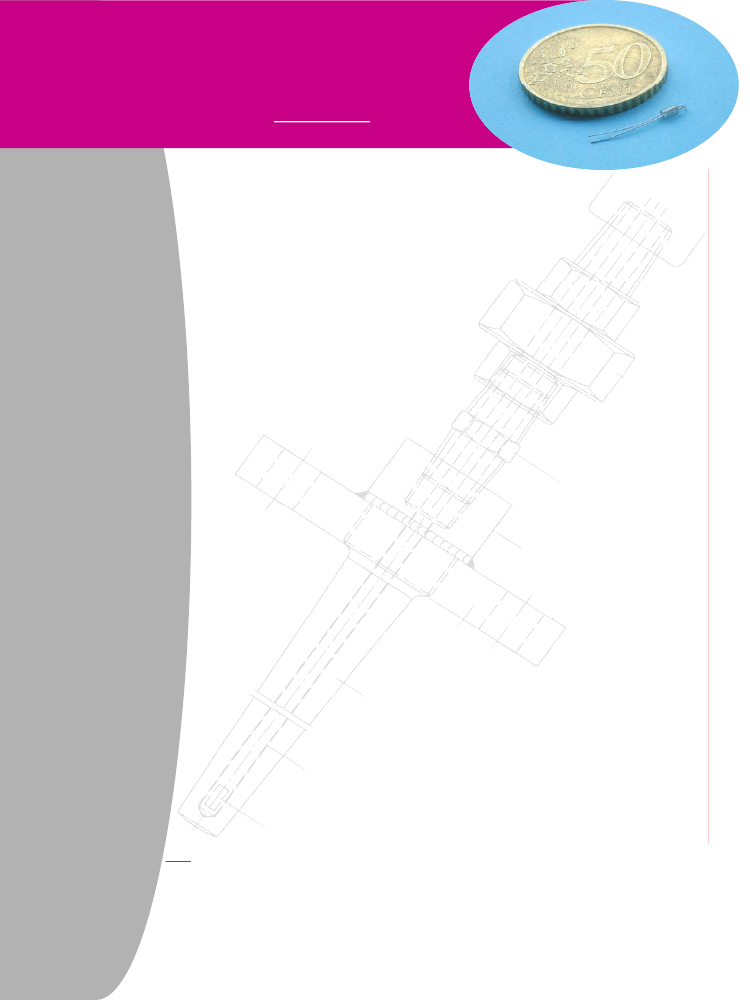

Temperature Sensor
Glass Wire-Wound
Resistance Element
Type GX
(-200°C to +400°C)
Glass wire-wound
suitable for high
vibration applications
APPLICATIONS
- Environments subject to high vibration
- Cryogenics
- Accurate temperature measurements in high temperature gradients
- Limited mounting space required
- Food industry
- H.V.A.C.
SPECIAL FEATURES
- No hysteresis
- Small dimensions
- High temperature stability
- Short response time
- High vibration resistance
One or two platinum bands are wound on a glass tube and are
protected from environment by a glass layer. The lead wire connection
has high pull strength.
- 100
Ω
at 0°C
- Temperature coefficient
α
= 3850 ppm/K
-
IEC 751 : class B, A and B/3
- Closer tolerances in restricted temperature range
- From -200°C to +400°C
- Platinum coated nickel wires
- For use in dry environments only
- No hysteresis
- High vibration resistance
- Resistant to external forces and pressure
- Lead wires length
- Extension cable
DESIGN
NOMINAL VALUE
TOLERANCE CLASS
TEMPERATURE RANGE
CONNECTION WIRES
HOUSING ADVICE
RESISTANCE AND STABILITY
OPTIONS
Attention :
All technical data and recommendations concerning the products and services of our firm are for information purposes only. No data given in our technical datasheets guarantee particular properties to any products. They
represent values obtained by experience and are intended as guidelines only. Seller reserves the right to make alterations in illustrations and technical data printed, resulting from further development.
Heraeus Sensor Technology USA
1901 Route 130
North Brunswick, NJ 08902
Phone 732-940-4400
Fax 732-940-4445
Email info.hst-us@heraeus.com
www.hst-us.com
Rev. 02-07
HSTUSA 10/09
Standard Product
Type GX
Type
Desi-
gnation
Reference
Nominal
reference
L
WL
D
AL1
AL2
A
Self-heating
in air
Response time
Water
v = 0,4 m/s
t0,5
(Ohm at 0°C)
(Dimensions in mm)
(K/mW)
t0,9
(s)
t0,5
Air
v = 1 m/s
t0,9
Class B
1Pt100
1Pt100
1Pt100
1Pt100
1Pt100
2Pt100
GX 518
GX 1013
GX 1018
GX 1218
GX 1513
GX 1528
32 205 108
32 205 113
32 205 118
34 015 120
SB0921
32 205 228
100
100
100
100
100
100
5
10
10
12
15
15
3
6
6
3
6
7
1,8
1,3
1,8
1,8
1,3
2,8
10
10
10
6
10
10
-
-
-
-
-
12
0,20
0,20
0,20
0,20
0,20
0,25
0,36
0,39
0,36
0,36
0,39
0,20
0,14
0,4
0,14
0,14
0,4
0,3
0,35
1,30
0,35
0,35
1,3
1,0
8
4
8
8
4
12
30
12
30
30
12
45
Class A
1Pt100
1Pt100
1Pt100
1Pt100
2Pt100
GX 518
GX 1013
GX 1218
GX 1513
GX 1528
32 205 074
32 205 458
34 015 121
SB0920
32 205 241
100
100
100
100
100
5
10
12
15
15
3
6
3
6
7
1,8
1,3
1,8
1,3
2,8
10
10
6
10
10
-
-
-
-
12
0,20
0,20
0,20
0,20
0,25
0,36
0,39
0,36
0,39
0,20
0,14
0,4
0,14
0,4
0,3
0,35
1,30
0,35
1,3
1,0
8
4
8
4
12
30
12
30
12
45
Class B/3
1Pt100
1Pt100
1Pt100
GX 518
GX 1013
GX 1513
32 205 101
32 205 463
SB0919
100
100
100
5
10
15
3
6
6
1,8
1,3
1,3
10
10
10
-
-
-
0,20
0,20
0,20
0,36
0,39
0,39
0,14
0,4
0,4
0,35
1,30
1,3
8
4
4
30
12
12

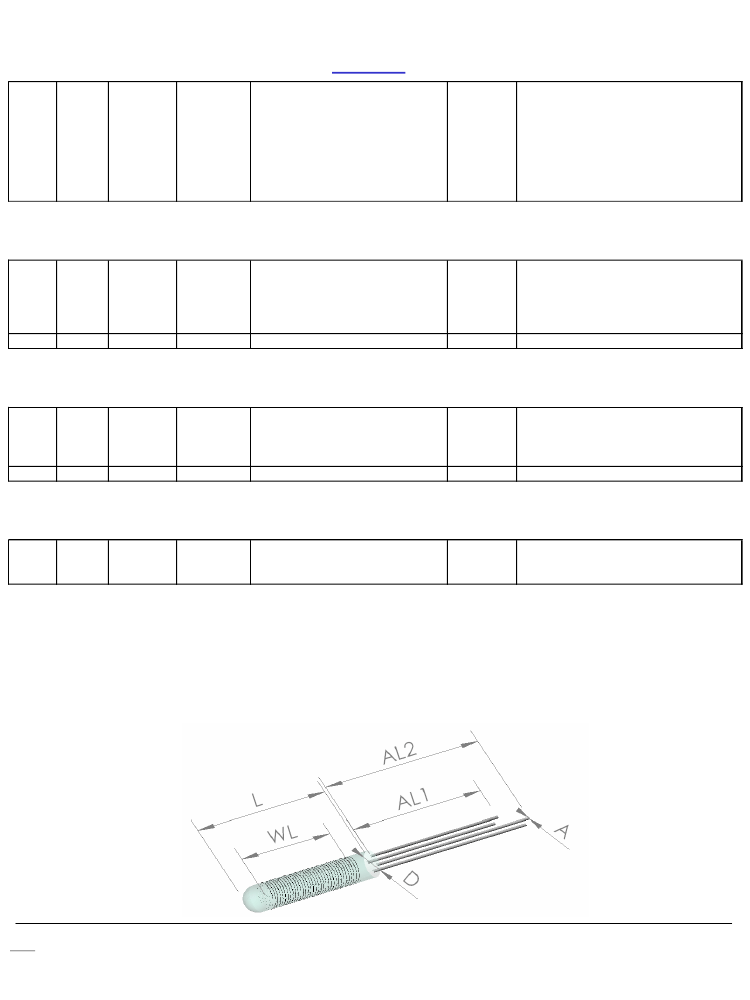

DIMENSIONAL TOLERANCES :
L
D
AL
A
(length of body)
(diameter of body)
(connection wire length)
(connection wire diameter)
=
±
1mm
= +0,1-0,3mm
=
±
2mm
=
±
0,02 mm
Attention :
All technical data and recommendations concerning the products and services of our firm are for information purposes only. No data given in our technical datasheets guarantee particular properties to any products. They represent values obtained by experience and are
intended as guidelines only. Seller reserves the right to make alterations in illustrations and technical data printed, resulting from further development.
Rev. 02-07
HSTUSA 10/09
