2SS52M-T2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> Sensor/transducer> 2SS52M-T2

2SS52M-T2: DescriptionBoard Mount Hall Effect / Magnetic Sensors COMM SOLID STATE/MAG; CategoryThe sensor Sensor/transducer; File Size572KB，7 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

2SS52M-T2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2SS52M-T2	-	-	View	Buy Now

2SS52M-T2 Overview

Board Mount Hall Effect / Magnetic Sensors COMM SOLID STATE/MAG

2SS52M-T2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	SIP3,.03,50
Reach Compliance Code	compliant
body width	1.6 mm
body height	4.5 mm
Body length or diameter	4.5 mm
shell	PLASTIC
Maximum magnetic field range	2.5 mT
Minimum magnetic field range	0.4 mT
Installation features	THROUGH HOLE MOUNT
Number of terminals	3
Maximum working current	11 mA
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
output	SINGLE-ENDED
Output circuit type	SINGLE-ENDED
Maximum output current	20 mA
Output range	20mA
Output type	ANALOG CURRENT
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SIP3,.03,50
Package Shape/Form	RECTANGULAR
power supply	3.8/30 V
Sensor/Transducer Type	MAGNETIC FIELD SENSOR,MAGNETORESISTIVE
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

Magnetoresistive Sensor ICs

2SS52M Series

005987

Datasheet

Issue 2

2SS52M-T2

2SS52M-T3

2SS52M

2SS52M-S

SS552MT

FEATURES

• High sensitivity: 25 Gauss maximum operate point allows for

extended sensing distance or a smaller magnet

• 3.8 Vdc to 30 Vdc supply voltage range

• Omnipolar sensing: Activates with either North or South pole

• Temperature range: -40 °C to 150 °C [-40 °F to 302 °F]

• Digital current-sinking output

• RoHs compliant, meets Directive 2002/95/EC

POTENTIAL APPLICATIONS

Industrial

• High frequency flow sensing in HVAC, water, fuel meters, and

gas utility meters

• Anti-tamper detection in water, electric, and gas utility meters

• Liquid level detection

• Motor RPM sensing

• In-cylinder position sensing

Medical

• RPM sensing in exercise and rehabilitation equipment

• Magnetic interrupt in exercise and rehabilitation equipment

• Absence/presence detection in infusion pumps

• Position sensing of medication dispensing cabinet drawers

• Incline position sensing in hospital beds

White goods

• Lid, door and drawer position detection

• Fluid flow detection

• Liquid level detection

PORTFOLIO

The 2SS52M Series is part of Honeywell’s family of Digital

Magnetoresistive Sensor ICs:

• SM351LT, SM353LT

• SM351RT, SM353RT, SM451R, SM453R

DESCRIPTION

The 2SS52M Series Digital Magnetoresistive Sensors are

omnipolar, solid-state sensors with a built-in magnetoresistive

bridge integrated on silicon and encapsulated in a plastic

package. The integrated circuit also includes a band-gap

regulator and a digital output in response to very low magnetic

fields.

These sensor ICs may be operated with either a North or a

South magnetic pole applied in parallel to the sensor IC. The

polarity does not need to be identified, simplifying installation in

single pole applications and doubling the resolution in rotating

magnet applications.

These small and highly sensitive omnipolar devices have

become a popular building block for flow metering, motor RPM

and cylinder position sensing.

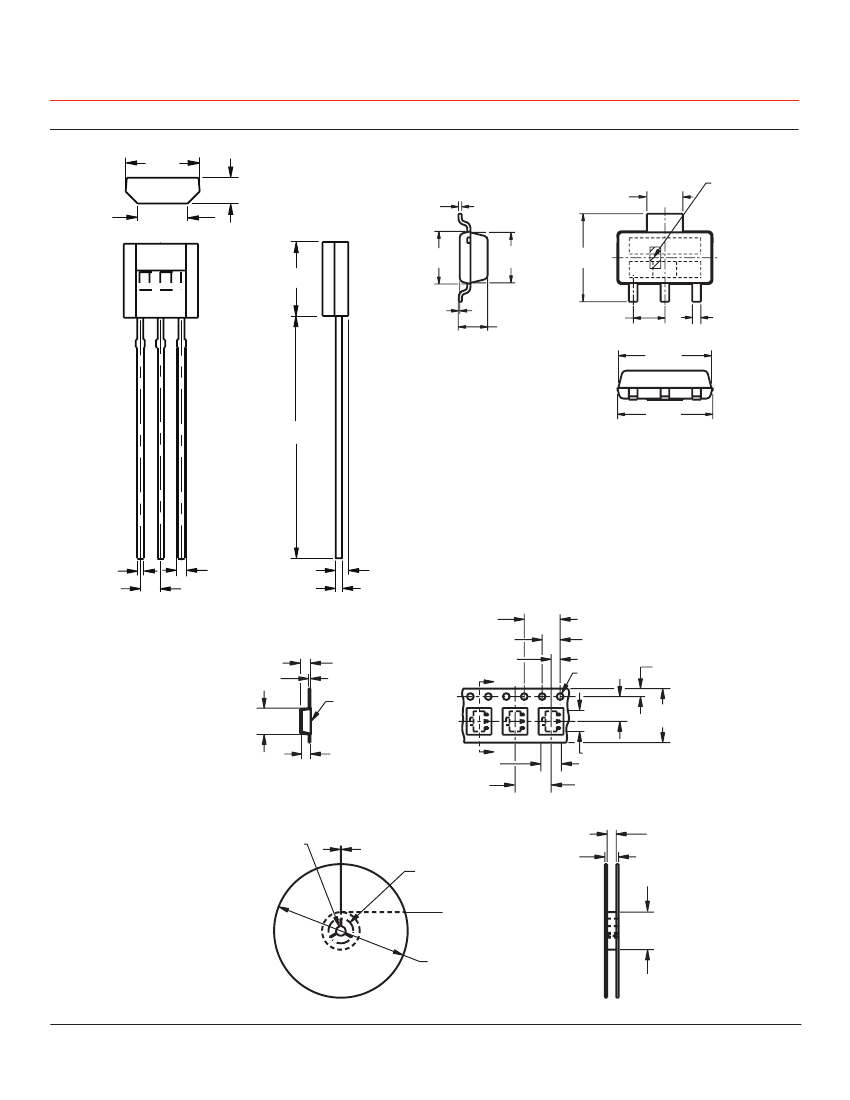

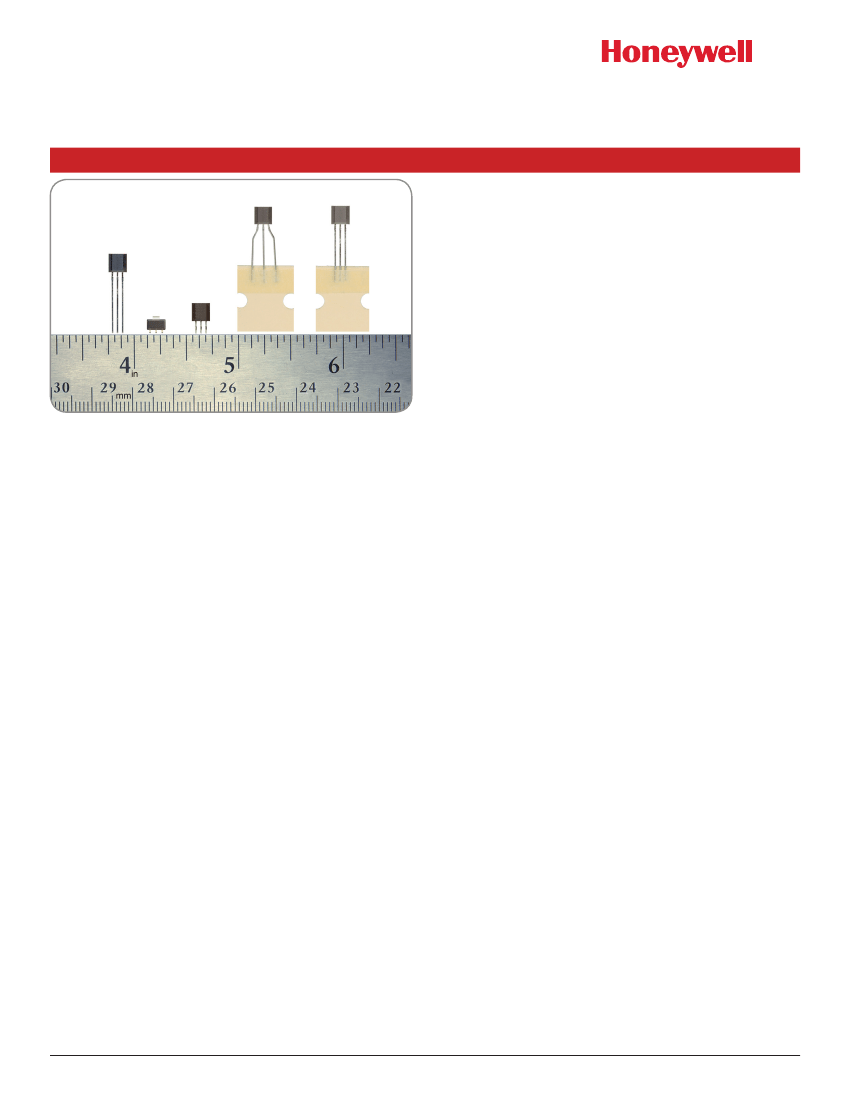

They are available in five package styles:

•

2SS52M:

U-pack, 3-pin, in-line sensor IC with straight leads

supplied in bulk packaging (1000 units per bag)

•

SS552MT:

SOT-89B surface-mount sensor IC supplied on

tape and reel which allows for compact design with automated

component placement (1000 units per tape and reel)

•

2SS52M-S:

U-pack, 3-pin in-line, surface-mount sensor IC

supplied in bulk packaging (1000 units per bag)

•

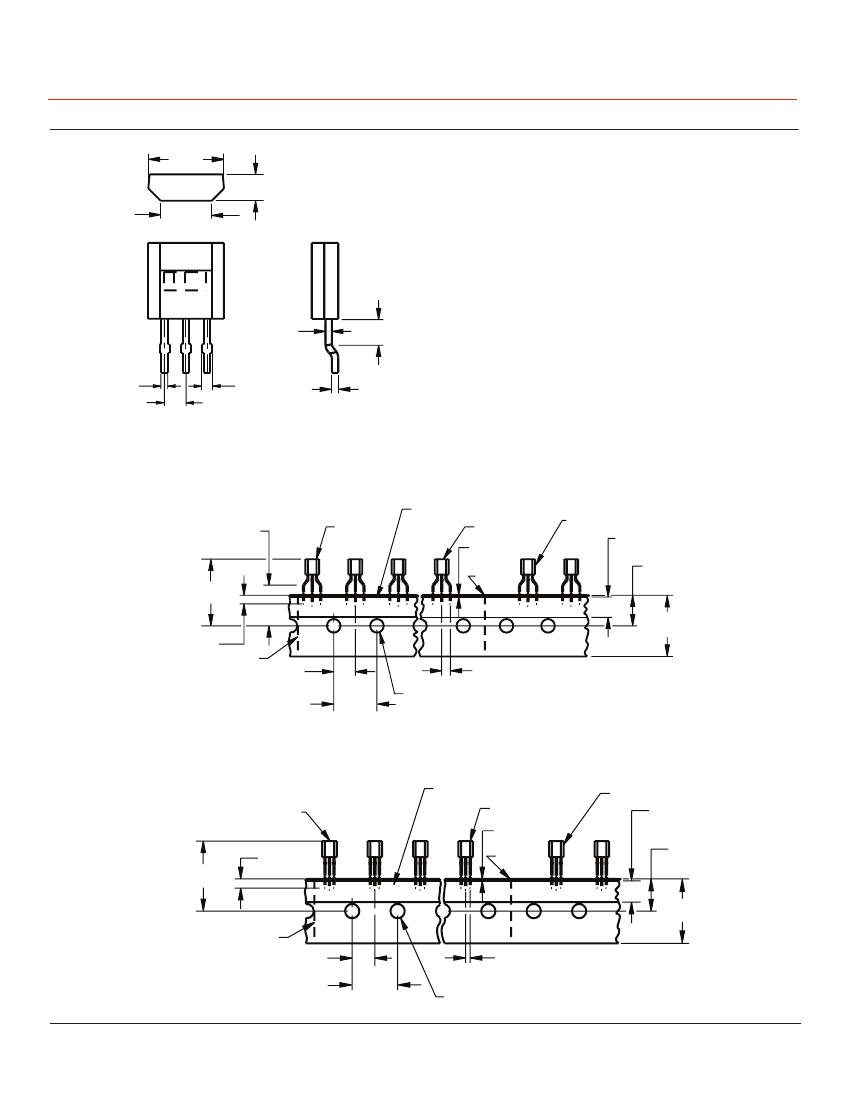

2SS52M-T2:

U-pack, 3-pin, in-line sensor IC with formed

leads supplied in ammo pack tape-in-box (5000 units per box)

•

2SS52M-T3:

U-pack, 3-pin, in-line sensor IC with straight

leads supplied in ammo pack tape-in-box (5000 units per box)

Sensing and Productivity Solutions

2SS52M-T2 Related Products

	2SS52M-T2	2SS52M-T3
Description	Board Mount Hall Effect / Magnetic Sensors COMM SOLID STATE/MAG	Board Mount Hall Effect / Magnetic Sensors COMM SOLID STATE/MAG
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
package instruction	SIP3,.03,50	SIP3,.03,50
Reach Compliance Code	compliant	unknown
body width	1.6 mm	1.6 mm
body height	4.5 mm	4.5 mm
Body length or diameter	4.5 mm	4.5 mm
shell	PLASTIC	PLASTIC
Maximum magnetic field range	2.5 mT	2.5 mT
Minimum magnetic field range	0.4 mT	0.4 mT
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of terminals	3	3
Maximum working current	11 mA	11 mA
Maximum operating temperature	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C
output	SINGLE-ENDED	SINGLE-ENDED
Output circuit type	SINGLE-ENDED	SINGLE-ENDED
Maximum output current	20 mA	20 mA
Output range	20mA	20mA
Output type	ANALOG CURRENT	ANALOG CURRENT
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	SIP3,.03,50	SIP3,.03,50
Package Shape/Form	RECTANGULAR	RECTANGULAR
power supply	3.8/30 V	3.8/30 V
Sensor/Transducer Type	MAGNETIC FIELD SENSOR,MAGNETORESISTIVE	MAGNETIC FIELD SENSOR,MAGNETORESISTIVE
surface mount	NO	NO
Termination type	SOLDER	SOLDER
Base Number Matches	1	1
