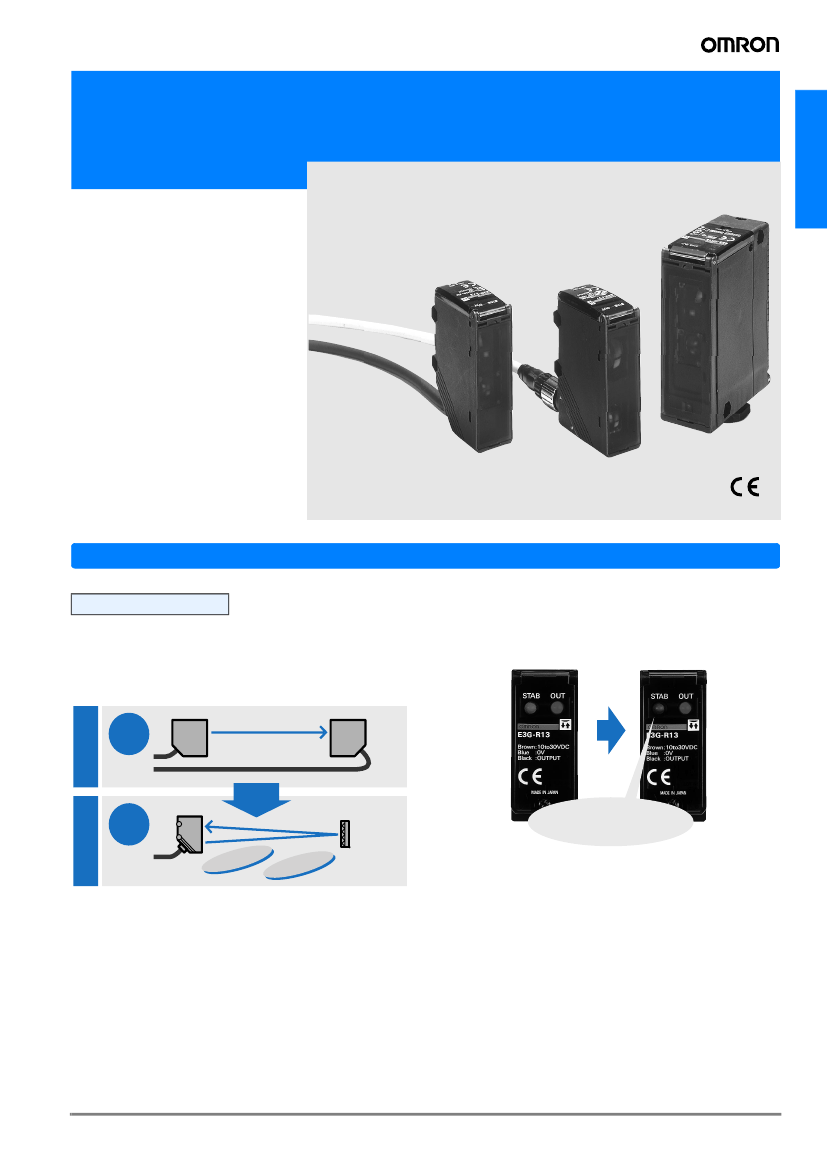

Photoelectric switch with built-in amplifier (long distance) in plastic housing
E3G
E3G
Retroreflective Models
• Sensing Distance of 10 m, with polar-
ized light to detect shiny objects.
• Operation stability monitored ba the
stability indicator.
Distance-setting Models
• Distance setting models with a long
2 m sensing distance incorporate a
teaching function.
• Set sensing area (zone setting) func-
tion allows detection of shiny objects
with uneven surface.
Common Features
• Meets IEC IP67 requirements.
• M12 rotary connector, pre-wired or ter-
minal block connection
Features
Retroreflective Models
Though the Size Is Compact, the Sensing
Distance Is as Long as 10m.
Replace the conventional through-beam model with the ret-
roreflective model for saving wiring and installation space.
Conventional
Easy monitoring of Operation stability by
means of stability indicator.
Through-
beam
10m
New product
Retorore-
flective
model
Sa
g effor
ves wirin
t
10m
Reflector
The stability indicator becomes
darker due to dust on the lens or
improper optical axis adjustment.
Saves
space
E3G
A-119

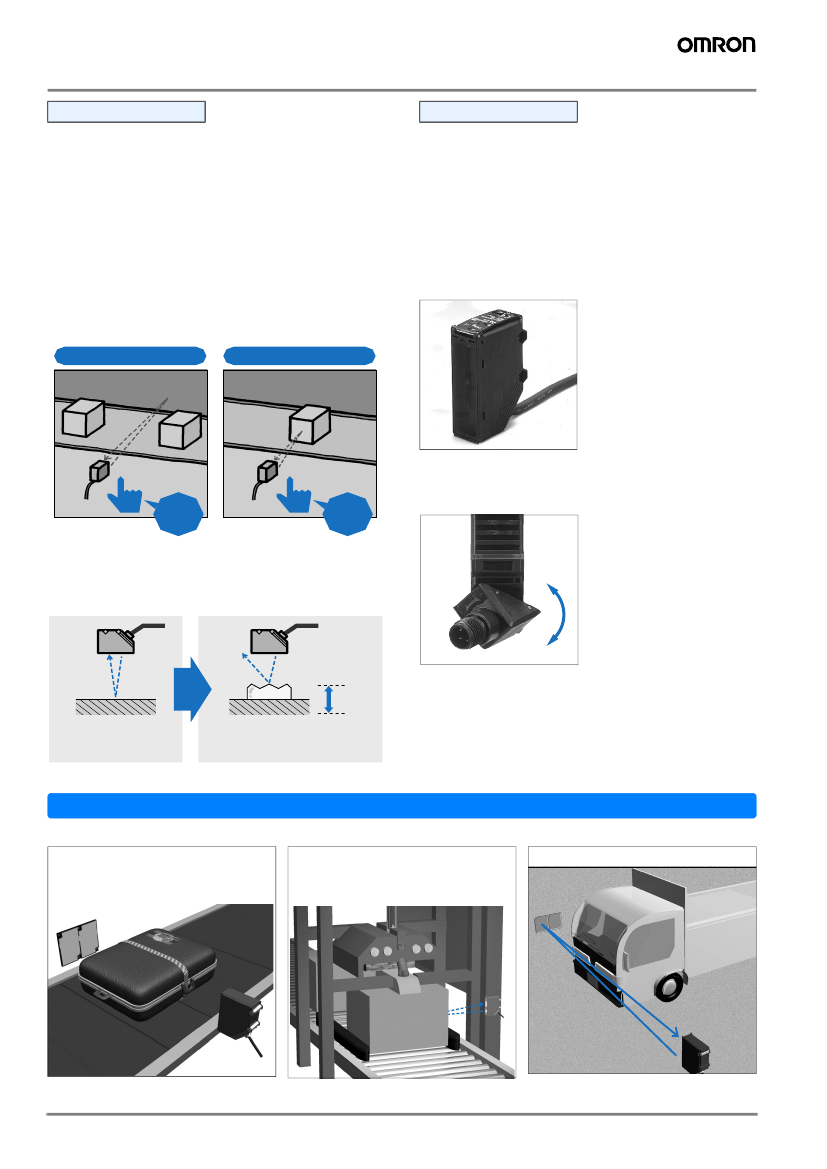

Distance-setting
General
Distance-setting Models with a Long 2-m
Sensing Distance Incorporate a Teaching
Function
Sensitivity adjustment without being influenced by back-
ground objects is possible by simply pressing a button. Useful
for teaching without a sensing object.
Select either transistor (NPN/PNP select-
able) or relay output. Three connection
methods (plus a model with a timer func-
tion). Select either a DC power supply or a
variable power
supply: 24 V to 240 VAC or 12 to 240 VDC).
IEC Standard IP67 Water Proofing
Easy Optimum Sensing Distance Adjust-
ments
Teaching with and without a sensing object ensures highly ac-
curate detection without influence from the background.
Without sensing object
With sensing object
ONE
PUSH
ONE
PUSH
M12 Rotary Connector Available on Models
with DC Power Supplies
Zone Setting Function
Effective for detecting glossy objects, which were difficult to
detect with conventional sensors. (D-ON)
OFF
(Incident)
ON
(Interrupted)
Sensing zone
Approx.
±10%
Teach with only the
background (conveyer).
Since the Sensor can have a threshold value not
only in front of the background but also beyond the
background, it is possible to detect objects such as
mirror-surface objects that do not return light from
the object surface.
Application
Detection of large works
Retroreflective model can make long-
distance detection, saving wiring.
Detection of large corrugated cardboard
Just by installing the sensor on one side,
only the boxes to be detected shall be
sensed.
Detection of cars in multi-story parking lot
10m
E3G-L73
E3G-R13
E3G-R13
E3G-L73
A-120
Standard Photoelectric Sensors

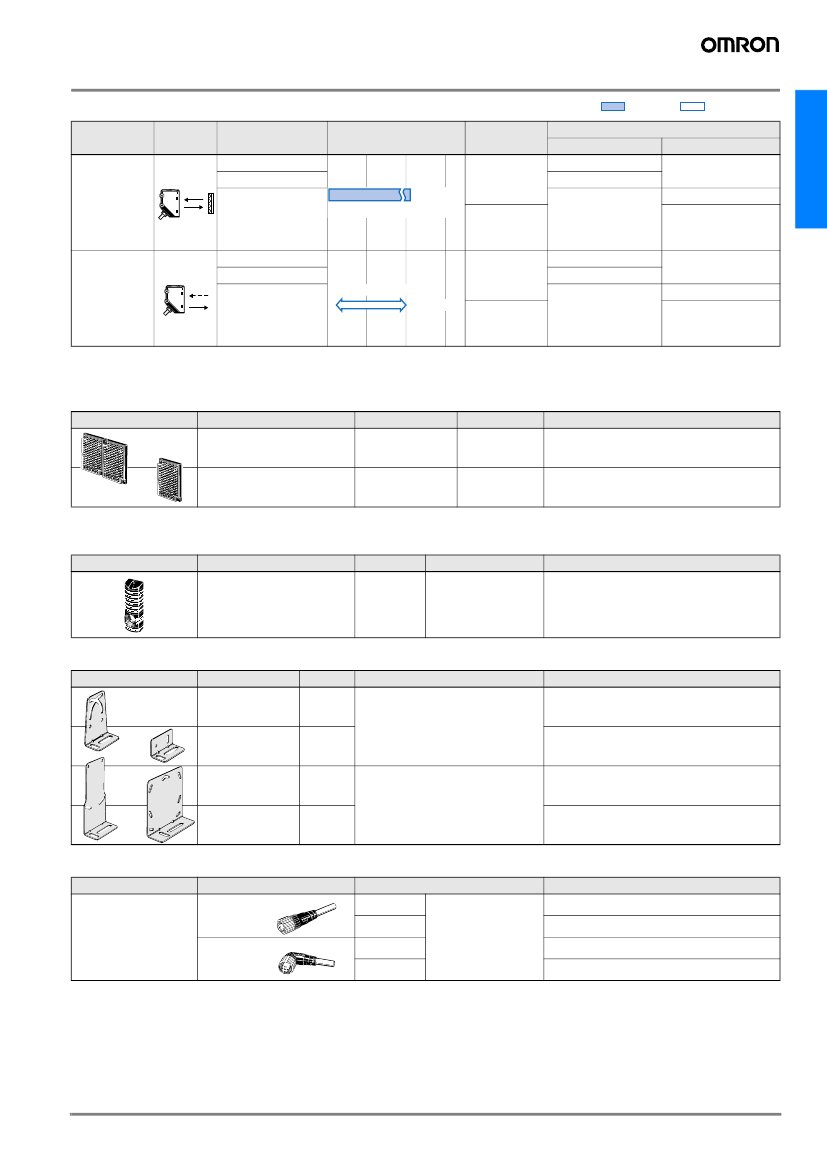

Ordering Information
Sensors
Sensor type
Shape
Connection method
Pre-wired
Connector type
Sensing distance
Timer function
Red light
Infrared light
Retroreflec-
tive Models
(with M.S.R.
Function)
---
10m
Terminal block
Pre-wired
Connector type
[500mm]*
Model
NPN/PNP selector Relay contact output
E3G-R13-G
---
E3G-R17-G
E3G-MR19-G
---
E3G-L73
E3G-L77
---
E3G-MR19T-G
---
E3G-ML79-G
ON or OFF
delay 0 to 5 s
(adjustable)
---
Distance-
setting
White paper 300
¥
300 mm
Terminal block
0.2 to 2 m
ON or OFF
delay 0 to 5 s
(adjustable)
E3G-ML79T-G
* Values in parentheses indicate the minimum required distance between the sensor and reflector.
Accessories (Order Separately)
Reflectors
Shape
Sensing distance (typical)
10 m (500 mm) *
6 m (100 mm) *
Model
E39-R2
E39-R1S
Quantity
1
1
Remarks
---
---
* Values in parentheses indicate the minimum required distance between the sensor and reflector.
Terminal Protection Cover for Side-pullout Cable
Shape
Model
Quantity
Applicable type
Remarks
E39-L129-G
1
E3G-MR19(T)-G Provided with rubber bushing and cap for
E3G-ML79(T)-G pullout prevention in horizontal direction
Mounting Brackets
Shape
Model
E39-L131
E39-L132
E39-L135
E39-L136
Quantity
1
E3G-R1#
E3G-L7#
1
1
E3G-MR19(T)-G
E3G-ML79(T)-G
1
---
Rear-mounting use
Cable pulled out downwards
Applicable type
Remarks
---
Sensor I/O Connectors
Cable
Shape
Cable length
2m
5m
3-wire type
Model
XS2F-D421-DC0-A
XS2F-D421-GC0-A
XS2F-D422-DC0-A
XS2F-D422-GC0-A
Straight
Standard cable
L-shaped
2m
5m
E3G
A-121
E3G
Rating/Performance
Sensor type
Item
Model
Sensing distance
Setting distance
Standard sensing
object
Hysteresis
(typical)
Directional angle
Reflectivity
characteristics
(black/white
error)
Light source
(wave length)
Spot size
Power supply
voltage
Current/Power
consumption
Retroreflective Models (M.S.R. function)
Distance-setting
E3G-R13-G E3G-R17-G E3G-MR19-G E3G-MR19T-G
E3G-L73
E3G-L77
E3G-ML79-G E3G-ML79T-G
10 m (500 mm) * (When using the E39-R2)
0.2 to 2 m (White paper 300 x 300 mm)
---
0.5 to 1.2 m (White paper 300 x 300 mm)
Opaque: 80 dia. min.
---
Sensor: 1° to 5°
---
10% of setting distance
---
±10% max. (At detection distance of 1m)
---
Red LED (700 nm)
Infrared LED (860 nm)
---
70 mm dia. max. (At detection distance of 1m)
12 to 240 VDC ±10% ripple
12 to 240 VDC ±10% ripple
10 to 30 VDC
10 to 30 VDC
(p-p) : 10% max. 24 to 240
(p-p) : 10% max. 24 to 240
(Ripple (p-p) 10% included)
[Ripple (p-p) 10% included]
VAC ±10% 50/60 Hz
VAC ±10% 50/60 Hz
50 mA max.
Load supply voltage 30
VDC max., load current 100
mA max. (residual
voltage NPN output: 1.2 V
max., PNP output: 2 V
max.) Open collector output
type (NPN/PNP output
switch selectable) L-ON/
D-ON switch selectable
---
2 W max.
60 mA max.
Load supply voltage 30
VDC max., load current 100
mA max. (residual
voltage NPN output: 1.2 V
max., PNP output: 2 V
max.) Open collector output
type (NPN/PNP output
switch selectable) L-ON/
D-ON switch selectable
---
2 W max.
Control output
Relay output: Switch-over
contact 250 VAC 3A
(cos =1) max. 30 VDC 3A
max. L-ON/D-ON switch
selectable
Relay output: Switch-over
contact 250 VAC 3A
(cos =1) max. 30 VDC 3A
max. L-ON/D-ON switch
selectable
Life ex-
pectan-
cy (relay
Electri-
output)
cal
Me-
chani-
cal
---
50,000,000 operations min.
(switching frequency:
18,000 operations/h)
100,000 operations min.
(switching frequency: 1,800
operations/h)
---
50,000,000 operations min.
(switching frequency:
18,000 operations/h)
100,000 operations min.
(switching frequency:
1,800 operations/h)
Reverse polarity protection,
Reverse polarity protection,
Mutual interference preven-
Mutual interference preven- output short-circuit pro-
output short-circuit pro-
Protective circuits
tection, mutual interference tion function
tection, mutual interference tion function
prevention
prevention
Operation/reset: 30 ms
Operation/reset: 30 ms
Response time
Operation/reset: 1 ms each
Operation/reset: 5 ms each
each
each
Sensitivity
One-turn adjuster
Teaching method (NORMAL mode/ZONE mode)
adjustment
ON delay/
ON delay/
OFF delay
OFF delay
0 to 5 s
0 to 5 s
---
Timer function
---
(Adjuster
(Adjuster
variable
variable
system)
system)
Ambient
Incandescent lamp: 3,000 lux max. Sunlight 10,000 lux max.
illuminance
Ambient
Operating: -25°C to 55°C, Storage: -30°C to 70°C (with no icing or condensation)
temperature
Ambient humidity Operating: 35% to 85%RH, Storage: 35% to 95%RH (with no condensation)
Insulation
20 M min. at 500 VDC
resistance
Dielectric
1,000 VAC at 50/60 Hz for 2,000 VAC at 50/60 Hz for 1,000 VAC at 50/60 Hz for 2,000 VAC at 50/60 Hz for
strength
1 minute
1 minute
1 minute
1 minute
Vibration
Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
resistance
* Values in parentheses indicate the minimum required distance between the sensor and reflector.
A-122
Standard Photoelectric Sensors
Sensor type
Retroreflective Models (M.S.R. function)
Item
Model E3G-R13-G E3G-R17-G E3G-MR19-G E3G-MR19T-G
Shock resistance 500 m/s
2
3 times in each of X, Y and Z directions
Protective
IEC 60529 IP67 (with Protective Cover attached)
structure
Pre-wired
M12
Connection
Terminal block
(standard
Connector
method
length: 2 m)
Weight
Approx.
Approx. 50 g Approx. 150 g
(Packed state)
150 g
Case
PBT (polybutylene terephthalate)
Mate- Lens
Acrylics (PMMA)
rial
Mounting
Stainless steel (SUS304)
Brackets
Accessories
Instruction sheet, and screwdriver for adjustment
E3G-L73
Distance-setting
E3G-L77
E3G-ML79-G E3G-ML79T-G
E3G
Pre-wired
(standard
length: 2 m)
M12
Connector
Terminal block
Approx. 50 g Approx. 150 g
Instruction sheet
Output Circuit Diagram
NPN output
Model
Operating status of
output transistor
Timing chart
Incident
Interrupted
Operation ON
indicator
OFF
(orange)
ON
Output
transistor OFF
Load Operate
(Relay) Reset
Incident
Interrupted
Operation
ON
indicator
OFF
(orange)
ON
Output
transistor OFF
Operate
Load
(Relay)
Reset
Mode selection
switch
Operation
indicator
Stability
indicator
Output circuit
Brown 10 to 30 VDC
PNP output
transistor
NPN or PNP
output selector
NPN output
transistor
ZD
Blue
ZD
Black
*
Load Load
current
Control
output
0V
Light ON
E3G-R13-G
E3G-R17-G
E3G-L73
E3G-L77
L ON
(LIGHT ON)
(Orange)
(Green)
Main
circuit
* Set the NPN or PNP selector to NPN
Dark ON
D ON
(DARK ON)
Connector Pin Arrangement
1
2
3
4
Note: Terminal 2 is not used.
PNP output
Model
Operating status of
output transistor
Timing chart
Incident
Interrupted
Operation ON
indicator
OFF
(orange)
ON
Output
transistor OFF
Load Operate
(Relay) Reset
Incident
Interrupted
Operation
ON
indicator
OFF
(orange)
ON
Output
transistor OFF
Operate
Load
(Relay)
Reset
Mode selection
switch
Operation
indicator
Stability
indicator
(Green)
Output circuit
Brown 10 to 30 VDC
PNP output
transistor
NPN or PNP
output selector
NPN output
transistor
ZD
Blue
ZD
*
Black
Control output
Load Load current
0V
Light ON
E3G-R13-G
E3G-R17-G
E3G-L73
E3G-L77
L ON
(LIGHT ON)
(Orange)
Main
circuit
* Set the NPN or PNP selector to PNP
Dark ON
D ON
(DARK ON)
Connector Pin Arrangement
1
2
3
4
Note: Terminal 2 is not used.
E3G
A-123
