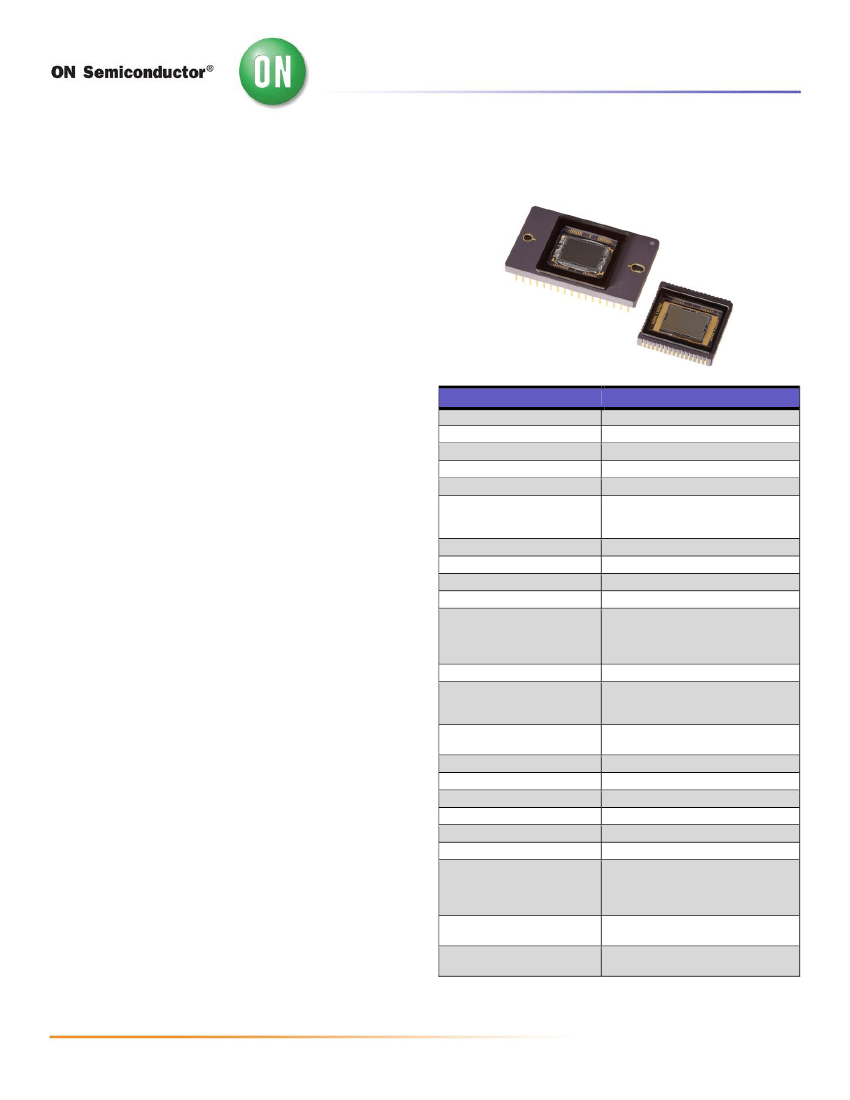

Summary Specification
KAI-02050 Image Sensor
D
ESCRIPTION
The KAI-02050 Image Sensor is a 2-megapixel CCD in a 2/3”
optical format. Based on the TRUESENSE 5.5 micron
Interline Transfer CCD Platform, the sensor features
broad dynamic range, excellent imaging performance, and
a flexible readout architecture that enables use of 1, 2, or
4 outputs for full resolution readout up to 68 frames per
second. A vertical overflow drain structure suppresses
image blooming and enables electronic shuttering for
precise exposure control. Other features include low dark
current, negligible lag, and low smear.
The sensor shares common pin-out and electrical
configurations with other devices based on the
TRUESENSE 5.5 micron Interline Transfer CCD Platform,
allowing a single camera design to support multiple
members of this sensor family.
Parameter
Architecture
Total Number of Pixels
Number of Effective Pixels
Number of Active Pixels
Pixel Size
Active Image Size
Aspect Ratio
Number of Outputs
Charge Capacity
Output Sensitivity
Quantum Efficiency
Mono (-ABA)
R, G, B (-FBA)
R, G, B (-CBA)
Read Noise (f= 40MHz)
Dark Current
Photodiode
VCCD
Dark Current Doubling Temp
Photodiode / VCCD
Dynamic Range
Charge Transfer Efficiency
Blooming Suppression
Smear
Image Lag
Maximum Pixel Clock Speed
Maximum Frame Rates
Quad Output
Dual Output
Single Output
Package
Cover Glass
Typical Value
Interline CCD; Progressive Scan
1684 (H) x 1264 (V)
1640 (H) x 1240 (V)
1600 (H) x 1200 (V)
5.5 µm (H) x 5.5 µm (V)
8.8mm (H) x 6.6mm (V)
11.0mm (diagonal) 2/3” optical
format
4:3
1, 2, or 4
20,000 electrons
34 µV/e
-
44 %
29%, 37%, 39%
31%, 37%, 38%
12 electrons rms
7 electrons/s
100 electrons/s
7 °C / 9 °C
64 dB
0.999999
> 300 X
-100 dB
< 10 electrons
40 MHz
68 fps
34 fps
18 fps
68 pin PGA
64 pin CLCC
F
EATURES
Color or Monochrome configurations
Progressive scan readout
Flexible readout architecture
High frame rate
High sensitivity
Low noise architecture
Excellent smear performance
Package pin reserved for device identification
A
PPLICATIONS
Industrial Imaging
Medical Imaging
Security
AR Coated, 2 Sides or
Clear Glass
All parameters are specified at T = 40 °C unless otherwise noted.
