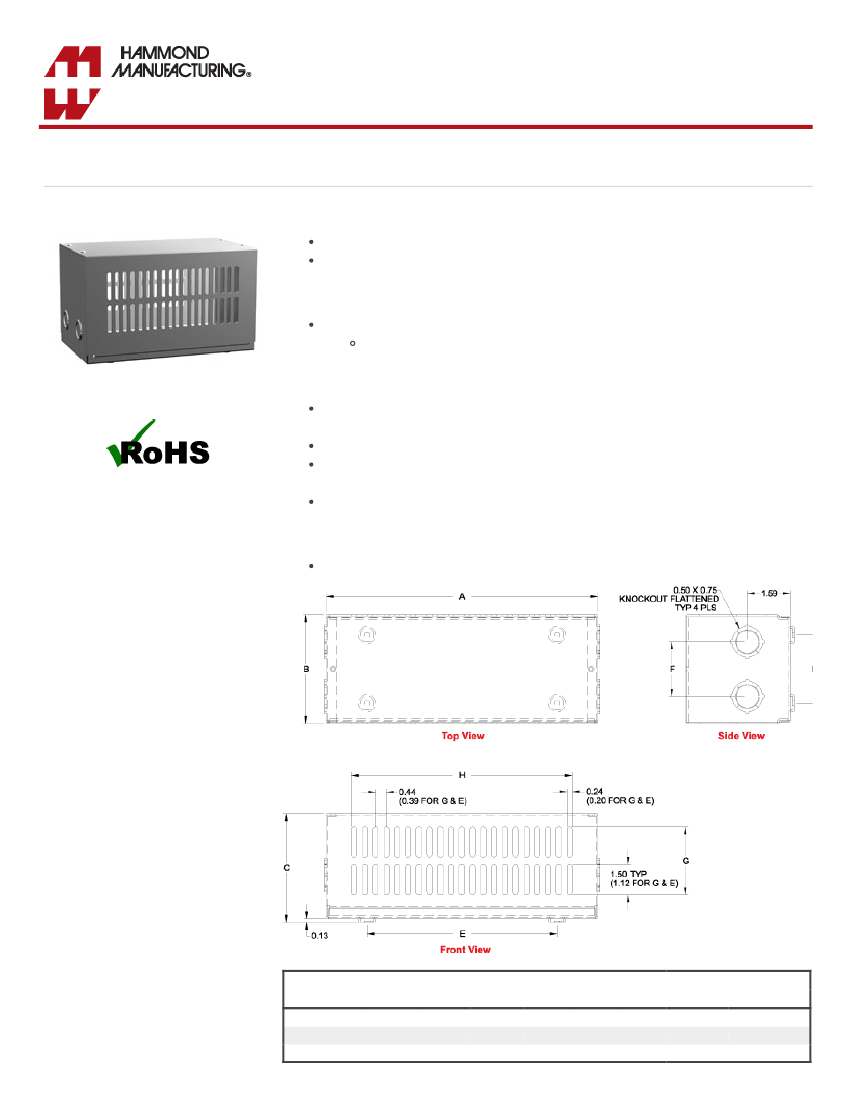

Type 1 Mild Steel Component Case
1416 Series
Ventilated Cover with Screws
Application
Designed to provide mechanical protection for components requiring ventilation.
Suitable for use where heat dissipation is required.
Standards
Complies with
NEMA Type 1
Construction
Base is formed from 16 gauge steel with two 0.5”/0.75” conduit knockouts located in each
end.
Four .125” high raised dimples with mounting holes are provided on the base.
Cover is formed from 18 gauge steel with 0.235” x 1.5” ventilating slots (0.199” x 1.12” on
E & G only).
Screw holes and offsets in the cover allow easy assembly.
Finish
Base and cover are finished in ANSI 61 gray powder coating.
Dimensions
Part No.
1416E
1416G
1416I
A
6.00
10.00
10.00
B
4.00
4.00
6.00
C
4.00
4.00
6.00
D
2.50
2.50
4.50
E
4.00
7.00
7.00
F
2.00
2.00
3.00
Ventilated Area
G
2.50
2.50
3.25
H
4.06
8.31
7.68
https://www.hammfg.com/electrical/products/commercial/1416
1/2
11/19/2017
Type 1 Mild Steel Component Case (1416 Series) - Hammond Mfg.
Dimensions
Part No.
1416K
1416M
1416O
1416Q
1416T
A
11.00
12.00
15.00
20.00
20.00
B
7.00
8.00
10.00
10.00
10.00
C
7.00
8.00
8.00
8.00
10.00
D
5.50
6.50
8.50
8.50
8.50
E
8.00
9.00
12.00
17.00
17.00
F
4.00
5.00
6.00
6.00
6.00
Ventilated Area
G
5.00
5.00
5.00
5.00
6.75
H
7.68
10.31
12.93
18.18
15.56
Data subject to change without notice
© 2017. Hammond Manufacturing Ltd. All rights reserved.
https://www.hammfg.com/electrical/products/commercial/1416
2/2
