1590WDDBK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 1590WDDBK

1590WDDBK: DescriptionHeaders u0026 Wire Housings RECEPTACLE 4P DUAL ROW; CategoryTopical application Mechanical and electrical/engineering/automation; File Size334KB，1 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com

Download Datasheet Parametric Compare View All

1590WDDBK Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1590WDDBK	-	-	View	Buy Now

1590WDDBK Overview

Headers u0026 Wire Housings RECEPTACLE 4P DUAL ROW

1590WDDBK Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	Hammond
RoHS	Details
Product	Boxes
Type	With Cover Panel
Material	Aluminum
Color	Black
Length	7.4 in
Width	4.7 in
Height	1.3 in
IP Rating	IP65
Dimensions	7.4 in L x 4.7 in W x 1.3 in H
Features	Designed To Meet IP65
Height - in	1.3
Height - mm	33.02
Length - in	7.4
Length - mm	187.96
Factory Pack Quantity	1
Width - in	4.7
Width - mm	119.38
Unit Weight	1 lb

Preview

Download Datasheet

View All

178.00

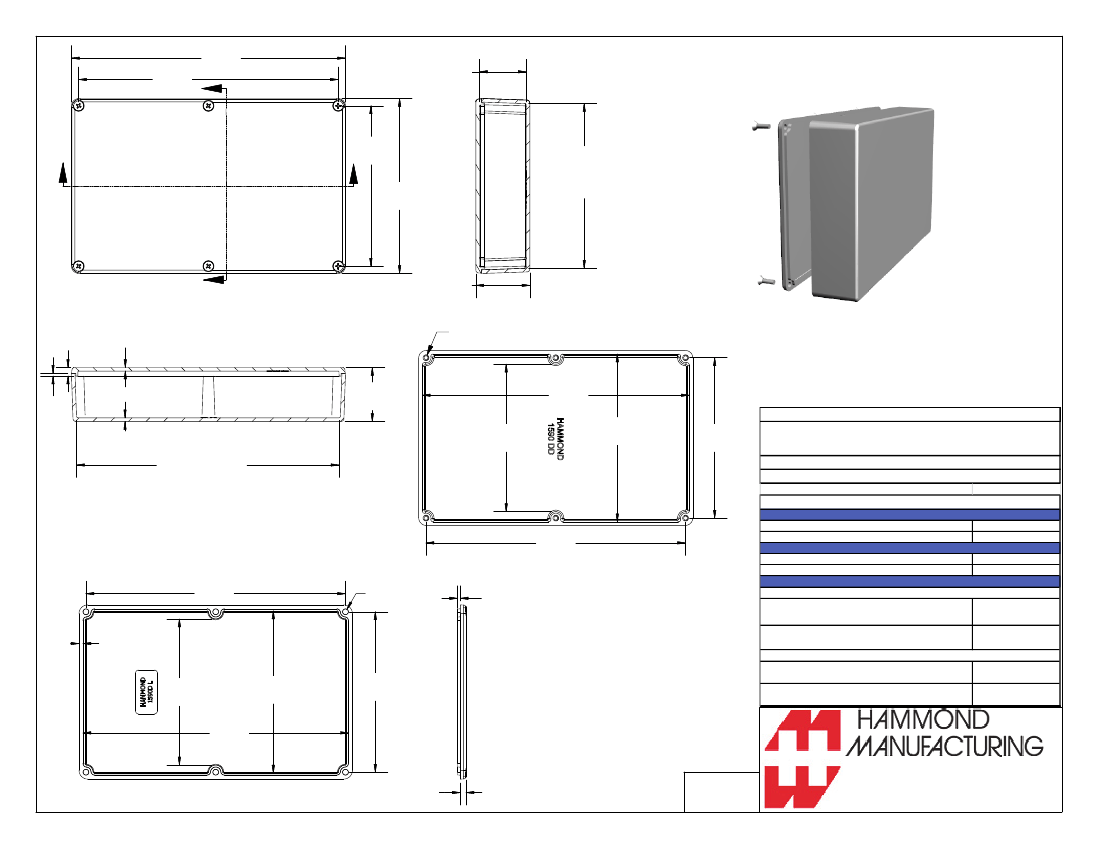

[7.008]

188.00

[7.402]

32.00

[1.260]

INSIDE

HEIGHT

110.00

[4.331]

120.00

[4.724]

112.93

[4.446]

INSIDE

WIDTH

TOP VIEW

5.90

[.232]

2.50

[.098]

37.00

[1.457]

6X 6-32 UNC

 

4.00



3.00

SECTION A-A

END VIEW

1.90

[.075]

2.50

[.098]

179.93

[7.084]

INSIDE LENGTH

37.00

[1.457]

101.07

[3.979]

183.00

[7.205]

115.00

[4.527]

110.00

[4.331]

Enclosures can be Factory Modified ( Milling, Drilling, Printing etc.)

Contact Factory

mjm@hammondmfg.com for quotes

Solid models of this enclosure available in STEP or IGES.

(Part number and text placement/orientation on our products are subject to change,

we do not recommend using them as a locating reference for modification purposes)

NOTE

Purchased assembly includes box, lid and 6 cover screws.

Box and lid are made from Diecast Aluminum Alloy.

Silicone Gasket supplied with liquid resistant enclosure.

Recommended Torque: 50-55 cN.m [71-78 ozf.in]

Recommended Torque with Gasket : 25-30 cN.m [36-43 ozf.in]

SECTION B-B

SIDE VIEW

178.00

[7.008]

PART NUMBERS

1590DD Enclosure

1590DD

Natural Finish Enclosure

1590DDBK

Black Textured Enclosure

1590DD Liquid Resistant Enclosure (Silicone Gasket)

1590W DD

Natural Finish Enclosure

1590W DDBK

Black Textured Enclosure

ACCESSORIES

INSIDE BOX

177.98

[7.007]

2.75

[.108]

100.03

[3.938]

182.00

[7.165]

111.24

[4.379]

109.98

[4.330]



4.00

[.157]

1.90

[.075]

Liquid Resistant Cover Screws

Stainless Steel Cover Screw s (Pkg 100)

[6-32 x 1/2" W ith O-Ring]

Black Stainless Steel Cover Screw s (Pkg 100)

[6-32 x 1/2" W ith O-Ring]

1590W MS100

1590W MS100BK

Standard Cover Screws

Plated Cover Screw s (Pkg 100)

[6-32 x 1/2"]

Black Cover Screw s (Pkg 100)

[6-32 x 1/2"]

1590MS100

1590MS100BK

INSIDE LID

4.00

[.157]

Dimensions:

[inches]

1590DD

www.hammondmfg.com

1590WDDBK Related Products

	1590WDDBK	1590DDBK	1590DDF	1590WDD	1590DD	1590DDFBK	1590DDGY	1590DDFLBK	1590DDFL
Description	Headers u0026 Wire Housings RECEPTACLE 4P DUAL ROW	IC u0026 Component Sockets 8P DUAL WIPE DIPSKT	Test Plugs u0026 Test Jacks BANANA PLUG BLACK	Enclosures, Boxes, u0026 Cases Diecast, Unpainted 7.38 x 4.7 x 1.457"		ARM Microcontrollers - MCU ARM Cortex-M0+ 256KBFlash 40KB SRAM	Enclosures, Boxes, u0026 Cases Diecast Alum Black 4.4 x 2.38 x 1.06"	Audio Indicators u0026 Alerts 70DB 4.00KHZ 12.0MM	Phone Connectors 2 COND 1/4" BLK
Product Category	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases
Manufacturer	Hammond	Hammond	Hammond	Hammond	Hammond	Hammond	Hammond	Hammond	Hammond
RoHS	Details	Details	Details	Details	Details	Details	Details	Details	Details
Product	Boxes	Boxes	Boxes	Boxes	Boxes	Boxes	Boxes	Boxes	Boxes
Type	With Cover Panel	With Cover Panel	With Cover Panel	With Cover Panel	With Cover Panel	Water Resistant, Flanged Cover Panel	With Cover Panel	With Cover Panel	With Cover Panel
Material	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
Length	7.4 in	7.38 in	7.4 in	7.4 in	7.38 in	7.4 in	7.38 in	7.4 in	7.4 in
Width	4.7 in	4.7 in	4.7 in	4.7 in	4.7 in	4.7 in	4.7 in	4.7 in	4.7 in
Height	1.3 in	1.3 in	1.3 in	1.3 in	1.457 in	1.3 in	2.05 in	1.3 in	1.3 in
IP Rating	IP65	IP54	IP54	IP65	IP54	IP54	IP54	IP54	IP54
Dimensions	7.4 in L x 4.7 in W x 1.3 in H	7.38 in L x 4.7 in W x 1.3 in H	7.4 in L x 4.7 in W x 1.3 in H	7.4 in L x 4.7 in W x 1.3 in H	7.38 in L x 4.7 in W x 1.457 in H	7.4 in L x 4.7 in W x 1.3 in H	7.38 in L x 4.7 in W x 2.05 in H	7.4 in L x 4.7 in W x 1.3 in H	7.4 in L x 4.7 in W x 1.3 in H
Features	Designed To Meet IP65	Interlocking Lid Provides Complete Rf Shielding	Interlocking Lid Provides Complete Rf Shielding	Designed To Meet IP65	Interlocking Lid Provides Complete Rf Shielding	Lid Screws Are Exposed For Easy Enclosed Access	Diecast Aluminum Enclosures	Interlocking Lid Provides Complete Rf Shielding	Interlocking Lid Provides Complete Rf Shielding
Height - in	1.3	1.3	1.3	1.3	1.457	1.3	2.05	1.3	1.3
Height - mm	33.02	33.02	33.02	33.02	37.008	33.02	52.07	33.02	33.02
Length - in	7.4	7.38	7.4	7.4	7.38	7.4	7.38	7.4	7.4
Length - mm	187.96	187.452	187.96	187.96	187.452	187.96	187.452	187.96	187.96
Factory Pack Quantity	1	1	1	1	30	1	1	1	1
Width - in	4.7	4.7	4.7	4.7	4.7	4.7	4.7	4.7	4.7
Width - mm	119.38	119.38	119.38	119.38	119.38	119.38	119.38	119.38	119.38
Unit Weight	1 lb	1 lb	1 lb	1 lb	1 lb	1 lb	1 lb	1 lb	1 lb
Color	Black	Black	-	-	-	Black	Gray	Black	-
