C-10TR-RD: DescriptionEnclosures, Boxes, u0026 Cases 2.3X3.25X.80 RD; CategoryTopical application Mechanical and electrical/engineering/automation; File Size128KB，2 Pages; ManufacturerSERPAC

Download Datasheet Parametric Compare View All

C-10TR-RD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	C-10TR-RD	-	-	View	Buy Now

C-10TR-RD Overview

Enclosures, Boxes, u0026 Cases 2.3X3.25X.80 RD

C-10TR-RD Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	SERPAC
RoHS	Details
Product	Cases
Type	Hand Held
Material	Plastic
Color	Red
Length	58.42 mm
Width	82.55 mm
Height	20.32 mm
Flammability Rating	UL 94 HB
Packaging	Bulk
Dimensions	58.42 mm L x 82.55 mm W x 20.32 mm H
Features	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design
Factory Pack Quantity	1
Unit Weight	0.576024 oz

Preview

Download Datasheet

View All

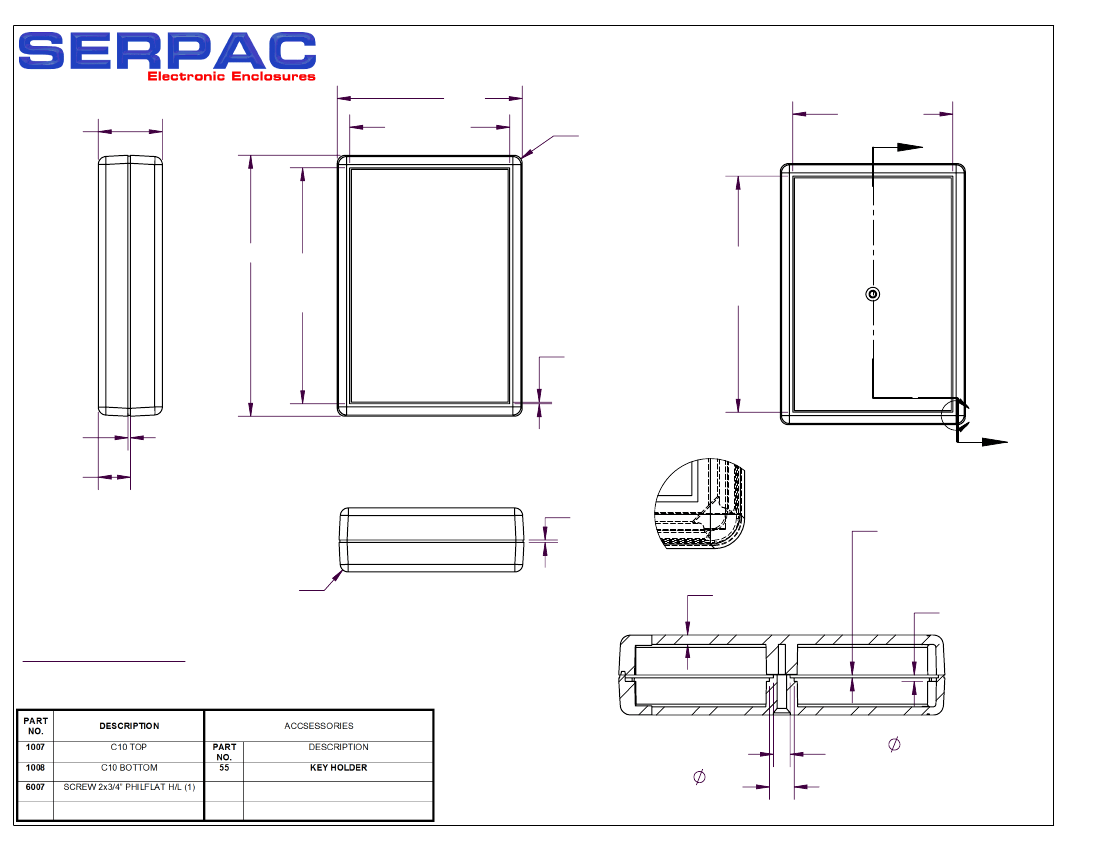

C10

.80

2.00

Insert Area

2.31

R.10

typ.

NOTES:

1) When machine or I-plates modifications are required,

use the center of the enclosure to dimension.

2.00

Insert Area

3.26

2.95

Insert

Area

.02 W

X .01 D

2.95

Insert

Area

.03

.40

Top

DETAIL B

corner detail

Bottom

.03

@ perimeter

to trap

0.032" thk

PCB

.07

@ 4 corners

to trap

0.065" thk

PCB

.03

R.10

typ.

Enclosure can hold either a 0.032" PCB or a 0.063 PCB

PCB dimensions are:

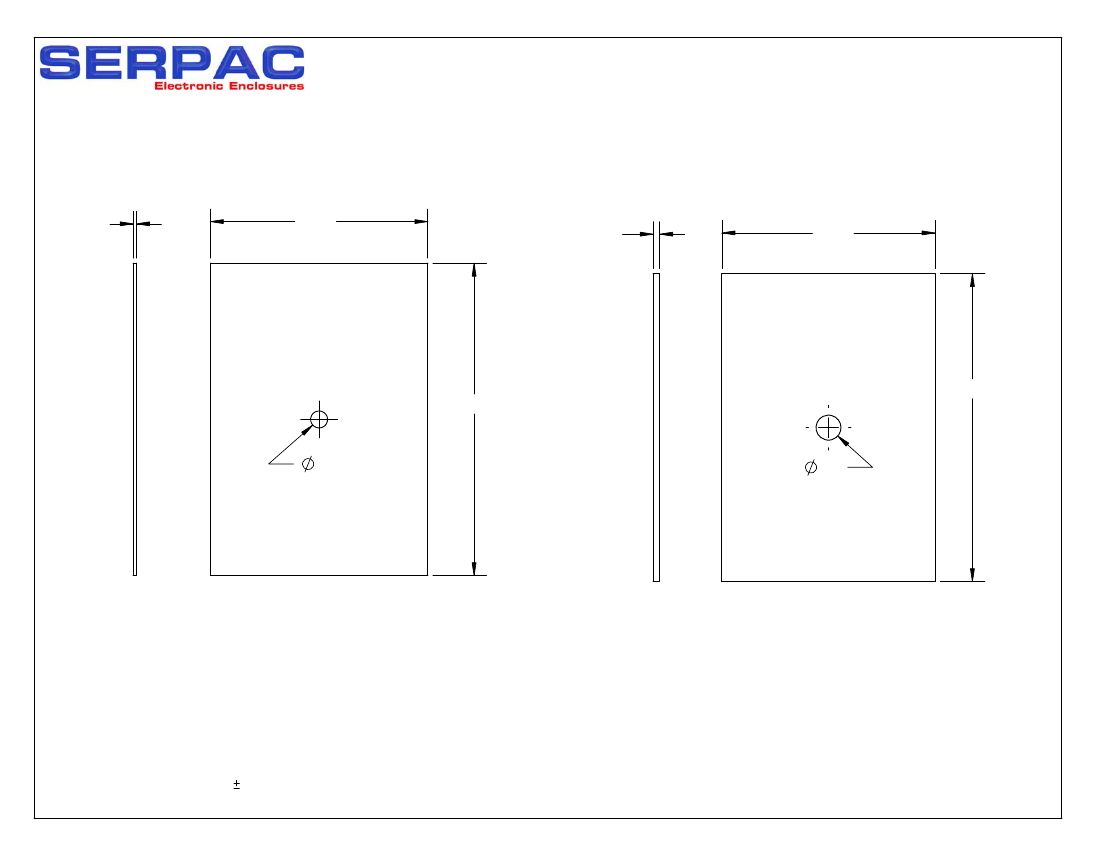

(PCB drawings on page 2)

0.032" [.8mm] PCB 3.13" X 2.18"

0.063" [1.6mm] PCB 3.08" X 2.13"

Top

Bottom

SECTION A-A

.25

for 0.063" PCB

.10

typ.

.17

for 0.032" PCB

11/10/11

ALL DIMENSIONS ARE ± .010"

2009 Wright Ave., La Verne, CA 91750

Ph. (626) 331-0517 Fx. (626) 331-8584 www.serpac.com

C-10TR-RD Related Products

	C-10TR-RD	C-10-A	C-10TR-GR	C-10-B	C-10TR-BL	C-10TR-GY	C-10-G	C-10-PC-ALMOND	C-10-PC-BLACK	C-10-PC-GRAY
Description	Enclosures, Boxes, u0026 Cases 2.3X3.25X.80 RD	8-bit Microcontrollers - MCU 16KB 12ADC 24QSOP	Enclosures, Boxes, u0026 Cases 2.3X3.25X.80 GR			Enclosures, Boxes, u0026 Cases 2.3X3.25X.80 GY	8-bit Microcontrollers - MCU 16-bit PWM 256 RAM 3.5KB Comparator	Enclosures, Boxes, u0026 Cases 2.3X3.25X.80 W/PC AL	Enclosures, Boxes, u0026 Cases 2.3X3.25X.80 W/PC BK	Enclosures, Boxes, u0026 Cases 3.27x2.13x1.10 w/ Mounting Bracket
Product Category	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases
Manufacturer	SERPAC	SERPAC	SERPAC	SERPAC	SERPAC	SERPAC	SERPAC	SERPAC	SERPAC	SERPAC
RoHS	Details	Details	Details	Details	Details	Details	Details	Details	Details	Details
Product	Cases	Cases	Cases	Cases	Cases	Cases	Cases	Cases	Cases	Cases
Type	Hand Held	Hand Held	Hand Held	Hand Held	Hand Held	Hand Held	Hand Held	Hand Held	Hand Held	Hand Held
Material	Plastic	Plastic	Plastic	Plastic	Plastic	Acrylonitrile Butadiene Styrene (ABS)	Plastic	Acrylonitrile Butadiene Styrene (ABS)	Plastic	Plastic
Color	Red	Brown	Green	Black	Blue	Gray	Gray	Almond	Black	Gray
Flammability Rating	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB
Features	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design
Factory Pack Quantity	1	1	1	1	1	1	1	1	1	1
Unit Weight	0.576024 oz	0.576024 oz	0.576024 oz	0.576024 oz	0.576024 oz	0.576024 oz	0.576024 oz	0.687842 oz	0.687842 oz	0.687842 oz
Length	58.42 mm	58.42 mm	58.42 mm	58.42 mm	58.42 mm	-	58.42 mm	-	82.55 mm	82.55 mm
Width	82.55 mm	82.55 mm	82.55 mm	82.55 mm	82.55 mm	-	82.55 mm	-	58.42 mm	58.42 mm
Height	20.32 mm	20.32 mm	20.32 mm	22.61 mm	20.32 mm	-	20.32 mm	-	20.32 mm	20.32 mm
Dimensions	58.42 mm L x 82.55 mm W x 20.32 mm H	58.42 mm L x 82.55 mm W x 20.32 mm H	58.42 mm L x 82.55 mm W x 20.32 mm H	58.42 mm L x 82.55 mm W x 22.61 mm H	58.42 mm L x 82.55 mm W x 20.32 mm H	-	58.42 mm L x 82.55 mm W x 20.32 mm H	-	82.55 mm L x 58.42 mm W x 20.32 mm H	82.55 mm L x 58.42 mm W x 20.32 mm H
