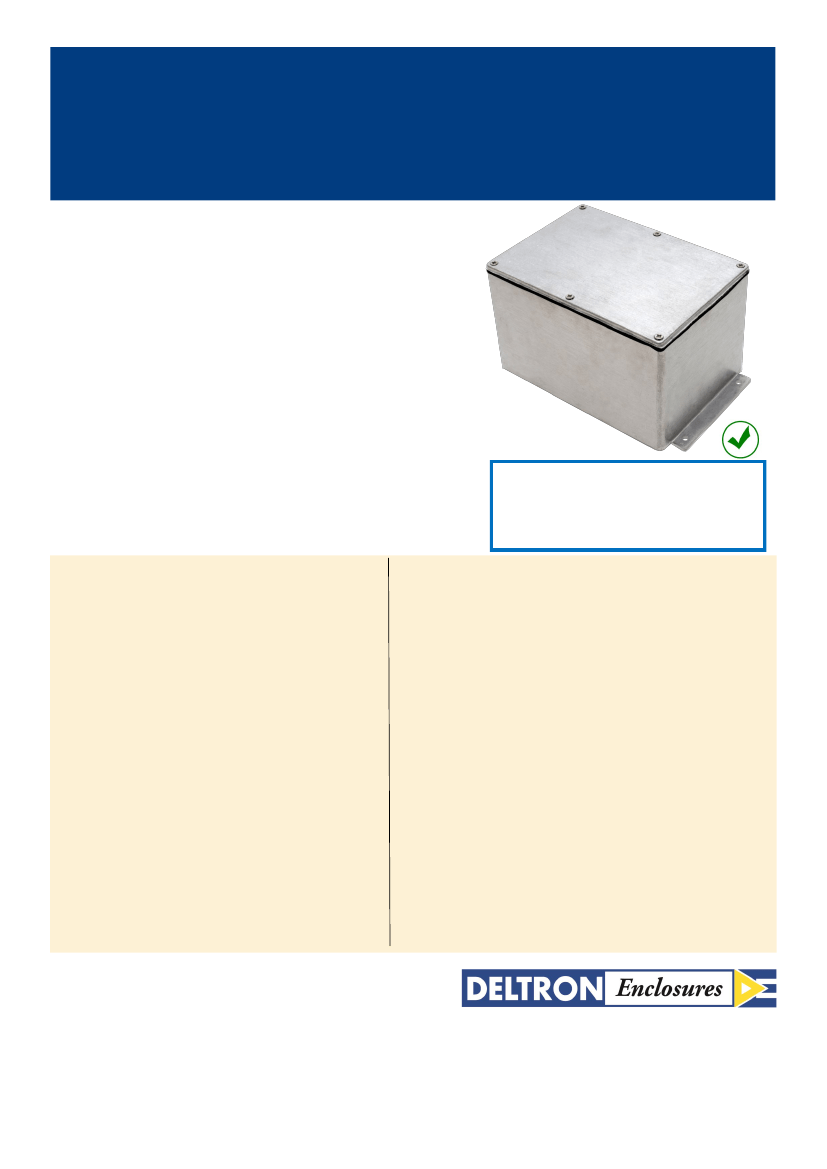

IP66 General Purpose Enclosures
Technical Specification
If you require light protection against water ingress,
this range could be ideal. With an IP66 seal, this
range is dust proof, splash proof and protects from
powerful jets of water, as per BS EN 60529:1992.
15 sizes are available, complete with captive screws,
earth screws and PCB guides on selected sizes. Nine
sizes are also available with flanges for easy mounting.
Deltron Enclosures can customise any enclosure in our
UK factory, including machining, painting, component
sourcing and installation to meet your specification,
save time and cut your costs. View our Services page
on our website for more information.
For more information:
Phone: +44 (0)1724 273206
Features:
IP66 Rated
Manufactured from ADC12
Certified to BS EN 60529:1992
RoHS Compliant
Typical Applications:
Available Dimensions (mm):
89 x 35 x 31*
114 x 64 x 31*
114 x 89 x 56*
114 x 65 x 56*
172 x 121 x 56*
172 x 121 x 107*
222 x 146 x 56*
222 x 146 x 107
275 x 175 x 66
140 x 102 x 77*
165 x 127 x 77
120 x 100 x 36*
250 x 250 x 100
80 x 55 x 26
60 x 55 x 31
*= Available with Flanges
Finishes:
Plain Aluminium, Powder or Nylon coat.
Coating Colours:
Grey, Blue or Black.
Or choose to have your enclosure customised for
bespoke finishes and colours.
Test & Measurement Instrumentation
Medical Tools
Transportation Equipment
Industrial Controls
Lighting Applications
DEM Manufacturing
Deltron Emcon House,
Hargreaves Way,
Sawcliffe Industrial Park,
Scunthorpe, DN15 8RF.
Web: www.dem-uk.com/deltron-enclosures
Tel: +44 (0) 1724 273206
Fax: +44 (0) 1724 280353
Email: sales@dem-uk.com
REV
010
009
DATE
06 Jun 2017
06 Jun 2017
1
ECN NUMBER
C03614
C03614
ECR COMMENT
TORQUE SETTINGS ADDED
TORQUE SETTINGS ADDED
2
3
4
5
6
7
FLG
LENGTH WIDTH HEIGHT
LENGTH
202
174
123
106
SEAL
NONE
IP66
IP68
IP68 EMI/RFI
A
TORQUE
SETTINGS
NONE
0.3Nm
0.7Nm
1.0Nm
PLAIN
455-0060
456-0060
483-0060
483-C060
POWDER COAT
457-0060*
463-0060*
484-0060*
484-C060*
NYLON COAT
458-0060*
464-0060*
485-0060*
485-C060*
A
BOX DIMENSION IN MM
COLOUR OPTION - COLOUR SUFFIX * GREY=A / BLUE=B / BLACK = E

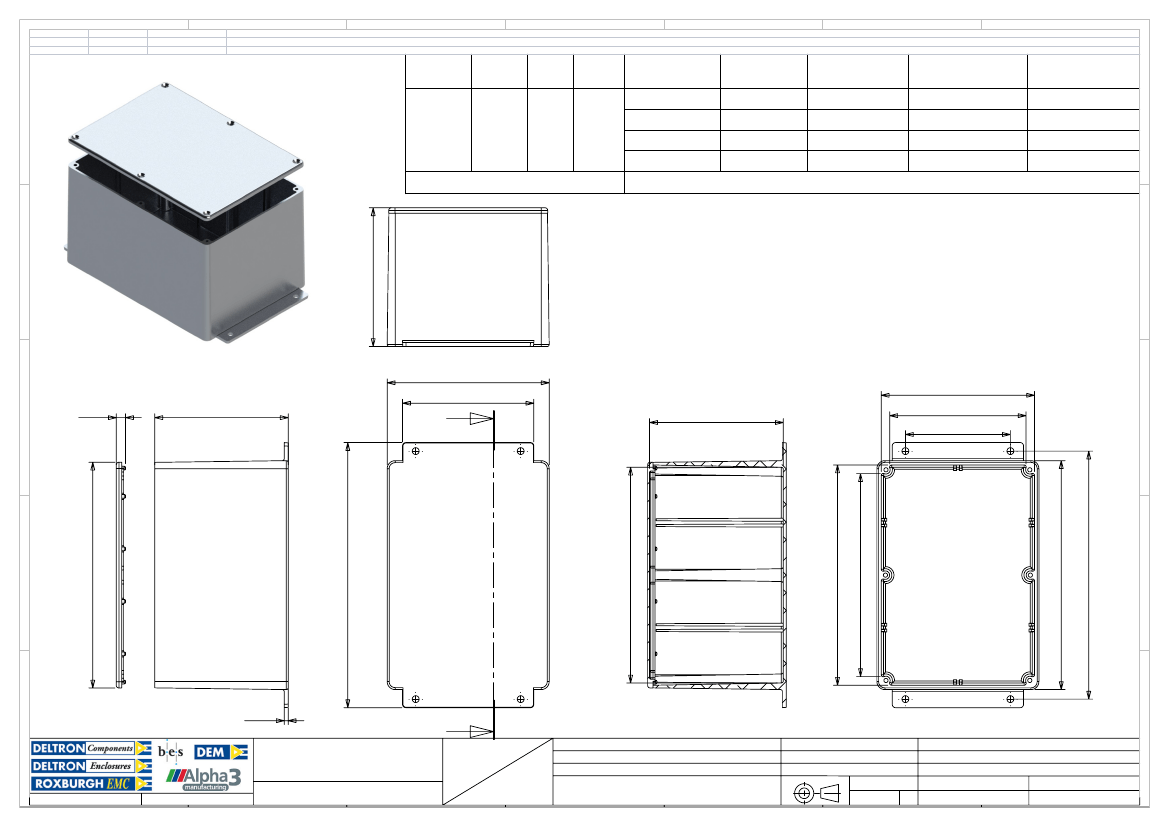

STANDARD DUTY ENCLOSURE
•
Material grade ADC12/LM2 Die Cast Alloy
•
IP Rated available
•
Min wall thickness 1.5mm
•
Min lid thickness 1.5mm
•
Fine textured powder coating and smooth nylon
•
Screws stainless steel
•
IP68 Tested to 5 metres for 1 hour
•
Includes internal PCB guides
•
Enclosures can be supplied fully factory customised to your specification
117
102
104
MAX INTERNAL HEIGHT
80
B
B
106
C
7
102
A
123
100
C
164
MAX INTERNAL WIDTH
168
155
172
202
E
3
PROPRIETARY AND CONFIDENTIAL:
A
SECTION A-A
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN MILLIMETRES
174
D
189 HOLE CENTRES
D
E
AUTHOR
EDITOR
APPROVER
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF
ALPHA 3 MANUFACTURING.
ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF
ALPHA 3 MANUFACTURING
IS PROHIBITED.
DEM Manufacturing is a division of Alpha 3 Manufacturing LTD
DEM Manufacturing, Deltron Emcon House, Hargreaves Way,
Sawcliffe Ind. Park, Scunthorpe, North Lincolnshire, DN15 8RF, UK
IF IN DOUBT ASK! DO NOT SCALE DRAWING!
FINISH
MATERIAL
Alex Yau
DT
DT
SHEET 1 OF 1
+44(0)1724 273200
www.dem-uk.com
LINEAR & RADIAL TOLERANCE:
NO DECIMAL PLACES
1 DECIMAL PLACE
2 DECIMAL PLACES
ANGULAR TOLERANCE:
SEE NOTES
ALUMINIUM ALLOY
THIRD ANGLE PROJECTION
THE FINISHED PRODUCT SHOULD BE CLEAN AND FREE FROM ALL
LIQUIDS AND DEBRIS. SURFACES SHOULD BE OF UNIFORM
APPEARANCE FREE FROM SHARP EDGES, BURRS AND CORROSION
SCALE 1:3
A4
FLANGED ENCLOSURE
F FLG ENCLOSURE
PART
BOX & LID ASSEMBLY
ISSUE/REV.
VERSION
010
64
EDIT DATE
RELEASED
06 Jun 2017
TITLE
FILE
