PIP-11772 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> PIP-11772

PIP-11772: DescriptionCoin Cell Battery 3V 20X3.2MM 225mAH; CategoryTopical application Mechanical and electrical/engineering/automation; File Size73KB，1 Pages; ManufacturerBud Industries

Download Datasheet Parametric Compare View All

PIP-11772 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PIP-11772	-	-	View	Buy Now

PIP-11772 Overview

Coin Cell Battery 3V 20X3.2MM 225mAH

PIP-11772 Parametric

Parameter Name	Attribute value
Product Category	Electrical Enclosures
Manufacturer	Bud Industries
RoHS	Details
Product	Commercial Enclosures
Type	NEMA Enclosure
Material	Polycarbonate
Color	Gray
Length	180.01 mm
Width	180.01 mm
Height	75.01 mm
IP Rating	IP67
NEMA Rating	4X, 6
Packaging	Bulk
Dimensions	180.01 mm L x 180.01 mm W x 75.01 mm H
Factory Pack Quantity	1

Preview

Download Datasheet

View All

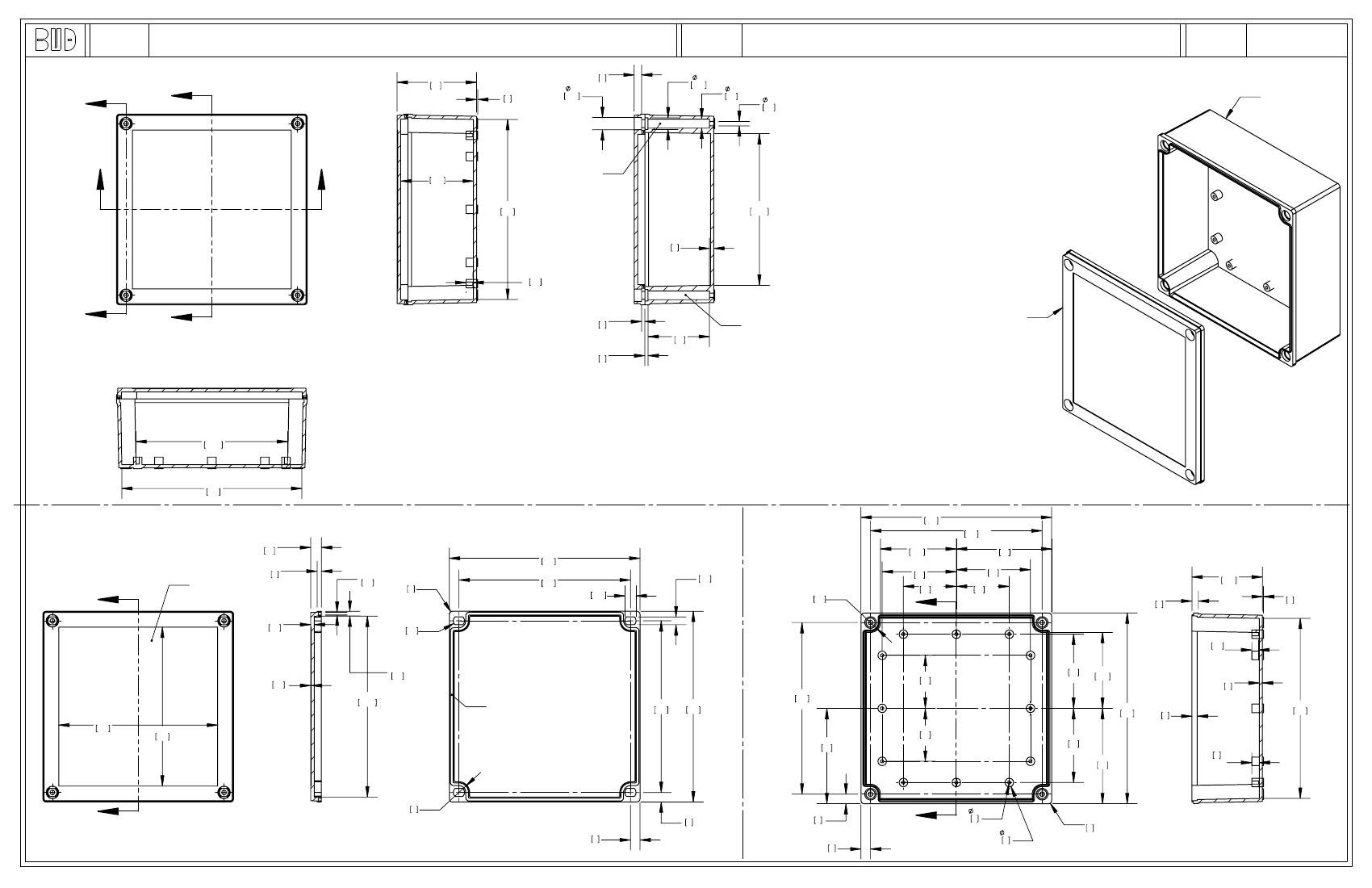

PART

NAME

PIP SERIES - PC 10% FIBERGLASS BOX

2.95

.28

.04

PADS

.45

11.5

TYP.

.43

10.9

PART

No.

PIP-11772

.33

8.5

.16

4.2

PIP-11772-C

REVISION

DATE

12-3-15

BODY

2.71

68.7

REF.

6.69

170

MATING THREAD

FOR CAPTIVE SCREW

TYPICAL-SEE NOTE 4

5.64

143.3

NOTES:

1- MATERIAL: BODY - POLYCARBONATE 10% FIBERGLASS REINFORCED

COVER - POLYCARBONATE

UL508 /NEMA TYPE 4X WITH IP-67 TUV RATING & UL-94V0 RATING

2- FINISH: BODY - LIGHT GRAY

COVER - LIGHT GRAY OR CLEAR (-C)

3- SUPPLIED WITH FOUR NON-METALLIC CAPTIVE SCREWS FOR COVER

MOUNTING

4- CONTINUOUS GASKET IN COVER

5- SUPPLIED WITH FOUR M4 x 8mm LG. TRUSS HEAD MACHINE SCREWS

6- DIMENSIONS ARE INCH [MM]

7- DRAWING FOR REFERENCE

8- OPTIONAL ACCESSORIES:

INTERNAL STEEL PANEL - #PIX-11772

MOUNTING BRACKET KIT (STAINLESS STEEL) - #NBX-10922

MOUNTING BRACKET KIT (PLASTIC) - #PIX-4117

.16

TYP.

.26

6.5

DEEP TYP.

SECTION C-C

SECTION E-E

ASSEMBLY

5.64

143.3

.12

COVER

2.28

MATING THREAD FOR

CAPTIVE SCREW TYP.

SEE NOTE 4

.12

SECTION D-D

ISOMETRIC

6.69

170

7.09

180

6.38 TYP.

162

3.54

2.76

1.97 TYP.

2.62

66.5

.24

.04

.39

.16

7.09

180

.10

2.5

R.12

TYP.

6.38

162

.30

7.5

TYP.

2.82

71.6

2.76

1.97 TYP.

RECESS

.41

10.5

TYP.

R.32

8.3

TYP.

.13

3.3

R.21

5.3

TYP.

.02

0.5

RECESS

.18

4.5

6.72

170.8

6.38

162

TYP.

1.97

TYP.

2.76

TYP.

.26

6.5

DEEP

TYP.

2.82

71.6

.12

7.09

180

6.69

170

5.91

150

CONTINUOUS

GASKET

6.38

162

7.09

180

5.91

150

3.54

1.97

TYP.

.20

TYP.

2.76

TYP.

3.54

.28

BOSS

HEIGHT

TYP.

COVER - TOP VIEW

SECTION B-B

COVER

R.35

TYP.

COVER - BACK VIEW

.35

TYP.

.35

TYP.

.35

TYP.

.35

TYP.

.12

TYP.

.31

TYP.

R.12 TYP.

BODY

SECTION A-A

PIP-11772 Related Products

	PIP-11772	PIP-11772-C
Description	Coin Cell Battery 3V 20X3.2MM 225mAH
Product Category	Electrical Enclosures	Electrical Enclosures
Manufacturer	Bud Industries	Bud Industries
RoHS	Details	Details
Product	Commercial Enclosures	Commercial Enclosures
Type	NEMA Enclosure	NEMA Enclosure
Material	Polycarbonate	Polycarbonate
Color	Gray	Gray
Length	180.01 mm	180.01 mm
Width	180.01 mm	180.01 mm
Height	75.01 mm	75.01 mm
IP Rating	IP67	IP67
NEMA Rating	4X, 6	4X, 6
Packaging	Bulk	Bulk
Dimensions	180.01 mm L x 180.01 mm W x 75.01 mm H	180.01 mm L x 180.01 mm W x 75.01 mm H
Factory Pack Quantity	1	1
