DTL65-36SX-W6: DescriptionPushbutton Switches Off-(On) SS; CategoryPower/power management; File Size739KB，3 Pages; ManufacturerETA-USA

Download Datasheet Parametric Compare View All

DTL65-36SX-W6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DTL65-36SX-W6	-	-	View	Buy Now

DTL65-36SX-W6 Overview

Pushbutton Switches Off-(On) SS

DTL65-36SX-W6 Parametric

Parameter Name	Attribute value
Product Category	Desktop AC Adapters
Manufacturer	ETA-USA
RoHS	Details
Region	Universal
Input Voltage	90 VAC to 264 VAC
Number of Outputs	1 Output
Output Power	65 W
Output Voltage-Channel 1	36 V
Output Current-Channel 1	1.81 A
Commercial/Medical	Commercial
DC Output Connector	2.5 mm Barrel Plug
DC Output Cord Length	1.05 m
Efficiency	Level VI
AC Plug included/required	Required
Height	40 mm
Length	132 mm
Load Regulation	Regulated
Mounting Style	Desktop
Factory Pack Quantity	1
Width	69 mm
Unit Weight	1 lb

Preview

Download Datasheet

View All

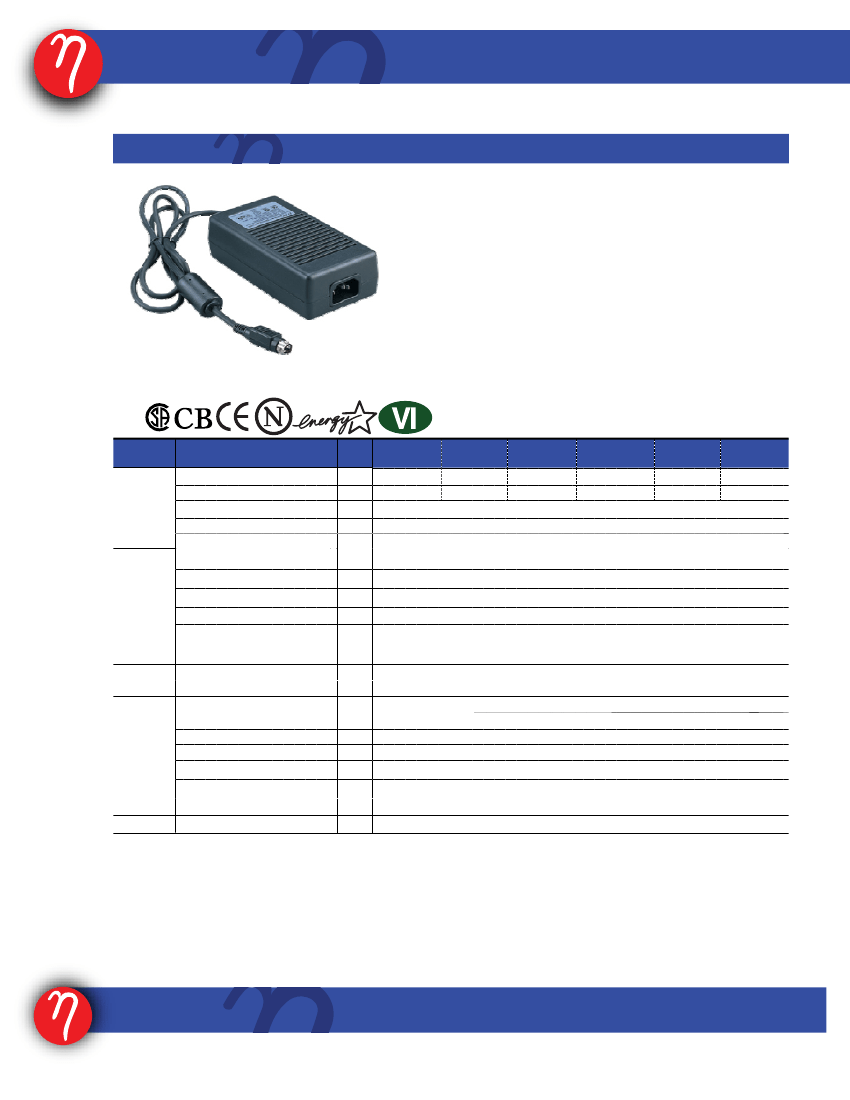

ETA-USA

DTL-SX-W6

The Power Professionals

65W

Meets Energy Star efficiency levelVI

3-pole IEC320-C14 AC inlet class I

No load power consumption

<210mW

Power ON LED indicator

Short Circuit Protection

Over-load Protection

Over voltage protection

3 year warranty

Features

OUTPUT

MODEL/CHANNEL

Norminal Voltage

Norminal Current

Output Regulation

Hold Up Time

Ripple & Noise Max

Unit

[V]

[A]

[ms]

[mV]

[V]

[A]

[%]

DTL65-

12SX-W6

12

5.41

DTL65-

16SX-W6

15

4.33

DTL65-

19SX-W6

19

3.43

DTL65-

24SX-W6

24

2.71

DTL65-

36SX-W6

28

1.81

DTL65-

48SX-W6

48

1.36

INPUT

±5%

>10ms typical at full load @ 115

±1% of output

90-264VAC

2A @ 90Vac; 1A @ 264Vac max.

>0.9(115VAC100%Load)

47-63Hz

Input Voltage Range

Frequency

Input Current(rms)

Power factor

Efﬁciency

Inrush Current

-

%

[A]

-

mm/g

>88% @ average load, 115/230VAC

<50A peak@115VAC <100A peak@23VAC

UL 60950-1 Nemko EN60950-1 CB IEC 60950-1 Meets CSA 22.2-No.60950-1

CISPR 22 Class B,FCC Class B,EN55022 Class B,CE

0 to +70°C (derate linearly by 2.5% per °C from 51° to 70°C)

-10 to +85°C

10%~90%

>140,000 hours at full load and 25°C ambient temperature

Auto Recover

Shutdown and latch off, AC Recycle

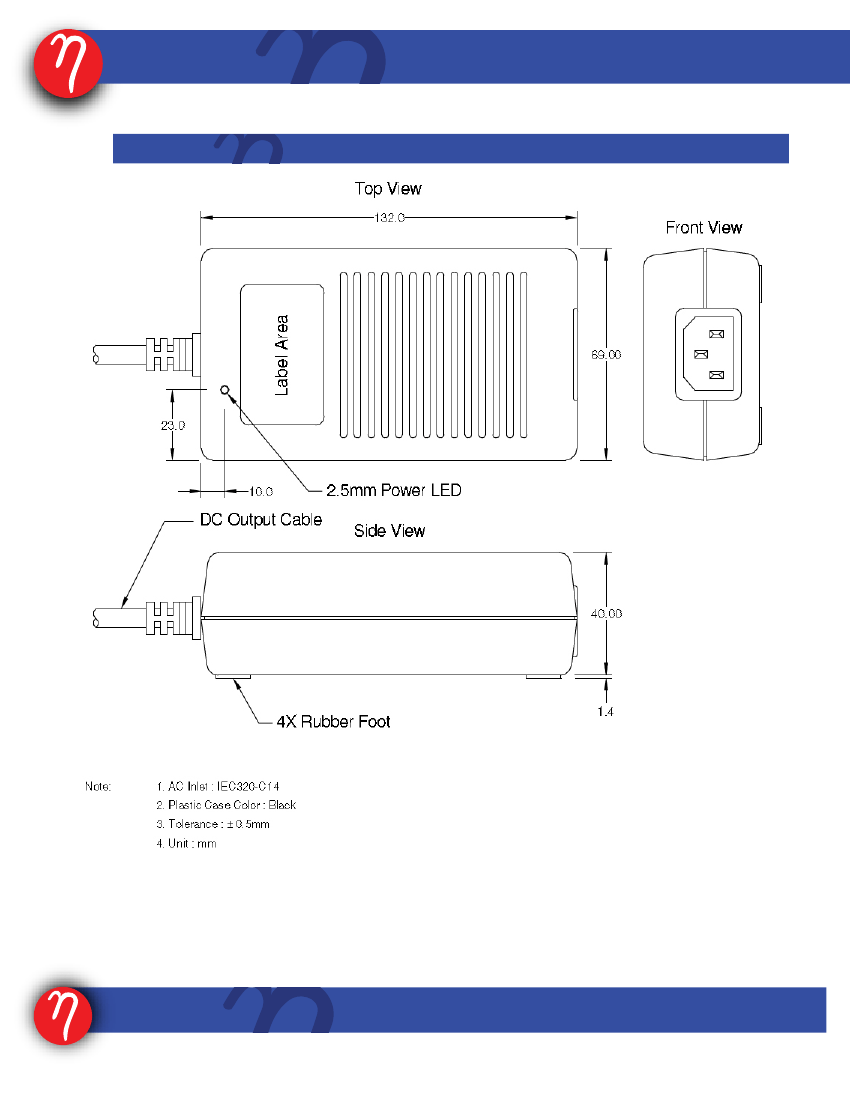

L132.0xW69.0x40.0mm/440g

Environmental

Agencies

Environment

Operating temp. & Humidity

Safety Standards

EMC Standards

Storage temp. & Humidity

Humidity

MTBF demonstrated

Over Load Protection

Short circuit protection

Over Voltage Protection

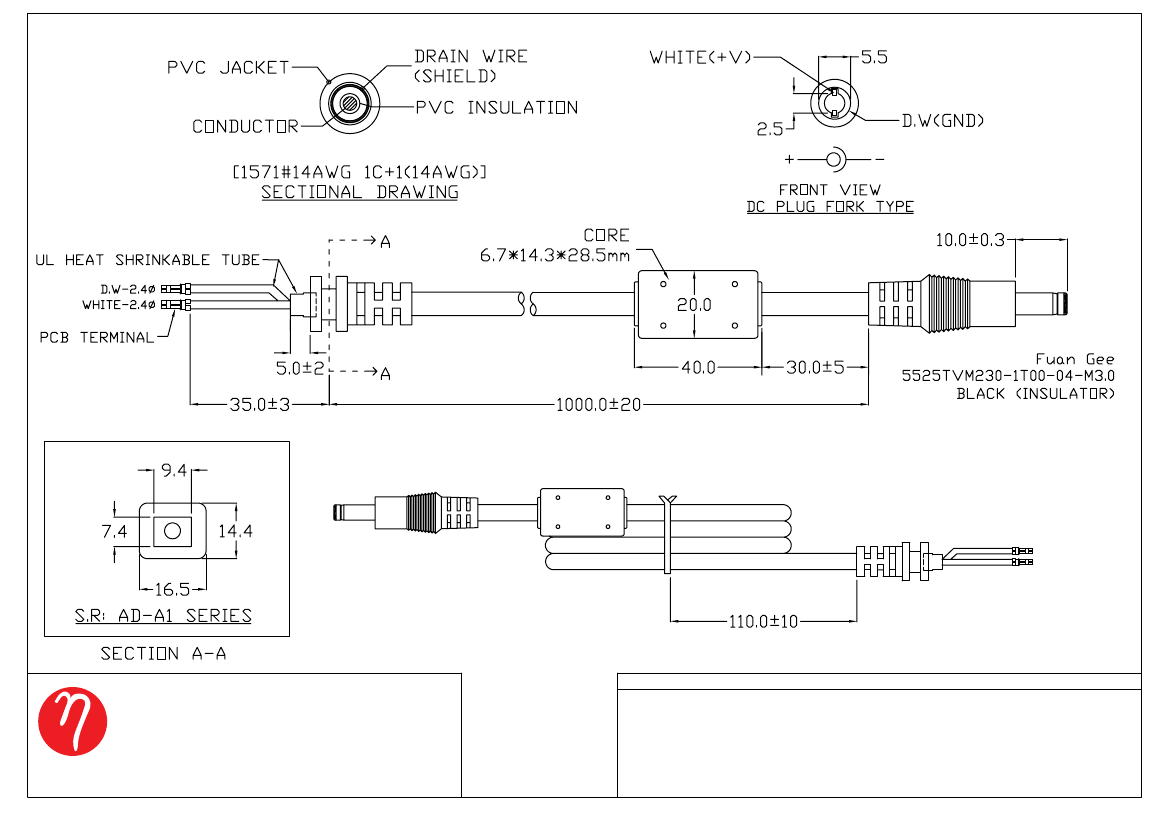

Dimension

Size(WxHxD) / Weight

ETA-USA

16170 Vineyard Blvd. Suite 180 Morgan Hill, CA 95037 http://www.eta-usa.com

Toll-free (US only): 800-ETA-POWR (800-382-7697) Telephone: 408 778-2793 FAX: 408-779-2753

DTL65-36SX-W6 Related Products

	DTL65-36SX-W6	DTL65-48SX-W6	DTL65-19SX-W6	DTL65-15SX-W6
Description	Pushbutton Switches Off-(On) SS		AC Power Cords 7.5u0027 3WIRE 18AWG BLK	Optical Sensor Development Tools Time of Flight Distance SNSR
Product Category	Desktop AC Adapters	Desktop AC Adapters	Desktop AC Adapters	Desktop AC Adapters
Manufacturer	ETA-USA	ETA-USA	ETA-USA	ETA-USA
RoHS	Details	Details	Details	Details
Region	Universal	Universal	Universal	Universal
Input Voltage	90 VAC to 264 VAC	90 VAC to 264 VAC	90 VAC to 264 VAC	90 VAC to 264 VAC
Number of Outputs	1 Output	1 Output	1 Output	1 Output
Output Power	65 W	65 W	65 W	65 W
Output Voltage-Channel 1	36 V	48 V	19 V	15 V
Output Current-Channel 1	1.81 A	1.36 A	3.43 A	5.34 A
DC Output Connector	2.5 mm Barrel Plug	2.5 mm Barrel Plug	2.5 mm Barrel Plug	2.5 mm Barrel Plug
DC Output Cord Length	1.05 m	1.05 m	1.05 m	1.05 m
Efficiency	Level VI	Level VI	Level VI	Level VI
AC Plug included/required	Required	Required	Required	Required
Height	40 mm	40 mm	40 mm	40 mm
Length	132 mm	132 mm	132 mm	132 mm
Load Regulation	Regulated	Regulated	Regulated	Regulated
Mounting Style	Desktop	Desktop	Desktop	Desktop
Factory Pack Quantity	1	1	1	1
Width	69 mm	69 mm	69 mm	69 mm
Unit Weight	1 lb	1 lb	1 lb	1 lb
Commercial/Medical	Commercial	Commercial	Commercial	-
