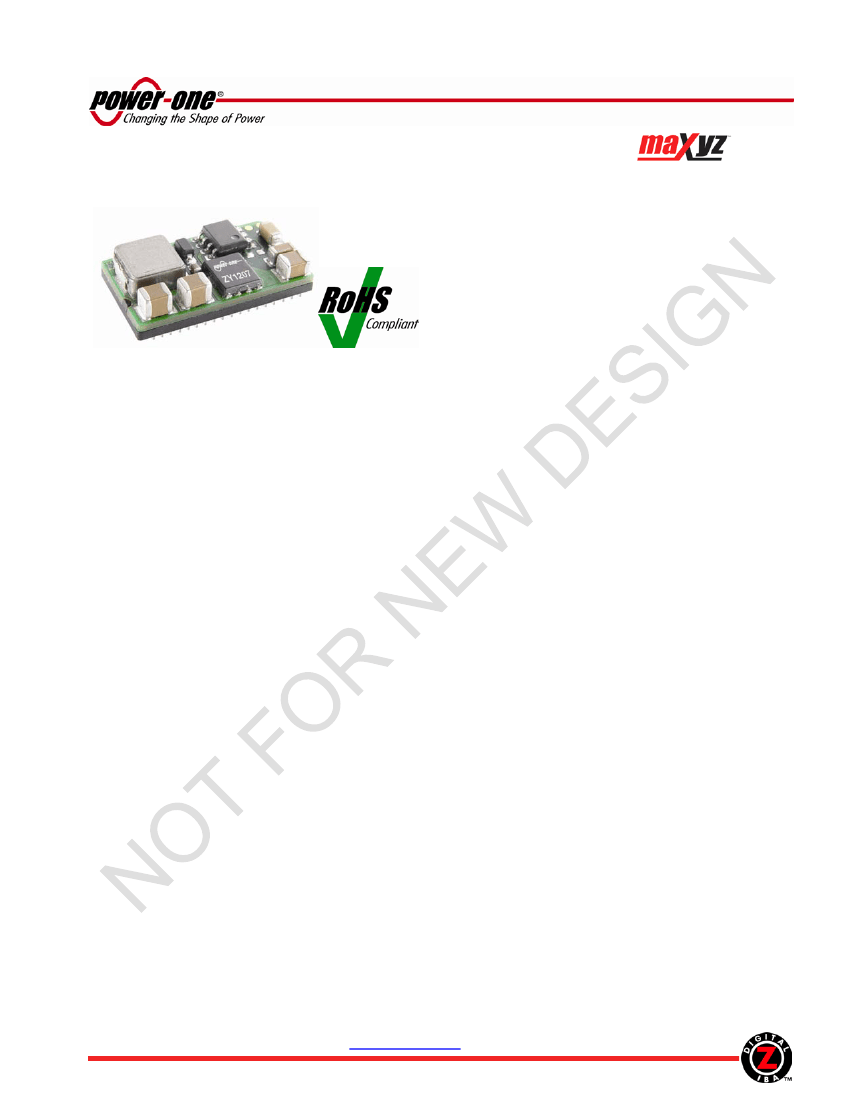

ZY1207 7A No-Bus POL Data Sheet
3V to 14V Input
•
0.5V to 5.5V Output
Member of the
Family
Applications
•
Low voltage, high density systems with
Intermediate Bus Architectures (IBA)
•
Point-of-load regulators for high performance DSP,
FPGA, ASIC, and microprocessor applications
•
Desktops, servers, and portable computing
•
Broadband, networking, optical, and
communications systems
•
Active memory bus terminators
Benefits
•
Integrates digital power conversion with intelligent
power management
•
Eliminates the need for external power
management components and communication bus
•
Completely programmable via pin strapping and
external R and C
•
One part that covers all applications
•
Reduces board space, system cost and
complexity, and time to market
Features
•
RoHS lead free and lead-solder-exempt products are
available
•
Wide input voltage range: 3V–14V
•
High continuous output current: 7A
•
Wide programmable output voltage range: 0.5V–5.5V
•
Active digital current share
•
Output voltage margining
•
Overcurrent and overtemperature protections
•
Overvoltage and undervoltage protections, and Power
Good signal tracking the output voltage setpoint
•
Programmable power-up delay
•
Tracking during turn-on and turn-off with guaranteed
slew rates
•
Sequenced and cascaded modes of operation
•
Single-wire line for frequency synchronization
between multiple POLs
•
Programmable interleave
•
Programmable feedback loop compensation
•
Enable control with programmable polarity
•
Flexible fault management and propagation
•
Start-up into the load pre-biased up to 100%
•
Full rated current sink
•
Real time current and temperature measurements,
monitoring, and reporting
•
Small footprint SMT package: 12.5x22mm
•
Low profile of 6.5mm
•
Compatible with conventional pick-and-place
equipment
•
Wide industrial operating temperature range
•
UL 60950-1/CSA 22.2 No. 60950-1-07 Second
Edition, IEC 60950-1: 2005, and EN 60950-1:2006
Description
Power-One’s point-of-load converters are recommended for use with regulated bus converters in an Intermediate
Bus Architecture (IBA). The ZY1207 is an intelligent, fully programmable step-down point-of-load DC-DC module
integrating digital power conversion and intelligent power management. The ZY1207 completely eliminates the
need for external components for sequencing, tracking, protection, monitoring, and reporting. Performance
parameters of the ZY1207 are programmable by pin strapping and external resistor and capacitor and can be
changed by a user at any time during product development and service without a need for a communication bus.
ZD-00697 Rev. 2.1, 11-Oct-2011
www.power-one.com
Page 1 of 18
ZY1207 7A No-Bus POL Data Sheet
3V to 14V Input
•
0.5V to 5.5V Output
Reference Documents
TM
No-Bus POL Converters. Z-1000 Series Application Note
®
Z-One POL Converters. Eutectic Solder Process Application Note
®
Z-One POL Converters. Lead-Free Process Application Note
1.
Ordering Information
12
Series:
No-Bus
POL
Converter
07
Output
Current:
7A
x
Output voltage setpoint
accuracy:
No suffix
– 1.5% or 35mV,
whichever is greater.
1
H
– 1.5% or 20mV,
whichever is greater
y
RoHS compliance:
No suffix
- RoHS
compliant with Pb
2
solder exemption
G
- RoHS compliant
for all six substances
–
Dash
zz
3
Packaging Option :
T1
– 500pcs T&R
T2
– 100pcs T&R
T3
– 50pcs T&R
Q1
– 1pc sample for
evaluation only
K1
– 1pc mounted on
4
the evaluation board
ZY
Product
family:
Z-One
Module
______________________________________
1
2
Contact factory for availability.
The solder exemption refers to all the restricted materials except lead in solder. These materials are Cadmium (Cd), Hexavalent chromium
(Cr6+), Mercury (Hg), Polybrominated biphenyls (PBB), Polybrominated diphenylethers (PBDE), and Lead (Pb) used anywhere except in
solder.
3
Packaging option is used only for ordering and not included in the part number printed on the POL converter label.
4
The evaluation board is available in only one configuration: ZY1207-K1.
Example:
ZY1207HG-T2:
A 100-peices reel of RoHS compliant POL converters with the output voltage setpoint
of 1.5% or 20mV, whichever is greater. Each POL converter is labeled ZY1207HG.
2.
Absolute Maximum Ratings
Stresses in excess of the absolute maximum ratings may cause performance degradation, adversely affect long-
term reliability, and cause permanent damage to the POL converter.
Parameter
Operating Temperature
Input Voltage
Output Current
Conditions/Description
Controller Case Temperature
250ms Transient
(See Output Current Derating Curves)
-7
Min
-40
Max
105
15
7
Units
°C
VDC
ADC
3.
Environmental and Mechanical Specifications
Parameter
Ambient Temperature Range
Storage Temperature (Ts)
Weight
MTBF
Peak Reflow Temperature
Lead Plating
Moisture Sensitivity Level
Calculated Per Telcordia Technologies SR-332
ZY1207
ZY1207G
ZY1207 and ZY1207G
ZY1207
ZY1207G
6.24
Conditions/Description
Min
-40
-55
Nom
Max
85
125
8
Units
°C
°C
grams
MHrs
220
°C
245
260
°C
100% Matte Tin or
1.5µm Ag over 1.5µm Ni
2
3
ZD-00697 Rev. 2.1, 11-Oct-2011
www.power-one.com
Page 2 of 18
ZY1207 7A No-Bus POL Data Sheet
3V to 14V Input
•
0.5V to 5.5V Output
4.
Electrical Specifications
Specifications apply at the input voltage from 3V to 14V, output load from 0 to 7A, ambient temperature from -40°C
to 85°C, output capacitance consisting of 110µF ceramic and 220µF tantalum, and default performance
parameters settings unless otherwise noted.
4.1
Input Specifications
Parameter
Input voltage (V
IN
)
Input Current (at no load)
Undervoltage Lockout (VLDO
connected to VIN)
Undervoltage Lockout (VLDO
connected to V
AUX
=5V)
External Low Voltage Supply
VLDO Input Current
Conditions/Description
At V
IN
<4.75V, VLDO pin needs to be
connected to an external voltage source
higher than 4.75V
V
IN
≥4.75V,
VLDO pin connected to VIN
Ramping Up
Ramping Down
Ramping Up
Ramping Down
Connect to VLDO pin when V
IN
<4.75V
Current drawn from the external low
voltage supply at VLDO=5V
4.75
50
Min
3
50
4.00
3.9
2.8
2.7
14
Nom
Max
14
Units
VDC
mADC
VDC
VDC
VDC
VDC
VDC
mADC
4.2
Output Specifications
Parameter
Output Current (I
OUT
)
Output Voltage Range (V
OUT
)
Output Voltage Setpoint
3
Accuracy
Line Regulation
3
3
Conditions/Description
V
IN MIN
to V
IN MAX
Programmable with a resistor between
TRIM and REF pins
Default (no resistor)
V
IN
=12V, I
OUT
=0.5*I
OUT MAX
, room
temperature
V
IN MIN
to V
IN MAX
0 to I
OUT MAX
Slew rate 1A/µs, 50-75% load step,
V
IN
≥5V
V
IN
=3.3V
to 10% of peak deviation
V
IN
=5.0V, V
OUT
≤2.5V
V
IN
=5.0V, V
OUT
>2.5V
V
IN
=12V, V
OUT
≤2.5V
V
IN
=12V, V
OUT
>2.5V
V
IN
=12V, I
OUT
=0.5*I
OUT MAX
2
Min
-7
1
Nom
Max
7
5.5
Units
ADC
VDC
VDC
0.5
0.5
See Ordering Information
±0.2
±0.2
75
100
30
15
25
25
40
50
450
500
550
%V
OUT
%V
OUT
mV
mV
µs
mV
mV
mV
mV
ppm/°C
kHz
Load Regulation
Dynamic Regulation
Peak Deviation
Peak Deviation
Settling Time
Output Voltage Peak-to-Peak
Ripple and Noise
BW=20MHz
Full Load
Temperature Coefficient
Switching Frequency
1
At the negative output current (bus terminator mode) efficiency of the ZY1207 degrades resulting in increased internal power dissipation.
Therefore maximum allowable negative current under specific conditions is 20% lower than the current determined from the derating curves
shown in paragraph 5.5.
2
ZY1207 is a step-down converter, thus the output voltage is always lower than the input voltage as show in Figure 1.
3
Digital PWM has an inherent quantization uncertainty of ±6.25mV that is not included in the specified static regulation parameters.
ZD-00697 Rev. 2.1, 11-Oct-2011
www.power-one.com
Page 3 of 18
ZY1207 7A No-Bus POL Data Sheet
3V to 14V Input
•
0.5V to 5.5V Output
V
OUT
[V]
5.5
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
Min Load 0.2A
0.5
3.0
3.3
5.5
6.25
V
IN
[V]
8.0
10.0
12.0
14.0
2.0
4.0
6.0

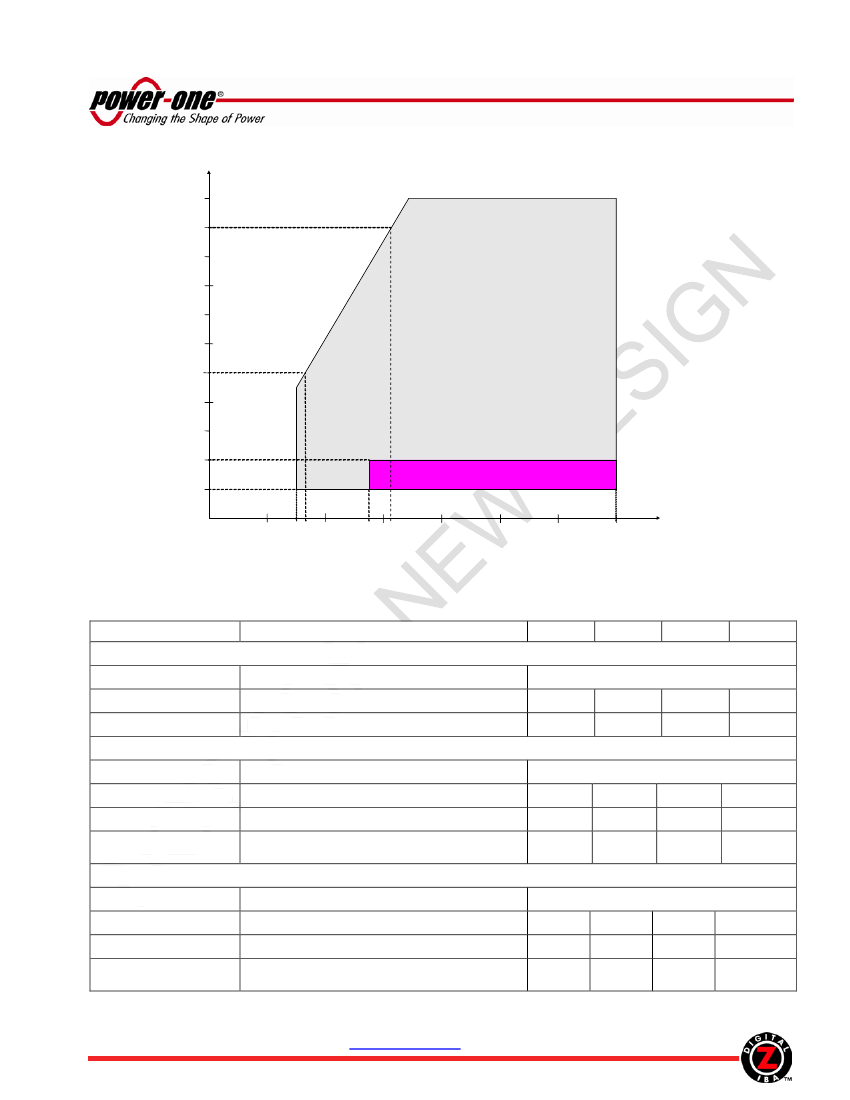

Figure 1. Output Voltage as a Function of Input Voltage and Output Current
4.3
Protection Specifications
Parameter
Conditions/Description
Output Overcurrent Protection
Type
Threshold
Threshold Accuracy
Output Overvoltage Protection
Type
Threshold
Threshold Accuracy
Delay
Follows the output voltage setpoint
Measured at V
O.SET
=2.5V
From instant when threshold is exceeded until
the turn-off command is generated
Output Undervoltage Protection
Type
Threshold
Threshold Accuracy
Delay
Follows the output voltage setpoint
Measured at V
O.SET
=2.5V
From instant when threshold is exceeded until
the turn-off command is generated
-2
6
Non-Latching, 130ms period
75
2
%V
O.SET
%V
UVP.SET
μs
-2
6
130
1
Min
Nom
Max
Units
Non-Latching, 130ms period
140
-25
25
%I
OUT
%I
OCP.SET
Latching
%V
O.SET
2
%V
OVP.SET
μs
ZD-00697 Rev. 2.1, 11-Oct-2011
www.power-one.com
Page 4 of 18
ZY1207 7A No-Bus POL Data Sheet
3V to 14V Input
•
0.5V to 5.5V Output
Overtemperature Protection
Type
Turn Off Threshold
Turn On Threshold
Threshold Accuracy
Delay
From instant when threshold is exceeded until
the turn-off command is generated
Power Good Signal (PGOOD pin)
Logic
Lower Threshold
Upper Threshold
Delay
Threshold Accuracy
V
OUT
is inside the PG window and stable
V
OUT
is outside of the PG window or ramping
up/down
Follows the output voltage setpoint
Follows the output voltage setpoint
From instant when threshold is exceeded until
status of PG signal changes
Measured at V
O.SET
=2.5V
-2
High
N/A
Low
90
110
6
2
%V
O.SET
%V
O.SET
μs
%V
O.SET
Temperature is increasing
Temperature is decreasing after module was
shut down by OTP
-5
6
Non-Latching, 130ms period
120
110
5
°C
°C
°C
μs
___________________
1
Minimum OVP threshold is 1.0V
4.4
Feature Specifications
Parameter
Conditions/Description
Current Share (CS pin)
Type
Active, Single Line
I
OUT MIN
=0
I
OUT MIN
≥20%*I
OUT NOM
Interleave (IM and INTL2…INTL4 pins)
Interleave (Phase Lag)
Programmable via INTL2…INTL4 pins in
45° steps
Sequencing (DELAY pin)
Power-Up Delay
Programmable by capacitor connected to
DELAY pin
Default: C
DELAY
=0
Tracking
Rising Slew Rate
Falling Slew Rate
Proportional to SYNC frequency
Proportional to SYNC frequency
0.1
-0.5
V/ms
V/ms
210
0
ms
ms
0
315
degree
4
±20
%I
OUT
Min
Nom
Max
Units
Maximum Number of Modules
Connected in Parallel
Current Share Accuracy
ZD-00697 Rev. 2.1, 11-Oct-2011
www.power-one.com
Page 5 of 18
