EC6A16S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Power management> EC6A16S

EC6A16S: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 7.5W, Hybrid, SMD-24/18; Categorysemiconductor Power management; File Size191KB，2 Pages; ManufacturerCincon

Download Datasheet Parametric View All

EC6A16S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EC6A16S	-	-	View	Buy Now

EC6A16S Overview

DC-DC Regulated Power Supply Module, 2 Output, 7.5W, Hybrid, SMD-24/18

EC6A16S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1303131228
Parts packaging code	MODULE
package instruction	SOP, GWDIP18/24,1.0
Contacts	24/18
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Manufacturer	Cincon
Samacsys Modified On	2020-05-06 19:20:05
YTEOL	7.3
Other features	ADDITIONAL -15 VOLT OUTPUT ALSO AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V
Minimum input voltage	18 V
Nominal input voltage	24 V
JESD-30 code	R-XDMA-G18
length	31.8 mm
Maximum load regulation	1%
Number of functions	1
Output times	2
Number of terminals	18
Maximum operating temperature	71 °C
Minimum operating temperature	-40 °C
Maximum output current	0.25 A
Maximum output voltage	15.3 V
Minimum output voltage	14.7 V
Nominal output voltage	15 V
Package body material	UNSPECIFIED
encapsulated code	SOP
Encapsulate equivalent code	GWDIP18/24,1.0
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Maximum seat height	11.9 mm
surface mount	YES
technology	HYBRID
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum total power output	7.5 W
Fine-tuning/adjustable output	NO
width	20.3 mm

Preview

Download Datasheet

View All

V26

︳

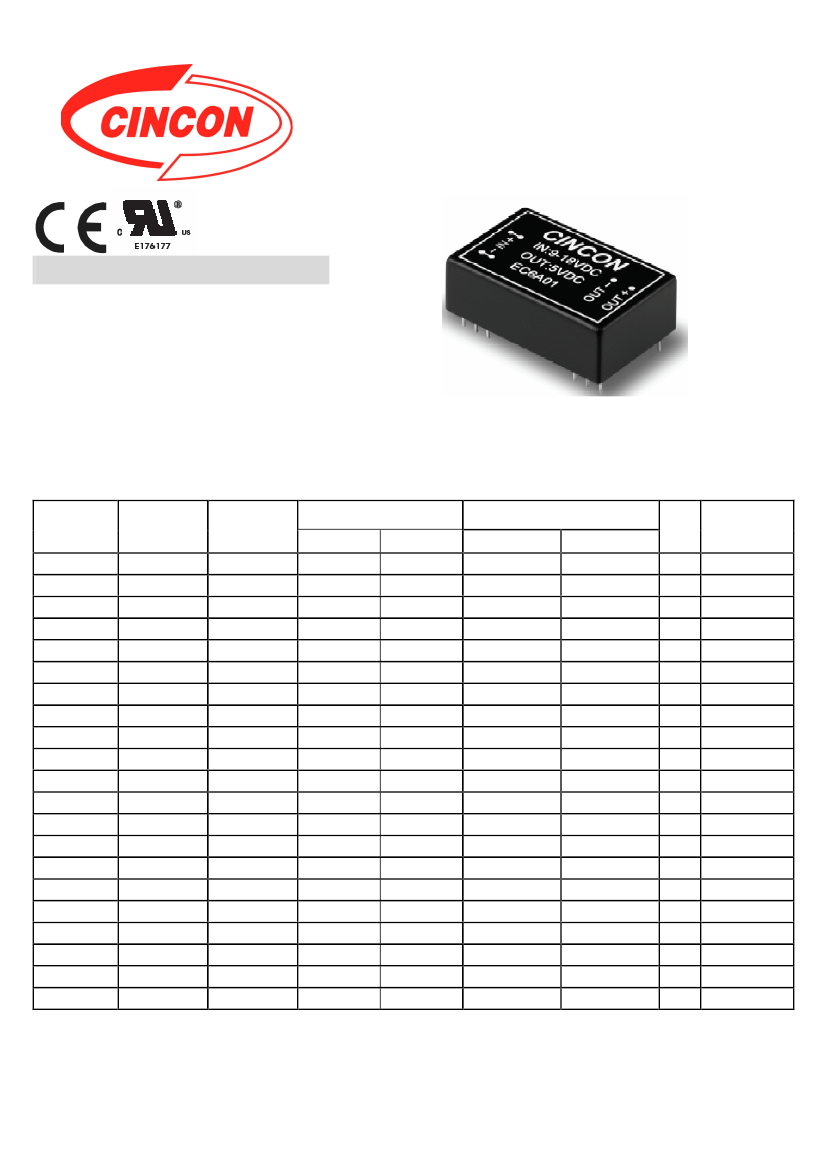

FEATURES

* 7.5W Isolated Output

* 24-Pin DIP Package

* Efficiency to 87%

* 2:1 Input Range

* Regulated Outputs

* Pi Input Filter

* Continuous Short Circuit Protection

* CE Mark Meets 2004/108/EC

* UL60950-1 Approval

* Without Tantalum Capacitor inside

EC6A SERIES

7.5WATT 2:1 INPUT RANGE

DC-DC CONVERTERS

INPUT CURRENT

MODEL

INPUT

OUTPUT OUTPUT CURRENT

CAPACITOR

NUMBER VOLTAGE VOLTAGE

MIN.

MAX.

NO LOAD FULL LOAD EFF.

LOAD MAX.

EC6A01

EC6A02

EC6A03

EC6A04

EC6A05

EC6A06

EC6A07

EC6A11

EC6A12

EC6A13

EC6A14

EC6A15

EC6A16

EC6A17

EC6A21

EC6A22

EC6A23

EC6A24

EC6A25

EC6A26

EC6A27

9-18 VDC

18-36 VDC

36-72 VDC

5 VDC

12 VDC

15 VDC

±5 VDC

±12 VDC

±15 VDC

3.3 VDC

5 VDC

12 VDC

15 VDC

±5 VDC

±12 VDC

±15 VDC

3.3 VDC

5 VDC

12 VDC

15 VDC

±5 VDC

±12 VDC

±15 VDC

3.3 VDC

0 mA

1500 mA

625 mA

500 mA

±750 mA

±310 mA

±250 mA

1500 mA

625 mA

500 mA

±750 mA

±310 mA

±250 mA

1500 mA

625 mA

500 mA

±750 mA

±310 mA

±250 mA

1500 mA

25 mA

30 mA

25 mA

20 mA

25 mA

20 mA

10 mA

15 mA

10 mA

781 mA

753 mA

744 mA

772 mA

753 mA

529 mA

377 mA

359 mA

372 mA

356 mA

372 mA

264 mA

193 mA

184 mA

182 mA

191 mA

182 mA

184 mA

136 mA

4700uF

2200uF

4700uF

2200uF

4700uF

2200uF

4700uF

NOTE: 1. Nominal Input Voltage: 12, 24 or 48VDC
