370DXP

Description
Power Transformers Universal/Potted 86VA, 550V CT @104mA
CategoryPower/power management
File Size342KB，2 Pages
ManufacturerHammond
Websitehttp://www.hammondmfg.com
Download Datasheet Parametric Compare View All

370DXP Online Shopping

Suppliers Part Number Price MOQ In stock
370DXP - - View Buy Now

370DXP Overview

Power Transformers Universal/Potted 86VA, 550V CT @104mA

370DXP Parametric

Parameter NameAttribute value
Product CategoryPower Transformers
ManufacturerHammond
RoHSDetails
ProductPower Transformers
Primary Voltage Rating100 VAC to 240 VAC
Secondary Voltage Rating550 VAC CT
Power Rating86 VA
Secondary Current Rating104 mA
Mounting StyleChassis
Primary WindingDual Primary Winding
Secondary WindingTriple Secondary Winding
Length98.55 mm
Width84.07 mm
Height107.95 mm
Operating Frequency50 Hz, 60 Hz
Operating Temperature Range0 C to + 105 C
Factory Pack Quantity1
Termination StyleWire Leads
TypePlate and Filament Power Transformers
Unit Weight2.700 lbs

Preview

Download Datasheet

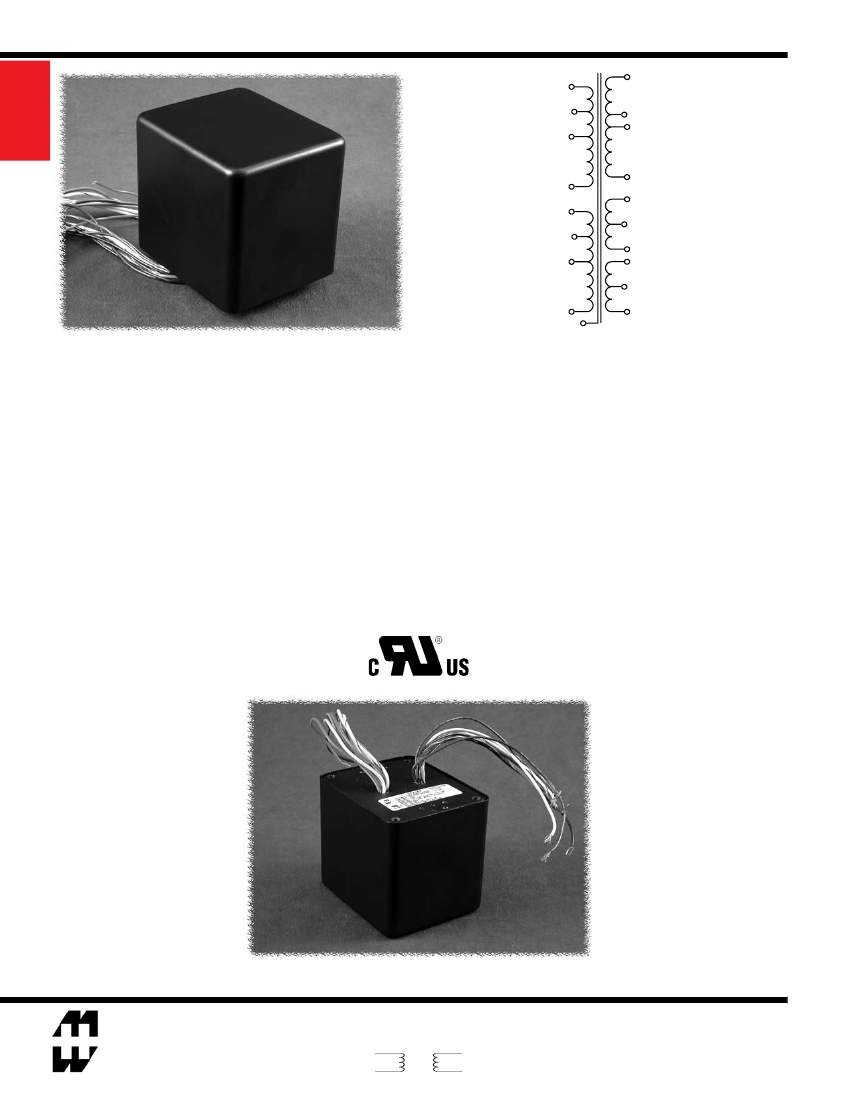

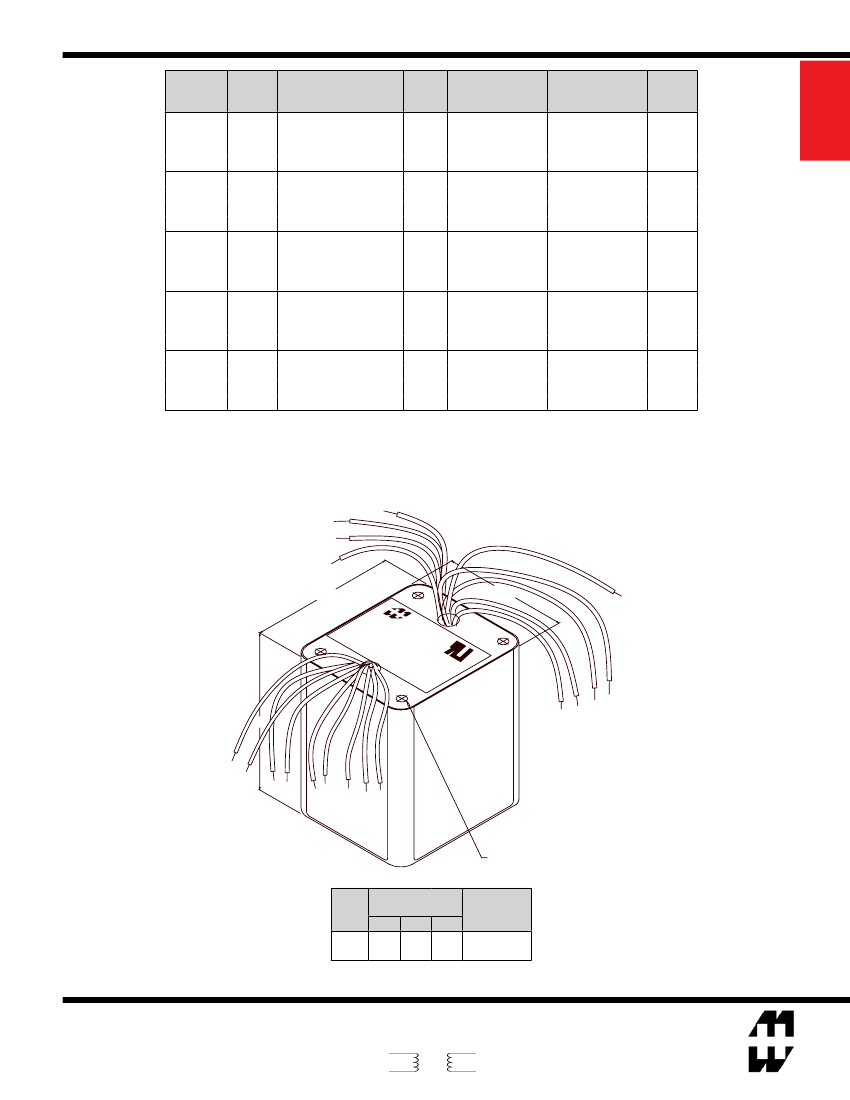

"Classic" Plate & Filament - Potted (300P Series)
Power
120V Blu
110V Blu/Yel
100V Brn/Yel
Red
(50V) Vio
(CT) Red/Yel
High Voltage
Filament
#2
Filament
#1
0V Brn
120V Blk
110V Blk/Red
100V Wht/Blk
Red
Yel
(CT) Yel/Blk
Yel
Grn
(CT) Grn/Yel
0V Wht
Shield Gry
Grn
"CLASSIC" PLATE & FILAMENT - POTTED
UNIVERSAL PRIMARY POWER TRANSFORMERS
•
Enclosed in a drawn steel case, the transformer is completely potted in epoxy.
•
Perfect match for our potted output transformers and potted chokes.
•
Primary: Universal - 100, 110, 120, 200, 220, 240 VAC 50/60 Hz.
•
Bias Tap: 50 VAC tap from high voltage secondary C.T.
•
Highpot tested: 2,000 VAC
•
C UL US recognized E207860
•
Finish: Black powder paint to match our 1650P series of output transformers
• Windings: Concentric wound for low stray field and low noise
•
For a more economical, open frame, universal primary - see our "300" series.
Guelph, Ontario (519) 822-2960
St. Laurent, Quebec (514) 343-9010
©
Cheektowaga, NY (716) 630-7030
CANADA
USA
www.hammondmfg.com
Basingstoke, UK 01256 812812
Queenstown, Australia 61-8-8240-2244
EUROPE
