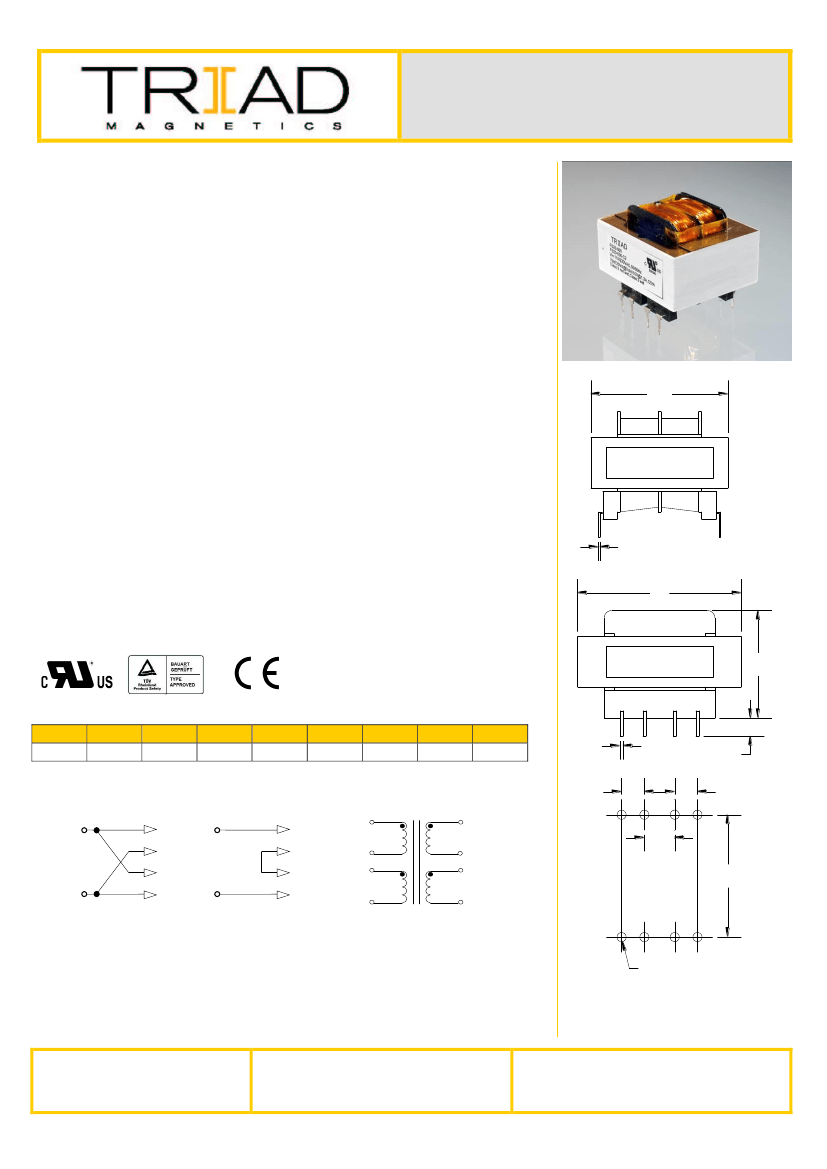

CLASS 2/3 TRANSFORMER

FS16-400-C2

Description:

The FS16-400-C2 is a p series/parallel primary and dual secondary, split bobbin

design which operates with either a parallel input of 115V or a series input of 230V.

The secondaries are 8V @ 0.4A each. They can be used independently (up to

300V difference between them) or in series for double the voltage or in parallel for

double the current. The split bobbin design eliminates the need for costly

electrostatic shielding.

Electrical Specifications (@25C)

1. Maximum Power: 6.0VA

2. Primary: Series: 230V; Parallel: 115V

3. Secondaries: 8.0V @ 0.4A each

4. Voltage Regulation: 25% TYP @ full load to no load

5. Operating Temperature: -40C to 100C

6. Storage Temperature: -55C to 150C

7. Hipot tested 100% at 4200 VRMS pri to sec

8. Hipot tested 100% at 2160 VRMS sec to sec

9. Recommended fuse (fuse on primary): For 115V - Cooper/Bussman, Type MDL,

rated 500mA, 250V. For 230V – Littlefuse, Type 313, rated 250mA, 250V

Construction:

Three flange bobbin construction with primaries and secondaries wound side by

side for low capacitive coupling. UL Class F Insulation System (155°C).

Agency File:

UL: File E65390, UL 5085-1 & 3 (1585), Class 2 not wet / Class 3 wet Transformer

cUL: File E65390, UL 5085-1 & 3 (1585) For Canadian Use (CSA 22.2, No.66.3-06)

TUV Certificate No.: R72120839, EN61558, Safety Isolating xfmr, general use

Max Dimensions:

1.398 1.331

Weight: 0.44 lbs

1.650

0.265

0.365

1.300

0.041

Units in inches.

0.020

0.236

SERIES

Schematic:

PARALLEL

115V

50/60Hz

230V

50/60Hz

8V @ 0.4A

RoHS Compliance:

As of manufacturing date February 2005, all standard products meet

the requirements of 2011/65/EU, known as the RoHS initiative.

Note:

Order and shipping documentation may have a “-B” suffix; this indicates Bulk

packaging but does not show on the actual part number marked on the transformer.

*Upon printing, this document is considered “uncontrolled”. Please contact Triad Magnetics

website for the most current version.

For soldering and washing information please see

http://www.triadmagnetics.com/faq.html

0.06" DIAMETER

HOLE

Board Layout

www.TriadMagnetics.com

Phone: (951) 277-0757

Fax: (951) 277-2757

460 Harley Knox Blvd.

Perris, CA 92571

Publish Date: March 10, 2017
