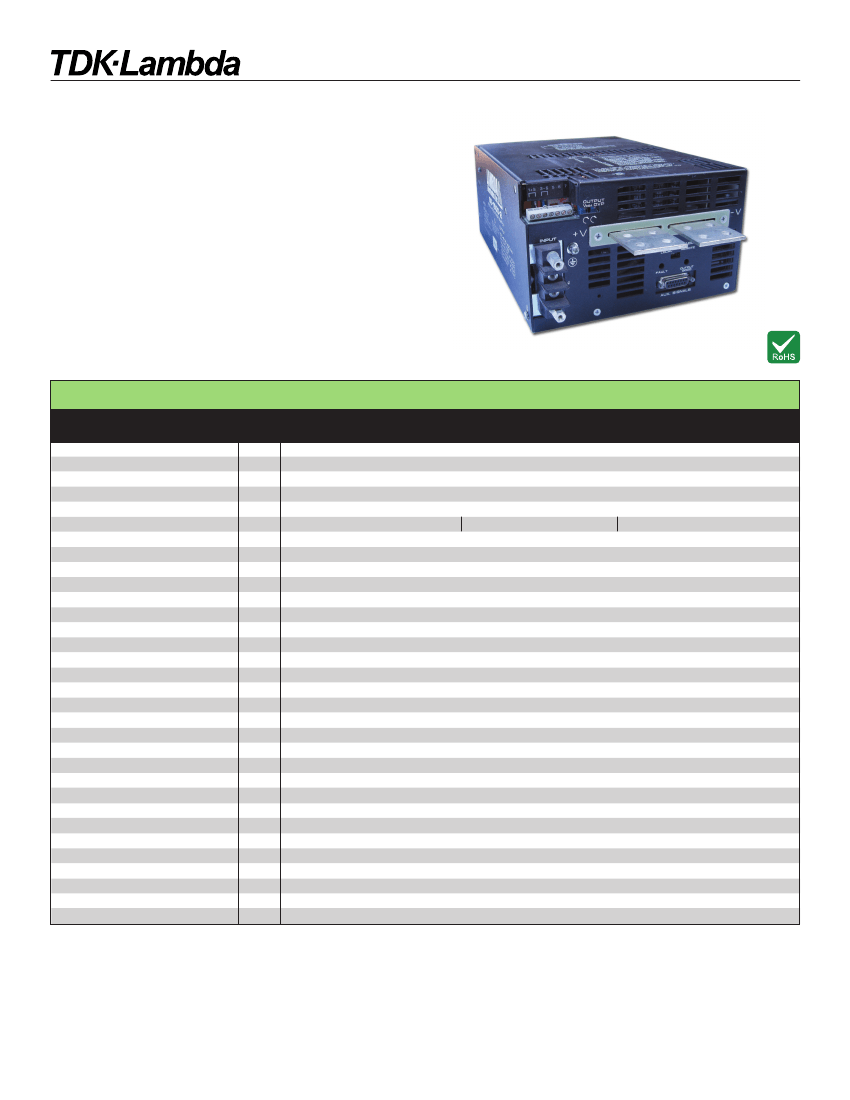

LZS/SE Series
Single Output Industrial Power Supplies
Features
u
-40ºC to +71ºC operation
u
MIL-STD-810E Vibration / Shock
u
Input transient protected
u
Wide range output adjustment
u
Single wire current share
u
Conducted EMI Class B
u
5 Year Warranty
u
Rugged mechanical design
u
Superior thermal design
Key Market Segments & Applications
u
Factory Automation
Specifications
AAC Input Voltage
AC Input Frequency
DC Input Voltage Range
Inrush Current (110 / 220VAC)
Efficiency (typical)
Ripple & Noise
Line Regulation
Load Regulation
Transient Response
Overcurrent Protection
Overvoltage Protection
Thermal Protection
Hold Up Time (Typical)
Remote Sense
Remote Adjust
Remote On / Off
Signals
Indicators
Parallel Connection
Operating Temperature
Storage Temperature
Temperature Coefficient
Humidity (non condensing)
Cooling
Withstand Voltage
Vibration
Shock
Safety Agency Approvals
Conducted & Radiated EMI
Weight (Net / Shipping)
Size (WxHxD)
Warranty
5V Output Models
12V Output Models
24V Output Models
(-1)
(-2)
(-3)
-
LZS: 85-132 / 170-265VAC Auto select, SE: 105-140VAC (170VAC for 1min.)
-
LZS: 47 - 440Hz, SE: 47 - 63Hz
-
LZS: 220 - 380VDC
A
250W & 500W: 20 / 40A. 750W, 1000W & 1500W: 40 / 80A
%
75%, (72% on 250W models)
-
10mV RMS, 35mV Pk-Pk 10mV RMS, 50mV Pk-Pk 10mV RMS, 100mV Pk-Pk
%
0.1% from low AC line to high AC line
%
0.1% from no load to full load
-
Recovers to within 50ms, max deviation 7.5% -1 models, 5% -2 & -3 models
-
~ 110% of rated current, auto recovery
V
User adjustable from front panel
-
Internal thermostat. Recycle AC to reset
ms
26ms (at 115VAC)
-
Compenstates for a total of 1.0V cable drop
-
Using front panel potentiometer, Resistance (1k/V), or Voltage (1V/V)
-
TTL compatible, active high
-
Optocoupled transistor for AC Fail, DC Good, Inverter OK
-
Green LED indicates output good, red LED indicates overvoltage or over temperature
-
Single wire current share
ºC -40~+71ºC, derate as shown in model selector, 20 minute warm up period needed for <-30ºC
ºC
-55 to +85ºC
-
0.025%/ºC
%RH
5 - 95%RH
-
Internal fan
-
Input - Ground 1.5kVAC, Input - Output 3kVAC, Output - Ground 500VAC
-
MIL-STD-810E, Method 516.4 Proc. I, II, IV, VI
-
MIL-STD-810E, Method 514.4, Category 1, 9
-
UL60950, CSA60950, EN60950, & CE Mark (LVD)
-
VDE0871 Curve B, FCC Part 15, subpart J, Class B, MIL-STD-461D, CE102
lbs
250: 7/9; 500: 10/12; 750: 11/14; 1000: 15.5/19.5; 1500: 22/26
-
See outline drawings
-
5 years
Notes: (Consult Installation Manual for detailed specifications, test methods and application notes)
1-800-526-2324 • www.us.tdk-lambda.com/lp/
OBSOLETE
1
Disclaimer: us.tdk-lambda.com/lp/legal.htm
LZS/SE Series
Output Ratings
Model
LZS250-1
LZS500-1
LZS750-1
LZS1000-1
LZS1500-1
LZS250-2
LZS500-2
LZS750-2
LZS1000-2
LZS1500-2
LZS250-3
SE250-3
LZS500-3
SE500-3
LZS750-3
SE750-3
LZS1000-3
SE1000-3
LZS1500-3
SE1500-3
Nominal
Voltage
(V)
5
5
5
5
5
12
12
12
12
12
24
24
24
24
24
24
24
24
24
24
Adjustment
Range
(V)
4.5 - 6.3
4.5 - 6.3
4.5 - 6.3
4.5 - 6.3
4.5 - 6.3
10 - 15.75
10 - 15.75
10 - 15.75
10 - 15.75
10 - 15.75
18 - 29.4
18 - 29.4
18 - 29.4
18 - 29.4
18 - 29.4
18 - 29.4
18 - 29.4
18 - 29.4
18 - 29.4
18 - 29.4
40°C
50
100
150
200
300
21
42
63
83
125
12.5
12.5
25
25
37.5
37.5
50
50
75
75
Maximum
Current (A)
50°C
60°C
45
90
135
190
270
18.9
37.5
56.5
80
112.5
11.3
11.3
22.5
22.5
33.5
33.5
48
48
67.5
67.5
40
80
120
160
240
16.8
33.5
50
67
100
10
10
20
20
30
30
40
40
60
60
71°C
30
60
90
120
180
12.6
27
37.5
50
75
7.5
7.5
16.5
16.5
22.5
22.5
30
30
45
45
JFS0750/1000 Outline Drawing
(4.75)
(120.5)
SIDE VIEW
C
B
4x M4 TAPPED HOLES
D
E
SEE NOTE 2
MOUNTING SURFACE
F
Other Industrial Products
LZSa
HWS
JFS
DPP, DLP, DHP
500W to 1500W RoHS compliant
15W to 1500W Single output
500W to 2000W Single output
15 to 960W DIN Rail single output
A
BOTTOM VIEW
DIMENSIONS:
MODEL
For Additional Information, please visit
us.tdk-lambda.com/lp/products/lzs-series.htm
A
9.00
LZS,SE250
(228.6)
10.25
LZS,SE500
(260.3)
10.37
LZS,SE750
(263.5)
10.50
LZS,SE1000
(266.7)
11.00
LZS,SE1500
(279.4)
B
6.000
(152.4)
6.500
(165.1)
7.000
(177.8)
8.500
(215.9)
8.000
(203.2)
C
.62
(15.8)
.62
(15.8)
.62
(15.8)
.75
(19.0)
.75
(19.0)
D
3.37
(85.7)
4.25
(107.9)
5.00
(127.0)
5.62
(142.8)
8.00
(203.2)
E
2.500
(63.5)
3.000
(76.2)
3.500
(88.9)
3.500
(88.9)
3.500
(88.9)
F
.43
(11.0)
.62
(15.8)
.62
(15.8)
1.06
(26.9)
2.12
(54.0)
WEIGHT:
MODEL
LZS,SE250
LZS,SE500
LZS,SE750
LZS,SE1000
LZS,SE1500
NOTE:
NET LBS SHIP LBS
7.0
10.0
11.0
15.5
22.0
9.0
12.0
14.0
19.5
26.0
1. DIMENSIONS ARE IN INCHES EXCEPT DIMENSIONS ( ) ARE IN MM.
2.4 x M4 TAPPED HOLES FOR CUSTOMER MTG.
SCREWS MUST NOT PROTRUDE INTO POWER SUPPLY BY MORE
THAN .25 (6.3).
3. CUSTOMER MUST PROVIDE CLEARANCE AROUND VENT HOLES
TO ALLOW FOR AIR FLOW.
OBSOLETE
1-800-526-2324 • www.us.tdk-lambda.com/lp/
2
Revision A6: Feb 2012
