PLD24SZ-P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> PLD24SZ-P

PLD24SZ-P: CategoryPower/power management; File Size682KB，4 Pages; ManufacturerETA-USA

Download Datasheet Parametric Compare View All

PLD24SZ-P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PLD24SZ-P	-	-	View	Buy Now

PLD24SZ-P Parametric

Parameter Name	Attribute value
Product Category	Switching Power Supplies
Manufacturer	ETA-USA
RoHS	In Transition
Product	Switching Supplies
Output Voltage-Channel 1	24 VDC
Number of Outputs	1 Output
Output Power	120 W
Open Frame/Enclosed	Open Frame
Input Voltage	85 VAC to 264 VAC
Output Current-Channel 1	5 A
Mounting Style	Chassis
Length	155 mm
Width	50 mm
Height	89 mm
Factory Pack Quantity	1
Unit Weight	1.080 lbs

Preview

Download Datasheet

View All

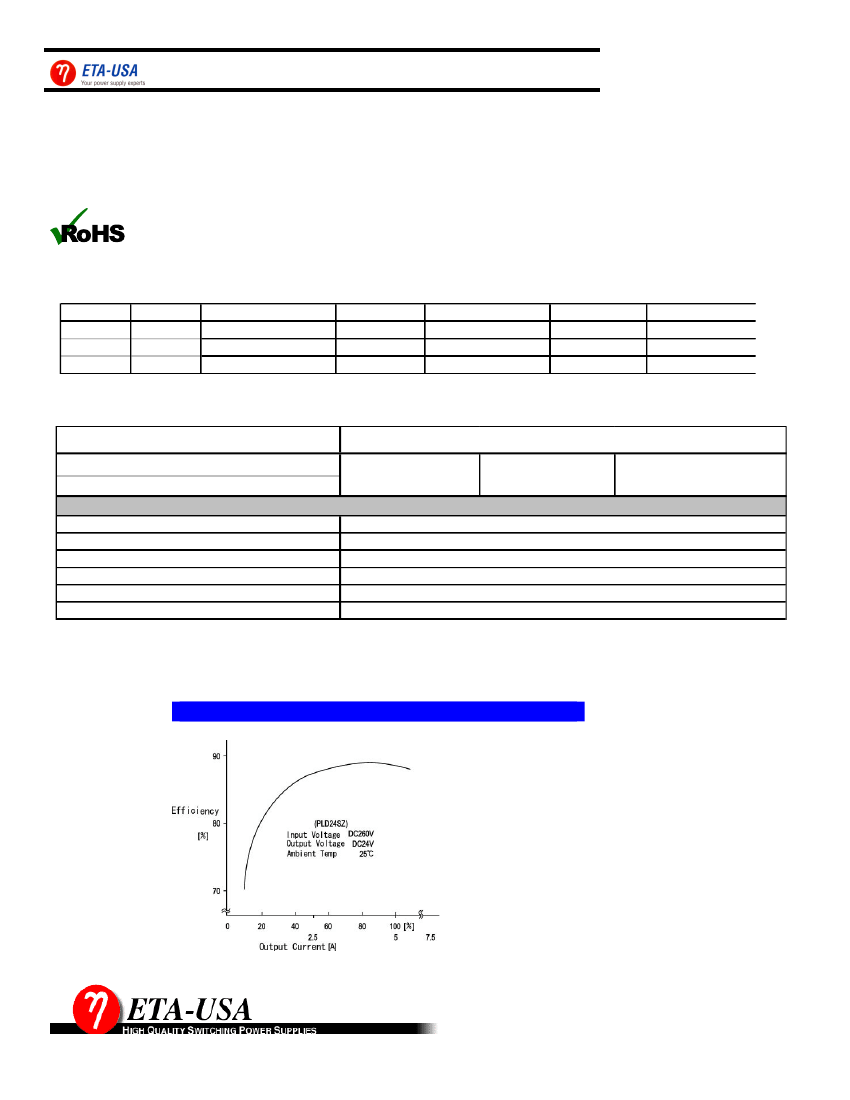

120 WATT

AC-DC

CONVERTER

PLD-SZ SERIES

Output Table

WATTS

SERIES

PART NUMBER

PLD12SZ

PLD24SZ

PLD36SZ

INPUT (DC)

85V~132V

85V132V

VOLTAGE (DC)

12V

24V

36V

CURRENT

3.4A

EFFICIENCY

83%

120W

PLD-SX

Input Table

Speci f i cat i ons<

AC/D

120W

ATTS(Peak 180W

)/SI

NGLE

nput Characteristic

PLD**SZ

odel

PLD12SZ

PLD24SZ

PLD36SZ

Input Voltage

Input Range

Input Frequency

Input Frequency Range

Phase

Inrush Current *1

AC100/200V

AC85-132/170-264V

50/60Hz

47-440Hz

Single

15A(maximum)at AC100V/30A(maximum) at AC200V

Efficiency Curve

ETA-USA Tel:

408-778-2793 Fax: 408-779-2753 e-mail: sales@eta-usa.com

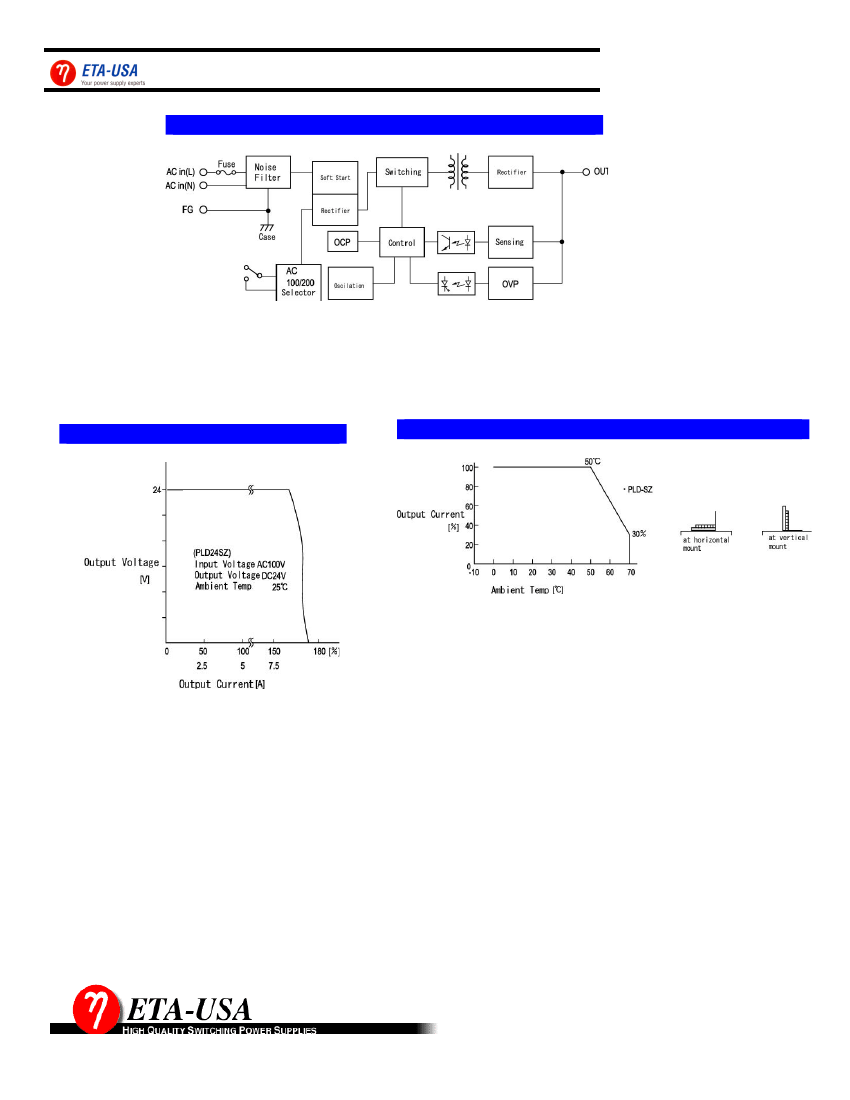

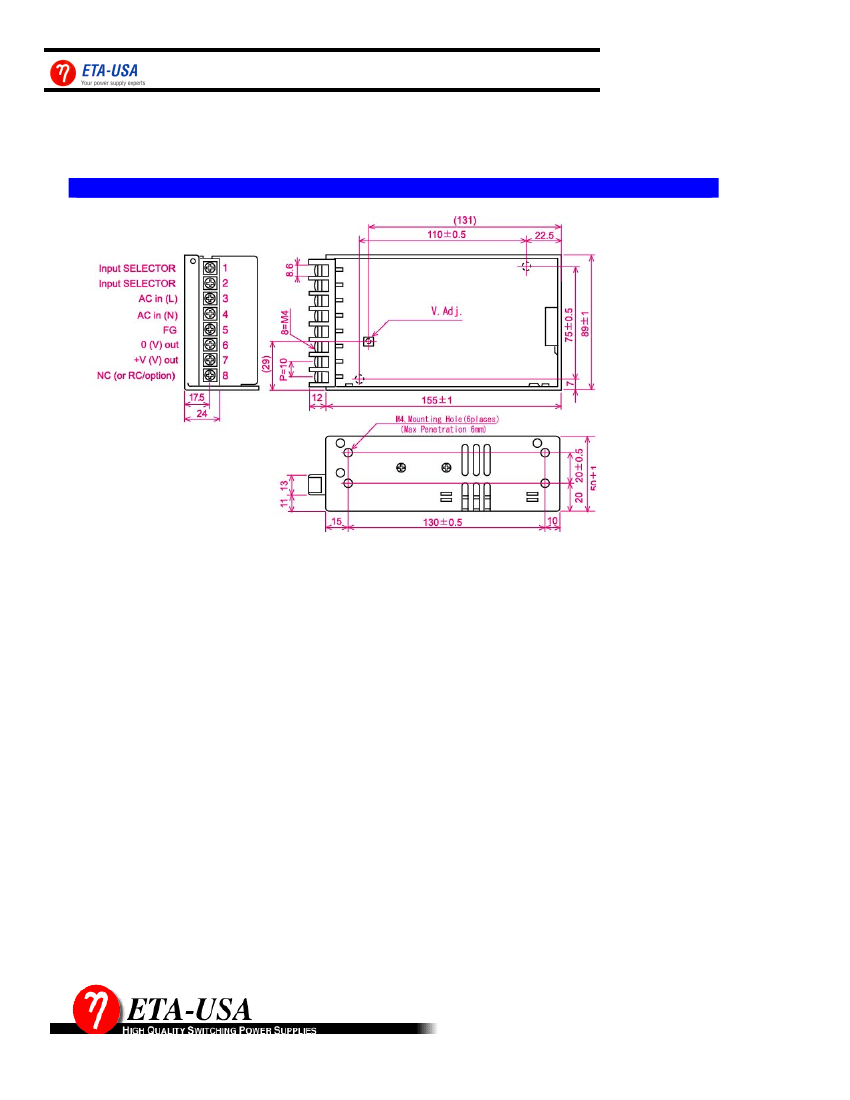

PLD24SZ-P Related Products

	PLD24SZ-P	PLD24SZ
Description		Switching Power Supplies 120W 24VDC 5A
Product Category	Switching Power Supplies	Switching Power Supplies
Manufacturer	ETA-USA	ETA-USA
RoHS	In Transition	In Transition
Product	Switching Supplies	Switching Supplies
Output Voltage-Channel 1	24 VDC	24 VDC
Number of Outputs	1 Output	1 Output
Output Power	120 W	120 W
Open Frame/Enclosed	Open Frame	Open Frame
Input Voltage	85 VAC to 264 VAC	85 VAC to 264 VAC
Output Current-Channel 1	5 A	5 A
Mounting Style	Chassis	Chassis
Length	155 mm	155 mm
Width	50 mm	50 mm
Height	89 mm	89 mm
Factory Pack Quantity	1	1
Unit Weight	1.080 lbs	1.080 lbs
