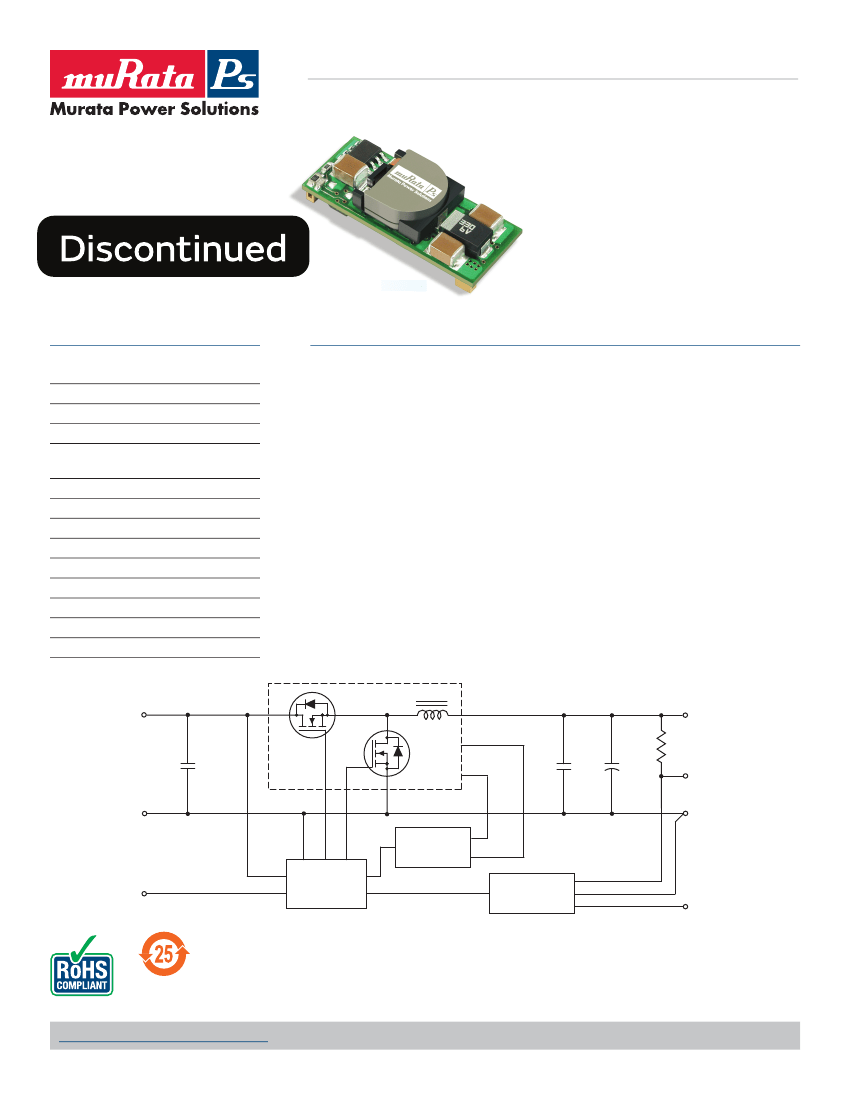

LSM-10A D12 Models
Single Output Non-Isolated,
12Vin, 0.75-5Vout DC/DC Converters
Typical
Unit
FEATURES
Step-down, wide buck regulators for new
distributed 12V power architectures
input (10.8-13.2V range)
12V
to 5V
OUT
@10A
0.75
Voltage-selectable "T" version
Non-isolated, fixed-frequency,
synchronous-rectifier topology
and reel SMT package
Tape
±1.25% setpoint accuracy
Efficiencies to 96% @ 10 Amps
Stable no-load operation
Remote on/off control
Sense pin and output voltage trim
derating to +65°C with 100 lfm
No
UL/IEC/EN60950-1 certification pending
compliant
EMC
PRODUCT OVERVIEW
LSM Series D12 SMT's (surface-mount packages)
are ideal building blocks for emerging, on-board
power-distribution schemes in which isolated
12V buses deliver power to any number of non-
isolated, step-down buck regulators. LSM D12
DC/DC's accept a 12V input (10.8V to 13.2V input
range) and convert it, with the highest efficiency
in the smallest space, to a 0.75, 1, 1.2, 1.5, 1.8,
2, 2.5, 3.3 or 5 Volt output fully rated at 10 Amps.
LSM D12's are ideal point-of-use/load power
processors. They typically require no external
components. Their surface-mount packages
occupy a mere 1.3" x 0.53" (33.0 x 13.5mm),
and are only 0.34 inches (8.6mm) high.
The LSM's best-in-class power density
is achieved with a fully synchronous, fixed-
frequency, buck topology that also delivers:
high efficiency (96% for 5VOUT models), low
noise (50mVp-p typ.), tight line/load regulation
(±0.1%/±0.25% max.), quick step response
(100μsec), stable no-load operation, and no
output reverse conduction.
The fully functional LSM’s feature output over-
current detection, continuous short-circuit protec-
tion, over-temperature protection, a remote on/off
control pin (pull low to disable), an output-voltage
trim function, and a sense pin. High efficiency
enables the LSM D12's to deliver rated output
currents of 10 Amps at ambient temperatures to
+65°C with 100 lfm air flow.
If your new system boards call for three or
more supply voltages, check out the economics
of on-board 12V distributed power. If you don't
need to pay for multiple isolation barriers, Murata
Power Solutions' non-isolated LSM D12 SMT's
will save you money.
+INPUT
(2)
+OUTPUT
(4)
+SENSE
(6)
COMMON
(3)
CURRENT
SENSE
V
CC
ON/OFF
CONTROL
(1)
PWM
CONTROLLER
REFERENCE &
ERROR AMP
V
OUT
TRIM
(5)
COMMON
(3)
Typical topology is shown
Figure 1. Simplified Schematic
For full details go to
www.murata-ps.com/rohs
www.murata-ps.com/support
MDC_LSM 10A D12 Models.D02
Page 1 of 18
LSM-10A D12 Models
Single Output Non-Isolated,
12Vin, 0.75-5Vout DC/DC Converters
PERFORMANCE SPECIFICATIONS SUMMARY AND ORDERING GUIDE
➀
Output
V
OUT
(Volts)
0.8
1
1.2
1.5
1.8
2
2.5
3.3
5
0.75-5
I
OUT
(Amps)
10
10
10
10
10
10
10
10
10
10
R/N (mVp-p)
➁
Typ.
45
50
50
50
50
50
50
50
75
50
Max.
60
75
85
75
75
75
75
75
100
75
Regulation (Max.)
➂
Line
±0.1%
±0.1%
±0.2%
±0.1%
±0.1%
±0.1%
±0.1%
±0.1%
±0.3%
±0.1%
Load
±0.375%
±0.25%
±0.65%
±0.25%
±0.25%
±0.25%
±0.25%
±0.7%
±0.95%
±0.25%
V
IN
Nom.
(Volts)
12
12
12
12
12
12
12
12
12
12
Input
Range
(Volts)
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
10.8-13.2
10-14
I
IN
➃
(mA/A)
30/0.84
35/1.02
40/1.19
50/1.47
55/1.75
55/1.9
60/2.3
70/3
85/4.5
100/6.5
Efficiency
Full Load
Min.
80.5%
83%
85%
86.5%
88%
89%
90%
92%
93.5%
92%
Typ.
82.5%
85%
87%
88.5%
90%
91%
92.5%
94%
96%
93%
½ Load
Typ.
85%
86%
88%
89.5%
90.5%
91.5%
92%
93.5%
95.5%
--
Package
(Case,
Pinout)
C45, P63
C45, P63
C45, P63
C45, P63
C45, P63
C45, P63
C45, P63
C45, P63
C45, P63
C45, P63
Models
LSM-0.8/10-D12
LSM-1/10-D12
LSM-1.2/10-D12
LSM-1.5/10-D12
LSM-1.8/10-D12
LSM-2/10-D12
LSM-2.5/10-D12
LSM-3.3/10-D12
LSM-5/10-D12
LSM-T/10-D12
➀
Typical at T
A
= +25°C under nominal line voltage and full-load conditions, unless noted. All
models are tested and specified with external 22µF tantalum input and output capacitors. These
capacitors are necessary to accommodate our test equipment and may not be required to
achieve specified performance in your applications. See I/O Filtering and Noise Reduction.
➁
Ripple/Noise (R/N) is tested/specified over a 20MHz bandwidth and may be reduced with
external filtering. See I/O Filtering and Noise Reduction for details.
➂
These devices have no minimum-load requirements and will regulate under no-load conditions.
Regulation specifications describe the output-voltage deviation as the line voltage or load is
varied from its nominal/midpoint value to either extreme.
➃
Nominal line voltage, no-load/full-load conditions.
➄
LSM-T/10-D12 specifications are given at V
OUT
= 5V, full load.
PART NUMBER STRUCTURE
L SM
-
1.8
/
10
-
D12
-
C
Output
Configuration:
L
= Unipolar
Low Voltage
Non-Isolated SMT
Nominal Output Voltage:
0.8, 1, 1.2, 1.5, 1.8, 2, 2.5, 3.3, 5
Volts or "T" voltage selectable
RoHS-6 compliant*
Input Voltage:
D12
= 12V nominal
Maximum Rated Output
Current in Amps
* Contact Murata Power Solutions
for availability.
www.murata-ps.com/support
MDC_LSM 10A D12 Models.D02
Page 2 of 18
LSM-10A D12 Models
Single Output Non-Isolated,
12Vin, 0.75-5Vout DC/DC Converters

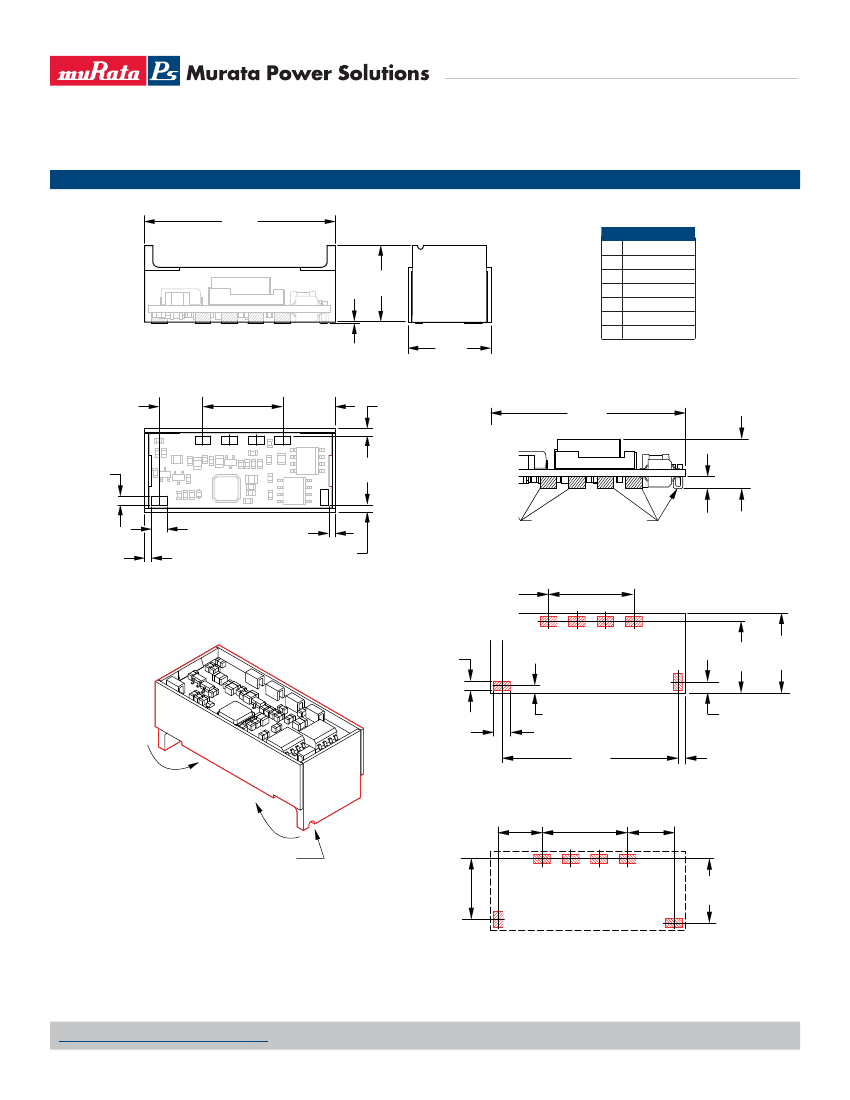

MECHANICAL SPECIFICATIONS
