MENB1090A1503F01 datasheet, PDF

Datasheet> All Categories > Power/power management> MENB1090A1503F01

MENB1090A1503F01: DescriptionDC Power Connectors DC plug adptor 2.1mm; CategoryPower/power management; File Size237KB，2 Pages; ManufacturerSL Power

Download Datasheet Parametric Compare View All

MENB1090A1503F01 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MENB1090A1503F01	-	-	View	Buy Now

MENB1090A1503F01 Overview

DC Power Connectors DC plug adptor 2.1mm

MENB1090A1503F01 Parametric

Parameter Name	Attribute value
Product Category	Desktop AC Adapters
Manufacturer	SL Power
RoHS	Details
Region	Universal
Input Voltage	100 VAC to 240 VAC
Number of Outputs	1 Output
Output Power	90 W
Output Voltage-Channel 1	15 V
Output Current-Channel 1	6 A
Commercial/Medical	Medical
DC Output Connector	2.5 mm Barrel Plug
DC Output Cord Length	1.5 m
Efficiency	Level V
AC Plug included/required	Required
Load Regulation	Regulated
Mounting Style	Desktop
Factory Pack Quantity	250

Preview

Download Datasheet

View All

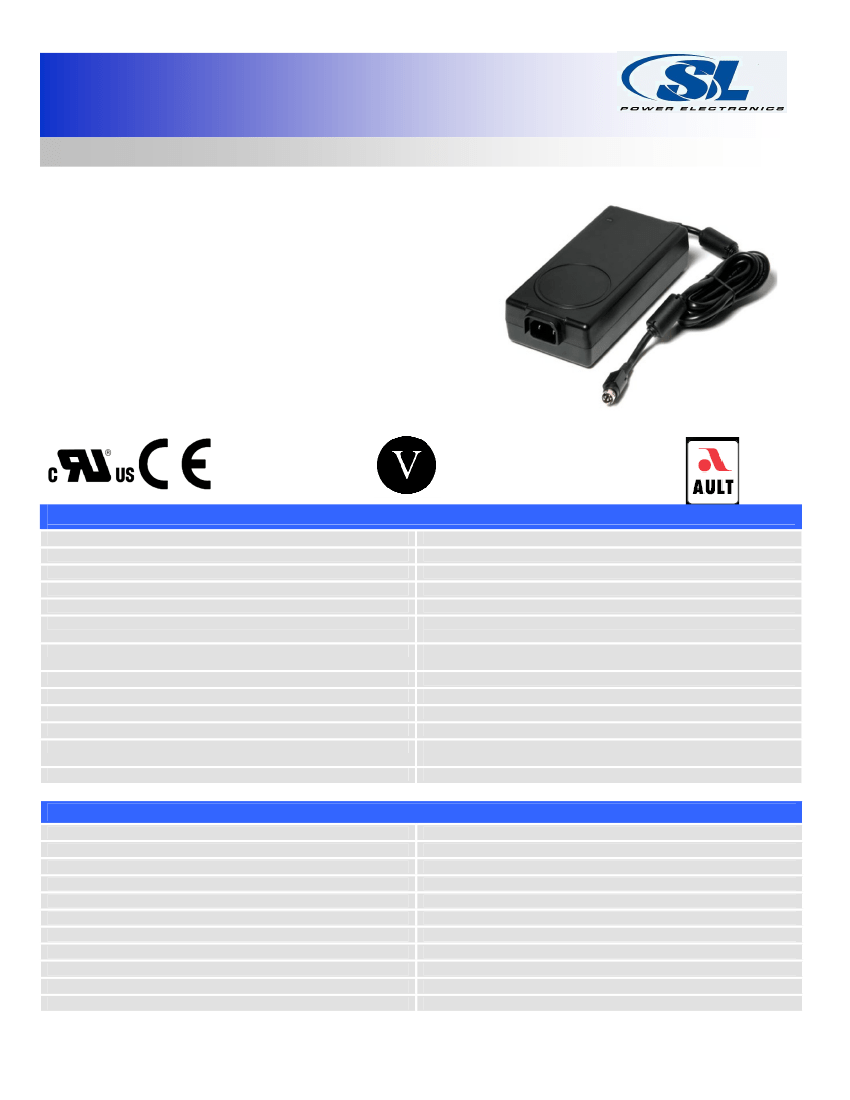

MENB1090

Universal Input 90 Watt Series

Medical Switch-Mode Power Supply

•

100-240VAC Universal Input

•

Meets EISA2007, CEC Efficiency Level V,

Year Warranty

EU (EC) No 278/2009 Phase II

•

Desktop Style

•

12V to 24V Single Output Models, up to 90W

•

Modified and Custom Designs Available

•

Regulated Output with Low Ripple

•

Impact-Resistant Polycarbonate Enclosure

•

No Load Power Consumption <0.5W

•

Meets UL/EN/IEC60601-1

RoHS

Specifications

AC Input

Input Current

Inrush Current

Input Fuse

Efficiency

Output Voltage

Output Power

Ripple and Noise

Line/Load Regulation

Transient Response

Minimum Load

Case Material

Case Dimensions

All Specifications are typical at nominal input, full load at 25

C unless otherwise stated.

100-240VAC, +/-10%, 47-63 Hz, 1∅

100Vac: 2.0A

60A peak @ 264Vac

3.15A, 250V Internal Primary Current Fuse is provided

Meets International Efficiency Level V

See chart

1% pk-pk max., 20MHz BW

Line: +/- 1%, Load: +/-5%

500µs max., 50% load step, typical

Not required

Black 94V0 Polycarbonate

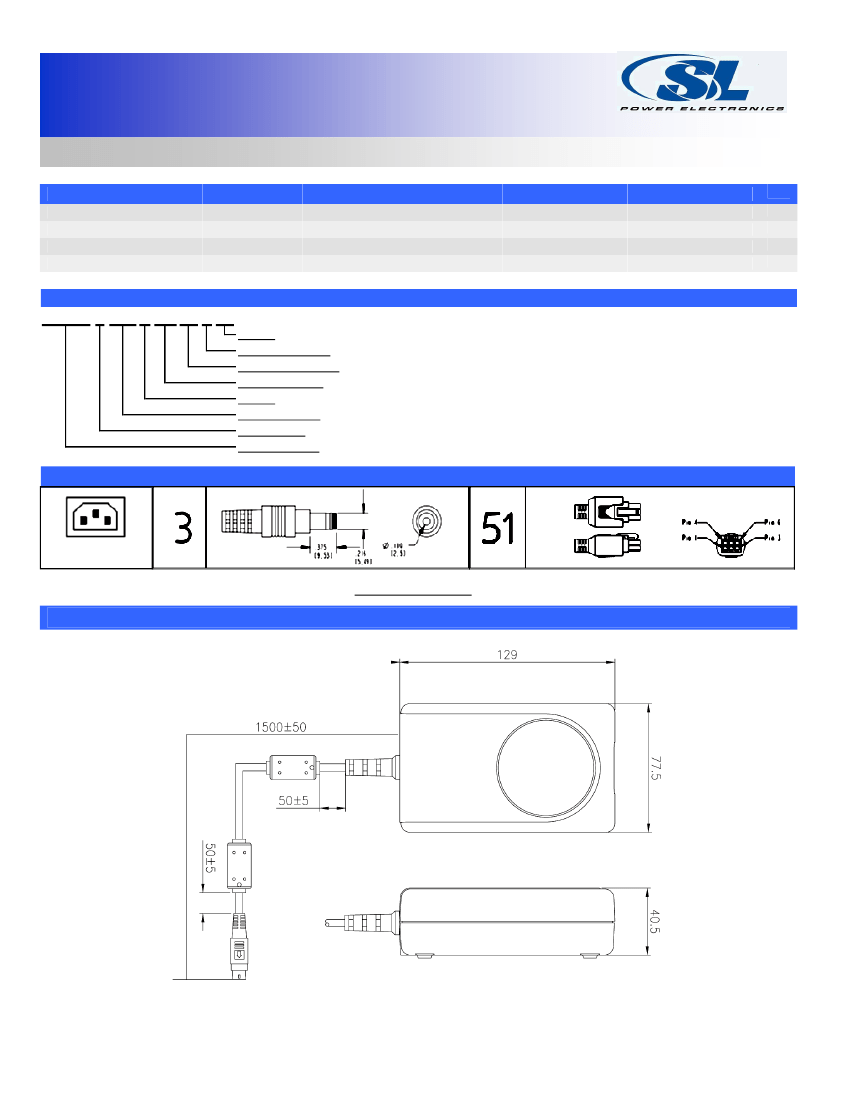

129 x 77 x 40mm See outline drawing

MTBF

Hold-up Time

Overload Protection

Short Circuit Protection

Topology

Safety and EMC Approvals

Dielectric Withstand

Operating Temperature

Storage Temperature

Relative Humidity

Altitude

>100,000 hours (calculated)

18 ms min. @ 115Vac, 60 ms min. @ 230 Vac

Hiccup Mode

Switching – Fixed Frequency Flyback

EN/IEC/CSA/UL60601-1

EMC: See chart

Input-Output: 5,656Vdc

Input-GND: 1,500 Vac, Output-GND: 500Vdc

0° to 40°C, no derating

-30 to +85°C

5% to 95%, non-condensing

0 to 10,000 ft

Output Connections

Cable: 18AWG, 1,500mm, 4 conductor

Connector: Ault #3, 2.5mm barrel or #51, 6-pin Molex. See drawings.

Weight

600g

EMI/EMC Compliance

Conducted Emissions

Radiated Emissions

Voltage Fluctuations

Static Discharge Immunity

Radiated RF Immunity

EFT/Burst Immunity

Line Surge Immunity

Conducted RF Immunity

Power Frequency Magnetic Field Immunity

Voltage Dip Immunity

Line Frequency Harmonics

FCC Part 15, Class B, EN55011 Class B, EN55024

EN61000-3-3, Line Flicker

EN61000-4-2, 6kV Contact Discharge, 8kV air discharge

EN61000-4-3, 3V/m.

EN61000-4-4, 2kV/5kHz..

EN61000-4-5, 1kV differential, 2kV common-mode

EN61000-4-6, 3Vrms

EN61000-4-8, 3A/m

EN61000-4-11 crit. A, 100Vac 60Hz, 40%/5 cycles with 70% full load.

EN61000-3-2, Class A

______________________________________________________________________________________________________________________________

1 of 2

SL Power Electronics Corp

•

6050 King Drive Ventura, CA 93003

•

Phone 805.486.4565

•

Fax 858.712.2040

•

Email: info@slpower.com

•

www.slpower.com

MENB1090A1503F01 Related Products

	MENB1090A1503F01	MENB1090A1251F01	MENB1090A2403F01
Description	DC Power Connectors DC plug adptor 2.1mm	Desktop AC Adapters Desktop/C14 Ground 12Vdc, 84W, Level V	Cylindrical Battery Contacts, Clips, Holders u0026 Springs 18650 DUAL THM BATTERY HOLDER
Product Category	Desktop AC Adapters	Desktop AC Adapters	Desktop AC Adapters
Manufacturer	SL Power	SL Power	SL Power
RoHS	Details	Details	Details
Region	Universal	Universal	Universal
Input Voltage	100 VAC to 240 VAC	100 VAC to 240 VAC	100 VAC to 240 VAC
Number of Outputs	1 Output	1 Output	1 Output
Output Power	90 W	84 W	90 W
Output Voltage-Channel 1	15 V	12 V	24 V
Output Current-Channel 1	6 A	7 A	3.75 A
DC Output Connector	2.5 mm Barrel Plug	6 Pin Rectangular	2.5 mm Barrel Plug
DC Output Cord Length	1.5 m	1.5 m	1.5 m
Efficiency	Level V	Level V	Level V
AC Plug included/required	Required	Required	Required
Load Regulation	Regulated	Regulated	Regulated
Mounting Style	Desktop	Desktop	Desktop
Factory Pack Quantity	250	1	1
Commercial/Medical	Medical	Medical	-
