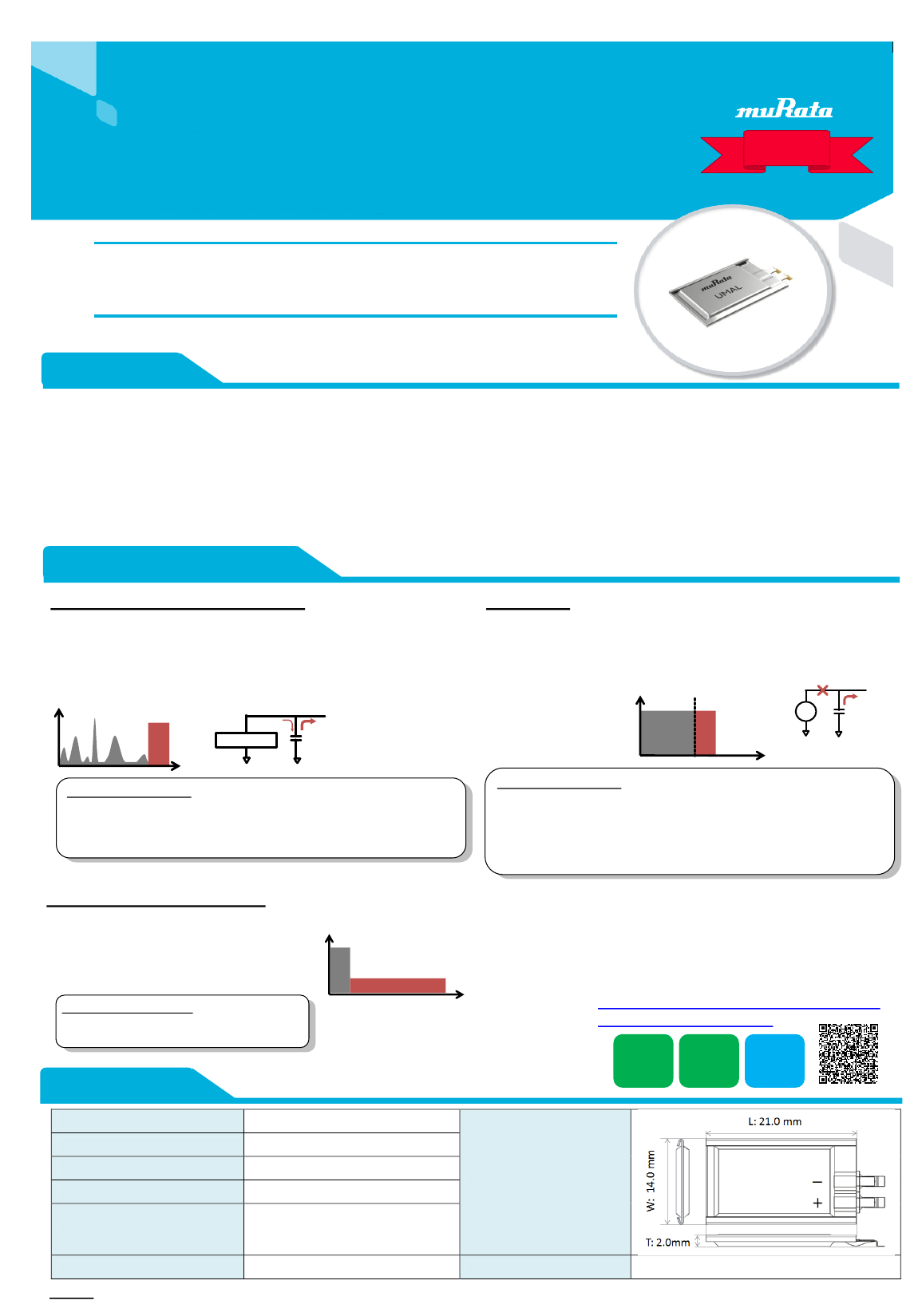

Sm a l l E n e r gy D e v i c e
L a m i n a t e t y p e ( UM A L )
Rechargeable battery having long cycle life
High rate charge/discharge is available.
New
Advantages
①
High rate charge/discharge
200mohm low ESR and high rate(10C,120mA) enabled by optimizing materials and structure
②
High safety
No thermal runaway occurs because of its low capacity and chemically stable materials.
③
Long cycle life
Charge (capacity) recovery is over 90% even after 5K cycles. It can realize maintenance free design
Applications & Benefits
1. Energy Harvesting Systems
・Charge/Discharge
in Wide Input/Output Range
・Long
working time due to Low Leakage Current
・Quick
start without pre-charging due to Low Leakage Current
・Enables
Maintenance Free
Unstable input
2. Backup
・Can
backup system during replacing main battery
・Long
backup time over 30sec
・High
power discharge is available
Power f ailure
・Long
cycle life
Power failure
Power
PS
Load
UMAL
Load
Harvester
UMAL
Power
Power
Supply
UMA
UMA
Time
Time
Application Example:
Solar battery charger equipment
Sensor node with wireless sensor network in combination with
micro and macro energy harvesting systems
Application Example:
Handy terminal / barcode reader
POS (payment terminals, etc.)
Emergency call or transmitter (medical equipments such as
nurse call, industrial equipments using ISM band, etc.)
Other battery powered equipments
3. Small power equipment
power
・Can
be charged with High Input(10C,120mA)
High input
・Quick
start due to high Input
・Permanent
use due to long cycle life
UMAL
・High
safety due to low capacity
Application Example:
PC accessory (Wireless mouse, etc.)
Wearable equipment
Time
For more details, please visit our website.
Product datasheets Application notes and
Technical notes are available.
http://www.murata.com/en-global/product
s/smallenergydevice/uma
RoHS
REACH
Hand
Soldering
Only
Specifications
Type
Nominal Voltage
Charge Voltage
End-of-discharge Voltage
Capacity
ESR
UMAL201421A012TA01
2.3V
2.7V
1.8V
12mAh (50F)
200mΩ
size
Operating Temp. range
-20½70℃
Recycle:Lithium-Ion
batteries can be recycled. Regulations and laws related to the recycling of lithium ion batteries vary from country to country as well as
by state and local governments. Please check the laws and regulations of final consuming areas.

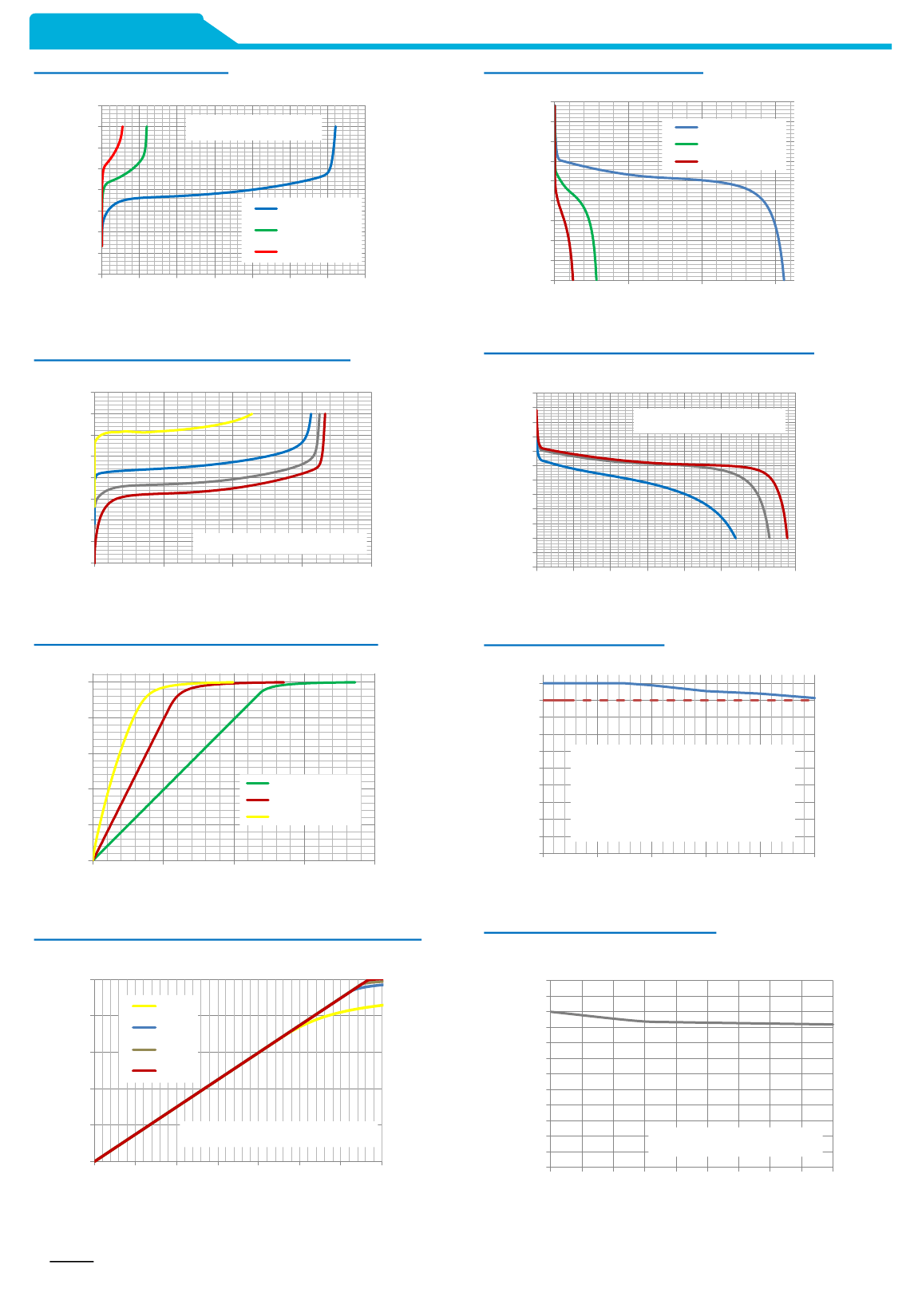

Characteristics
Charge Characteristics
2.8
2.7
2.6
Voltage (V)
2.5
2.4
2.3
2.2
2.1
2.0
0
10
20
30
40
Charge time (min)
50
60
70
1C(12mA)
5C(60mA)
10C(120mA)
C2M1CXS-313(E)
June 22, 2016
Discharge Characteristics
2.7
2.6
2.5
2.4
2.3
2.2
2.1
2.0
1.9
1.8
0
20
40
60
Temperature:25℃
1C(12mA)
5C(60mA)
10C(120mA)
Voltage(V)
Discharge time(min)
Charge : Temperature Characteristics
2.8
2.7
2.6
Voltage (V)
2.5
2.4
2.3
2.2
2.1
2.0
0
20
40
Charge time (min)
60
80
Charge Current:12mA
-20℃
0℃
25℃
70℃
Discharge Temperature Characteristics
2.8
2.7
2.6
2.5
2.4
2.3
2.2
2.1
2.0
1.9
1.8
1.7
1.6
0
10
Discharge current:12mA
Voltage (V)
70℃
25℃
0℃
20
30
40
50
Discharge time (min)
60
70
State of Charge : Current Characteristics
100
Charge Ratio(%)
Cycle Characteristics
100
90
80
70
60
50
40
30
20
10
0
0
80
60
40
20
0
0
5
10
15
Charge Time(min)
20
Charge(Capacity)Recovery(%)
Charge and Discharge conditions
Charge
:5C(60mA) 1.8V-2.7V
Discharge :5C(60mA) 2.7V-1.8V
Temperature:25
℃
5C(60mA)
10C(120mA)
50C(600mA)
1000
2000
3000
4000
5000
Cycle number(times)
State of Charge : Temperature Characteristics
100
Charge(Capacity) Retention
Charge (Capacity) Retention (%)
State of Charge (%)
80
60
40
20
0
0
10
-20℃
0℃
25℃
70℃
charge current : 12mA @Init~2.7V
20
30
40
50
Charge time (min)
60
70
120
110
100
90
80
70
60
50
40
30
20
10
0
0
10
20
Test Temperature：25℃
30 40 50 60
Period (days)
70
80
90
Recycle:Lithium-Ion
batteries can be recycled. Regulations and laws related to the recycling of lithium ion batteries vary from country to country as well as
by state and local governments. Please check the laws and regulations of final consuming areas.
