TOS 030033
www.vishay.com
Vishay Draloric

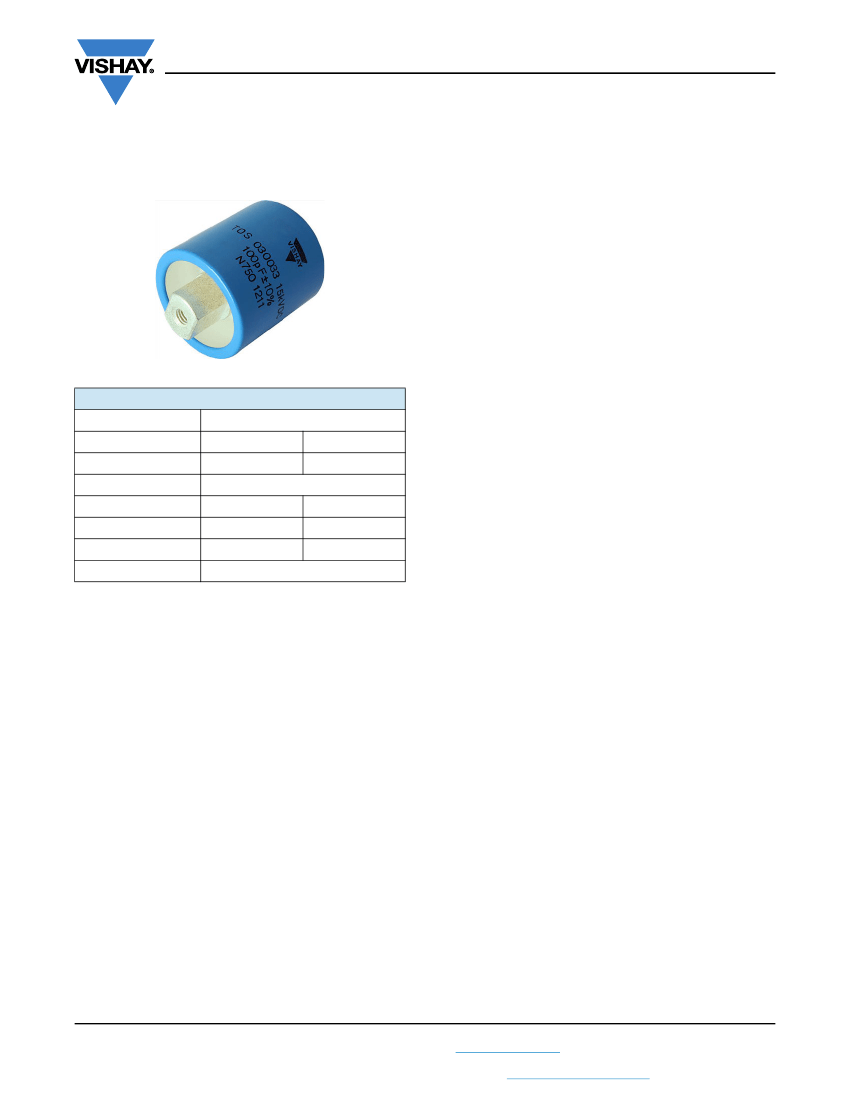

RF Power Barrel Capacitors
with Screw Terminals, Class 1 and Class 2 Ceramic
FEATURES
• High voltage power rating
• Geometry minimizes inductance, optimizes voltage
withstand and maximizes heat radiation
APPLICATIONS
• Industrial and medical RF power supply
• Filter, bypass and coupling circuits
• Antenna couplers
• Induction heating equipment
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Type
Voltage (V
p
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
15 000
10
500
Screw terminal
1
C0G, U2J, S3L
TOS 030033
15 000
750
1500
VALUE
2
X7R
CAPACITANCE RANGE
10 pF to 1.5 nF
CAPACITANCE TOLERANCE
• Class 1:
• Class 2:
± 10 %
± 20 %
CERAMIC DIELECTRICS
• Class 1:
• Class 2:
C0G, U2J, S3L
X7R
RATED VOLTAGE
MATERIAL
Capacitor elements made from class 1 ceramic dielectric
with noble metal electrodes.
Connection terminals:
thread terminal, brass, silver plated.
Allowable torque: 2.9 Nm (26 lbf in)
15 kV
DC
DIELECTRIC STRENGTH TEST
150 % of rated voltage (15 900 V
RMS
, 50 Hz, 3 minutes)
DISSIPATION FACTOR
C0G, U2J:
S3L:
X7R:
max. 0.05 % (1 MHz)
max. 0.20 % (1 MHz)
max. 2.5 % (1 kHz)
FINISH
Capacitor body completely protective lacquered.
MARKING
Type designator, capacitance value and tolerance, rated
peak voltage, ceramic material code, production date code,
manufacturer logo.
INSULATION RESISTANCE
Min. 100 000 M (at 25 °C)
OPERATING TEMPERATURE RANGE
Class 1:
Class 2:
-55 °C to +100 °C
-55 °C to +85 °C
Revision: 11-Sep-15
Document Number: 22129
1
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TOS 030033
www.vishay.com
Vishay Draloric
MAXIMUM POWER RATING
(1)
1.0 MHz
(kvar)
7.0
18
35
35
35
22
15
15
5
5
5
0.5
0.5
0.5
0.5
10 MHz
(kvar)
35
35
35
35
35
22
15
5
5
5
0.5
0.5
0.5
0.5
30 MHz
(kvar)
35
35
35
35
35
22
15
5
5
5
0.5
0.5
0.5
0.5
SAP PART NUMBER AND ELECTRICAL DATA
PART NUMBER
BS030033BJ10036AC1
BS030033BJ25036AC1
BS030033BJ50036AC1
BS030033BJ75036AL1
BS030033BJ10136AL1
BS030033BJ15136AL1
BS030033BJ20136AL1
BS030033BJ30136AQ1
BS030033BJ40136AQ1
BS030033BJ50136AQ1
BS030033BJ75138AV1
BS030033BJ10238AV1
BS030033BJ12238AV1
BS030033BJ15238AV1
X7R
(R2000)
S3L
(N3300)
U2J
(N750)
C0G
(NP0)
CERAMIC
CAP.
VALUES
(pF)
10
25
50
75
100
150
200
300
400
500
750
1000
1200
1500
RATED
VOLTAGE
(kV
DC
)
MAXIMUM CURRENT RATING
1.0 MHz
(A
RMS
)
0.7
1.7
3.3
4.1
4.7
4.6
4.3
3.1
3.6
4.0
1.5
1.8
2.0
2.2
10 MHz
(A
RMS
)
4.7
7.4
11
13
15
14
14
10
11
13
5.0
6.0
6.0
6.0
30 MHz
(A
RMS
)
8.1
13
18
22
26
25
24
17
19
22
8.4
9.7
12
12
Notes
• # 14
th
to 15
th
digit: capacitance tolerance code ± 10 % = 36; ± 20 % = 38
• Other capacitance values or metric threads are available on request
(1)
The surface temperature during operation must not exceed +100 °C
DIMENSIONS
in millimeters (inches)
Ø 30
(1.18 Dia.)
L
2 max.
= 33 (1.30)
(1)
9.5
(0.374)
L
1 max.
= 48 (1.89)
(1)
10-32 UNF thread
6.35 (0.25) depth
Notes
• Use wrenches when tightening the screws and nuts on both end of the capacitor
(1)
Dimension L and L will vary depending upon capacitance value
1
2
RELATED DOCUMENTS
General Information
www.vishay.com/doc?22071
Revision: 11-Sep-15
Document Number: 22129
2
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
