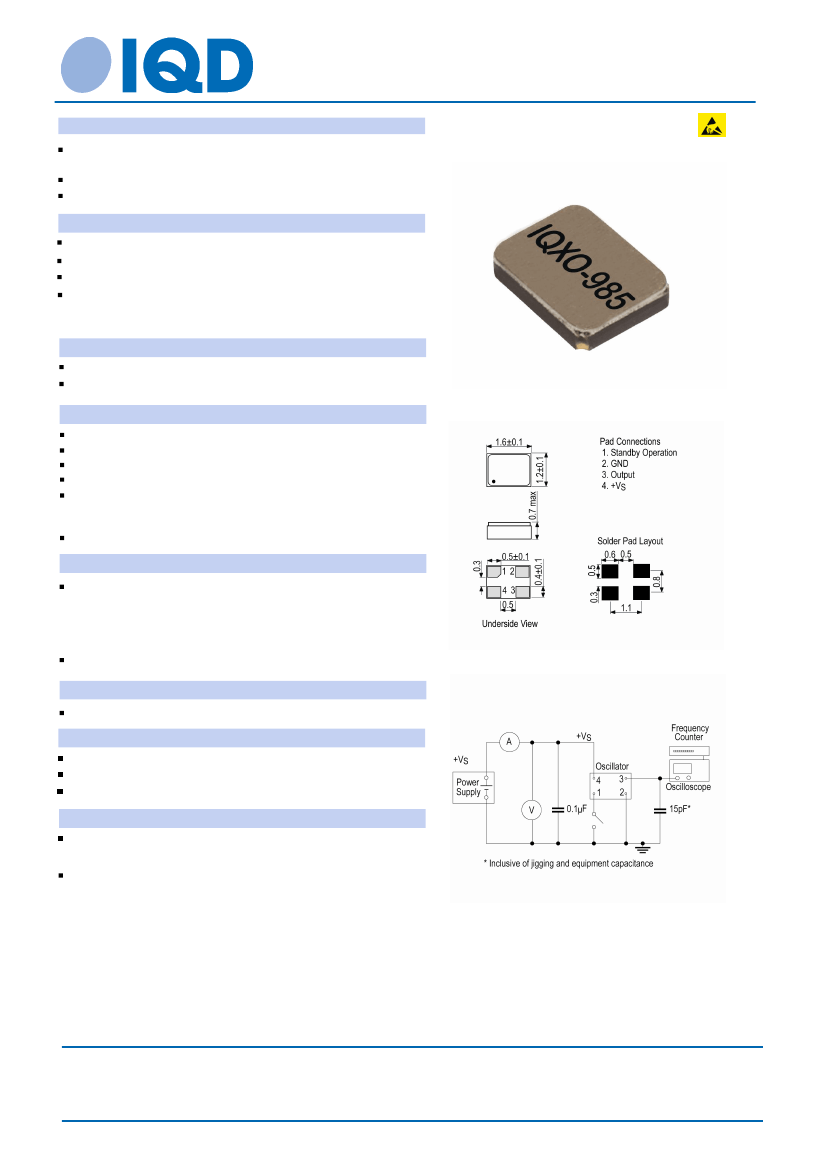

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO071975Cutt

Description

1.6 x 1.2mm crystal oscillator in a ceramic package with a seam

sealed metal lid, hermetically sealed.

Model

IQXO-985

Model Issue number

1

Frequency Parameters

Frequency

Frequency Stability

32.7680kHz

±

50.00ppm

Operating Temperature Range

-40.00 to 85.00°C

Frequency Stability: Includes Frequency Tolerance @ 25°C,

operating temperature range, supply voltage variation and load

variation.

Electrical Parameters

Supply Voltage

Current Draw: TBD

Output Details

2.5V ±10%

Outline (mm)

Output Compatability

Drive Capability

Rise and Fall Time

Duty Cycle

Output Voltage Levels:

Output Low (VoL): 10%Vs max

Output High (VoH): 90%Vs min

Start Up Time: TBD

Output Control

CMOS

15pF max

200.0ns max

45/55

Stand-by Mode:

Logic '0' (30%Vs max) to pad 1 disables the oscillator output,

the output goes to a high impedance state.

Logic '1' (70%Vs min) or no connection to pad 1 enables

oscillator output.

Stand-by Current: 3μA max

Environmental Parameters

Test Circuit

Storage Temperature Range: –40 to 85°C

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Cutt

Pack Size: 100

In tape, cut from a reel

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

Printed on 9 May 16 12:20 using Part Data Sheet V1.00014
