Features
■
Formerly
■
Available in E12 series
■
Low profile of only 2.5 mm
■
Low inductance values
■
RoHS compliant*
Applications
model
■
Input/output of DC/DC converters
■
Power supplies for:
*R
oH
S
CO
M
PL
IA
•
•
•
•
Portable communication equipment
Camcorders
LCD TVs
Car radios

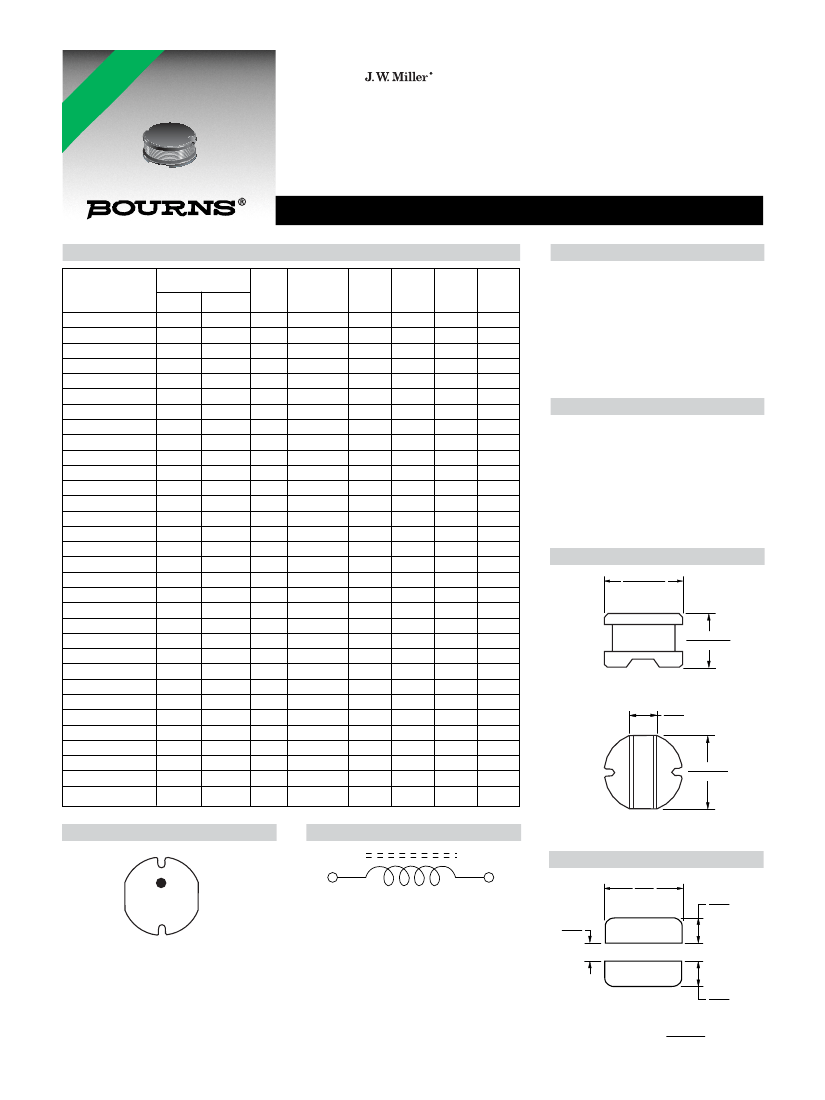

PM32 Series - SMD Power Inductors
Electrical Specifications
Inductance 1 kHz
Bourns Part No.
PM32-1R0M-RC
PM32-1R4M-RC
PM32-1R8M-RC
PM32-2R2M-RC
PM32-2R7M-RC
PM32-3R3M-RC
PM32-3R9M-RC
PM32-4R7M-RC
PM32-5R6M-RC
PM32-6R8M-RC
PM32-8R2M-RC
PM32-100M-RC
PM32-120M-RC
PM32-150M-RC
PM32-180M-RC
PM32-220M-RC
PM32-270M-RC
PM32-330M-RC
PM32-390M-RC
PM32-470M-RC
PM32-560M-RC
PM32-680M-RC
PM32-820M-RC
PM32-101M-RC
PM32-121M-RC
PM32-151M-RC
PM32-181M-RC
PM32-221M-RC
PM32-271M-RC
PM32-331M-RC
PM32-391M-RC
PM32-471M-RC
(µH)
1.0
1.4
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10.0
12.0
15.0
18.0
22.0
27.0
33.0
39.0
47.0
56.0
68.0
82.0
100.0
120.0
150.0
180.0
220.0
270.0
330.0
390.0
470.0
Tol. %
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
± 20
Q
Ref.
20
22
23
22
22
23
24
18
18
18
16
18
15
20
18
23
23
20
24
23
18
24
24
40
40
38
45
40
45
40
40
42
Test
Frequency
(MHz)
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
SRF
Min.
(MHz)
125.0
95.0
85.0
75.0
72.0
68.0
50.0
45.0
42.0
40.0
35.0
34.0
33.0
32.0
28.0
22.0
20.0
18.0
18.0
17.0
16.0
14.0
12.0
10.0
10.0
9.0
8.5
8.0
7.0
6.0
5.5
5.0
RDC
Max.
(Ω)
0.06
0.07
0.08
0.09
0.10
0.11
0.12
0.15
0.16
0.18
0.20
0.25
0.28
0.40
0.46
0.66
0.75
0.85
1.12
1.27
1.45
1.85
2.10
2.85
3.20
4.60
5.00
5.70
8.60
10.00
10.80
14.30
I rms
Max.
(A)
2.100
1.500
1.800
1.650
1.500
1.400
1.300
1.200
1.100
1.000
0.900
0.800
0.750
0.650
0.580
0.520
0.480
0.420
0.380
0.360
0.340
0.300
0.280
0.260
0.220
0.200
0.185
0.170
0.150
0.130
0.120
0.105
I sat
Typ.
(A)
2.700
2.300
2.000
1.850
1.700
1.600
1.500
1.350
1.300
1.200
1.050
0.900
0.850
0.800
0.750
0.650
0.550
0.500
0.450
0.400
0.350
0.320
0.300
0.280
0.250
0.230
0.210
0.190
0.170
0.150
0.140
0.130
General Specifications
Test Voltage .......................................1 V
Reflow Soldering .. 230 °C, 50 sec. max.
Operating Temperature
................................-40 °C to +125 °C
(Temperature rise included)
Storage Temperature
................................-40 °C to +125 °C
Resistance to Soldering Heat
................................. 260 °C for 5 sec.
Materials
Core ...................................... Ferrite DR
Wire ............ Enameled copper wire 130
Terminal ....................................Ag/Ni/Sn
Rated Current
...................Ind. drop 10 % typ. at Isat
Temperature Rise ................. 40 °C max.
at rated Irms
Packaging .................. 1500 pcs. per reel
Product Dimensions
3.0
±
0.3
(.118
±
.012)
MAX.
2.5
±
0.3
MAX.
(.098
±
.012)
0.9
TYP.
(.035)
2.8
±
0.3
MAX.
(.110
±
.012)
Typical Part Marking
Electrical Schematic
Recommended Layout
3.0
(.118)
100
0.8
(.031)
1.4
(.055)
1.4
(.055)
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
DIMENSIONS:
MM
(INCHES)
PM32 Series - SMD Power Inductors

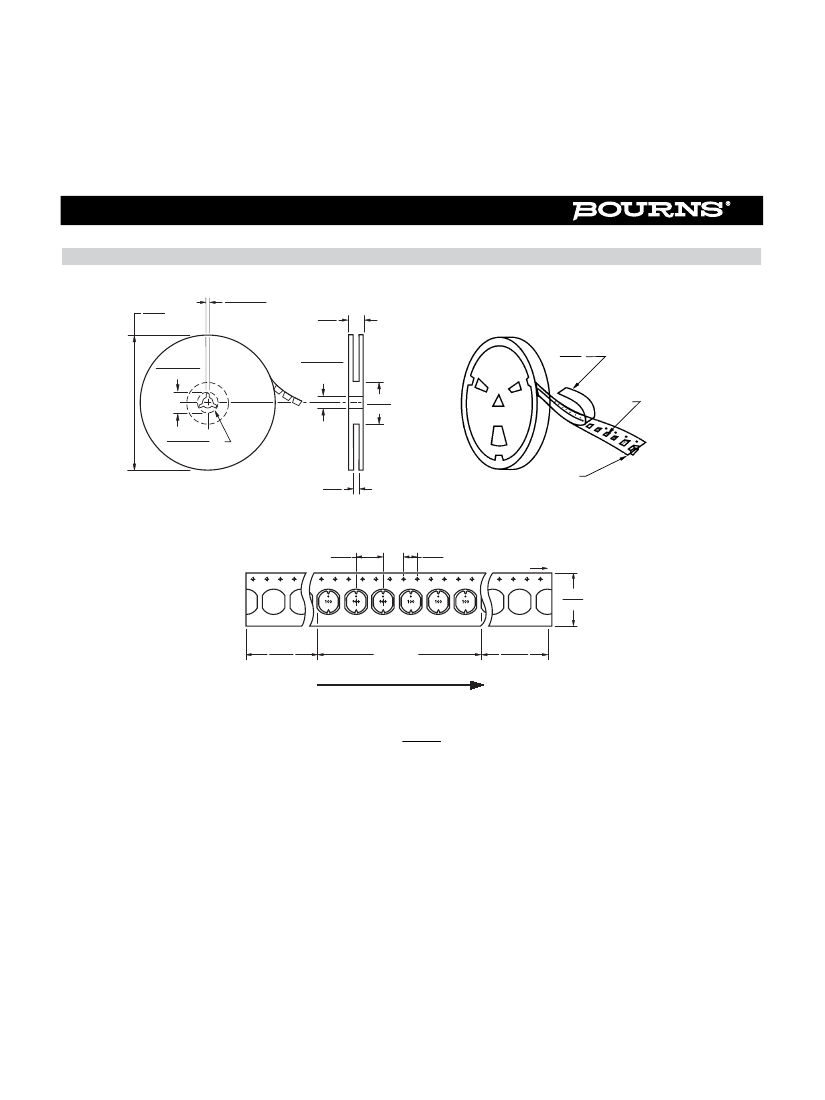

Packaging Specifications
330.0
(13.00)
DIA.
2.0
±
0.5
(.079
±
.020)
18.4
(.724)
THICKNESS
0.10
(.004)
MAX.
50.0
(1.969)
EMBOSSED
CAVITY
21.0
±
0.8
(.827
±
.031)
13.0
±
0.5
(.512
±
.020)
DIA.
13.0
±
0.5
DIA.
(.512
±
.020)
EMBOSSED
CARRIER
14.0
(.551)
END
8.0
(.315)
4.0
(.157)
START
12.0
(.472)
NO COMPONENT
NO COMPONENT
COMPONENTS
200
(7.874)
400
(15.748)
USER DIRECTION OF FEED
QTY: 1500 PCS. PER REEL
DIMENSIONS:
MM
(INCHES)
REV. 05/09
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
