Part Number

Search

39516-1511

Description
Pluggable Terminal Blocks 3.81MM EURO HEADER R R RA ME BLK AU 11CKT
CategoryThe connector
File Size27KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

39516-1511 Online Shopping

Suppliers Part Number Price MOQ In stock
39516-1511 - - View Buy Now

39516-1511 Overview

Pluggable Terminal Blocks 3.81MM EURO HEADER R R RA ME BLK AU 11CKT

39516-1511 Parametric

Parameter NameAttribute value
Product CategoryPluggable Terminal Blocks
ManufacturerMolex
RoHSDetails
ProductHeaders
Number of Positions11 Position
Pitch3.81 mm
Current Rating8 A
Voltage Rating300 V
Mounting AngleHorizontal
Factory Pack Quantity280

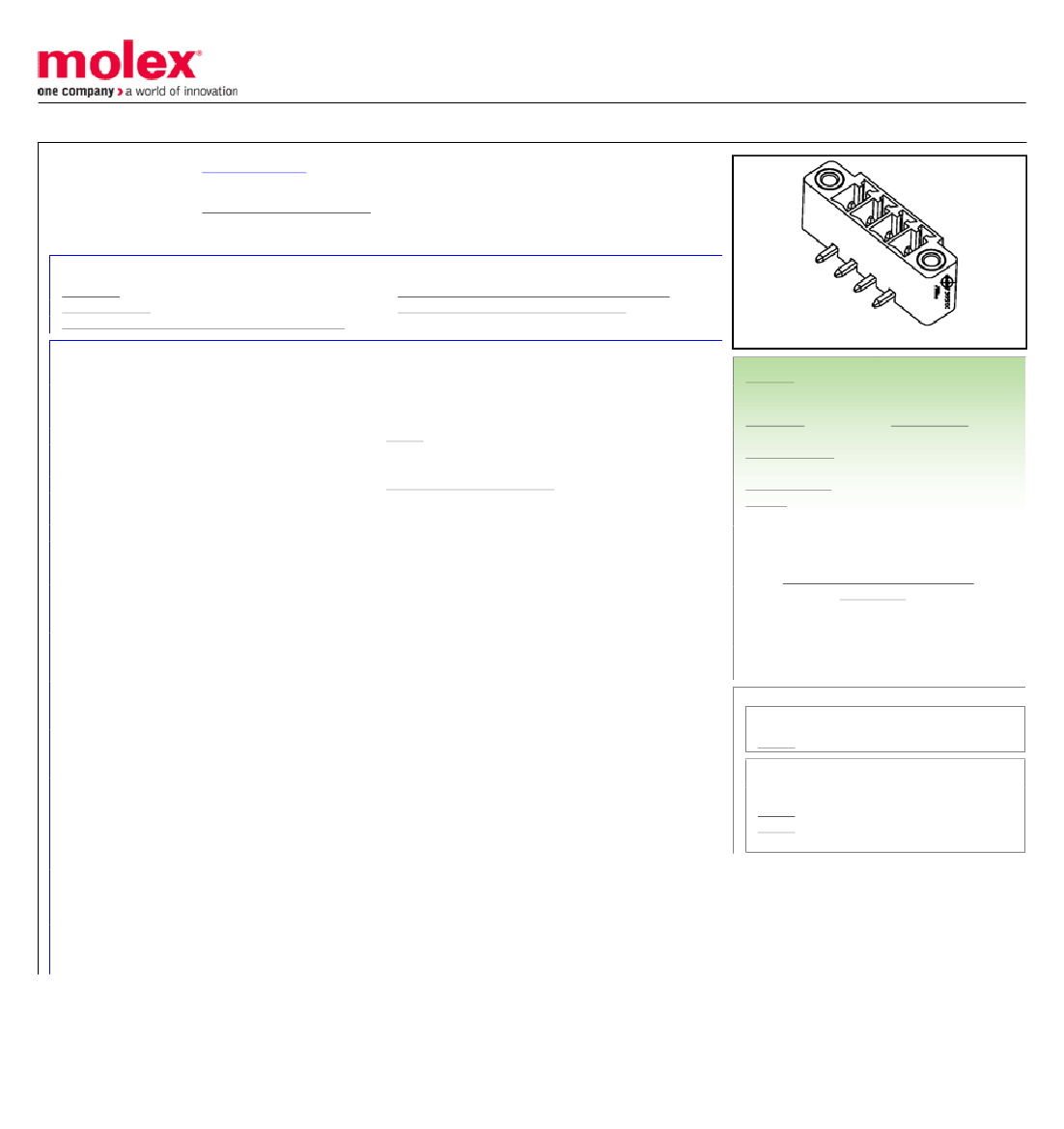

This document was generated on 10/12/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0395161511
Active
Eurostyle™ Terminal Blocks
3.81mm Pitch Eurostyle Horizontal PCB Header, with Threaded Retention Inserts, Gold
(Au) Plated, 11 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-39500-001-001 (PDF)
Agency Certification
UL
General
Product Family
Series
Application
Component Type
Overview
Product Name
Type
UPC
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
PC Tail Length
PCB Thickness - Recommended
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Shrouded
Stackable
Temperature Range - Operating
Wire Size AWG
Electrical
Current - Maximum per Contact
Voltage - Maximum
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
Packaging Specification PK-39516-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
E48521
Terminal Blocks
39516
N/A
PCB Header
Eurostyle™ Terminal Blocks
ESE, Eurostyle Pluggable
Euro Block
822350444682
11
N/A
Yes
1
Horizontal
3.50mm
2.50mm
No
3.81mm
3.81mm
Yes
Fully
No
-40°C to +105°C
N/A
8.0A
300V
EU ELV
Not Relevant
EU RoHS
China RoHS
Not Reviewed
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Not Relevant
Not Relevant
Not Reviewed
Search Parts in this Series
39516 Series
Mates With
Most 3.81mm Pitch Industry Standard Plugs,
39517 Vertical Plug with Retention Screws,
39514 Horizontal Plug with Retention
Screws
PK-39516-001
PS-39500-001-001
SD-39501-002, SD-39516-001
This document was generated on 10/12/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
