M80-5214022 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M80-5214022

M80-5214022: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size102KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

M80-5214022 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-5214022	-	-	View	Buy Now

M80-5214022 Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle,

M80-5214022 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	2090746159
Reach Compliance Code	compliant
Country Of Origin	UK
ECCN code	EAR99
YTEOL	6.53
Other features	PANEL MOUNTABLE, POLARIZED, SHROUDED
body width	0.238 inch
subject depth	0.22 inch
body length	1.969 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULFIDE
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	JACKSCREW
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.173 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	40
UL Flammability Code	94V-0

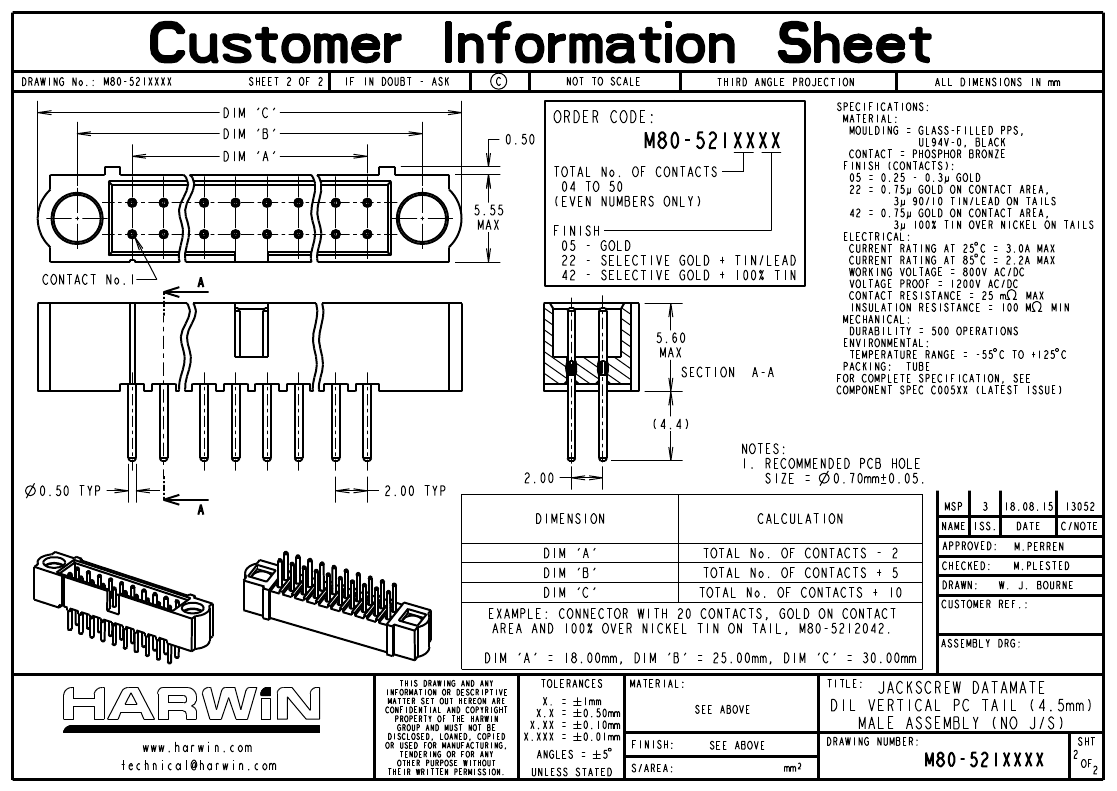

Preview
