97-3106A14S5P639 datasheet, PDF

Datasheet> All Categories > The connector> 97-3106A14S5P639

97-3106A14S5P639: DescriptionCircular MIL Spec Connector; CategoryThe connector; File Size457KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

97-3106A14S5P639 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	97-3106A14S5P639	-	-	View	Buy Now

97-3106A14S5P639 Overview

Circular MIL Spec Connector

97-3106A14S5P639 Parametric

Parameter Name	Attribute value
Product Category	Circular MIL Spec Connector
Manufacturer	Amphenol
Number of Positions	5 Position
Insert Arrangement	14S-5
Contact Gender	Pin (Male)
MIL Type	MIL-DTL-5015
Product	Plugs
Shell Size	14
Shell Style	In-Line
Mounting Style	Free Hanging
Termination Style	Solder
Current Rating	13 A
Contact Plating	Silver
Contact Material	Copper Alloy
Mating Style	Threaded
Mounting Angle	Straight
Shell Material	Aluminum Alloy
Shell Plating	Clear Cadmium
Voltage Rating	250 V
Wire Gauge	22-16

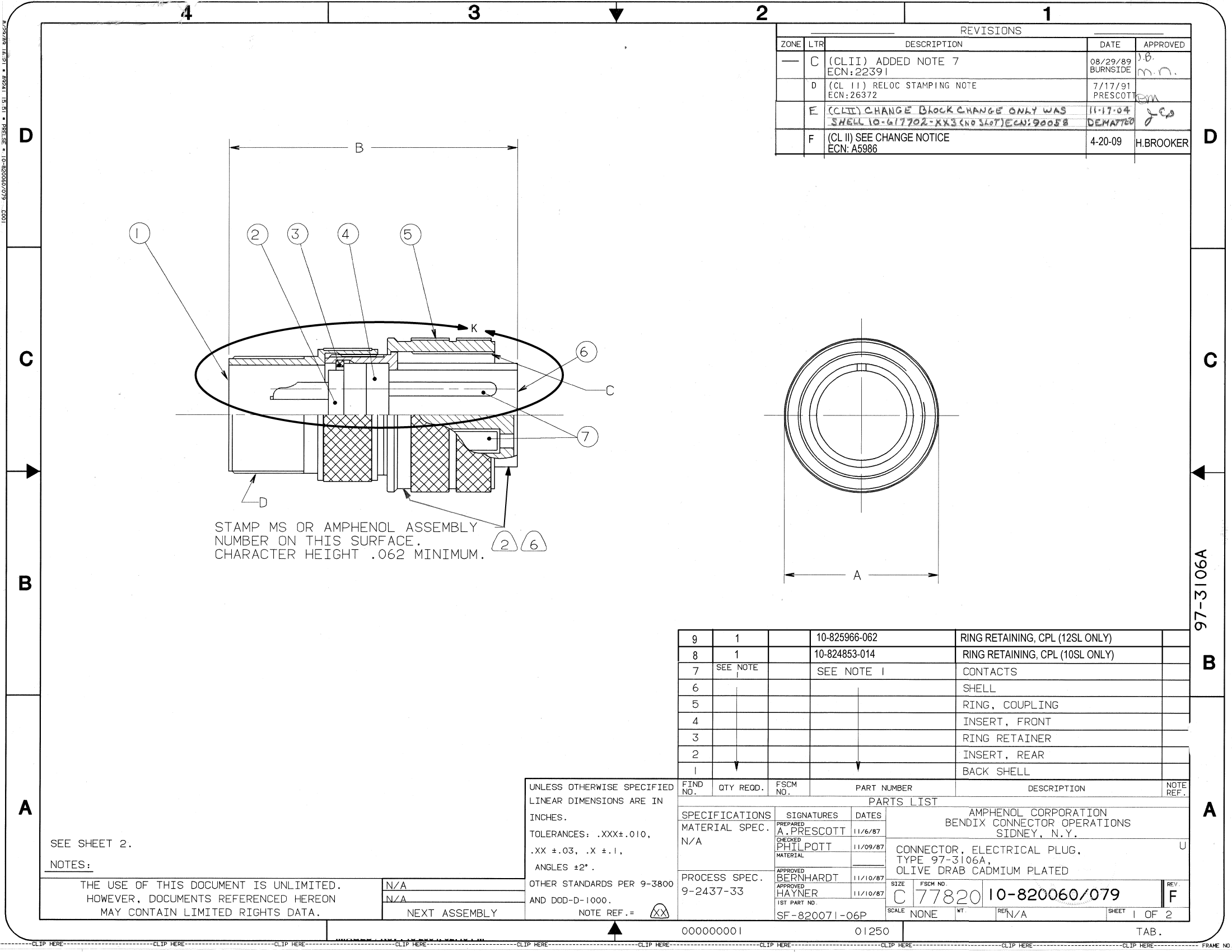

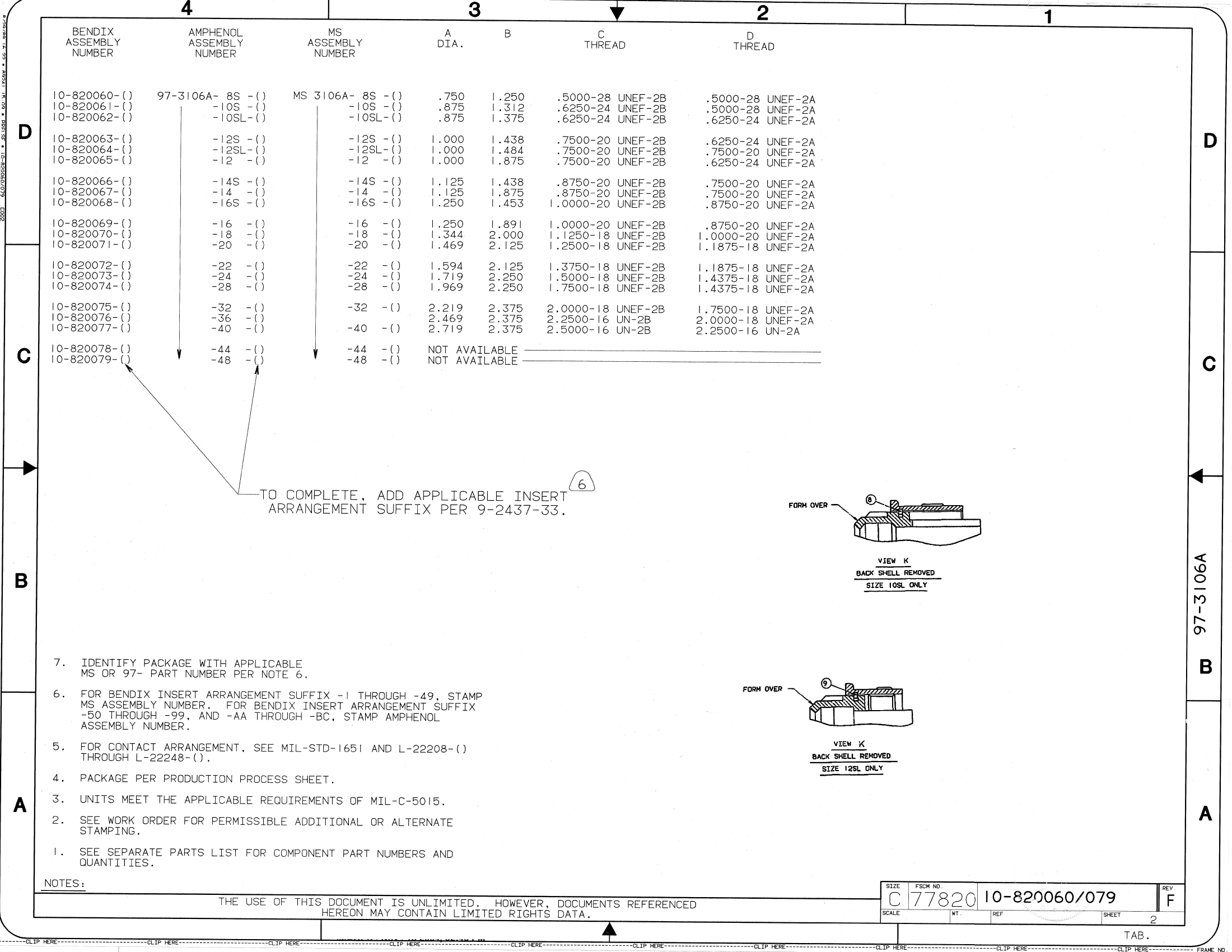

Preview

Download Datasheet

View All

97 series solder type

how to order

Example of part number for solder type connectors is given below.

–

3101

A – 28 – 21

Y (847) (639)

Series Number

97 - Like MS but

Amphenol

Shell Type

3100 Wall Receptacle

3101 Cable Receptacle

3102 Box Receptacle

3106 Straight Plug

3107 Quick Disconnect Plug

3108 Angle Plug

Shell Finish Suffix

Omit for standard O.D.

cadmium finish

(604) Gray anodized

(608) Black anodized

(621) Black zinc alloy

(624) Green zinc alloy

(639) Clear cadmium

(640) Conductive black zinc alloy

(689) Electroless nickel

RoHS Compliant

oHS

Suffix

(946) Black zinc alloy

002

plating plus solder

contact less pre-filled cup

mpheno

Shell Construction

A - Solid Backshell

B - Split Backshell

Shell Size

8S, 10SL, 12S, 14S, 14, 16S, 16

18, 20, 22, 24, 28, 32, 36

Insert Configuration Number

See insert availability listing - pages 4 & 5,

and see insert arrangement illustrations -

pages 6-11.

Deviation from standard A&B

construction

Omit this suffix if standard construction is

desired

(115) Small flange receptacle

(426) Gold over silver plating on contacts

(438) Construction for potting (see page 30

for additional deviations)

(936) Connector plug with safety wire holes

in coupling nut

Consult Amphenol, Sidney, NY for

other deviations.

Alternate Insert Positions

Omit for standard position

W, X, Y or Z for alternate positions, depend-

ing on insert (see page 12 for positions

available)

Note: Accessories for 97 Series Connectors

should be ordered with matching connec-

tor plating. See accessory pages 33-39.

Contact Type

P = Pin

S = Socket
