with Strain Relief

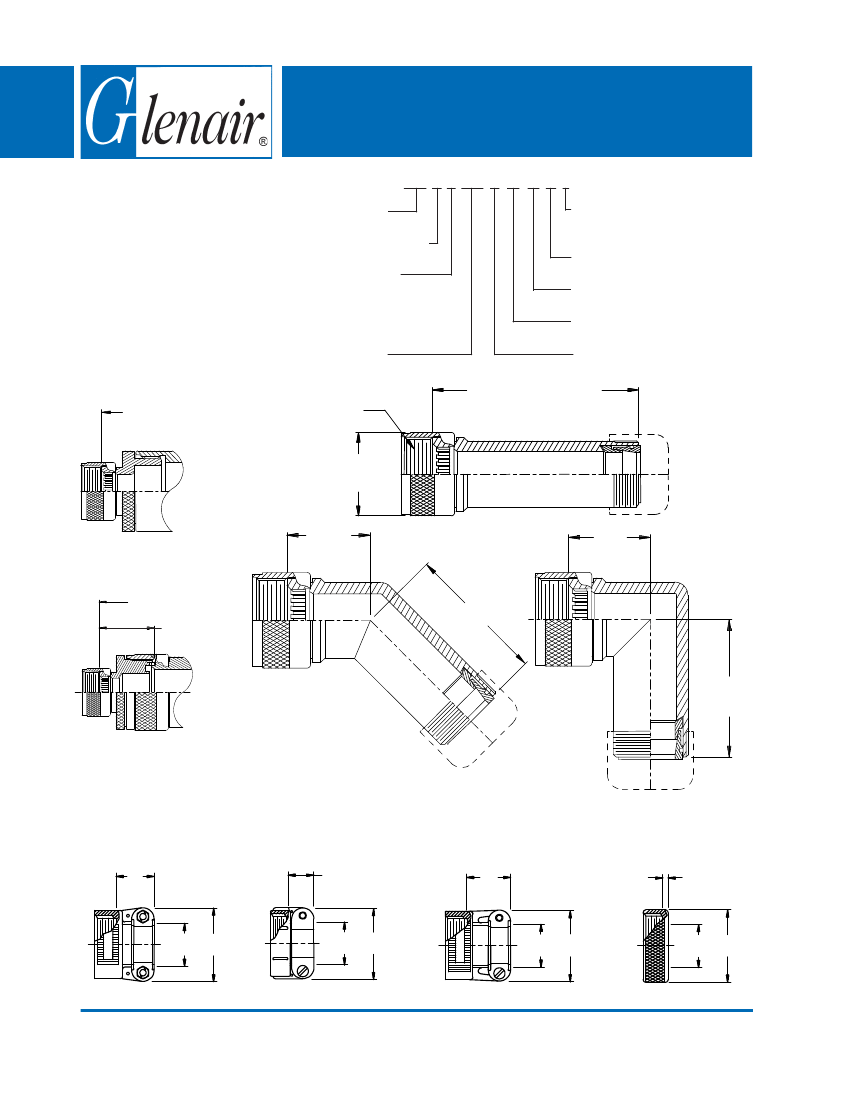

Type A - Rotatable Coupling - Standard Profile
380-011
EMI/RFI Non-Environmental Backshell
38
CONNECTOR
DESIGNATOR
ROTATABLE
COUPLING
TYPE A OVERALL
SHIELD TERMINATION
Length ± .060 (1.52)
Min. Order Length 2.5 Inch
(See Note 4)
380 G S 011 M 17 10 H 6
Product Series
Connector Designator
Angle and Profile
H = 45°
J = 90°
S = Straight
Basic Part No.
Length: S only (1/2 inch incre-
ments: e.g. 6 = 3 inches)
Strain Relief Style (H, A, M, D)
Cable Entry (Tables X, XI)
Shell Size (Table I)
Finish (Table II)
Length ± .060 (1.52)
Min. Order Length 2.0 Inch
(See Note 4)
G
A Thread
(Table I)
C Typ.
(Table I)
STYLE 2
(STRAIGHT
See Note 1)
Length ± .060 (1.52)
1.25 (31.8)
Max
E
(Table III)
G
(Table III)
F (Table III)
H
(Table III)
STYLE 2
(45° & 90°
See Note 1)
STYLE H
Heavy Duty
(Table X)
T
STYLE A
Medium Duty
(Table XI)
W
STYLE M
Medium Duty
(Table XI)
X
STYLE D
Medium Duty
(Table XI)
.135 (3.4)
Max
Cable
Entry
Cable
Range
V
Cable
Range
Y
Cable
Range
Y
Z
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 16
with Strain Relief
Type A - Rotatable Coupling - Standard Profile
See inside back cover fold-out or pages 13 and 14 for unabridged
Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell
E
G
F
Size
Max
Max
Max
11 1.240 (31.5) 1.050 (26.7) 1.380 (35.1)
13 1.260 (32.0) 1.070 (27.2) 1.440 (36.6)
15 1.290 (32.8) 1.100 (27.9) 1.500 (38.1)
17 1.310 (33.3) 1.120 (28.4) 1.570 (39.9)
19 1.340 (34.0) 1.150 (29.2) 1.630 (41.4)
23 1.380 (35.1) 1.190 (30.2) 1.730 (43.9)
25 1.410 (35.8) 1.220 (31.0) 1.800 (45.7)
29 1.580 (40.1) 1.390 (35.3) 2.040 (51.8)
33 1.620 (41.1) 1.430 (36.3) 2.130 (54.1)
H
Max
1.190 (30.2)
1.250 (31.8)
1.320 (33.5)
1.380 (35.1)
1.460 (37.1)
1.540 (39.1)
1.610 (40.9)
1.850 (47.0)
1.940 (49.3)
1. When maximum cable entry (page 21) is
exceeded, Style 2 will be supplied.
Dimensions E, F, G & H will not apply.
Please consult factory.
2. Metric dimensions (mm) are indicated in
parentheses.
3. Cable range is defined as the accommo-
dations range for the wire bundle or
cable. Dimensions shown are not
intended for inspection criteria.
4. Consult factory for shorter lengths on
straight backshells.
Dash
No.
04
06
08
10
12
16
20
24
28
32
TABLE X: CABLE ENTRY
V
Cable Range
T
Max
Max
Min
Max
.957 (24.3)
.125 (3.2) .312 (7.9)
.780 (19.8)
.780 (19.8) 1.145 (29.1)
.250 (6.4) .437 (11.1)
.780 (19.8) 1.332 (33.8)
.312 (7.9) .562 (14.3)
.350 (8.9) .625 (15.9)
.780 (19.8) 1.332 (33.8)
.811 (20.6) 1.551 (39.4)
.500 (12.7) .750 (19.1)
.905 (23.0) 1.770 (45.0)
.625 (15.9) .937 (23.8)
1.092 (27.7) 2.113 (53.7)
.875 (22.2) 1.250 (31.8)
1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9)
1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3)
1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6)
TABLE II: STANDARD FINISHES
GLENAIR
SYMBOL
B
M
NF
FINISH
Cadmium Plate, Olive Drab
Electroless Nickel
Cadmium Plate, Olive Drab
Over Electroless Nickel
See Inside Back Cover
for Additional Finish Options
Now Available
with the “NESTOR”
Add “-445” to Specify
Glenair’s Non-Detent,
Spring-Loaded, Self-
Locking Coupling. See
Page 41 for Details.
TABLE XI: CABLE ENTRY
Dash
W
Z
Y
X
Cable Range
No.
Max
Max
Max
Max
Max
Min **
03* .437 (11.1) .760 (19.3) .843 (21.4)
.630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0)
.755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8)
.942 (23.9) .281 (7.1) .438 (11.1)
08
.563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .344 (8.7) .562 (14.3)
10
.563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12
.563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16
.656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .562 (14.3) .938 (23.8)
20
.656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .750 (19.1) 1.250 (31.8)
24
.656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) .781 (19.8) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) .969 (24.6) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.125 (28.6) 1.875 (47.6)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.469 (37.3) 2.375 (60.3)
* Not available in Style M clamp.
