3201178 Overview

Terminals AI 50 -20 OL

3201178 Parametric

Parameter Name	Attribute value
Product Category	Terminals
Manufacturer	PHOENIX CONTACT
RoHS	Details
Product	Ferrules
Type	One Wire
Gender	Female
Insulation	Not Insulated
Color	Olive
Length	36 mm
Material	Electrolytic Copper
Mounting Angle	Straight
Mounting Method	Wire
Factory Pack Quantity	50
Unit Weight	0.105822 oz

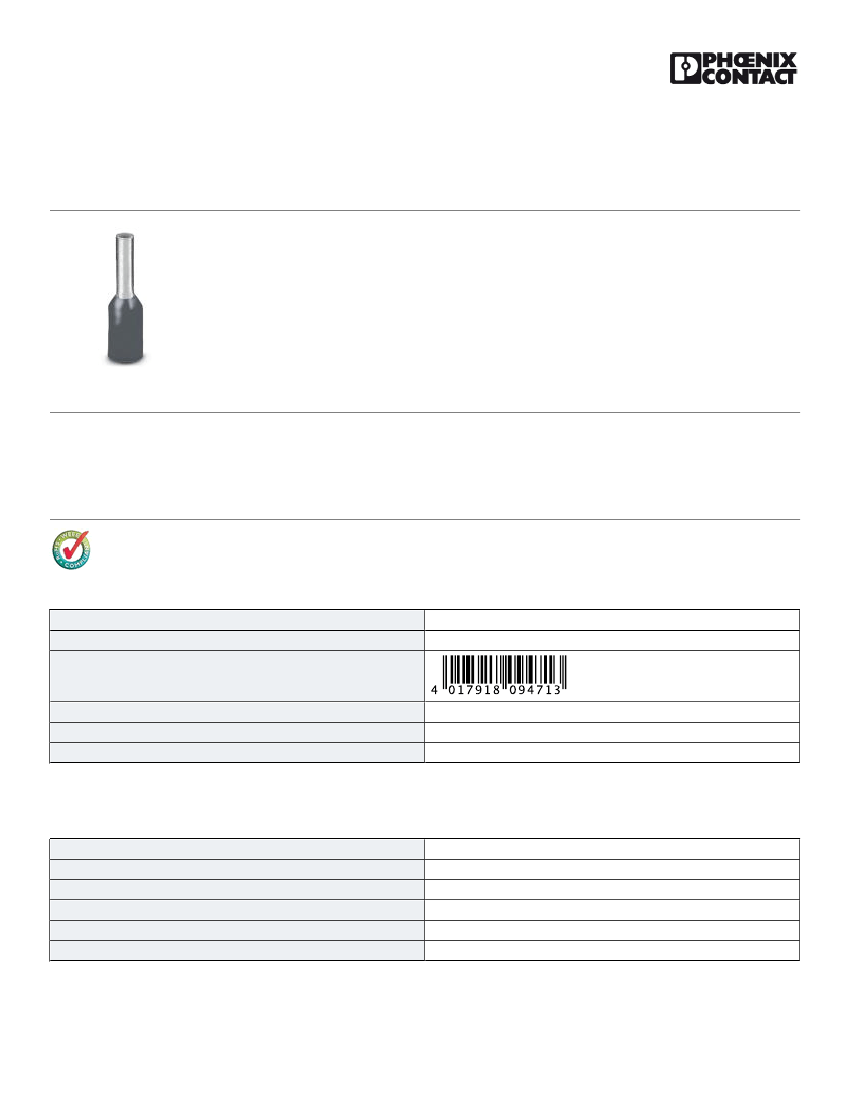

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/us/products/3201178

Ferrule - AI 50 -20 OL - 3201178

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Ferrule, Sleeve length: 20 mm, Length: 36 mm, Color: olive

The figure shows the version AI

0,75-8 GY

Product Features

■

The AI 0,25... can also be used to process 0.14 mm² conductors

The ferrules with plastic sleeve are made from soft tin-plated electrolytic copper

In terms of dimensions, they correspond to DIN 46228‑4: 1990‑09

Key Commercial Data

Packing unit

Minimum order quantity

GTIN

Weight per Piece (excluding packing)

Custom tariff number

Country of origin

3.01 g

85369010

Germany

1 pc

50 pc

Technical data

Dimensions

Length (b)

Maximum stripping length

Sleeve length

Inner dimension of the insulating collar (d)

Ferrule diameter

Insulating collar thickness

36 mm

25 mm

20 mm

15 mm

10.3 mm

0.6 mm

04/24/2016 Page 1 / 4
