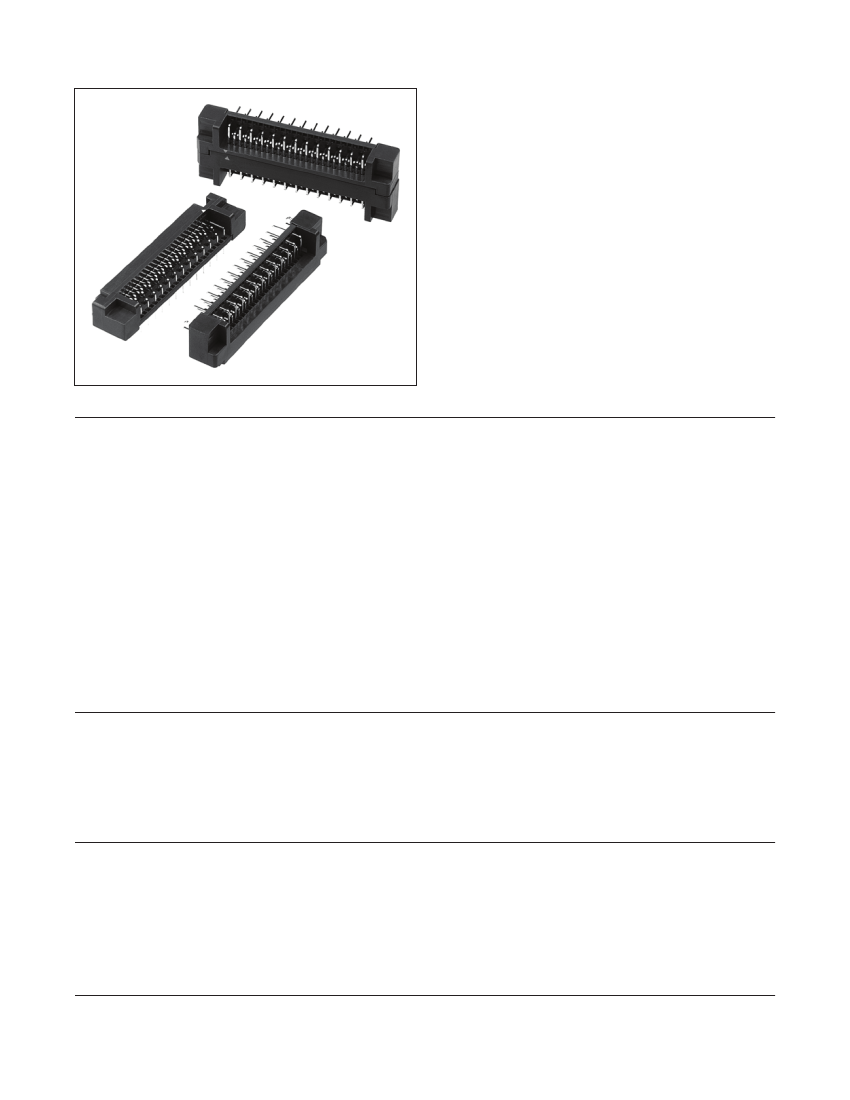

.050" Low Profile, Through-Hole, Right Angle, Boardmount
P50L Series
• Low profile 0.276" (7 mm) from PCB surface
• High temperature insulator compatible with IR and
wave soldering
• Optional plug standoffs allow offset of mated board
by 1.0 - 4.0 mm
• Retention clips stabilize connector to the board
during wave soldering
• RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the "RoHS Compliance" section
of www.3Mconnector.com for compliance
information (RIA E1 and C1 apply)
Date Modified: February 10, 2010
TS-1161-B
Sheet 1 of 2
Physical
Insulator:
Material: Glass Filled PPS
Flammability: UL 94V-0
Color: Brown
Contact Material: Phosphor Bronze
Plating:
Underplating: Nickel
Wiping Area: Gold Flash
Solder Tails: Gold Flash
Retaining Clips: Tin-Copper
Mating Compatibility: TS-1146 , TS-2054
Electrical
Current Rating:
0.5 A
Insulation Resistance:
> 1 × 10
9
Ω
at 500 V
DC
Withstanding Voltage:
650 V
AC
for 1 minute
Environmental
Temperature Rating:
-55ºC to +85ºC
Process Rating:
260ºC MSL1 (per J-STD-020C)
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 50 Low Profile Plug
.050" Low Profile, Through-Hole, Right Angle, Boardmount

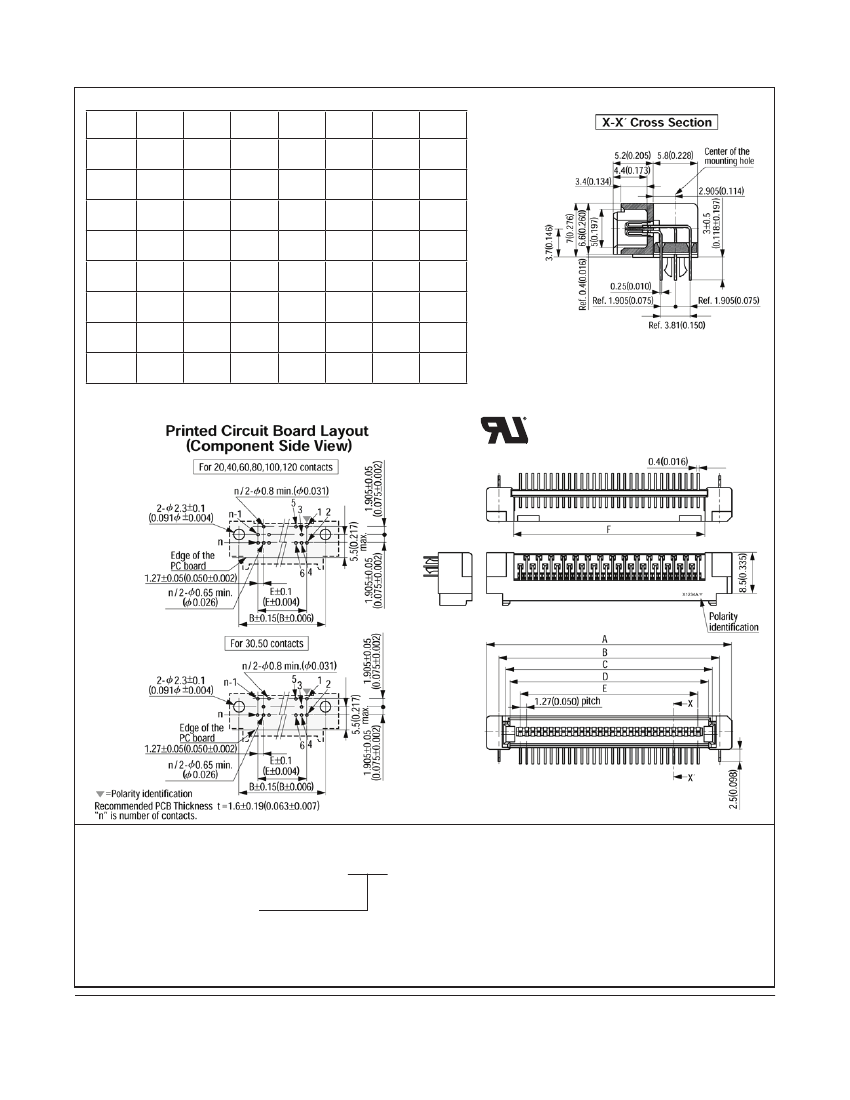

Product Table / Dimensions for Straight with Flanges, with or without Retention Clips
Contact
Quantity
20
30
40
50
60
80
100
120
A
25.43
[1.001]
31.78
[1.251]
38.13
[1.501]
44.48
[1.751]
50.83
[2.001]
63.53
[2.501]
76.23
[3.001]
88.93
[3.501]
B
20.32
[0.800]
26.67
[1.050]
33.02
[1.300]
39.37
[1.550]
45.72
[1.800]
58.42
[2.300]
71.12
[2.800]
83.82
[3.300]
C
17.43
[0.686]
23.78
[0.936]
30.13
[1.186]
36.48
[1.436]
42.83
[1.686]
55.53
[2.186]
68.23
[2.686]
80.93
[3.186]
D
15.83
[0.623]
22.18
[0.873]
28.53
[1.123]
34.88
[1.373]
41.23
[1.623]
53.93
[2.123]
66.63
[2.623]
79.33
[3.123]
E
11.43
[0.450]
17.78
[0.700]
24.13
[0.950]
30.48
[1.200]
36.83
[1.450]
49.53
[1.950]
62.23
[2.450]
74.93
[2.950]
F
14.23
[0.560]
20.58
[0.810]
26.93
[1.060]
33.28
[1.310]
39.63
[1.560]
52.33
[2.060]
65.03
[2.560]
77.73
[3.060]
G
14.23
[0.560]
20.58
[0.810]
26.93
[1.060]
33.28
[1.310]
39.63
[1.560]
52.33
[2.060]
65.03
[2.560]
77.73
[3.060]
P50L Series
Ordering Information
P50L - XXXP - RR1 - DA
(RIA E1 and C1 apply)
Contact Quantity:
See Table
TS-1161-B
Sheet 2 of 2
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
