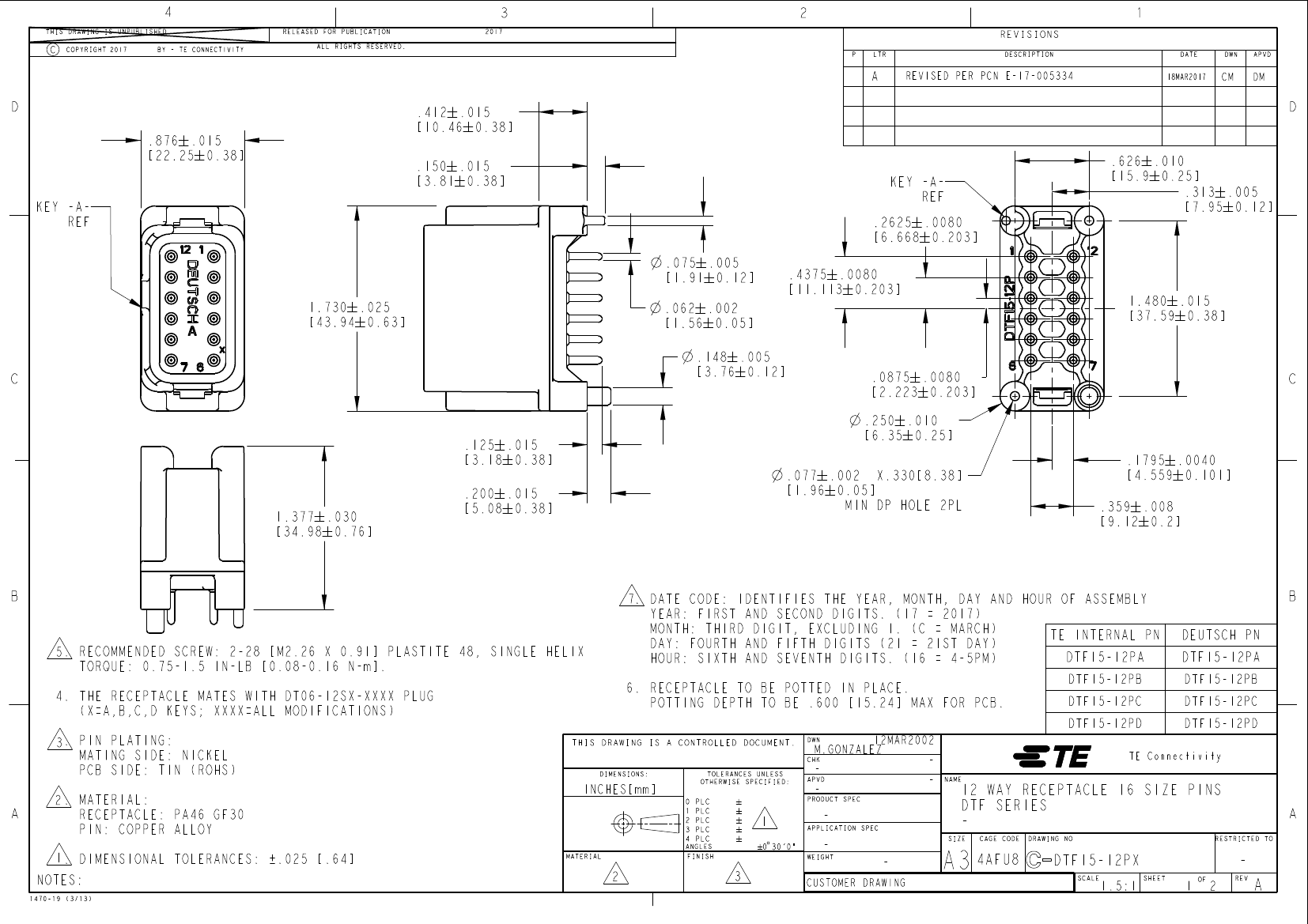

4
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
ALL RIGHTS RESERVED.
3
2017
2
REVISIONS
P
LTR
DESCRIPTION
1
DATE
DWN
APVD
C
COPYRIGHT 2017
BY - TE CONNECTIVITY
A
REVISED PER PCN E-17-005334
18MAR2017
CM
DM
D
.876 .015
[22.25 0.38 ]
KEY -A-
REF
.412 .015
[10.46 0.38 ]
.150 .015
[3.81 0.38 ]
.626 .010
[15.9 0.25 ]
.313 .005
[7.95 0.12 ]
D
KEY -A-
REF
.2625 .0080
[6.668 0.203 ]
.075 .005
[1.91 0.12 ]
.4375 .0080
[11.113 0.203 ]
1.730 .025
[43.94 0.63 ]
.062 .002
[1.56 0.05 ]
.148 .005
[3.76 0.12 ]
1.480 .015
[37.59 0.38 ]
C
.0875 .0080
[2.223 0.203 ]
.250 .010
[6.35 0.25 ]
C
.125 .015
[3.18 0.38 ]
.200 .015
[5.08 0.38 ]
1.377 .030
[34.98 0.76 ]
.077 .002 X.330[8.38]
[1.96 0.05 ]
MIN DP HOLE 2PL
.1795 .0040
[4.559 0.101 ]
.359 .008
[9.12 0.2 ]
B
7
. DATE CODE: IDENTIFIES THE YEAR, MONTH, DAY AND HOUR OF ASSEMBLY
5
. RECOMMENDED SCREW: 2-28 [M2.26 X 0.91] PLASTITE 48, SINGLE HELIX
TORQUE: 0.75-1.5 IN-LB [0.08-0.16 N-m].
YEAR: FIRST AND SECOND DIGITS. (17 = 2017)
MONTH: THIRD DIGIT, EXCLUDING I. (C = MARCH)
DAY: FOURTH AND FIFTH DIGITS (21 = 21ST DAY)
HOUR: SIXTH AND SEVENTH DIGITS. (16 = 4-5PM)
B
DEUTSCH PN
DTF15-12PA
DTF15-12PB
DTF15-12PC
DTF15-12PD
TE INTERNAL PN
DTF15-12PA
DTF15-12PB
DTF15-12PC
DTF15-12PD
4. THE RECEPTACLE MATES WITH DT06-12SX-XXXX PLUG
(X=A,B,C,D KEYS; XXXX=ALL MODIFICATIONS)
3
. PIN PLATING:
6. RECEPTACLE TO BE POTTED IN PLACE.
POTTING DEPTH TO BE .600 [15.24] MAX FOR PCB.
THIS DRAWING IS A CONTROLLED DOCUMENT.
MATING SIDE: NICKEL
PCB SIDE: TIN (ROHS)
RECEPTACLE: PA46 GF30
PIN: COPPER ALLOY
DIMENSIONS:
A
2
. MATERIAL:
INCHES[mm]
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
0
1
2
3
4
NOTES:
1
. DIMENSIONAL TOLERANCES: ±.025 [.64]
MATERIAL
ANGLES
PLC
PLC
PLC
PLC
PLC
12MAR2002
M.GONZALEZ
CHK
-
-
APVD
-
-
DWN
PRODUCT SPEC
APPLICATION SPEC
TE Connectivity
NAME
1
0 $ 30'0"
-
FINISH
WEIGHT
-
2
3
-
CUSTOMER DRAWING
A3
4AFU8
SIZE
12 WAY RECEPTACLE 16 SIZE PINS
DTF SERIES
-
CAGE CODE
DRAWING NO
A
RESTRICTED TO
DTF15-12PX
SCALE
1470-19 (3/13)
1.5:1
SHEET
1
OF
2
REV
-
A
4
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
ALL RIGHTS RESERVED.
3
2017
2
REVISIONS
P
LTR
DESCRIPTION
1
DATE
DWN
APVD
C
COPYRIGHT 2017
BY - TE CONNECTIVITY
-

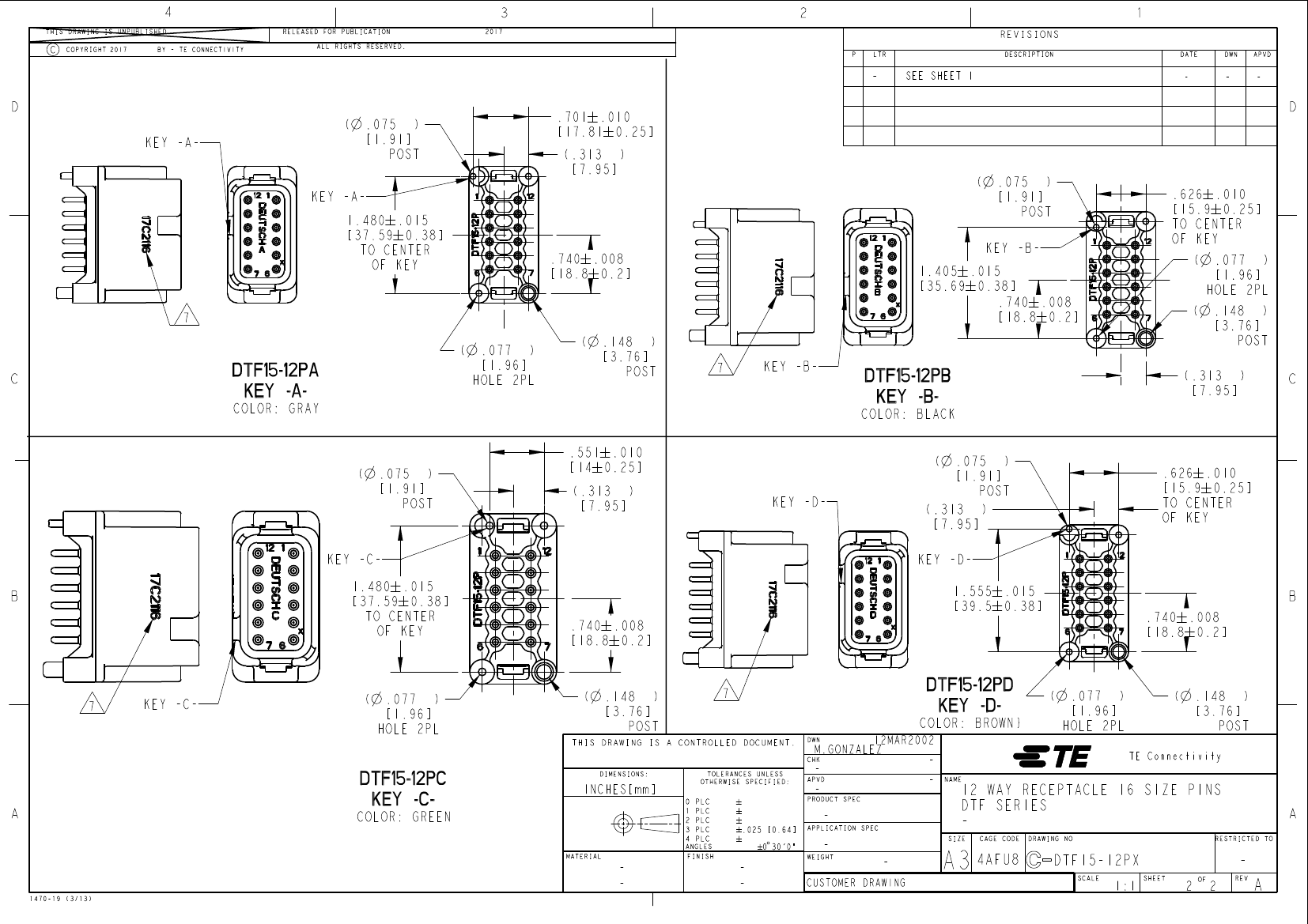

SEE SHEET 1
-
-
-
D
KEY -A-
( n.075 )
[1.91 ]
POST
KEY -A-
1.480 .015
[37.59 0.38 ]
TO CENTER
OF KEY
.701 .010
[17.81 0.25 ]
(.313 )
[7.95 ]
( n.075 )
[ 1.91]
POST
KEY -B-
1.405 .015
[35.69 0.38 ]
.740 .008
[18.8 0.2 ]
7
D
.740 .008
[18.8 0.2 ]
.626 .010
[15.9 0.25 ]
TO CENTER
OF KEY
7
C
DTF15-12PA
KEY -A-
COLOR: GRAY
( n.077 )
[ 1.96]
HOLE 2PL
( n.148 )
[ 3.76]
POST
( n.148 )
[ 3.76]
POST
(.313 )
[7.95 ]
( n.077 )
[ 1.96]
HOLE 2PL
KEY -B-
DTF15-12PB
KEY -B-
COLOR: BLACK
( n.075 )
[ 1.91]
POST
(.313 )
[7.95 ]
KEY -D-
1.555 .015
[39.5 0.38 ]
C
( n.075 )
[1.91 ]
POST
.551 .010
[14 0.25 ]
(.313 )
[7.95 ]
KEY -D-
.626 .010
[15.9 0.25 ]
TO CENTER
OF KEY
KEY -C-
B
1.480 .015
[37.59 0.38 ]
TO CENTER
OF KEY
.740 .008
[18.8 0.2 ]
7
DWN
.740 .008
[18.8 0.2 ]
B
7
KEY -C-
( n.077 )
[ 1.96]
HOLE 2PL
THIS DRAWING IS A CONTROLLED DOCUMENT.
( n.148 )
[ 3.76]
POST
DIMENSIONS:
DTF15-12PD
KEY -D-
12MAR2002
M.GONZALEZ
CHK
-
-
APVD
-
-
PRODUCT SPEC
APPLICATION SPEC
COLOR: BROWN}
( n.077 )
[ 1.96]
HOLE 2PL
( n.148 )
[ 3.76]
POST
TE Connectivity
A
DTF15-12PC
KEY -C-
COLOR: GREEN
INCHES[mm]
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
NAME
0
1
2
3
4
MATERIAL
ANGLES
PLC
PLC
PLC
PLC
PLC
.025 [0.64]
0 $ 30'0"
-
1470-19 (3/13)
-
-
FINISH
-
-
WEIGHT
-
-
CUSTOMER DRAWING
A3
4AFU8
SIZE
12 WAY RECEPTACLE 16 SIZE PINS
DTF SERIES
-
CAGE CODE
DRAWING NO
A
RESTRICTED TO
DTF15-12PX
SCALE
1:1
SHEET
2
OF
2
REV
-
A
