Ultra-Reliable Diode Laser Modules
Uniform Line Generators
Compact Non-Gaussian Laser Line Generating Modules
Diode Laser Concepts Inc.’s, Uniform Line Generators
are designed for the OEM customer looking for high
performance at a competitive price. Typical laser lines
are Gaussian in their intensity profile; they have a higher
output power in the center of the line with the power
decreasing and fading towards the end of the line.
Although this is acceptable for many applications, some
such as Machine Vision require an equal distribution of
output power across the entire line. DLC’s uniform line
generators offer this equal power distribution with
industry leading product reliability and affordability.
Our uniform line generators feature integrated electronics
with reverse polarity, over voltage, and surge protection.
These compact diode laser modules are some of the
smallest uniform line generators available with a
diameter of either 12.7mm (0.50”) or 9.5mm (0.375”)
and a length of 40mm (1.57”). Contact us today to
discuss your OEM application at 1 (541) 773-5321.
Output Power: <1mW to 200mW
Beam Characteristics
– Uniform, Non-Gaussian Power Distribution
– Exceptional Output Power Stability
– Broad Range of Wavelengths & Fan Angles Available
– Custom Focused or Collimated Lines
Electronic Profile
– CW, TTL, or Variable Output Power
– 5VDC or 24VDC Input Voltage
– Reverse Polarity, Over Voltage, Surge Protection
Mechanical Profile
– Standard Housing Size (12.7mm x 40.0mm)
– Mini Housing Size (9.5mm x 40.0mm)
– Sealed, Electrically Isolated, Anodized Aluminum
Customization Available Upon Request
2 Year Warranty
Available Fan Angles
– 90°, 70°, 60°, 45°, 30°, 20°, 10°, 5°, Other/Custom

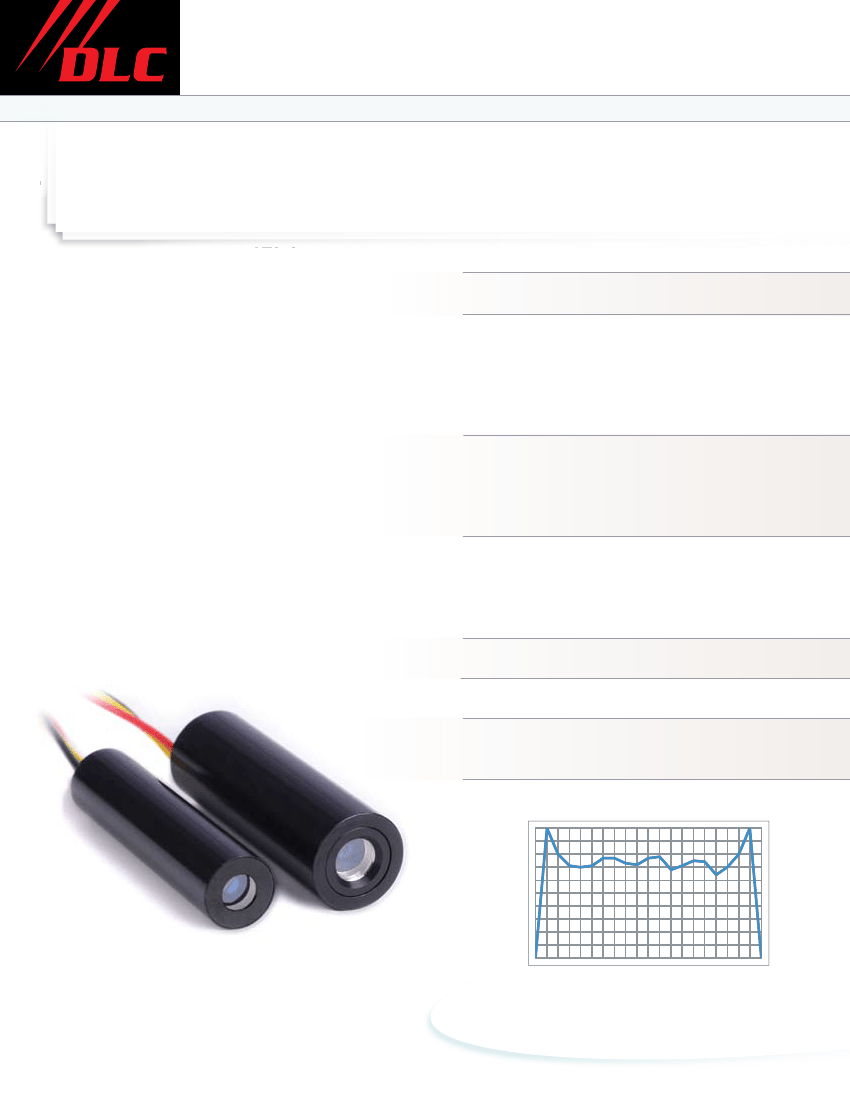

Typical Uniform Line Intensity Profile
For more information or to place an order contact DLC
1.541.773.5321 | sales@diodelaserconcepts.com
D
ioDe
L
aser
C
onCepts, inC.
1.541.773.5321
www.diodelaserconcepts.com
S P E C I F I C AT I O N S
Uniform Line Generators
Electrical Housing Specifications
Housing Material
Exit Aperture Protection
Customization
Electrical Specifications
Operating Voltage
Load Current
Load Current vs. Temperature
Continuous Wave (Standard Driver)
TTL Modulation (Optional Driver)
Variable Output Power (Optional Driver)
Electronic Protection
Interconnect
Customization
Environmental Specifications
Operating Temperature
Storage Temperature
Dust/Water Resistant
Customization
Optical Specifications
Wavelengths Available
Wavelength Stability
Optical Power Range
Power Output Stability at 25°C
Power Output vs. Temperature
Standard Line Fan Angles
Line Thickness
Line Thickness Divergence
Line Intensity Profile
Lens Material
Customization
Pointing Specification
Accuracy
Stability vs. Temperature
Customization
Reliability / Regulatory Specifications
Laser Lifetime
Certification/ Regulatory
Warranty
>30,000hrs at 25°C (Laser Dependent)
CE/ CDRH
2 Years (Laser Dependent)
<2mrad
<10μrad/°C
Accuracy
405nm, 532nm, 635nm-685nm, 780nm, 808nm, 830nm, 850nm, 905nm, 940nm, 1550nm, Other
0.25nm/°C Nominal
<1-200mW, Single Mode (Varies with Wavelength)
<1%
<0.5%/°C Nominal
5°, 10°, 20°, 30°, 45°, 60°, 70°, 90°
1mm @ 1m Nominal
<0.5mrad Nominal, Varies with Optical Configuration
Uniform, (Gaussian Line Available Upon Request)
Glass
Wavelength, Power Output, Fan Angle, Line Thickness
-10°C to 50°C
-40°C to 85°C
Yes (Sealed Housing)
Operating Temperature, Dust/Water Resistance
5VDC ± 1%
25mA-150mA (Laser Dependent)
0.7mA/°C Nominal
CW <10ms Turn on Time
CW to 1MHz, Full Depth Modulation
0-5V, Output Power Proportional to Control Voltage (Linear from 0.IV-5V)
Reverse Polarity, Over Voltage, Surge Protection
175mm Nominal, 24AWG, UL 1569
Operating Voltage, Interconnect
Aluminum, Hard Anodized (Type III, Class 2 Anodization, Electrically Isolated)
Sapphire Window
Dimensions, Materials, Exit Aperture Protection
NOTE: Custom Products may/may not conform to these specifications.
D
ioDe
L
aser
C
onCepts, inC.
1.541.773.5321
www.diodelaserconcepts.com

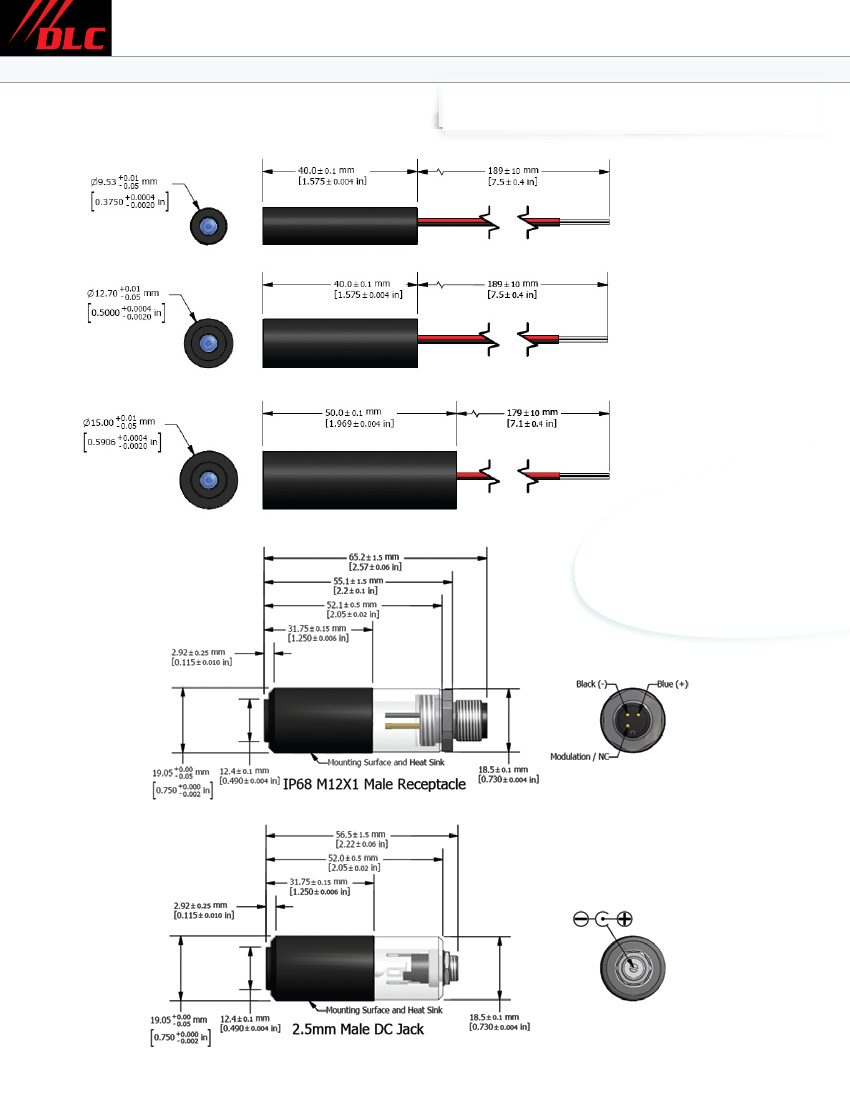

MECHANICALS
Uniform Line Generators
For more information or to
place an order contact DLC
1.541.773.5321
sales@diodelaserconcepts.com
