AD536AJCWE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> AD536AJCWE

AD536AJCWE: DescriptionRMS to DC Converter, Bipolar, PDSO16,; CategoryAnalog mixed-signal IC converter; File Size432KB，12 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

AD536AJCWE Overview

RMS to DC Converter, Bipolar, PDSO16,

AD536AJCWE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Maxim
Reach Compliance Code	_compli
Converter type	RMS TO DC CONVERTER
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5/36/+-3/+-18 V
Certification status	Not Qualified
Maximum slew rate	2 mA
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

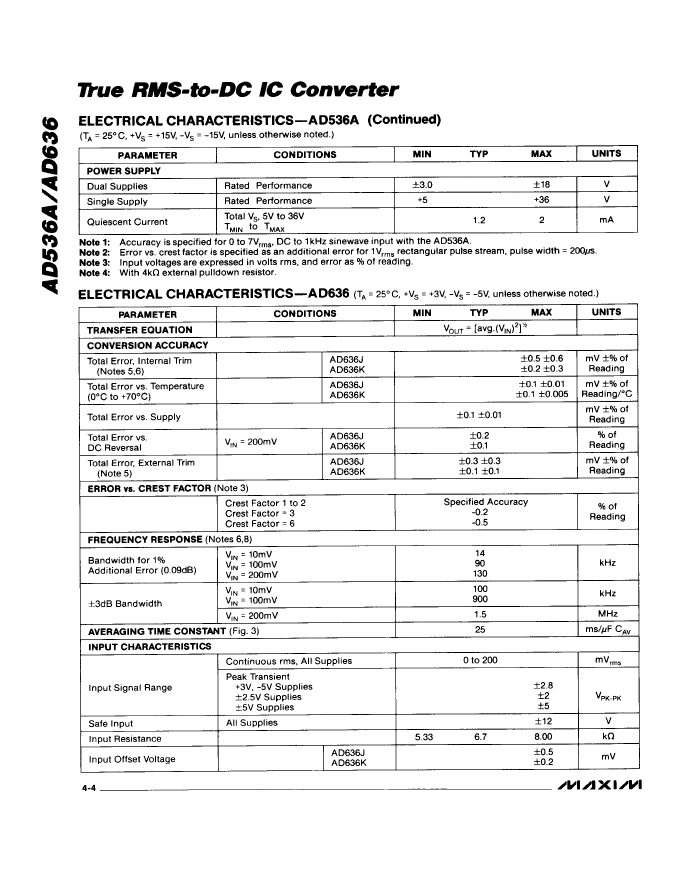

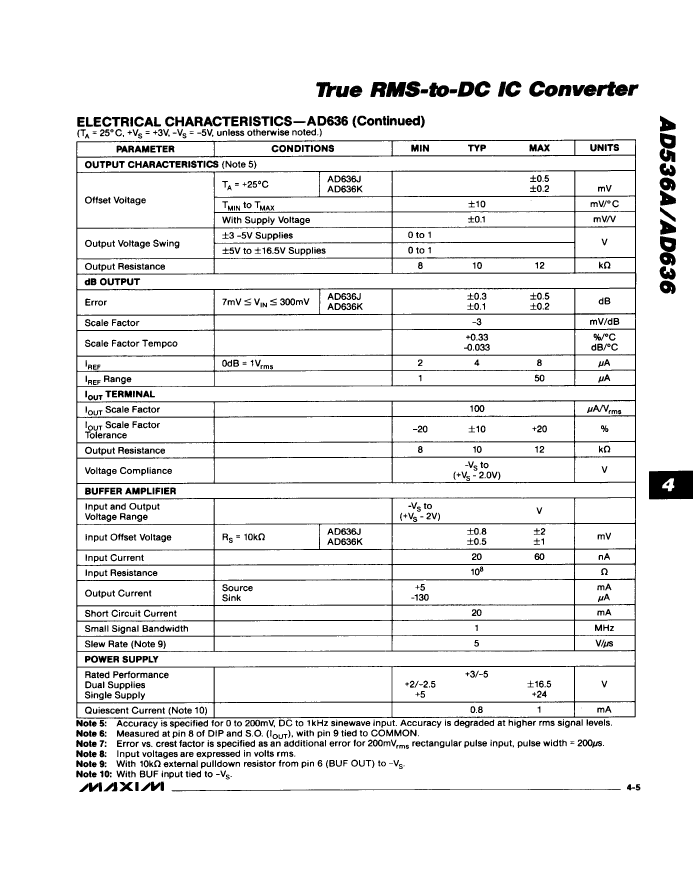

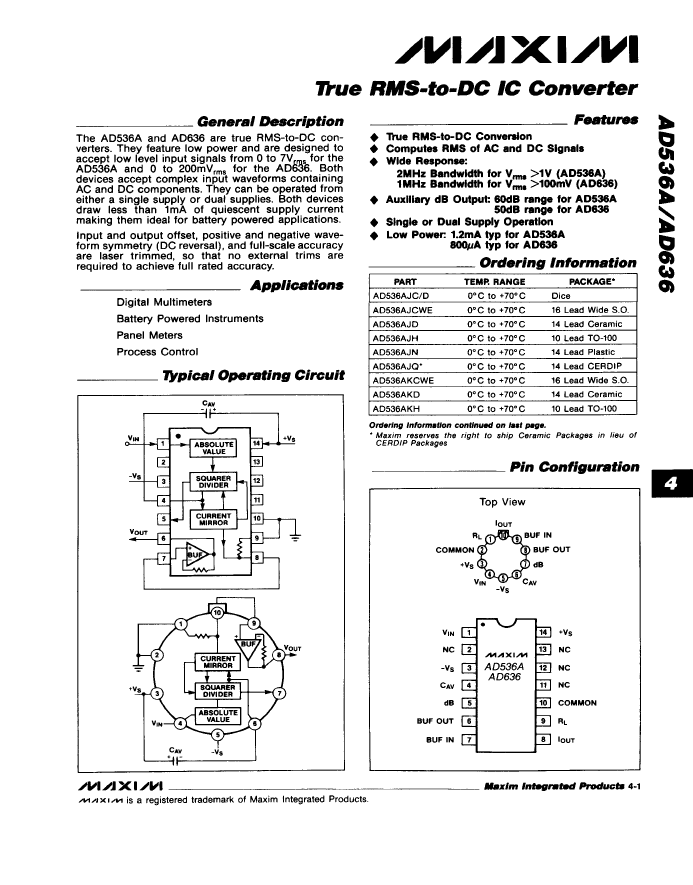

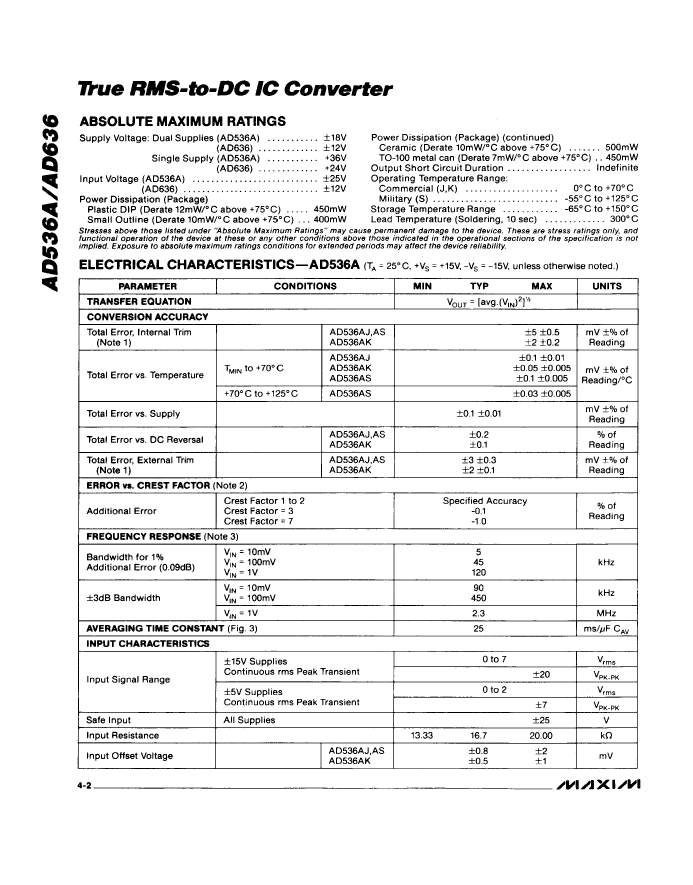

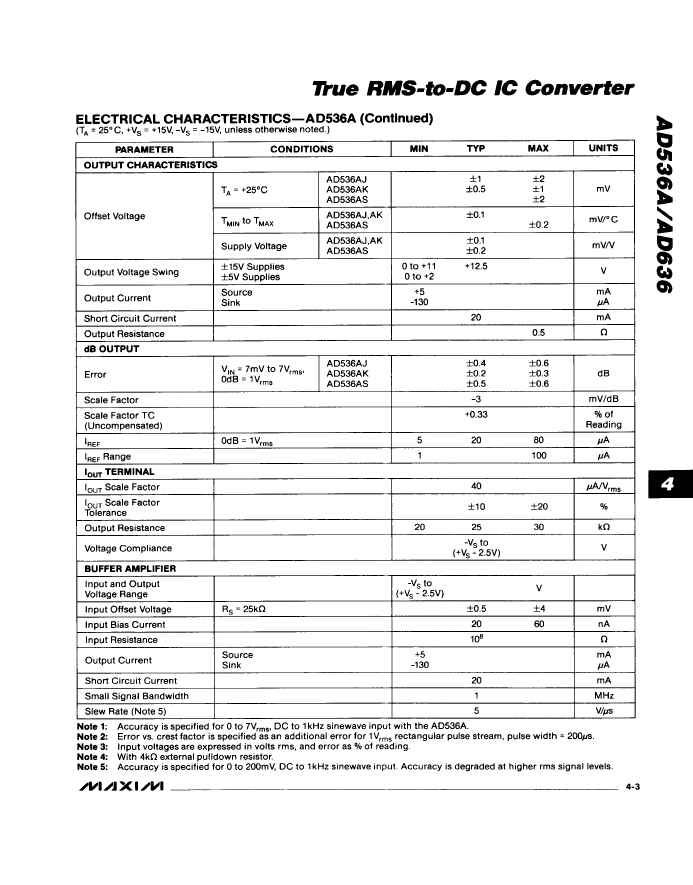

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

AD536AJCWE Related Products

	AD536AJCWE	AD536AJN	AD536AKCWE	AD536AKD	AD536AKH	AD536AJC/D	AD536AJD	AD536AJQ	AD536AJH
Description	RMS to DC Converter, Bipolar, PDSO16,	RMS to DC Converter, Bipolar, PDIP14,	RMS to DC Converter, Bipolar, PDSO16,	RMS to DC Converter, Bipolar, CDIP14,	RMS to DC Converter, Bipolar, MBCY10,	RMS to DC Converter, Bipolar	RMS to DC Converter, Bipolar, CDIP14,	RMS to DC Converter, Bipolar, CDIP14,	RMS to DC Converter, Bipolar, MBCY10,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	_compli	_compli	_compli	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Converter type	RMS TO DC CONVERTER	RMS TO DC CONVERTER	RMS TO DC CONVERTER	RMS TO DC CONVERTER	RMS TO DC CONVERTER	RMS TO DC CONVERTER	RMS TO DC CONVERTER	RMS TO DC CONVERTER	RMS TO DC CONVERTER
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Encapsulate equivalent code	SOP16,.4	DIP14,.3	SOP16,.4	DIP14,.3	CAN10,.23	DIE OR CHIP	DIP14,.3	DIP14,.3	CAN10,.23
power supply	5/36/+-3/+-18 V	5/36/+-3/+-18 V	5/36/+-3/+-18 V	5/36/+-3/+-18 V	5/36/+-3/+-18 V	5/36/+-3/+-18 V	5/36/+-3/+-18 V	5/36/+-3/+-18 V	5/36/+-3/+-18 V
Maximum slew rate	2 mA	2 mA	2 mA	2 mA	2 mA	2 mA	2 mA	2 mA	2 mA
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
JESD-30 code	R-PDSO-G16	R-PDIP-T14	R-PDSO-G16	R-XDIP-T14	O-MBCY-W10	-	R-XDIP-T14	R-XDIP-T14	O-MBCY-W10
JESD-609 code	e0	e0	e0	e0	e0	-	e0	e0	e0
Number of terminals	16	14	16	14	10	-	14	14	10
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	METAL	-	CERAMIC	CERAMIC	METAL
encapsulated code	SOP	DIP	SOP	DIP	-	-	DIP	DIP	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	ROUND	-	RECTANGULAR	RECTANGULAR	ROUND
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	CYLINDRICAL	-	IN-LINE	IN-LINE	CYLINDRICAL
surface mount	YES	NO	YES	NO	-	-	NO	NO	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	WIRE	-	THROUGH-HOLE	THROUGH-HOLE	WIRE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	-	-	2.54 mm	2.54 mm	-
Terminal location	DUAL	DUAL	DUAL	DUAL	BOTTOM	-	DUAL	DUAL	BOTTOM
Base Number Matches	-	-	-	1	1	1	1	1	1
