P0422NLT datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> P0422NLT

Preview

P0422NLT: DescriptionMOSFET N-Ch 150V 100A D2PAK-2 OptiMOS 3; CategoryPassive components; File Size587KB，2 Pages; ManufacturerPulse A Technitrol Company; Websitehttp://www.pulseeng.com

Download Datasheet Parametric View All

P0422NLT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	P0422NLT	-	-	View	Buy Now

P0422NLT Overview

MOSFET N-Ch 150V 100A D2PAK-2 OptiMOS 3

P0422NLT Parametric

Parameter Name	Attribute value
Product Category	Common Mode Chokes / Filters
Manufacturer	Pulse A Technitrol Company
RoHS	Details
Termination Style	SMD/SMT
Inductance	770 uH
Tolerance	35 %
Maximum DC Current	4.7 A
Maximum DC Resistance	40 mOhms
Operating Temperature Range	- 40 C to + 120 C
Package / Case	LCCI-50
Length	19.56 mm
Width	17.02 mm
Height	9.91 mm
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Mounting Style	Solder Pad
Product	Common Mode Chokes
Shielding	Unshielded
Factory Pack Quantity	200
Type	SMT Common Mode Chokes

Preview

Download Datasheet

View All

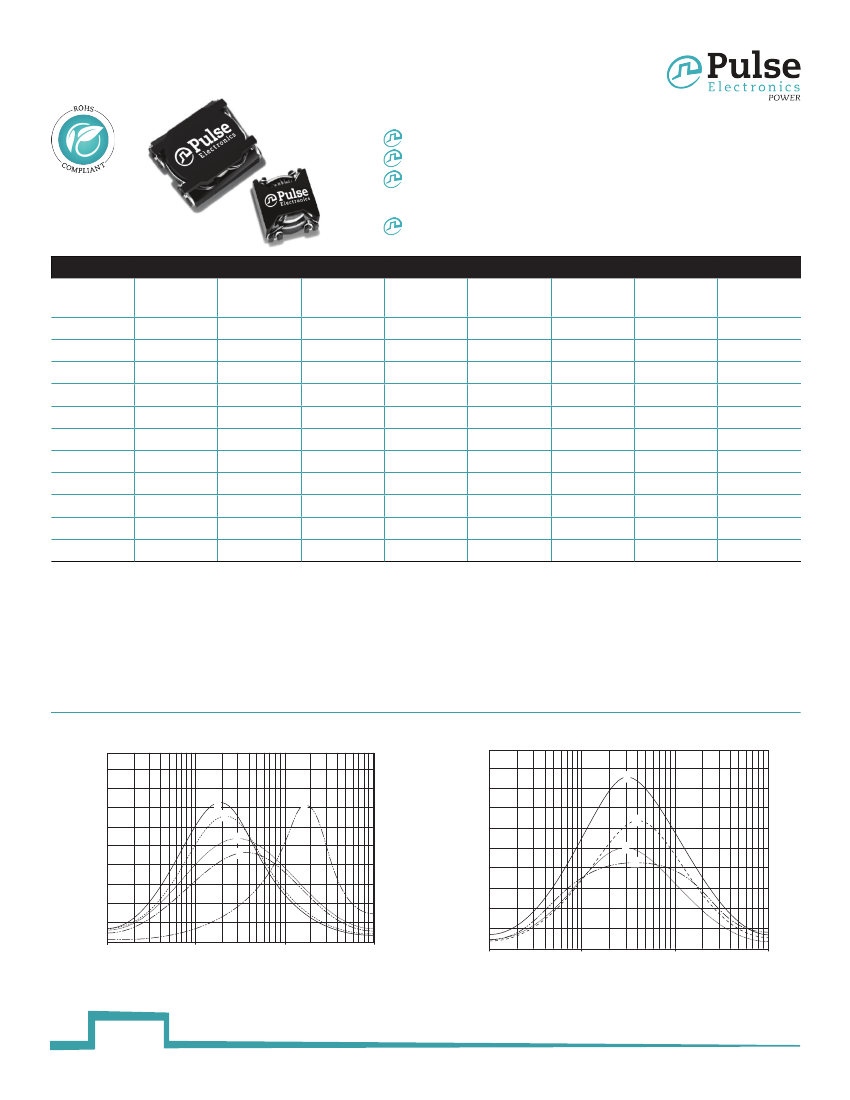

SMT Common Mode Chokes

1.22A to 14.0 A

Solutions based on impedance, size and current

Designed for DC/DC converters

Wide variety of inductor sizes and current ratings

available

Dielectric strength: 1000V

RMS

Electrical Specifications @ 25°C - Operating Temperature -40°C to +120°C

3

Part

Number

P0502NL

P0469NL

P0429NL

P0527NL

P0353NL

P0422NL

P0421NL

P0420NL

P0351NL

P0473NL

P0354NL

Inductance

(mH±35%)

0.47

0.63

0.81

0.53

0.59

0.77

0.22

1.32

1.47

0.88

1.17

Irated

1

(A)

14.0

11.6

9.70

7.20

5.60

4.70

3.30

2.80

1.63

1.22

DCR (MAX)

(mΩ)

8

10

14

15

21

40

60

80

110

200

Curve

(see # below)

9

7

6

8

7

6

5

4

3

2

1

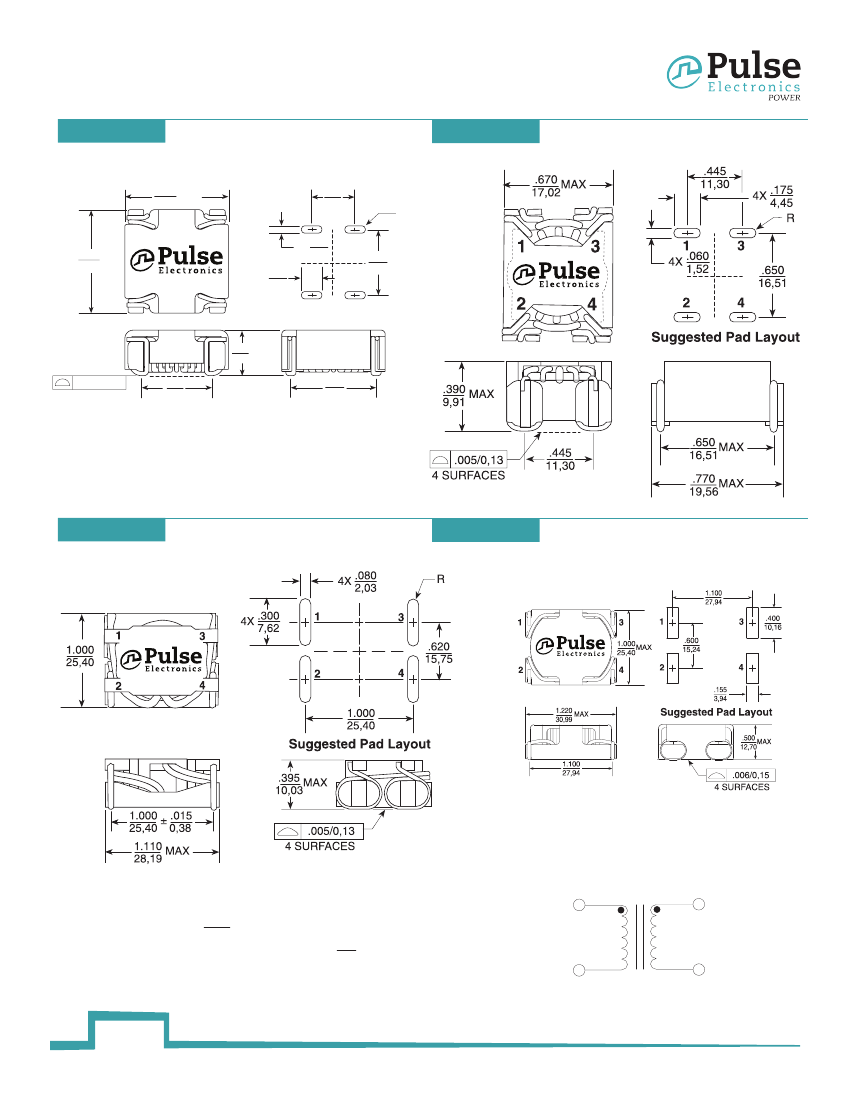

Package

Big Foot

HCCI-68

LCCI-50

Polecat

Weight

(Grams)

14.8

14.3

13.5

7.7

5.2

4.9

4.7

4.6

4.3

1.5

1.4

Quantity

In Tube

15

20

15

30

35

Quantity

In Reel

75

100

200

500

Notes:

1. The current rating (Irated) is based upon the temperature rise of the component and

represents the rms current which will cause a typical temperature rise of 40C.

2. Optional Tape & Reel packaging can be ordered by adding a “T” suffix to the part

number (i.e. P0502 becomes P0502T). Pulse complies to industry standard tape and reel

specification EIAv481.

3. The temperature of the component (ambient plus temperature rise) must be within the

stated operating temperature range.

Impedance Curves

15K

12K

7.5K

6

6.0K

4

Impedance

(Ω)

Impedance

(Ω)

3

9K

6K

3K

0

1

2

5

4.5K

9

3.0K

1.5K

0

7

8

100 KHz

1 MHz

10 MHz

100 MHz

Frequency

100 KHz

1 MHz

10 MHz

100 MHz

Frequency

116

power.pulseelectronics.com

SPM2007 (06/17)

http://www.power.pulseelectronics.com/contact
