B10TGLC Overview

RF Detector 1MHz TO 10GHz 50dB

B10TGLC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	COILCRAFT
package instruction	2718
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	2718
structure	Rectangular
core material	AIR
DC Resistance	0.0079 Ω
Nominal inductance(L)	0.043 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e2
Number of functions	1
Number of terminals	2
Maximum operating temperature	140 °C
Minimum operating temperature	-40 °C
Package height	3.15 mm
Package length	6.86 mm
Package form	SMT
Package width	4.45 mm
method of packing	TR, Embossed Plastic, 7 Inch
Minimum quality factor (at nominal inductance)	106
Maximum rated current	4 A
Guideline	AEC-Q200
self resonant frequency	1200 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin/Silver (Sn96.5Ag3.5)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	150 MHz
Tolerance	2%

Preview

Download Datasheet

View All

Web

page

Sample

& buy

Tools &

software

Support

& FAQ

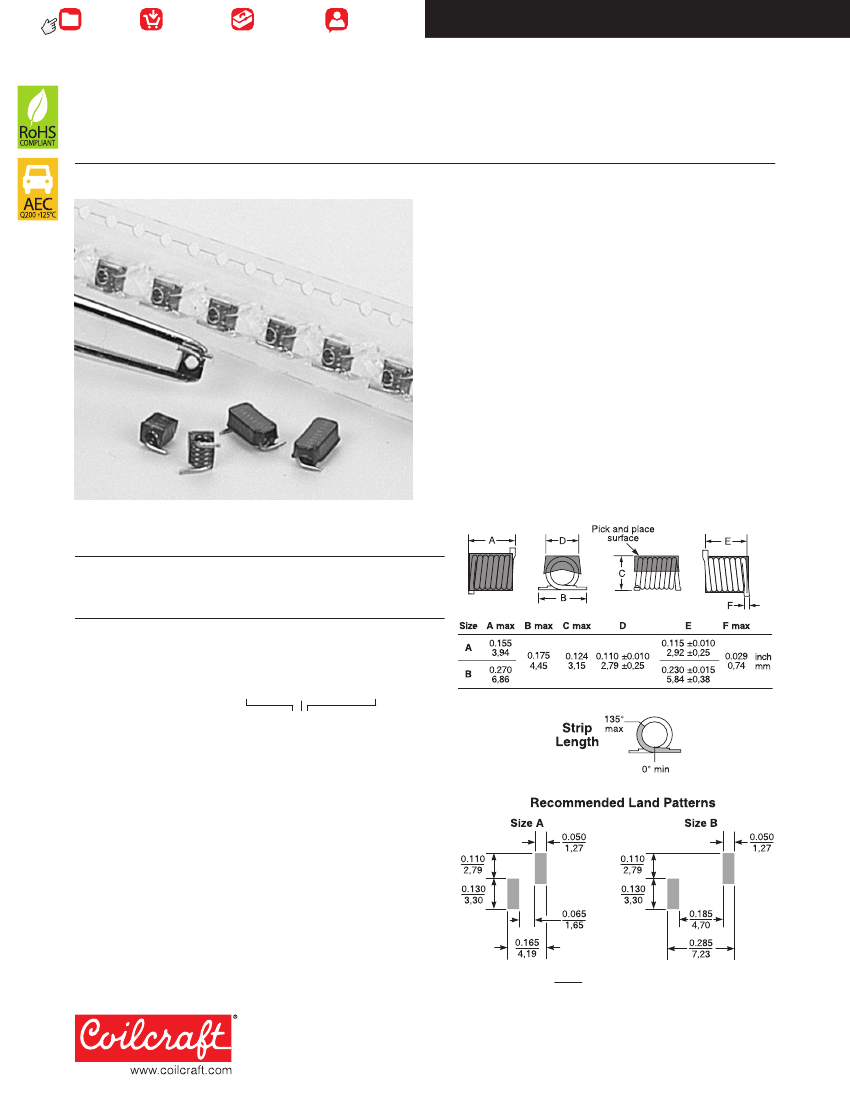

Document 107-1

Mini Air Core Inductors

• Small air core inductors feature high Q and tight tolerances

• Acrylic jacket provides a flat top for pick and place

• Solder coated leads ensure reliable soldering

Terminations

RoHS compliant tin-silver over copper. Other termina-

tions available at additional cost.

Ambient temperature

–40°C to +125°C with

Irms

current, +125°C

to +140°C with derated current

Storage temperature

Component: –40°C to +140°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Temperature Coefficient of Inductance (TCL)

+5 to +70 ppm/°C

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

One per billion hours / one billion hours, calculated per Telcordia SR-332

Packaging A0xT:

700/7″ reel; 2500/13″ reel Plastic tape: 12 mm wide,

0.32 mm thick, 8 mm pocket spacing, 3.3 mm pocket depth

BxxT:

500/7″ reel; 2200/13″ reel Plastic tape: 16 mm wide,

0.28 mm thick, 8 mm pocket spacing, 3.4 mm pocket depth

Recommended pick and place nozzle: OD: 0.110″; ID: 0.091″

PCB washing

Tested to MIL-STD-202 Method 215 plus an additional

aqueous wash. See

Doc787_PCB_Washing.pdf.

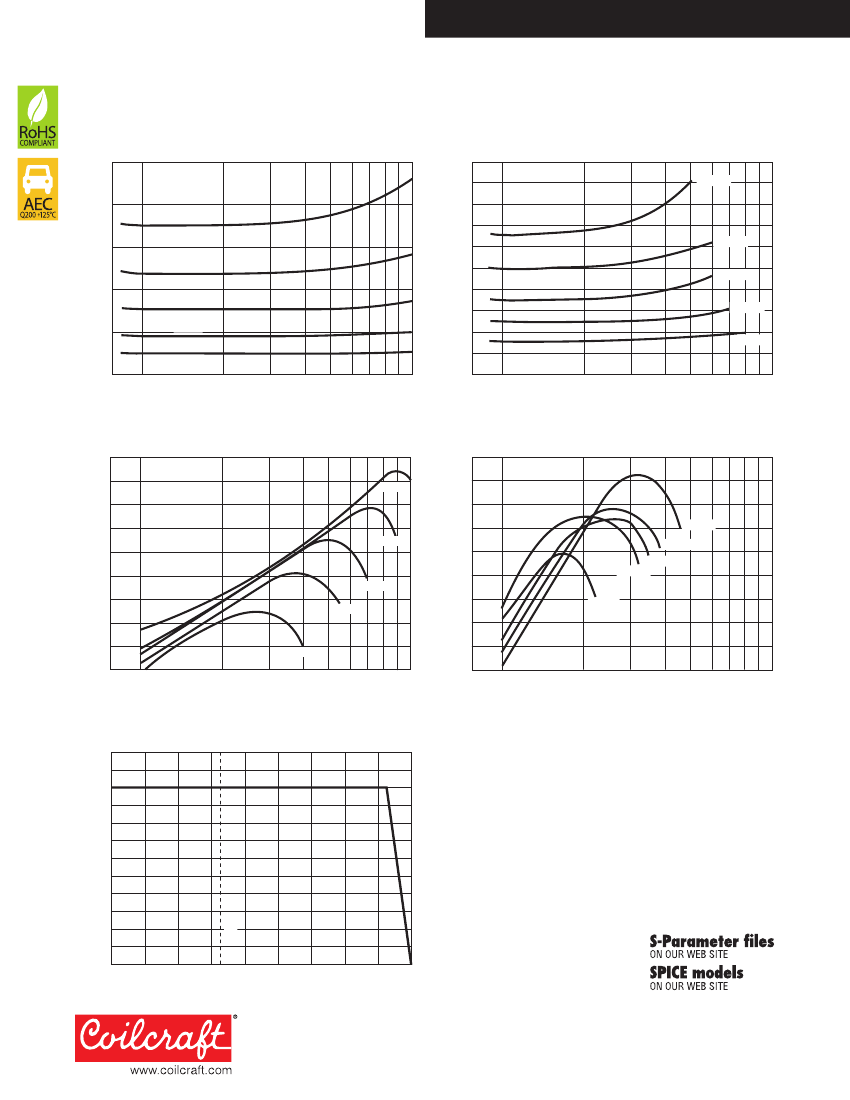

SRF

DCR

Percent Q

min

max

Irms

Weight

(nH)

tol

min (GHz) (mOhm) (A)

(mg)

2.5

145 12.5

1.1

5.0

5,2,1

140

6.5

1.8

8.0

5,2,1

140

5.0

2.6

12.5

5,2,1

137

3.3

3.4

18.5

5,2,1

132

2.5

3.9

17.5

5,2,1

100

2.2

4.5

100

22.0

5,2,1

102

2.1

5.2

110

28.0

5,2,1

105

1.8

6.0

118

35.5

5,2,1

112

1.5

6.8

133

43.0

5,2,1

106

1.2

7.9

147

Part

number

Turns

A01TKL_

A02T_L_

A03T_L_

A04T_L_

A05T_L_

B06T_L_

B07T_L_

B08T_L_

B09T_L_

B10T_L_

1. When ordering, please specify

tolerance, termination

and

packaging

codes:

A02TGLC

Tolerance: F

= 1%

= 2%

= 5%

= 10% (Table shows stock

tolerances in bold.)

Termination: L

= RoHS compliant tin-silver (96.5/3.5) over copper.

Special order:

= RoHS tin-silver-copper (95.5/4/0.5) or

= non-RoHS tin-lead (63/37).

Packaging: C

= 7″ machine-ready reel. EIA-481 embossed plastic tape,

700 (AxxT) or 500 (BxxT) parts per full reel.

= Less than full reel. In tape, but not machine-ready. To have

a leader and trailer added ($25 charge), use code letter C

instead.

= 13″ machine-ready reel. EIA-481 embossed plastic tape.

Factory order only, not stocked, 2500 (AxxT) or 2200 (BxxT)

parts per full reel.

2. Inductance measured at 150 MHz with an Agilent/HP 4286 or equivalent, a

Coilcraft SMD-A and correlation.

3. Tolerances in bold are stocked for immediate shipment.

4. Q measured at 150 MHz using an Agilent/HP 4291A with an Agilent/HP 16193A

test fixture or equivalents.

5. SRF tested on an Agilent/HP 8720D or equivalent and a Coilcraft SMD-D fixture.

6. DCR tested on the Cambridge Technology Model Micro-ohmmeter or equivalent.

7. Current that causes a 15°C temperature rise from 25°C ambient.

8. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

Dimensions are in

inches

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 107-1

Revised 10/03/11

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
