59250-1-S-01-A: DescriptionProximity Sensors NO 10W 100mm TIN Flange Mount; CategoryThe sensor; File Size385KB，3 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

59250-1-S-01-A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	59250-1-S-01-A	-	-	View	Buy Now

59250-1-S-01-A Overview

Proximity Sensors NO 10W 100mm TIN Flange Mount

59250-1-S-01-A Parametric

Parameter Name	Attribute value
Product Category	Proximity Sensors
Manufacturer	Littelfuse
RoHS	Details
Sensing Method	Magnetic
Sensing Distance	5.5 mm
Mounting Style	Panel
Output Configuration	SPST-NO
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Packaging	Bulk
Barrel Size	32.51 mm x 26.67 mm x 37.34 mm
Description/Function	Seating occupancy reed switch sensor
Height	37.34 mm
Length	32.51 mm
Operating Supply Current	350 mA, 500 mA
Operating Supply Voltage	140 VAC, 200 V
Factory Pack Quantity	100
Width	26.67 mm

Preview

Download Datasheet

View All

Reed Sensors

Push Button Sensor > 59250

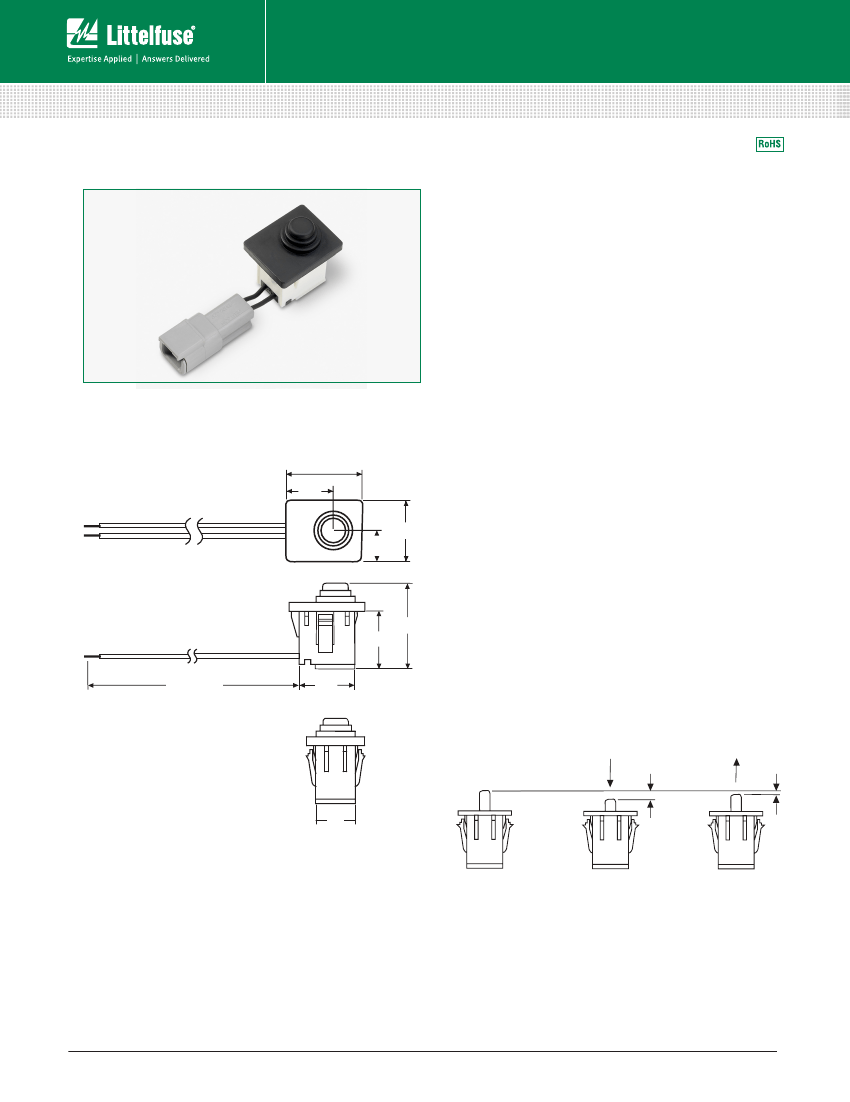

59250 Seating Occupancy Reed Switch Sensor

Description

The 59250 is a magnetically operated push button sensor with a simple push-fit

clip mounting. Normally open contacts actuate when the plunger is depressed.

Switches up to 140Vac/200Vdc at 10W. It has integral neoprene boot for

environmental protection. It is available with choice of various cable lengths and

connector options.

Features

• Magnetically operated position

sensor

• Simple push fit mounting

• Operates when plunger is

depressed

• Choice of cable length

• Choice of connector

Dimensions

Dimensions in mm (inch)

20.32

(.800)

32.51

(1.280)

Benefits

• Robust construction makes this

sensor well suited to harsh

environments

• Integral neoprene boot provides

protection from severe

environments

• No standby power required

• Hermetically sealed, magnetically

operated contacts give excellent

life and reliabilty

13.21

(.520)

26.67

(1.050)

Applications

37

.34

25.40 (1.470)

(1.000)

• Seat occupancy sensing

• Position and limit sensing

Cable Length Option±10.00

(.360)

24.38

(.960)

Activation (without boot)

Operate Distance d1 5.5mm (.217) max.

Release Distance d2 1.5mm (.059) min.

Operate

Reset Position

d1

Release

d2

17

.27

(.680)

Revised: 11/02/15

Specifications are subject to change without notice.

littelfuse.com

59250-1-S-01-A Related Products

	59250-1-S-01-A	59250-1-S-01-C	59250-1-S-02-A	59250-1-S-03-A
Description	Proximity Sensors NO 10W 100mm TIN Flange Mount	Proximity Sensors NO 10W 100mm Flange Mount		Proximity Sensors NO 10W 300mm TIN Flange Mount
Product Category	Proximity Sensors	Proximity Sensors	Proximity Sensors	Proximity Sensors
Manufacturer	Littelfuse	Littelfuse	Littelfuse	Littelfuse
RoHS	Details	Details	Details	Details
Sensing Method	Magnetic	Magnetic	Magnetic	Magnetic
Sensing Distance	5.5 mm	5.5 mm	5.5 mm	5.5 mm
Mounting Style	Panel	Panel	Panel	Panel
Output Configuration	SPST-NO	SPST-NO	SPST-NO	SPST-NO
Maximum Operating Temperature	+ 85 C	+ 85 C	+ 85 C	+ 85 C
Minimum Operating Temperature	- 40 C	- 40 C	- 40 C	- 40 C
Packaging	Bulk	Bulk	Case	Bulk
Barrel Size	32.51 mm x 26.67 mm x 37.34 mm	32.51 mm x 26.67 mm x 37.34 mm	32.51 mm x 26.67 mm x 37.34 mm	32.51 mm x 26.67 mm x 37.34 mm
Description/Function	Seating occupancy reed switch sensor	Seating occupancy reed switch sensor	Seating occupancy reed switch sensor	Seating occupancy reed switch sensor
Height	37.34 mm	37.34 mm	37.34 mm	37.34 mm
Length	32.51 mm	32.51 mm	32.51 mm	32.51 mm
Operating Supply Current	350 mA, 500 mA	350 mA, 500 mA	350 mA, 500 mA	350 mA, 500 mA
Operating Supply Voltage	140 VAC, 200 V	140 VAC, 200 V	140 VAC, 200 V	140 VAC, 200 V
Factory Pack Quantity	100	100	100	100
Width	26.67 mm	26.67 mm	26.67 mm	26.67 mm

Recommended Resources

Synchronous first-in first-out data register circuit

Leakage protection circuit

Stabilized multi-voltage rectifier circuit with adjustable output voltage

Color TV power controller circuit

0.1, 1, 10, 100, 1000Hz sine wave square wave and triangle wave oscillator

Digital telemetry thermometer (FDD5/JDD5)
