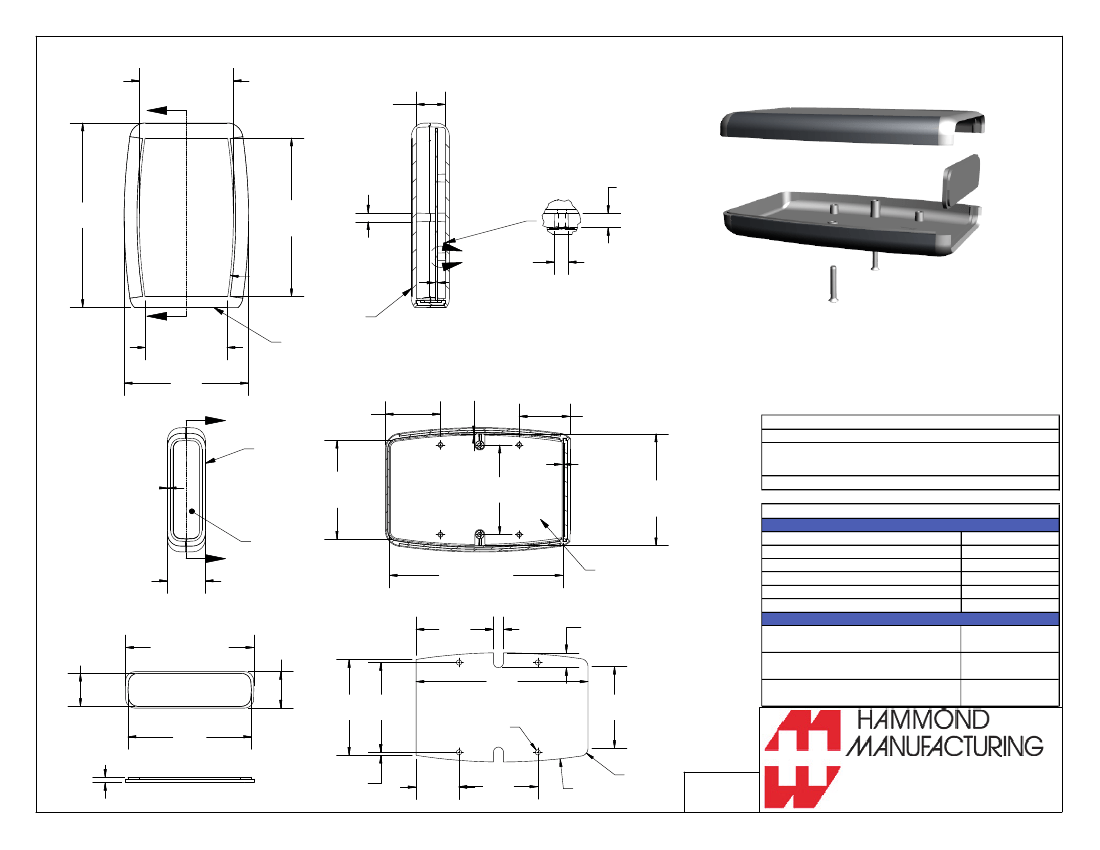

Top View of Assembly
59.71
[2.351]
(Center Inlay Width)
SECTION A-A
(Side View Inside Assembly)
18.50
[.728]
(Inner Box Height)
A
Detail View of PCB Boss
5.50
[.217]
(Top and Bottom
Boss Ø)
117.23
[4.615]
100.71
[3.965]
(Inlay Length)
Ø 5.00
[.197]
P.C. Board
(Located on Bottom Cover)
5.00
[.197]
R353.57
[13.920]
A
51.61
[2.032]
(End Inlay Width)
78.97
[3.109]
Front Panel
Top Cover
SECTION B-B
(Inside of Bottom Cover)
.82
[.032]
(PCB dist from inner wall)
35.00
[1.378]
32.24
[1.269]
.47
[.018]
(PCB dist from
end panel)
End View of Assembly
B
Bottom Cover
.50
[.020]
(Inlay Depth)
Enclosures can be Factory Modified ( Milling, Drilling, Printing etc.)
Contact Factory
mjm@hammondmfg.com for quotes
Solid models of this enclosure available in STEP or IGES.
(Part number and text placement/orientation on our products are subject to change,
we do not recommend using them as a locating reference for modification purposes)
NOTE
Enclosure molded from GP ABS Plastic.
Purchased assembly includes Top, Bottom, front plastic panel and 2 cover
screws. (P.C. Board not supplied)
62.86
[2.475]
(Inner box width at end)
56.78
[2.236]
71.02
[2.796]
(Inner Box Width at center)
Recommended Cover screw torque -- 2.5 lbf-in (30 cN-m)
PART NUMBER
1553B Regular Enclosure
Front Panel
B
24.00
[.945]
110.25
[4.341]
(Inner Box Length)
P.C. Board Aligned
on PCB Bosses
16.81
[.66]
(Viewing Area)
Front Panel
65.15
[2.56]
(Viewing Area)
18.50
[.73]
Maximum P.C. Board Size
49.11
[1.934]
6.33
[.249]
9.44
[.372]
Black Enclosure/Grey Over‐mold
Grey Enclosure/Grey Over‐mold
Translucent Blue Enclosure/ Black Over‐mold
Red Enclosure/ Black Over‐mold
Yellow Enclosure/ Black Over‐mold
Black Enclosure/ Black Over‐mold
ACCESSORIES
Oval Head Cover Screws Self-Tapping (Pkg 100)
[#4 X 3/4" (19mm)]
P.C. Board Self Tapping Screw
[#4 X 1/4" (6.4mm) Plated]
1553BBK
1553BGY
1553BTBUBK
1553BRDBK
1553BYLBK
1553BBKBK
1593QS100 (Silver)
1593QS100BK (Black)
1593ATS50 (Pkg 50)
1593ATS100 (Pkg 100)
1599CLIP (Black)
1599CLIPGY (Grey)
109.14
[4.297]
60.86 57.00
[2.396] [2.244]
(NOT SUPPLIED)
3.20 x 4
52.13
[2.052]
Belt or Pocket Clip
2.75
[.11]
62.63
[2.47]
1.93
[.076]
[.126]
R4.86
[.191]
27.28
[1.074]
50.00
[1.969]
R345.40
[13.599]
Dimensions:
mm
[inches]
1553B
www.hammondmfg.com
®
