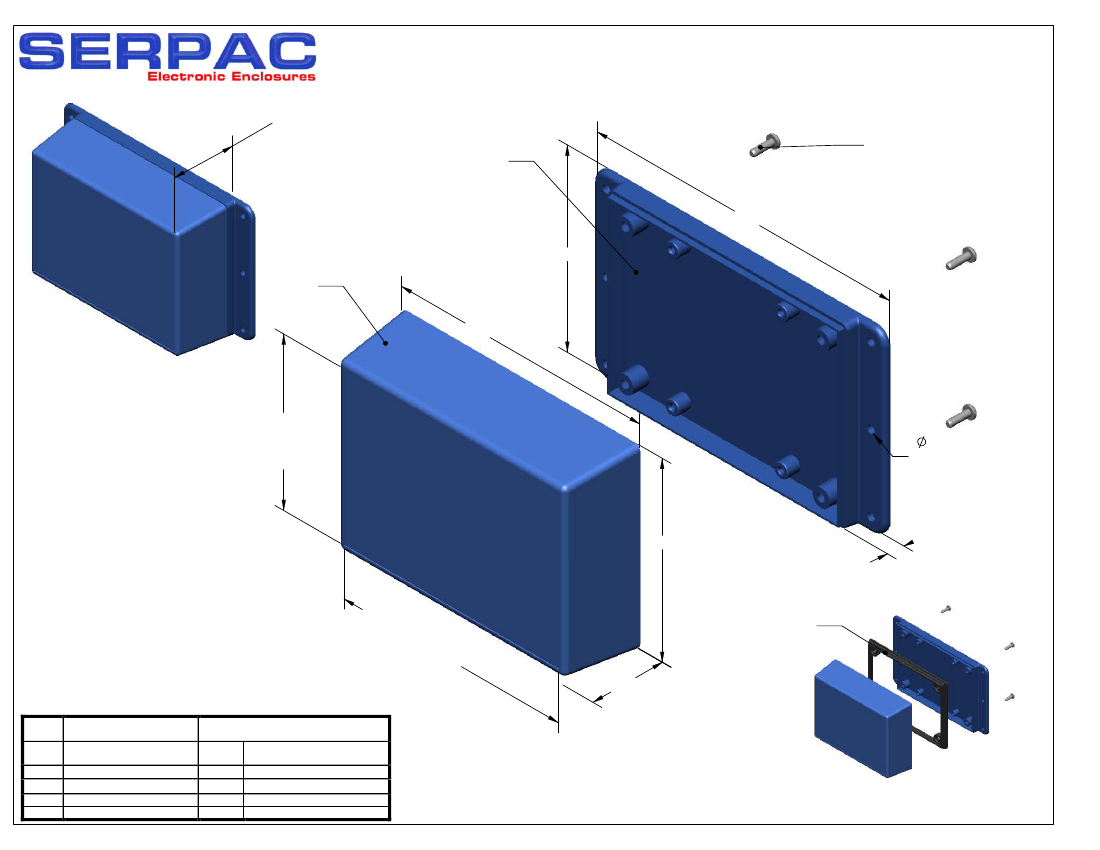

WM033-I
(exploded isometric)
1.60 Height
WM03
5.37
3.30
PN 6005 (4)
Self tapping
screws
3-3-I
4.38
2.81
Insert Area
Non-Textured
0.015" recessed
.14 typ.
6 plc's
for # 4 screws
3.25
.30
3.94
Insert Area
Non-Textured
0.015" recessed
1.28
PART
NO.
3-3-I
WM03
6005
Water proofing gasket
PS-13 optional.
see note #2
DESCRIPTION
(Included)
TOP
BOTTOM
#4 self tapping screw (4)
ACCSESSORIES
(Optional)
PART
NO.
50
PS-13
DESCRIPTION
Non-skid Feet
Perimeter Seal
Notes:
1) Enclosure meets or exceeds IP40 and NEMA 1
2) When used with PS-13 the enclosure meets or exceeds
IP 67 and NEMA 4X, 12 and 13 MIL-STD-810G 506.5
3) Circuit Board drawings can be download at:
http://www.serpac.com/Products/Sseries/x3x/drawings/X33_top-CB.pdf
4) All components are RoHS Compliant.
Ph. (626) 331-0517 Fx. (626) 331-8584 serpac.com
ALL DIMENSIONS ARE ± .010"
6/01/09
(1 of 2)
619 Commercial Ave. Covina, CA 91723

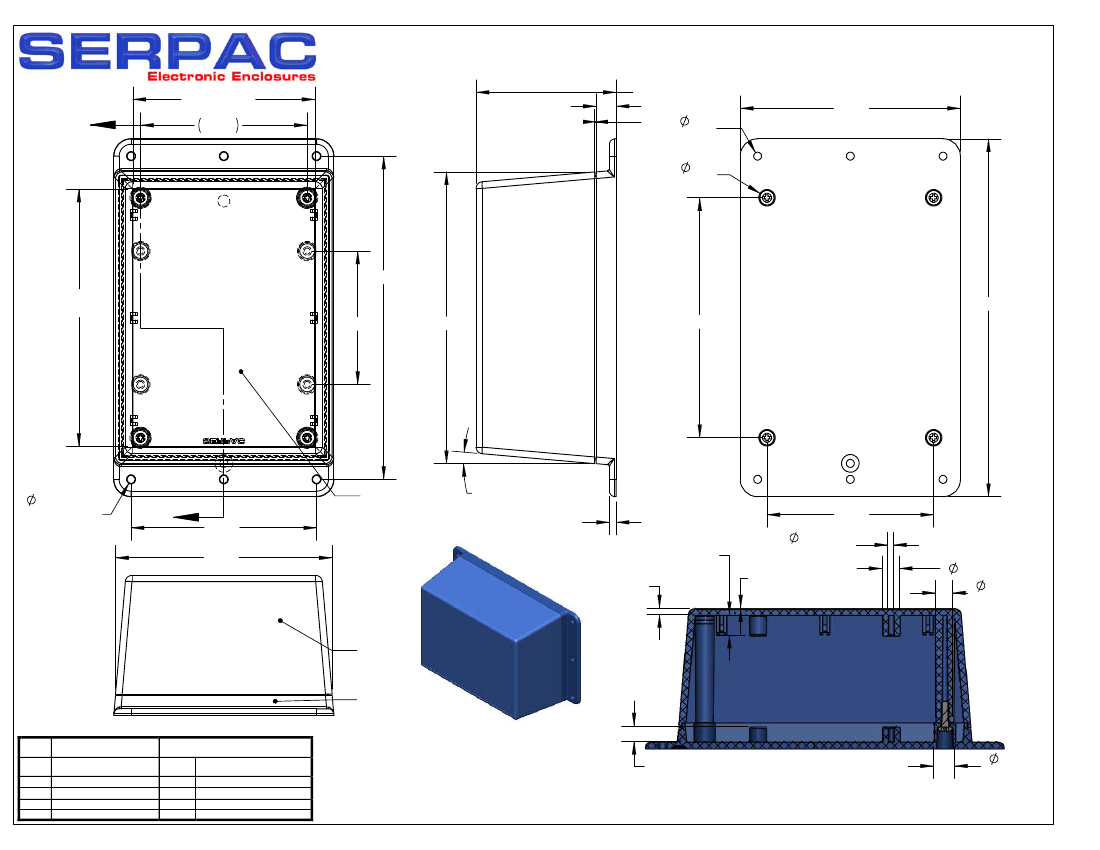

WM033-I
(user print)
2.73
Insert Area
A
2.50
2.10
.30
.02
.12
6 plc's
.25
4 plc's
3.30
4.85
3.86
Insert Area
5.37
2.00
4.38
3.60
.14 6 plc's
for
#4 screws
A
2.78
3.25
Insert Area
Non-Textured
0.015" recessed
5° typ.
.10
.31 typ.
4 plc's
.10
typ. wall
2.50
.09 typ.
for #4 screw
Insert Area
.015 recessed
.26 typ.
.26 typ.
4 plc's
TOP
BOTTOM
PART
NO.
3-3-I
WM03
6005
DESCRIPTION (Included)
TOP
BOTTOM
#4 self tapping screw (4)
ACCSESSORIES (Optional)
PART
NO.
50
PS-13
DESCRIPTION
Non-skid Feet
Perimeter Seal
Notes:
1) Enclosure meets or exceeds IP40 and NEMA 1
.23 typ.
2) When used with PS-13 the enclosure meets or exceeds
4 plc's
IP 67 and NEMA 4X, 12 and 13 MIL-STD-810G 506.5
3) Circuit Board drawings can be download at:
http://www.serpac.com/Products/Sseries/x3x/drawings/X33_top-CB.pdf
4) All components are RoHS Compliant.
SECTION A-A
SCALE 1 : 1.5
.32 typ.
4 plc's
Ph. (626) 331-0517 Fx. (626) 331-8584 www.serpac.com
ALL DIMENSIONS ARE ± .010"
6/01/09
(2 of 2)
619 Commercial Ave. Covina, CA 91723
