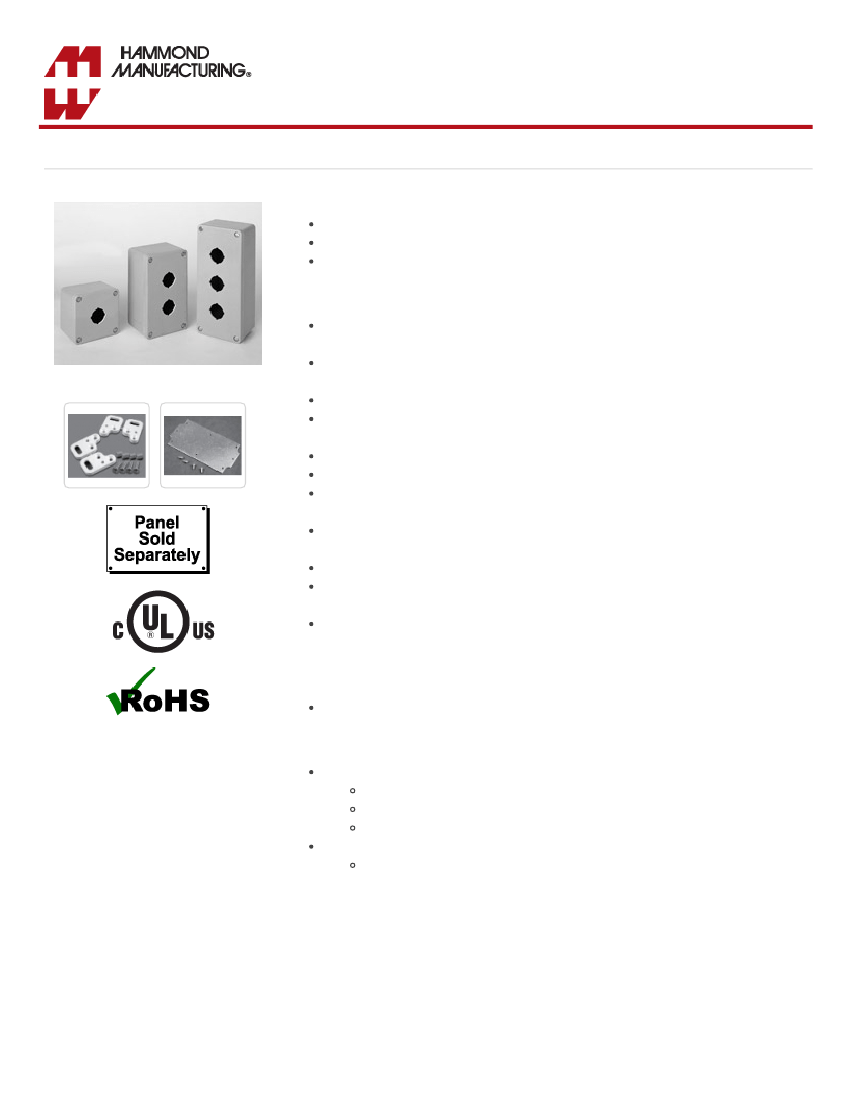

Type 4, 4X Polycarbonate Pushbutton Enclosure
1554 PB Series
Standards
IP66
NEMA 4, 4X, 6, 6P, 12 & 13
UL94 5V
Construction
Electronic instrument enclosures, designed for mounting printed circuit boards or DIN rail
mounted components.
The polycarbonate material carries a UL flammability rating of UL94 5V and is suitable for
outdoor use.
Lid and mounting holes are located outside of the gasket seal.
Lid is secured with self captivating M4 stainless steel machine screws (included),
threaded into integral stainless steel bushings (for repetitive assembly & disassembly).
Heavy duty 16 gauge galvanized steel panels available (see chart)
All stainless steel hardware to avoid corrosion caused by dissimilar metals.
Gasket is a preformed, high temperature U.L. listed silicone rubber. Gasket is
replaceable.
Gasketed lid with two piece “tongue & groove” construction provides protection against
access of oil, dust and water.
Internal DIN rail mounting tabs.
Threaded (M3) integral brass inserts & standoffs designed for M3.5 or #6 self tapping
screws for P.C. board or inner panel mounting in all but the smallest size.
Vertical P.C. card guides (for 1.5 mm thick P.C. boards) are molded in all but the smallest
size
Finish
Color is light gray (RAL 7035)
Accessories
Optional Inner Panel
Heavy duty panels for mounting components
Galvanized 16 ga. steel.
Includes mounting hardware.
Optional Mounting Feet
Part No.
1554FT
https://www.hammfg.com/electrical/products/operator/1554pb
1/2
12/3/2017
Type 4, 4X Polycarbonate Pushbutton Enclosure (1554 PB Series) - Hammond Mfg.

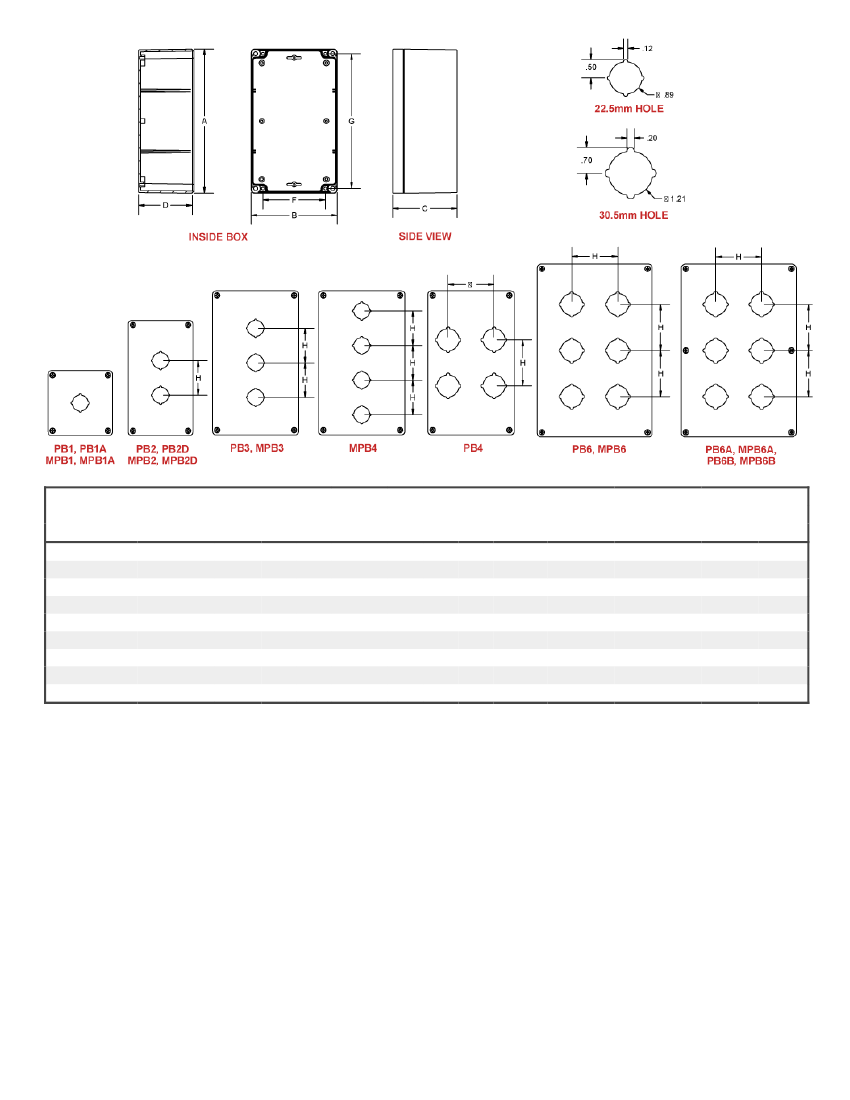

Overall
Part No.
22 mm
1554MPB1
1554MPB1A
1554MPB2
1554MPB2D
1554MPB3
1554MPB4
1554MPB6
1554MPB6A
1554MPB6B
30.5 mm
1554PB1
1554PB1A
1554PB2
1554PB2D
1554PB3
1554PB4
1554PB6
1554PB6A
1554PB6B
# of
Holes
1
1
2
2
3
4
6
6
6
A
3.54
3.54
6.30
6.30
7.87
7.87
9.45
9.45
9.45
B
3.54
3.54
3.54
3.54
4.72
4.72
6.30
6.30
6.30
Depth
C
2.36
3.54
2.38
3.56
3.56
3.56
3.54
3.54
4.72
D
1.77
2.95
1.77
2.95
2.95
2.95
2.76
2.76
3.94
F
3.03
3.03
2.24
2.24
3.43
3.43
5.00
5.00
5.00
G
2.24
2.24
5.79
5.79
7.37
7.37
8.93
8.93
8.93
22 mm
H
Center
Center
1.89
1.89
1.89
1.89
1.89
1.89
1.89
30.5 mm
H
Center
Center
2.52
2.52
2.52
2.52
2.52
2.52
2.52
Optional
Inner Panel
Part No.
1554EPL
1554EPL
1554JPL
1554JPL
1554UPL
1554UPL
1554VPL
1554VAPL
1554VAPL
Panel
Dimensions
Length
3.10
3.10
5.80
5.80
7.60
7.60
9.10
8.93
8.93
Width
3.10
3.10
3.00
3.00
4.20
4.20
5.70
5.73
5.73
Data subject to change without notice
© 2017. Hammond Manufacturing Ltd. All rights reserved.
https://www.hammfg.com/electrical/products/operator/1554pb
2/2
