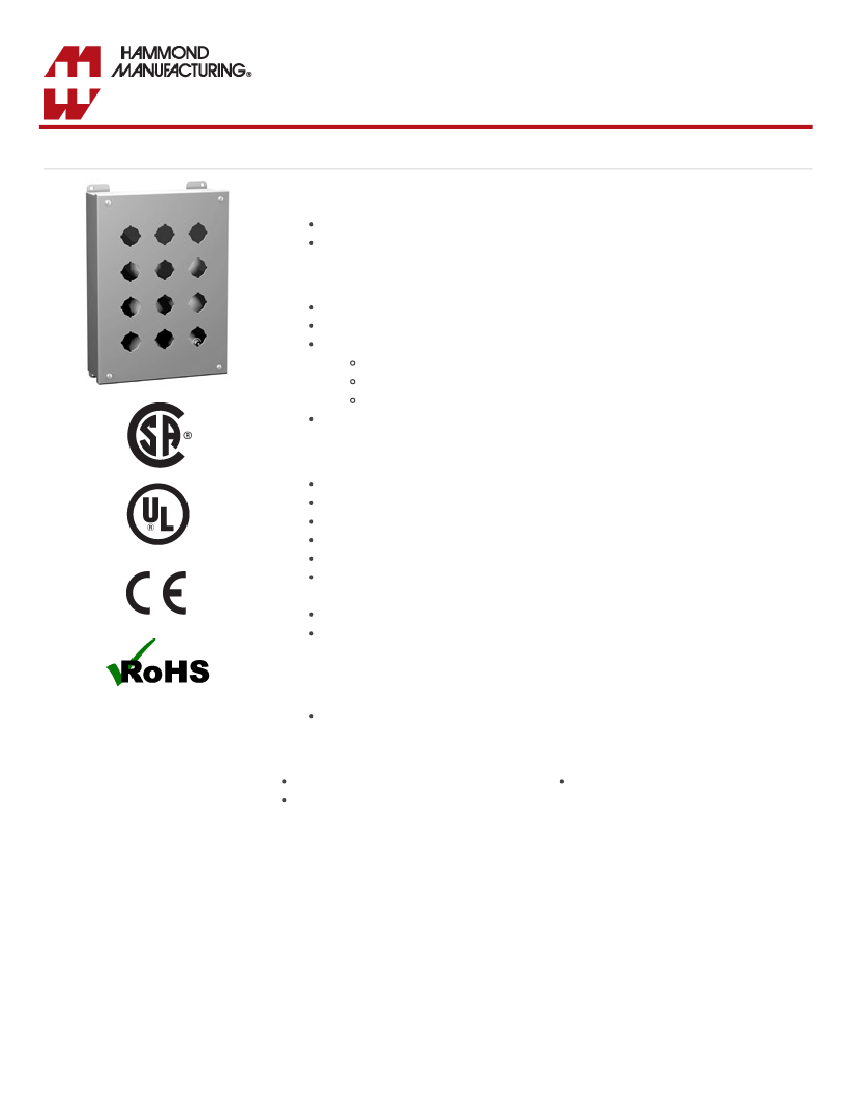

Type 12 Mild Steel Pushbutton Enclosures
1435 Series
Application
Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights.
Provides protection from dirt, dust, oil and water.
Standards
UL 508A Type 12 and 13
CSA Type 12 and 13
Complies with
NEMA Type 12 and 13
JIC standard EGP-1-1967
IEC 60529, IP54
Appropriate components are required to maintain these standards.
Construction
Formed 14 gauge steel except
A and B which are 16 gauge.
Smooth continuously welded seams.
Welded brackets provide for enclosure mounting.
Captive cover screws thread into sealed wells.
Larger enclosures provide internally hinged removable covers, designed to hold the cover
open during wiring (see table).
Oil resistant gasket and adhesive.
A bonding stud is provided on the door and a grounding stud is provided on the
enclosure.
Finish
Cover and enclosure are phosphatized and finished in ANSI 61 gray powder coating.
Accessories
Hole Plugs
Ground Wire Kits
Pedestal and Base
https://www.hammfg.com/electrical/products/operator/1435
1/3
11/27/2017
Part No.
30.5mm
1435C¹
1435D¹
1435F
1435H
1435K
1435O
1435S
¹ Not hinged
22.5mm
1435MC¹
1435MD¹
1435MF
1435MH
1435MK
1435MO
1435MS
No. of
Holes
3
4
4
6
9
12
16
Type 12 Mild Steel Pushbutton Enclosures (1435 Series) - Hammond Mfg.

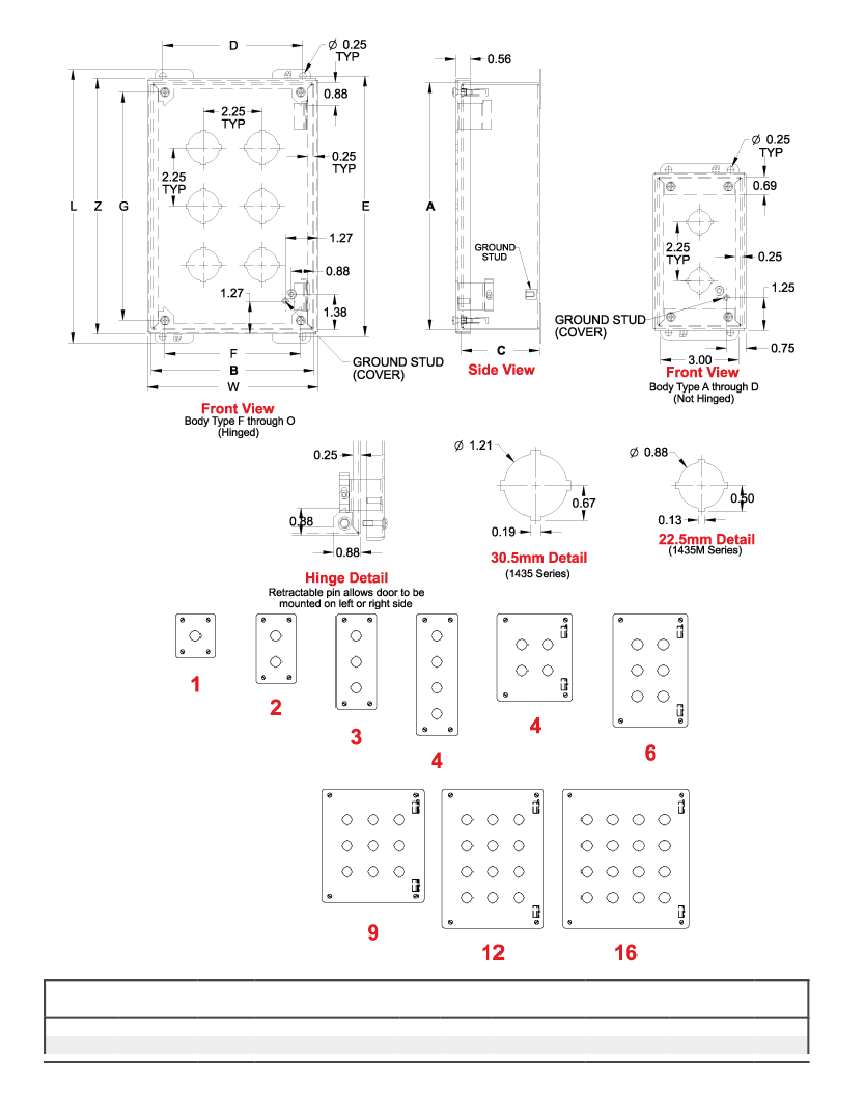

Overall Dimensions
A
8.00
10.25
7.25
9.50
9.50
11.75
11.75
B
3.25
3.25
6.25
6.25
8.50
8.50
10.75
C
2.75
2.75
3.00
3.00
3.00
3.00
3.00
D
2.38
2.38
5.38
5.38
7.63
7.63
9.88
E
8.50
10.75
7.75
10.00
10.00
12.25
12.25
F
2.21
2.21
5.21
5.21
7.46
7.46
9.71
G
7.25
9.50
6.50
8.75
8.75
11.00
11.00
L
9.00
11.25
8.25
10.50
10.50
12.75
12.75
W
3.56
3.56
6.56
6.56
8.81
8.81
11.06
Z
8.31
10.56
7.56
9.81
9.81
12.06
12.06
Data subject to change without notice
© 2017. Hammond Manufacturing Ltd. All rights reserved.
https://www.hammfg.com/electrical/products/operator/1435
3/3
