8
171.00 mm
[6.732 in]
7
161.00 mm
[6.339 in]
6
5
105.10 mm
[4.138 in]
101.00 mm
[3.976 in]
4
3
2
1
A
D
D
B
B
121.00 mm
[4.764 in]
111.00 mm
[4.370 in]
99.84 mm
[3.931 in]
(Inner Screw Post
Clearance)
111.84 mm
[4.403 in]
(Inner Box Width)
C
A
Top View of Assembly
2.00 mm
[0.079 in]
(Wall Thickness)
SECTION A-A
End View of Assembly
167.00 mm
[6.575 in]
155.00 mm
[6.102 in]
C
101.10 mm
[3.980 in]
(Inner Box Height)
117.00 mm
[4.606 in]
161.84 mm
[6.372 in]
(Inner Box Length)
105.00 mm
[4.134 in]
Enclosures can be Factory Modified ( Milling, Drilling, Printing etc. )
Contact Factory mjm@hammondmfg.com for quotes
Solid models of this enclosure available in STEP or IGES.
NOTE
Purchased assembly includes box, lid, and 6 cover screws.
Box and lid are made from Diecast Aluminum Alloy.
EVA Foam Gasket supplied with Liquid Resistant Enclosures
\
B
SECTION B-B
Side View of Assembly
159.07 mm
[6.263 in]
1.47 mm
[0.058 in]

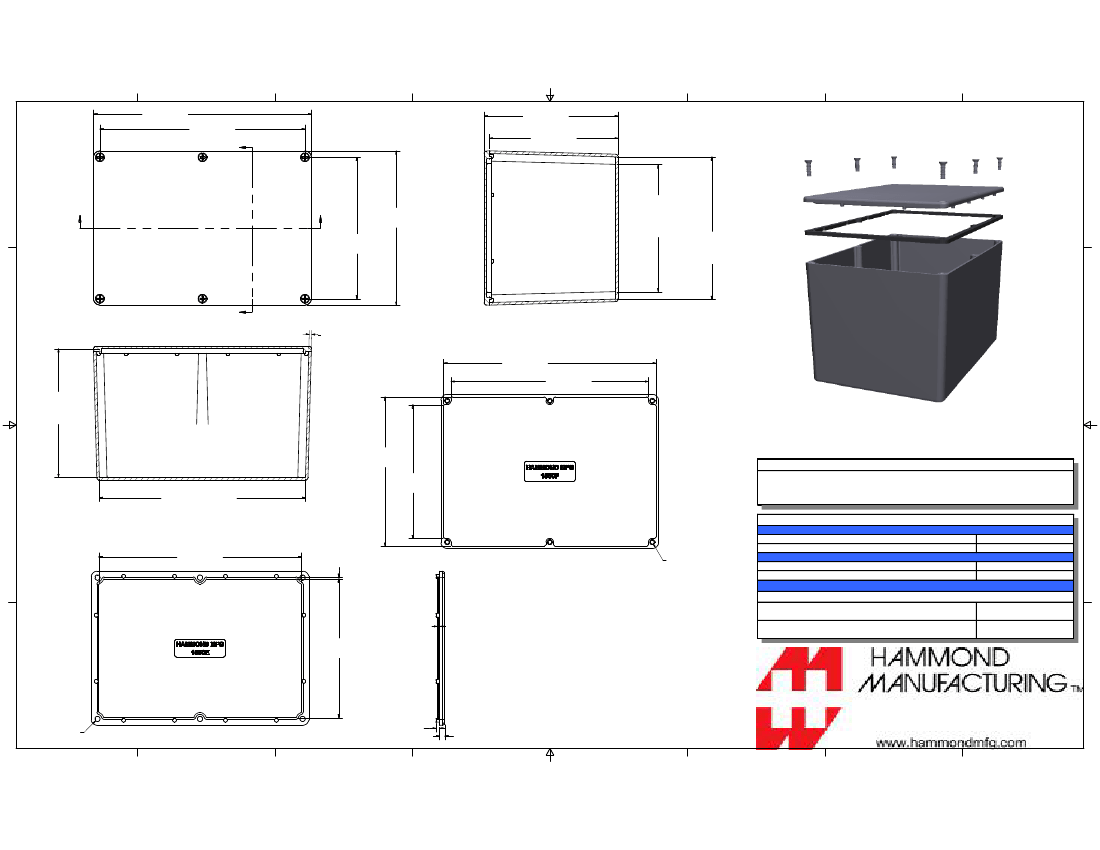

PART NUMBERS
1550F Enclosure
Unfinished
1550F
Black Textured Polyester Powder Paint
1550FBK
1550WF Liquid Resistant Enclosure (Silicon Factory Installed Gasket)
Unfinished
1550WF
Black Textured Polyester Powder Paint
1550WFBK
Accessories
B
Top View Looking Inside Box
M3.5 x 0.6
(Threaded Holes)
Recommended Torque: 75 ozf.in / 55 cN.m
1.50 mm
[0.059 in]
109.07 mm
[4.294 in]
Unfinshed Cover Screws (Pkg 100)
[M3.5 x 0.6 18-8 SS]
Black Cover Screws (Pkg 100)
[M3.5 x 0.6 18-8 SS]
1550MS100
1550MS100BK
A
2.90 mm
[0.114 in]
6
A
n
4.10 mm
[0.161 in]
8
View Looking Inside Lid
7
4.10 mm
[0.161 in]
5
1550WF
4
3
2
1
