172-I-G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 172-I-G

172-I-G: DescriptionEnclosures, Boxes, u0026 Cases 6.88 x 4.88 x 2.01 Gray; CategoryTopical application Mechanical and electrical/engineering/automation; File Size608KB，2 Pages; ManufacturerSERPAC

Download Datasheet Parametric Compare View All

172-I-G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	172-I-G	-	-	View	Buy Now

172-I-G Overview

Enclosures, Boxes, u0026 Cases 6.88 x 4.88 x 2.01 Gray

172-I-G Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	SERPAC
RoHS	Details
Product	Enclosures
Material	Acrylonitrile Butadiene Styrene (ABS)
Color	Gray
IP Rating	IP40
NEMA Rating	1
Flammability Rating	UL 94 HB
Cover Color	Gray
Features	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design
Factory Pack Quantity	1

Preview

Download Datasheet

View All

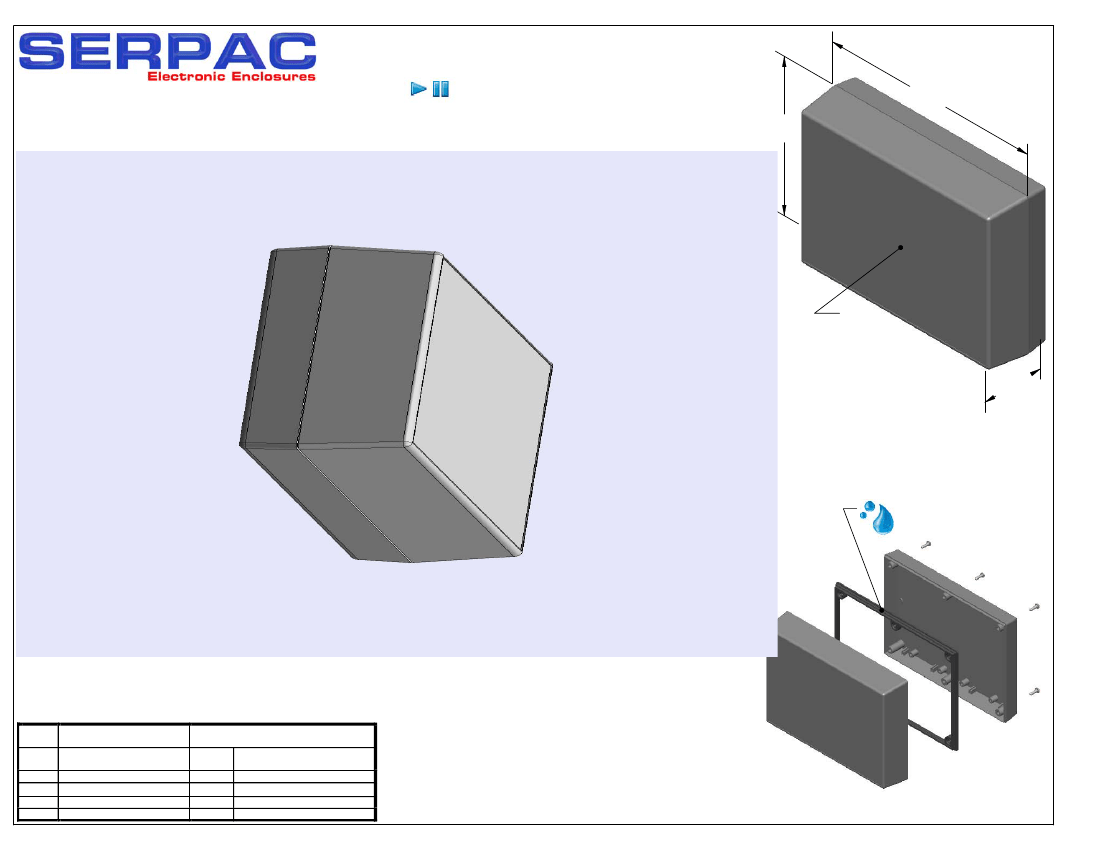

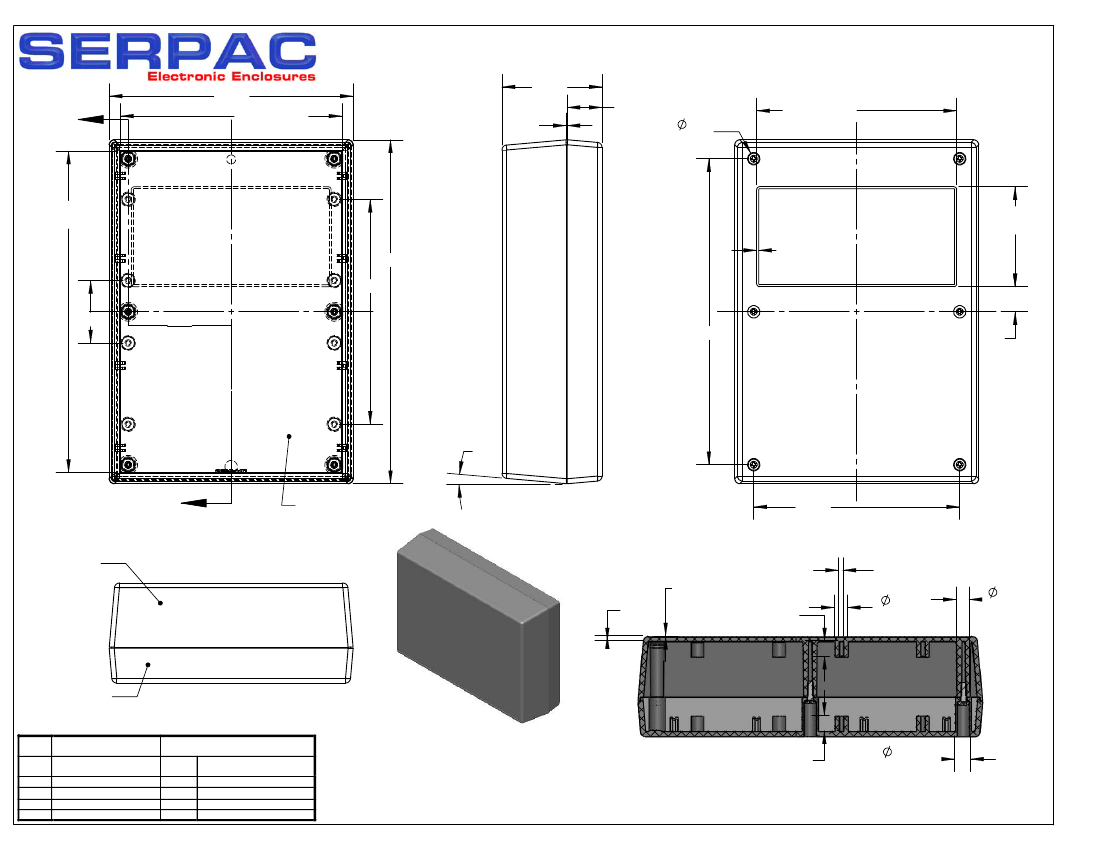

172i

(exploded isometric)

-Click on image to show toolbar. Use

to Play/Pause Animation.

-Left click and drag on image to move 3D model.

6.88

4.88

TOP

i-plate area

4.43" X 6.43"

Non-Textured

0.015" recessed

2.00

Water proofing gasket

PS17 optional.

see note #2

3D model options:

a) Zoom in & out with center wheel.

b) Pause at any moment to view and or print views.

c) Change the views to ortho and section views if needed from the Views pull down menu.

d) Explore options included in the tool bar like: Views, Transparency of model, Lighting type, etc.

PART

NO.

7-2-i

6005

DESCRIPTION

(Included)

TOP

BOTTOM

#4X3/8” Self tapping (6)

ACCSESSOR IES

(Optional)

PART

NO.

PS17

370

470

DESCRIPTION

Non-skid Feet

Perimeter Seal

Prototype grid board

Prototype clad board

Notes:

Enclosure weight .43 lbs / 197 gm

1) Enclosure meets or exceeds IP40 and NEMA 1

2) When used with PS17 the enclosure meets or exceeds

IP 66 and NEMA 4X, 12 and 13 MIL-STD-810G 506.5

3) Circuit Board drawings can be download at:

http://www.serpac.com/Accessories/CircuitBoard/drawings/370-470.pdf

4) All components are RoHS Compliant.

Ph. (626) 331-0517 Fx. (626) 331-8584 serpac.com

ALL DIMENSIONS ARE ± .010"

3/23/10

(1 of 2)

619 Commercial Ave. Covina, CA 91723

172-I-G Related Products

	172-I-G	172-I-A	172RAL
Description	Enclosures, Boxes, u0026 Cases 6.88 x 4.88 x 2.01 Gray	Enclosures, Boxes, u0026 Cases 6.88 x 4.88 x 2.01 Almond	Enclosures, Boxes, u0026 Cases 6.88 x 4.88 x 2.01 ALMOND
Product Category	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases
Manufacturer	SERPAC	SERPAC	SERPAC
RoHS	Details	Details	Details
Factory Pack Quantity	1	1	1
Product	Enclosures	Enclosures	-
Material	Acrylonitrile Butadiene Styrene (ABS)	Acrylonitrile Butadiene Styrene (ABS)	-
Color	Gray	Almond	-
IP Rating	IP40	IP40	-
NEMA Rating	1	1	-
Flammability Rating	UL 94 HB	UL 94 HB	-
Cover Color	Gray	Almond	-
Features	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design	-
