C-6TR-BL: CategoryTopical application Mechanical and electrical/engineering/automation; File Size129KB，2 Pages; ManufacturerSERPAC

Download Datasheet Parametric View All

C-6TR-BL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	C-6TR-BL	-	-	View	Buy Now

C-6TR-BL Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	SERPAC
RoHS	Details
Product	Cases
Type	Hand Held
Material	Plastic
Color	Blue
Length	57.41 mm
Width	40.9 mm
Height	19.05 mm
Flammability Rating	UL 94 HB
Dimensions	57.41 mm L x 40.9 mm W x 19.05 mm H
Features	Customs, Colors, Machining, Molding & Pad Printing, 2-Piece Standard Design
Factory Pack Quantity	1
Unit Weight	0.495952 oz

Preview

Download Datasheet

View All

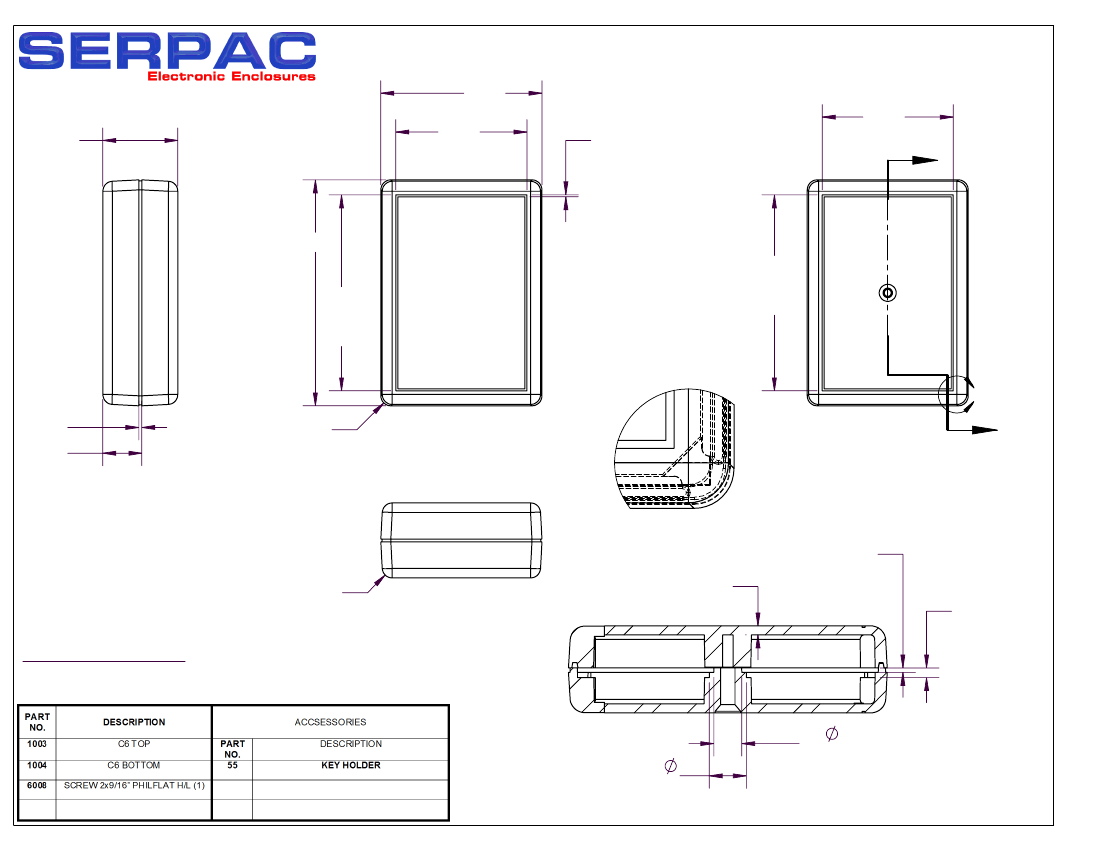

.75

NOTES:

1) When machine or I-plates modifications are required,

use the center of the enclosure to dimension.

1.61

1.31

Insert

Area

.02 W

X .01 D

1.31

Insert

Area

2.26

1.96

Insert

Area

1.96

Insert

Area

DETAIL B

corner detail

Top

Bottom

.03

.39

R.10

typ.

R.10

typ.

Enclosure can hold either a 0.032" PCB or a 0.063 PCB

PCB dimensions are:

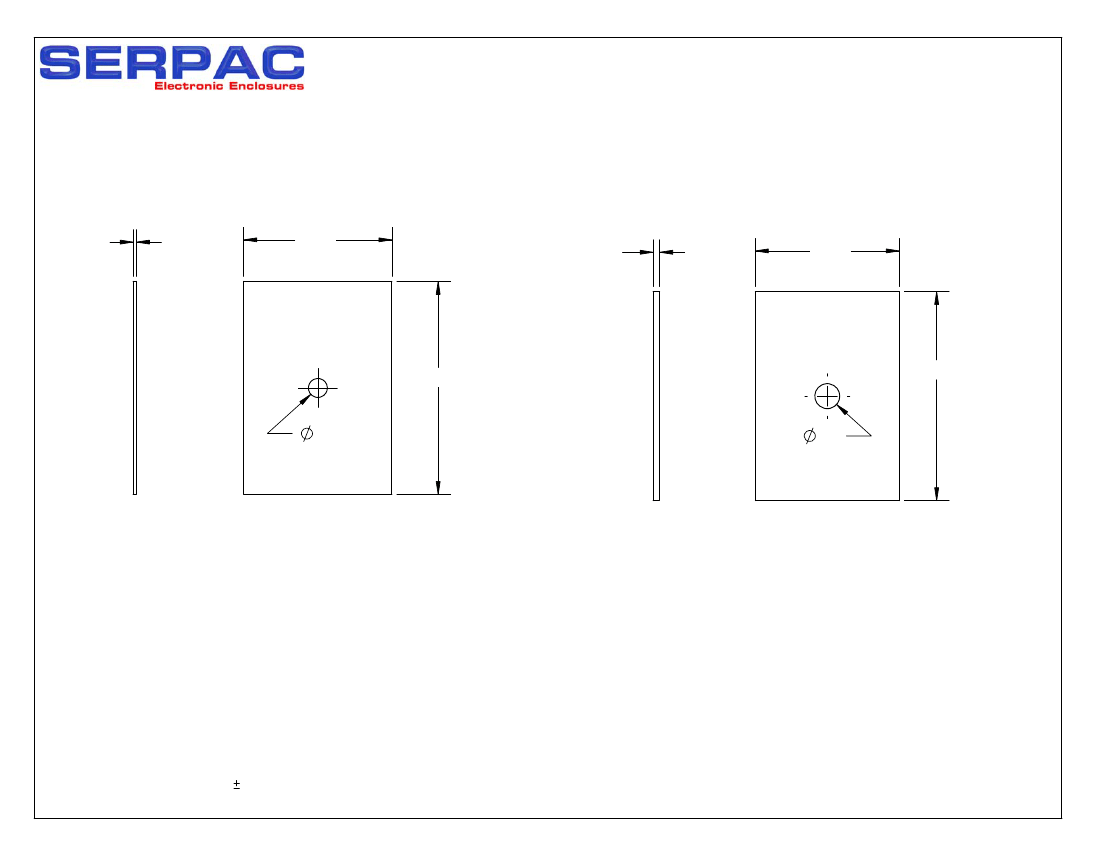

(PCB drawings on page 2)

0.032" [.8mm] PCB 2.13" X 1.48"

0.063" [1.6mm] PCB 2.09" X 1.44"

Top

Bottom

SECTION A-A

.25

for 0.063" PCB

.06

typ.

.03

@ perimeter

to trap

0.032" thk

PCB

.07

@ 4 corners

to trap

0.065" thk

PCB

.19

for 0.032" PCB

11/10/11

ALL DIMENSIONS ARE ± .010"

2009 Wright Ave., La Verne, CA 91750

Ph. (626) 331-0517 Fx. (626) 331-8584 www.serpac.com
