Type 4 Mild Steel Two Door Floormount Enclosure
1422 N4 FM Series
Continuous Hinge Door with Clamps
Application
Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
Provides protection where equipment may be hosed down or otherwise be very wet, or in
outdoor applications for full weather protection.
Standards
UL 508A Type 3R, 4 and 12
CSA Type 3R, 4 and 12
Complies with
NEMA Type 3R, 4 12 and 13
JIC EGP-1-1967
IEC 60529, IP66
Construction
Enclosures are formed 12 or 10 gauge steel as noted.
Smooth, continuously welded seams without knockouts, cutouts or holes.
Body stiffeners are provided in the larger enclosures for extra rigidity.
Heavy duty lifting eyebolts are provided with reinforcing support angles.
Center post is removable for easy installation of the inner panel.
Formed lip on door and top of enclosure opening exclude flowing liquids and
contaminants.
Continuously hinged doors may be removed by pulling the stainless steel hinge pin.
Doors are secured with heavy duty stainless steel clamps.
Provision for padlocking.
12" floor stands are welded to the enclosure.
Seamless poured-in place gasket.
Provision for light kit mounting.
A removable 10 gauge inner panel is included.
Panel supports are provided for easy panel installation.
Collar studs are provided for mounting inner panels.
A bonding stud is provided on the door and a grounding stud is provided in the enclosure
for each door.
A literature pocket is provided for the inside of the door.
Finish
Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.
Removable white inner panel is finished in white powder coating.
Accessories
Inner Panels
Blowers and Fans
Door Stop Kit
Enclosure Stabilizers
https://www.hammfg.com/electrical/products/industrial/1422n4fm
Cooling Products
Ventilation
Drip Shield Kit
Filtered Fans
1/3
11/6/2017
Type 4 Mild Steel Two Door Floormount Enclosure (1422 N4 FM Series) - Hammond Mfg.
Heaters
Lighting
Temperature Controls
Gland Plates
Type 1 Louvered Ventilating Plates
Window Kits
w/ Feet

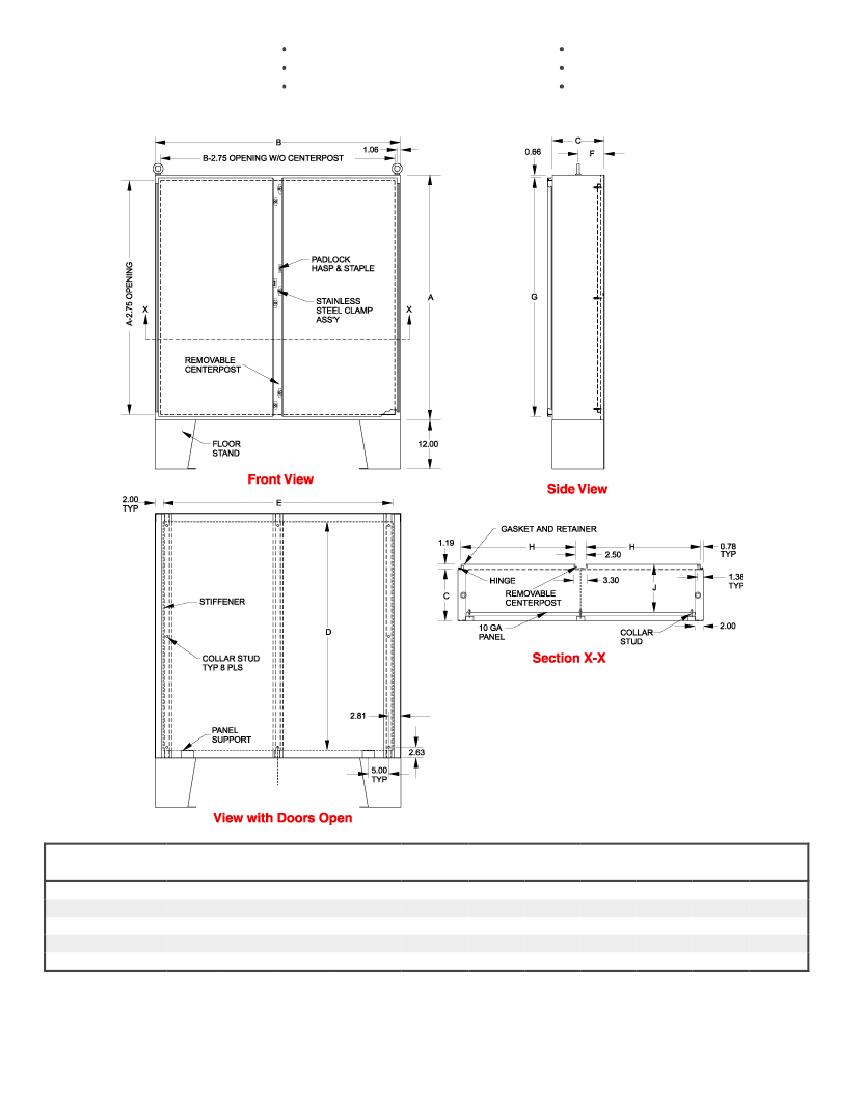

Part No.
1422N4B10F
1422N4D12F
1422N4E12F
1422N4F12F
1422N4F24F
A
60.13
60.13
72.13
72.13
72.13
B
48.06
60.06
60.06
72.06
72.06
C
10.69
12.69
12.69
12.69
24.69
Body
Gauge
12
12
12/10
12/10
12/10
Panel
Gauge
10
10
10
10
10
Panel Size
D
56.00
56.00
68.00
68.00
68.00
E
44.00
56.00
56.00
68.00
68.00
F
5.30
6.30
6.30
6.30
12.30
G
58.59
58.59
70.59
70.59
70.59
H
22.00
28.00
28.00
34.00
34.00
J
9.87
11.87
11.87
11.87
23.87
