1447SN4SSJ12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 1447SN4SSJ12

1447SN4SSJ12: CategoryTopical application Mechanical and electrical/engineering/automation; File Size180KB，4 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com

Download Datasheet Parametric Compare View All

1447SN4SSJ12 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1447SN4SSJ12	-	-	View	Buy Now

1447SN4SSJ12 Parametric

Parameter Name	Attribute value
Product Category	Electrical Enclosures
Manufacturer	Hammond
RoHS	Details
Product	Wall Mount Enclosures
Type	Disconnect
Material	Stainless Steel
Color	Natural
Panel Width	838 mm
Panel Height	991 mm
Ventilation	Not Available
Features	Master units accept the following switches and breakers: ABB, Allen Bradly, Cutler Hammer, GE, Siemens I-T-E, Square D
Factory Pack Quantity	1
Unit Weight	200.002 lbs

Preview

Download Datasheet

View All

11/11/2017

Type 4X Stainless Steel Wallmount Disconnect Enclosure (1447S N4 SS Series) - Hammond Mfg.

Quality Products. Service Excellence.

Type 4X Stainless Steel Wallmount Disconnect Enclosure

1447S N4 SS Series

Continuous Hinge Door with Clamps (Flange w/ multi-vendor cutout)

Application

Designed to house the following safety disconnect equipment:

ABB Controls

flange mounted variable depth operating mechanisms for

disconnect switches and circuit breakers. Cable version for circuit breakers also

available.

Allen Bradley

1494V variable depth flange mounted disconnect switches and

circuit breaker operators NEMA 4 rated. Will not accept Allen Bradley 1494F

disconnect switches, 1494D circuit breaker operators or 1494V-R1, -R2, or -W2

operating handles).

Cutler Hammer

C361 variable depth flange mounted disconnect switches and

C371 circuit breaker operators. Also Flex-Shaft™ handle mechanisms for circuit

breakers. Use Cutler Hammer NEMA 4X rated operating handles to maintain

NEMA 4X integrity.

Siemens I-T-E Max-Flex™

flange mounted variable depth handles for disconnect

switch and circuit breakers. Use handle for NEMA 4 rating.

General Electric

Type STDA flange handles and variable depth operating

mechanisms for disconnect switches and circuit breakers. Also SpectraFlex™

cable operators for circuit breakers.

Square D

Class 9422 disconnect switches with flange mounted variable depth

operating mechanisms or cable mechanisms and Class 9422 flange mounted

variable depth operating mechanism or cable mechanisms for circuit breakers.

SN4SS enclosures will not accept Square D Class 9422 bracket-mounted

disconnect devices, 9422TG1 or TG2 devices.

Standards

UL 508A Type 3R, 4 and 4X

CSA Type 3R, 4 and 4X

Complies with

NEMA Type 3R, 4, 4X, 12 and 13

JIC EGP-1-1967

IEC 60529, IP66

Appropriate components are required to maintain these standards.

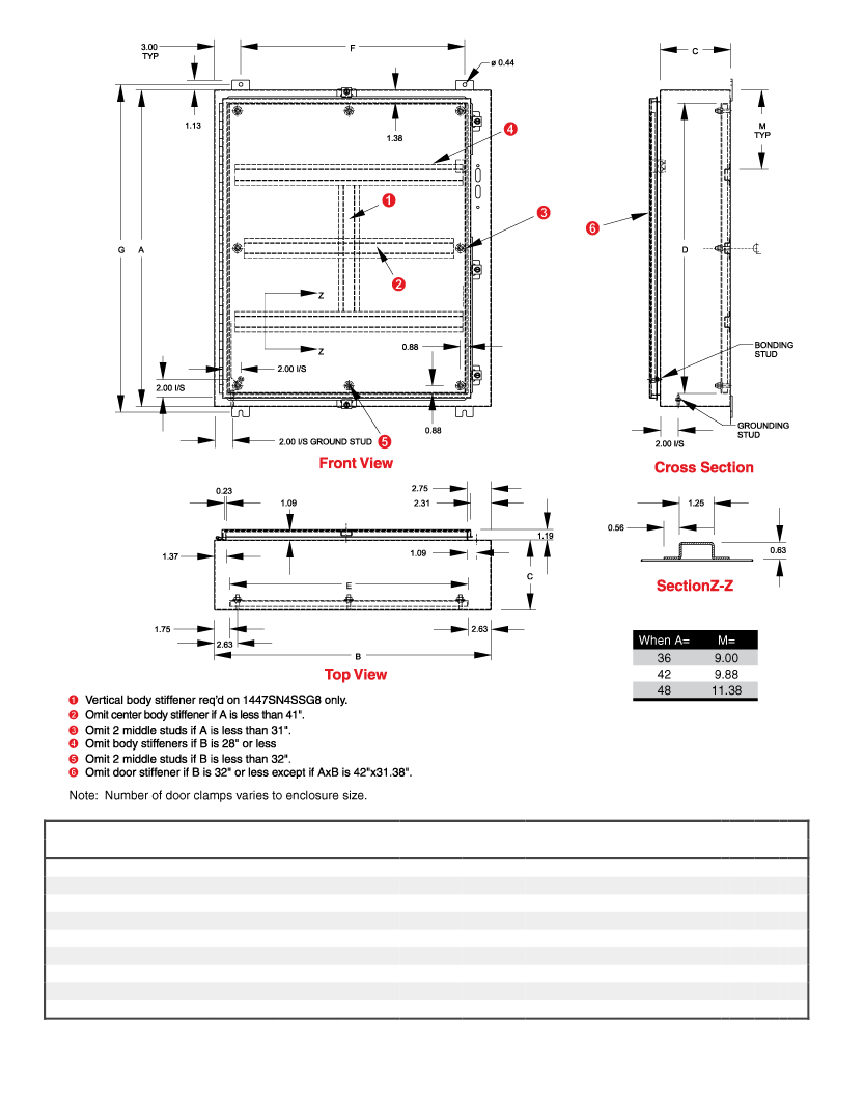

Construction

Formed 14 gauge type 304 stainless steel.

Continuously welded seams.

Larger sizes include door and body stiffeners.

Formed lip on door and enclosure exclude flowing liquids and contaminants.

Cutouts and holes are provided to suit the flange handle operating mechanism.

Continuously hinged doors may be removed by pulling the stainless steel hinge pin.

Door is secured with easily operated stainless steel clamps.

Cover interlock bracket is welded to the door.

Collar studs are provided for mounting inner panels.

A removable 12 gauge inner panel is included.

https://www.hammfg.com/electrical/products/disconnect/1447sn4ss

1/4

1447SN4SSJ12 Related Products

	1447SN4SSJ12	1447SN4SSF8	1447SN4SSH12	1447SN4SSC8	1447SN4SSK12	1447SN4SSB8	1447SN4SSG8	1447SN4SSE8	1447SN4SSL12
Description		Electrical Enclosures NEMA12 Disconnect with Inner Panel	Electrical Enclosures NEMA12 Disconnect with Inner Panel	Electrical Enclosures NEMA12 Disconnect with Inner Panel		Electrical Enclosures NEMA12 Disconnect with Inner Panel	Electrical Enclosures NEMA12 Disconnect with Inner Panel		Electrical Enclosures NEMA12 Disconnect with Inner Panel
Product Category	Electrical Enclosures	Electrical Enclosures	Electrical Enclosures	Electrical Enclosures	Electrical Enclosures	Electrical Enclosures	Electrical Enclosures	Electrical Enclosures	Electrical Enclosures
Manufacturer	Hammond	Hammond	Hammond	Hammond	Hammond	Hammond	Hammond	Hammond	Hammond
RoHS	Details	Details	Details	Details	Details	Details	Details	Details	Details
Product	Wall Mount Enclosures	Wall Mount Enclosures	Wall Mount Enclosures	Wall Mount Enclosures	Wall Mount Enclosures	Wall Mount Enclosures	Wall Mount Enclosures	Wall Mount Enclosures	Wall Mount Enclosures
Type	Disconnect	Disconnect	Disconnect	Disconnect	Disconnect	Disconnect	Disconnect	Disconnect	Disconnect
Material	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
Color	Natural	Natural	Natural	Natural	Natural	Natural	Natural	Natural	Natural
Panel Width	838 mm	533 mm	686 mm	533 mm	838 mm	432 mm	686 mm	533 mm	838 mm
Panel Height	991 mm	838 mm	991 mm	533 mm	1143 mm	533 mm	838 mm	686 mm	1448 mm
Ventilation	Not Available	Not Available	Not Available	Not Available	Not Available	Not Available	Not Available	Not Available	Not Available
Features	Master units accept the following switches and breakers: ABB, Allen Bradly, Cutler Hammer, GE, Siemens I-T-E, Square D	Master units accept the following switches and breakers: ABB, Allen Bradly, Cutler Hammer, GE, Siemens I-T-E, Square D	Master units accept the following switches and breakers: ABB, Allen Bradly, Cutler Hammer, GE, Siemens I-T-E, Square D	Master units accept the following switches and breakers: ABB, Allen Bradly, Cutler Hammer, GE, Siemens I-T-E, Square D	Master units accept the following switches and breakers: ABB, Allen Bradly, Cutler Hammer, GE, Siemens I-T-E, Square D	Master units accept the following switches and breakers: ABB, Allen Bradly, Cutler Hammer, GE, Siemens I-T-E, Square D	Master units accept the following switches and breakers: ABB, Allen Bradly, Cutler Hammer, GE, Siemens I-T-E, Square D	Master units accept the following switches and breakers: ABB, Allen Bradly, Cutler Hammer, GE, Siemens I-T-E, Square D	Master units accept the following switches and breakers: ABB, Allen Bradly, Cutler Hammer, GE, Siemens I-T-E, Square D
Factory Pack Quantity	1	1	1	1	1	1	1	1	1
Unit Weight	200.002 lbs	100.001 lbs	152.002 lbs	73.001 lbs	220.002 lbs	60.001 lbs	123.001 lbs	90.001 lbs	265.003 lbs
