Front Panels
Accessories & Parts

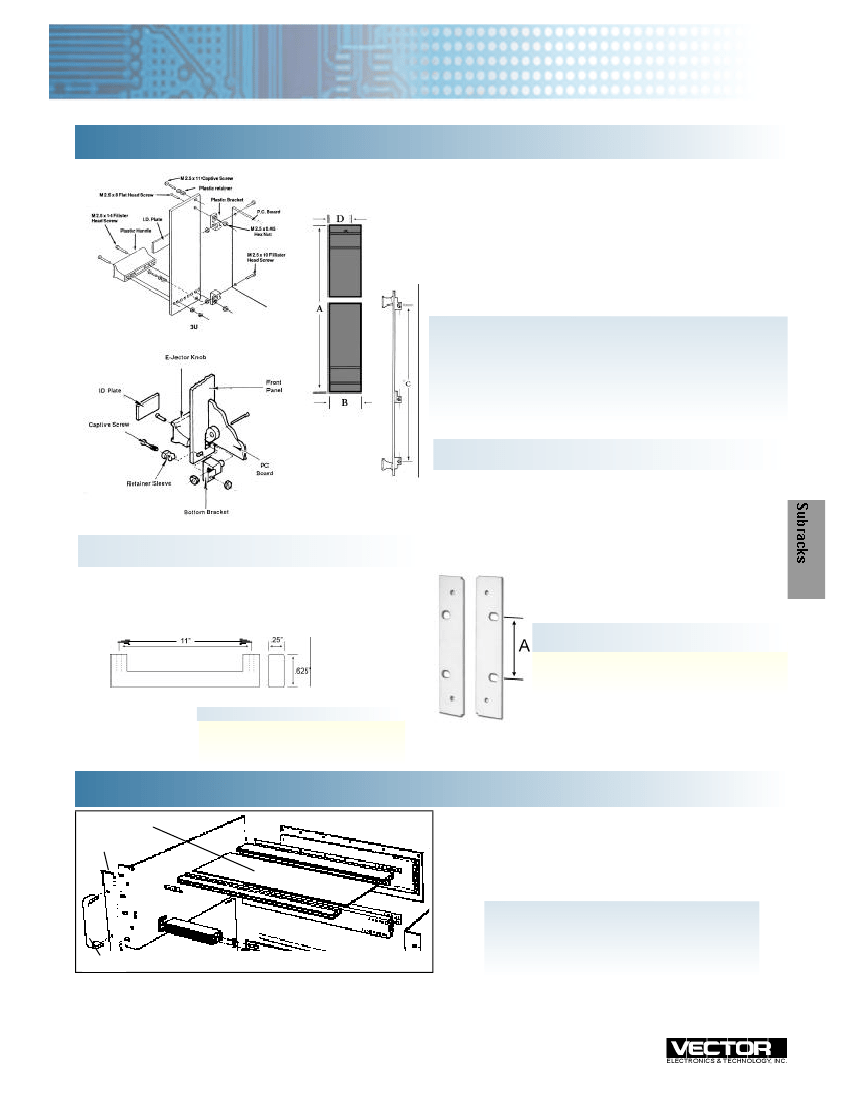

Front Panels
Screw mounted front panel kit include handle and iden-
tification panel. Available in 3U, 6U, and 9U heights
and in two widths: 4HP (0.778”) and 8HP (1.588”). All
mounting hardware, including board mounting support
bracket and hardware also included. Panel with clear
chromate plating matches standard finish for Vector
packaging products.
Front Panel Detail
FP Type
Part No* Ht HP
FP04-3U
FP08-3U
FP03-6U
FP04-6U
FP08-6U
3U
3U
6U
6U
6U
4
8
3
4
8
HP
HP
HP
HP
HP
A
5.06” (129mm)
5.06” (129mm)
10.31” (262mm)
10.31” (262mm)
10.31” (262mm)
B
C
D
.778” (20mm) 3.5” (89mm)
.494” (12mm)
1.588” (40mm) 3.5” (89mm) 1.294” (33mm)
.58” (14mm) 8.750” (222mm) .315” (8mm)
.778” (20mm) 8.750” (222mm) .494” (12mm)
1.588” (40mm) 8.750” (222mm) 1.294” (33mm)
* For ejector style, add “E” to part number as in FPE04-3U
Dress Panels
Ejector Knob Detail
FPE Type
Handles
Black anodized handles for 3, 6 and 9U subracks.
8-32 tapped holes (mounting hardware included)
Dress panels provide an attractive, finished look for
Vector Card Cages and are required when adding
handles. (mounting hardware included)
A
C-C mounting hole spacing
Part
Pkg Qty Description
No.
DP-3U
DP-6U
DP-9U
2
2
2
A
For 3U Subrack, 5.25 H x 1.1” W
4”
For 6U Subrack, 10.50 H x 1.1” W 6”
For 9U Subrack, 15.75 H x 1.1” W 11”
Part No.
HA19-3U
HA19-6U
HA19-9U
Pkg Qty Dimension A
2
2
2
4”
6”
11”
Top/Bottom Covers
Cover
Dress Panel
Panels provide maximum protection for card cage
interiors. Perforated to insure proper airflow.
Constructed from .062” aluminum, satin finish with clear
irridite plating. Covers slide into T-strut grooves, no
mounting hardware required.
Part No.
AC160-84-1
AC220-84-1
AC280-84-1
AC340-84-1
AC400-84-1
Pkg Qty Width Depth For card size
2
2
2
2
2
16.98”
16.98”
16.98”
16.98”
16.98”
4.93”
7.29”
9.65”
12.01”
14.37”
160mm
220mm
280mm
340mm
400mm
Handle
