CN-5705 Online Shopping

Suppliers Part Number Price MOQ In stock
CN-5705 - - View Buy Now

CN-5705 Parametric

Parameter NameAttribute value
Product CategoryElectrical Enclosures
ManufacturerBud Industries
RoHSDetails
ProductEnclosures
TypeEnclosure
MaterialAluminum Alloy
ColorUnfinished
Length115.32 mm
Width90.68 mm
Height56.39 mm
IP RatingIP66
NEMA Rating1, 2, 4, 4X, 12, 13
Dimensions115.32 mm L x 90.68 mm W x 56.39 mm H
Factory Pack Quantity1
Unit Weight8.099999 oz
8
7
6
5
4
3
2

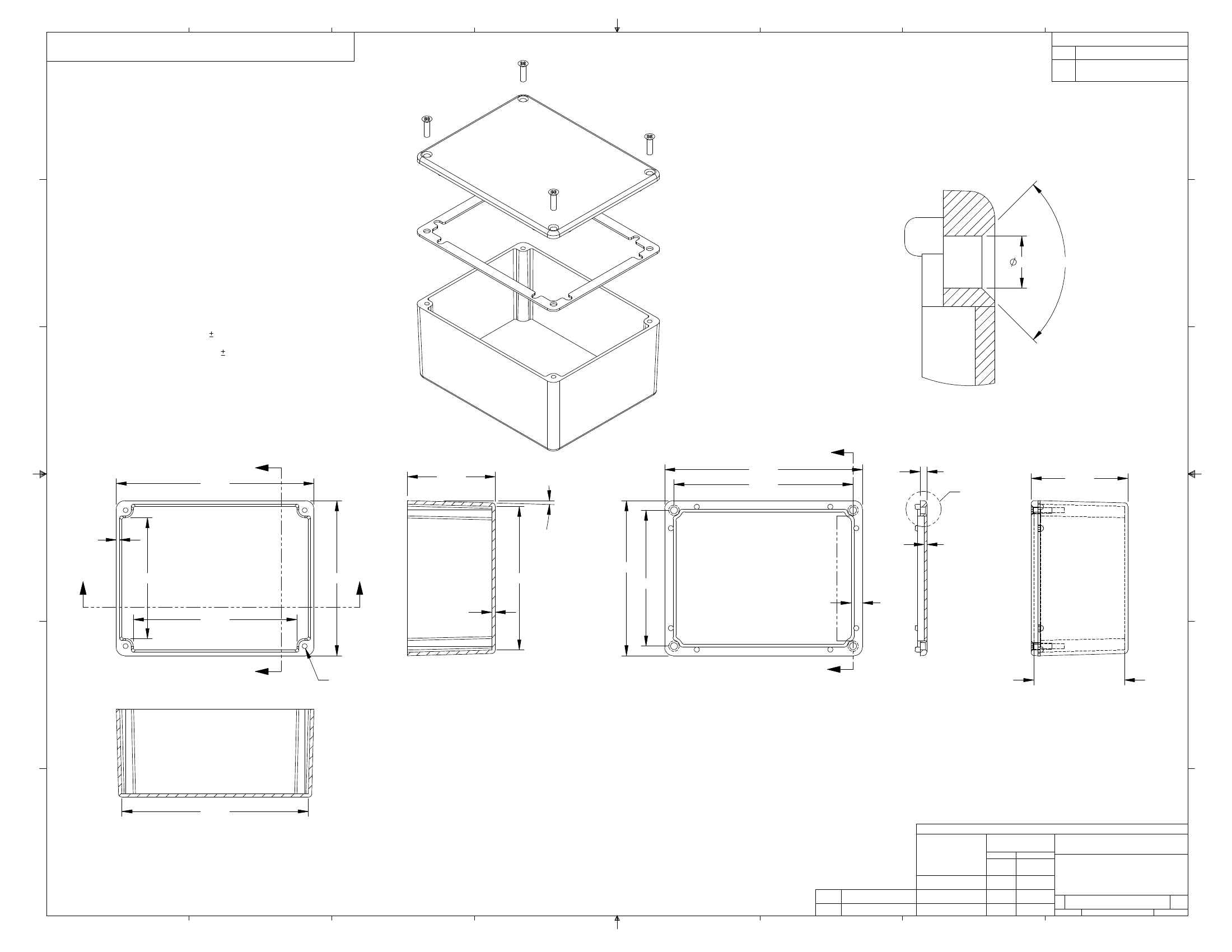

DWG. NO.
1
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BUD INDUSTRIES INC. ANY REPRODUCTION IN PART OR WHOLE WITHOUT
THE WRITTEN PERMISSION OF BUD INDUSTRIES INC. IS PROHIBITED.
CN-5705
REVISIONS
ISSUE
F
F
MATERIAL - ALUMINUM ALLOY #ADC-12
FINISH - NATURAL (CONTACT BUD FACTORY FOR
ALTERNATED FINISHES)
E
GASKET - RATED IP65 NEOPRENE, SELF-ADHESIVE,
3mm THICK, COLOR BLACK
SCREWS - STAINLESS STEEL, M3.5 x 12mm LG.,
CSK. HEAD, SELF-THREADING
.160
90° CSK.
E
ALL HOLE DIAMETERS HAVE .005 TOLERANCE.
ALL OTHER DIMENSIONS HAVE .015 TOLERANCE.
ENCLOSURES ARE SHIPPED UNASSEMBLED WITH
ALL ITEMS SHOWN.
D
D
DETAIL D
SCALE 6 : 1
C
A
4.548
2.020
1.50° DRAFT REF.
OUTSIDE & INSIDE
4.548
4.118
.157
D
2.224
C
.080
TYP.
B
2.781
3.566
B
3.566
3.304
3.126
.260
TYP.
.059
C
3.763
.080
A
B
C
TAPPED M3.5 (4x)
SECTION A-A
SECTION C-C
2.085 INSIDE
CLEAR HEIGHT
B
BODY
COVER
4.286
SECTION B-B
A
PARTS LIST
+/-.005 BETWEEN HOLE CENTERS
CAD GENERATED DRAWING,
+/-.015 FROM SHEARED EDGE
DO NOT MANUALLY UPDATE
+/-.032 FROM A BENT SURFACE
DATE
APPROVALS
+/-.062 BETWEEN ASSEMBLED
DRAWN
SURFACES
UNLESS OTHERWISE SPECIFIED
MATERIAL
FINISH
BUD INDUSTRIES INC.
DIE CAST ALUMINUM
ENCLOSURE
SIZE DWG. NO.
A
DAB
3-31-06
AS NOTED
AS NOTED
2
CHECKED
APPROVED
QTY.
USED ON
DO NOT SCALE DRAWING
C
CN-5705
SHEET
REV.
1 OF 1
SCALE
CAD FILE:
8
7
6
5
4
3
1
