PP-Series
PP-Series
PUSHBUTTON SWITCHES

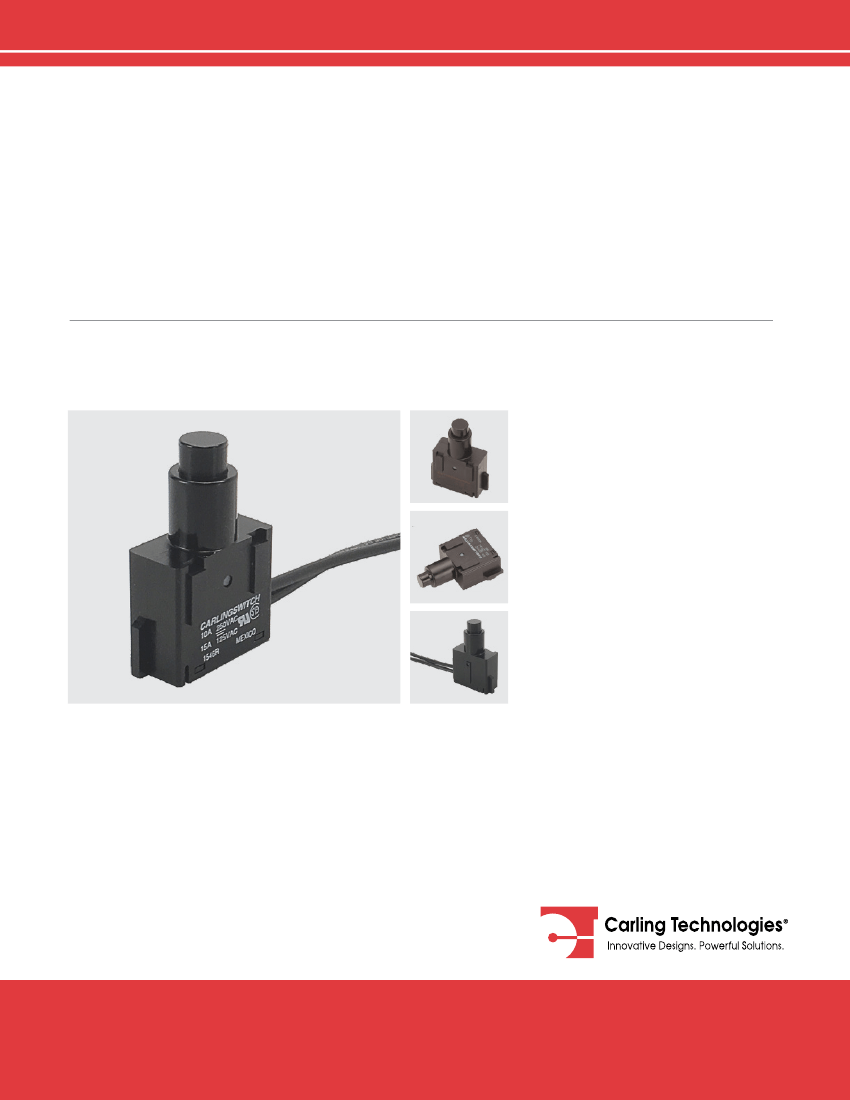

The PP-Series plastic pushbutton switches are heavy duty, single pole switches with wire leads. They are alternate
action, available in single throw construction, with AC ratings up to 15 amps. Both bushing and bracket are
made out of nylon. These high current switches are popular within the Appliance market.
Product Highlights:
Ratings to 15A 125VAC
All nylon construction
Stiff actuation force suitable for foot pedal
applications
Integrated wire lead termination
Typical Applications:
Vacuum Cleaners
Carling Technologies, Inc.
60 Johnson Avenue, Plainville, CT
06062
Email:
sales
@
carlingtech.com
Application Support:
team2
@
carlingtech.com
Phone:
860.793.9281
Fax:
860.793.9231
www.carlingtech.com
2 |
PP-Series Pushbutton Switches - General Specifications, Ordering Scheme, Dimensional Specifications
Dielectric Strength
Electrical Life
50,000 cycles
UL/CSA: 1000V - live to dead
metal parts & opposite polarity
Mechanical Life
100,000 cycles
Operating Temperature
32°F to 185°F (0°C to 85°C)
1
Part Number
PPA525-AC
1 PART NUMBER: SERIES / ACTUATOR / CIRCUITRY / RATING / TERMINATION
Wire Leads
10A 250VAC, 15A 125VAC, 3/4HP 125-250VAC
On-Off
PPA525-AC
10A 250VAC, 15A 125VAC
On-Off
PAA515-AC
6.000[152.40]
.375 DIA[Ø9.53]
.500[12.70]
INTEGRATED WIRE LEAD
16AWG
.250[6.35]
(No Exposed Conductors)
TERMINAL TYPE
.250[6.35] TRAVEL
.540[13.72] DIA
.550[13.97] DIA
.781[19.84] MAX.
.565[14.35]
1.000[25.4]
.776[19.71]
1.120[28.45]
1.308[33.22]
.540[13.72]
.610[15.49]
MOUNTING HOLE
FASTENER THICKNESS .010
FASTENER
OPTIONAL FASTENER
*Manufacturer reserves the right to change product specification without prior notice.
Email: sales
@
carlingtech.com Application Support: team2@carlingtech.com
Phone: (860) 793–9281 Fax: (860) 793–9231
www.carlingtech.com
Sales Representatives, Distributors & Company Profile | 3
Authorized Sales Representatives and Distributors
Click on a region of the map below to find your local representatives and distributors or visit
www.carlingtech.com/findarep.
