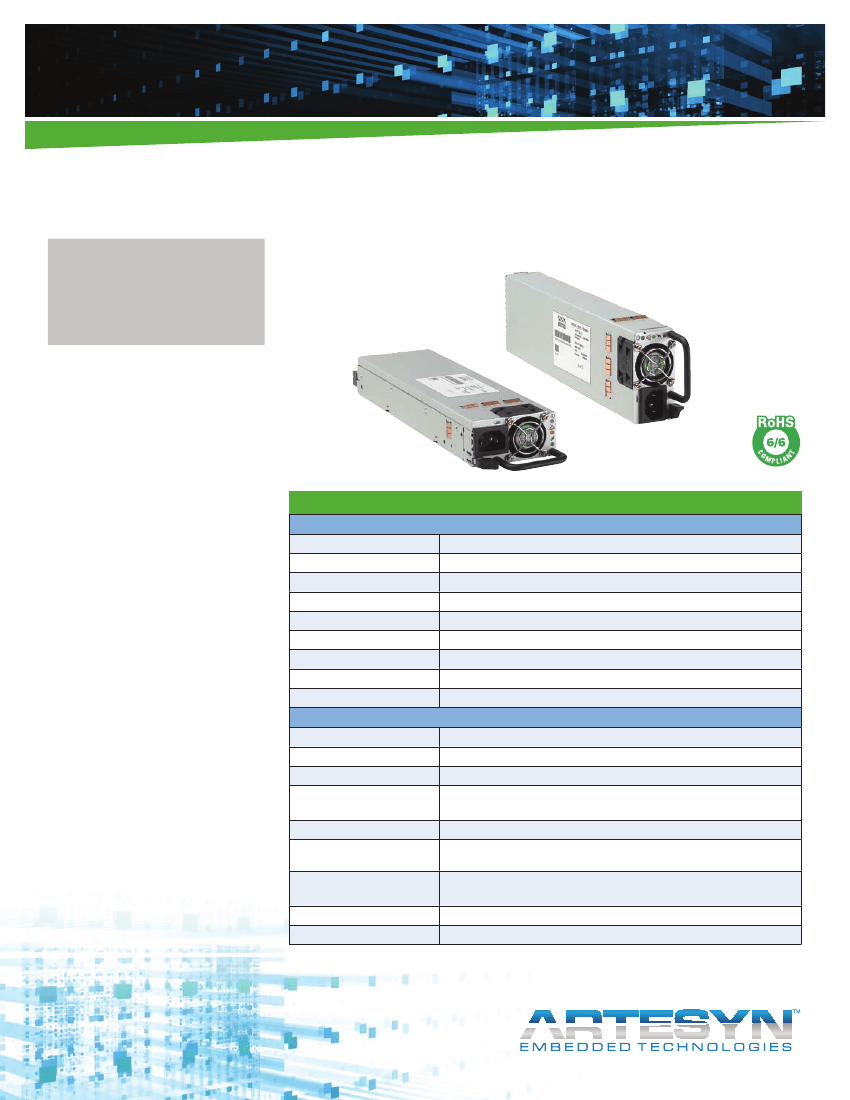

POWER
Data Sheet
Total Output Power:
450 - 550 Watts
+12 Vdc Main Output
+3.3 Vdc Standby Output
Wide Range Input Voltage:
90 - 264 Vac
SPECIAL FEATURES
Active power factor correction
EN61000-3-2 harmonic compliance
Inrush control
1U X 2U form factor
10.3 W/in
3
(DS550) 8.4 W/in
3
(DS450)
+12 Vdc output
+3.3 Vdc standby
No minimum load required
Hot plug operation
N + 1 redundant
Internal OR’ing fets
Active current sharing
Built-in cooling fans (40 mm x 28 mm)
I
2
C communication interface bus
EEPROM for FRU data
Amber LED status, fan_fail
Green LED status,
power good/AC_OK status
Internal fan speed control
Fan fail tach output signal
One year warranty
DS450-3/DS550-3
Distributed Power Bulk Front-End
Electrical Specifications
Input
Input range
Frequency
Inrush current
Efficiency
Conducted EMI
Radiated EMI
Power factor
Leakage current
Hold up time
Output
Main DC voltage
Standby
Adjustment range
Regulation
Overcurrent
Overvoltage
Undervoltage
Turn-on delay
+12 V output rise time
+12 V
+3.3 Vsb
Factory set, no pot adjustments
+12 Vdc; +5%/-3%
+3.3 Vsb; +5%/-4%
See Table 1 next page
+12 Vdc; 13.5 - 15 Vdc
+3.3 Vsb; 3.76 - 4.30 Vdc
+12 Vdc; 11.0 - 11.5 Vdc
+3.3 Vsb; 2.77 - 3.00 Vdc
1 second max
2 - 20 mS, monotonic
90 - 264 Vac (wide range)
47 - 63 Hz, single phase AC
15 A maximum
> 84% typical at full load, high line
FCC Subpart J EN55022 Class A
FCC Subpart J EN55022 Class A
0.99 typical
1.30 mA @ 240 Vac
20 ms minimum
SAFETY
UL/cUL 60950 (UL recognized)
NEMKO+ CB report EN60950
EN60950
CE mark
China CCC
DS450-3/DS550-3 Data Sheet
Logic Control
PS Inhibit
PS_Status
AC_Pfail
When supply is inserted into the system the pin is pulled LOW and power supply is ON after all other pins are seated
I
2
C port P6. When the power supply is on and running normal P6 is low. When the power supply is off, either due
to -PS_ON, PS_KILL, or a fault, then P6 is high.
I
2
C port P7. P7 is high except when the power supply turns the main outputs, not +3.3 Vsb, off due to an AC failure
(AC missing or too low for power supply operation). If the supply is turned off due to -PS_ON, PS_KILL, or a fault,
then P7 remains high.
The PSU will provides an open collector Tach 1 output.
This signal is generated from the fan. The signal should generate 2 pulses per revolution. The logic in the system
will be operating at 3.3 V.
Fan_Fault
Tach_1
Environmental Specifications
Operating temperature
Storage temperature
Altitude, operating
Electromagnetic susceptibility/Input transients
-10 °C to 50 °C
-40 °C to +70 °C
10,000 ft.
-EN61000-3-2, -3-3
-EN61000-4-2, 4.3, 4-4, -4-5, 4-11
-EN55024:1998
20 to 90% RH, non-condensing
400 K Hrs at full load, 40 °C
RoHS & lead-free compliant (no tantalum caps)
Humidity
MTBF (Demonstrated)
Shock and vibration specificatons complies with Artesyn Embedded Technologies Std. Specification.
Ordering Information
Output
DS450-3
DS450-3-002
DS550-3
Nominal Output
Voltage Set Point
12.0 Vdc
3.3 Vsb
12.0 Vdc
3.3 Vsb
12.0 Vdc
3.3 Vsb
Set Point
Tolerance
± 0.2%
± 1%
± 0.2%
± 1%
± 0.2%
± 1%
Total
Regulation
+5/-3%
+5/-4%
+5/-3%
+5/-4%
+5/-3%
+5/-4%
Minimum
Current
0A
0A
0A
0A
0A
0A
Maximum
Current
37.0 A
3.0 A
37.0 A
3.0 A
45.0 A
3.0 A
Output Ripple
P/P
120 mV
60 mV
120 mV
60 mV
120 mV
60 mV
Overcurrent
39.5 A - 44.4 A
4.9 A Avg, 7 A max
39.5 A - 44.4 A
4.9 A Avg, 7 A max
48.0 A - 54.0 A
4.9 A Avg, 7 A max
Options
Standard
Reverse Air
Standard
*Overcurrent latches off if overcurrent lasts over 1 second, otherwise it is auto recovery.
*For 5 Vsb, please contact marketing department.
(2X)
10.02"
(254.7)
F

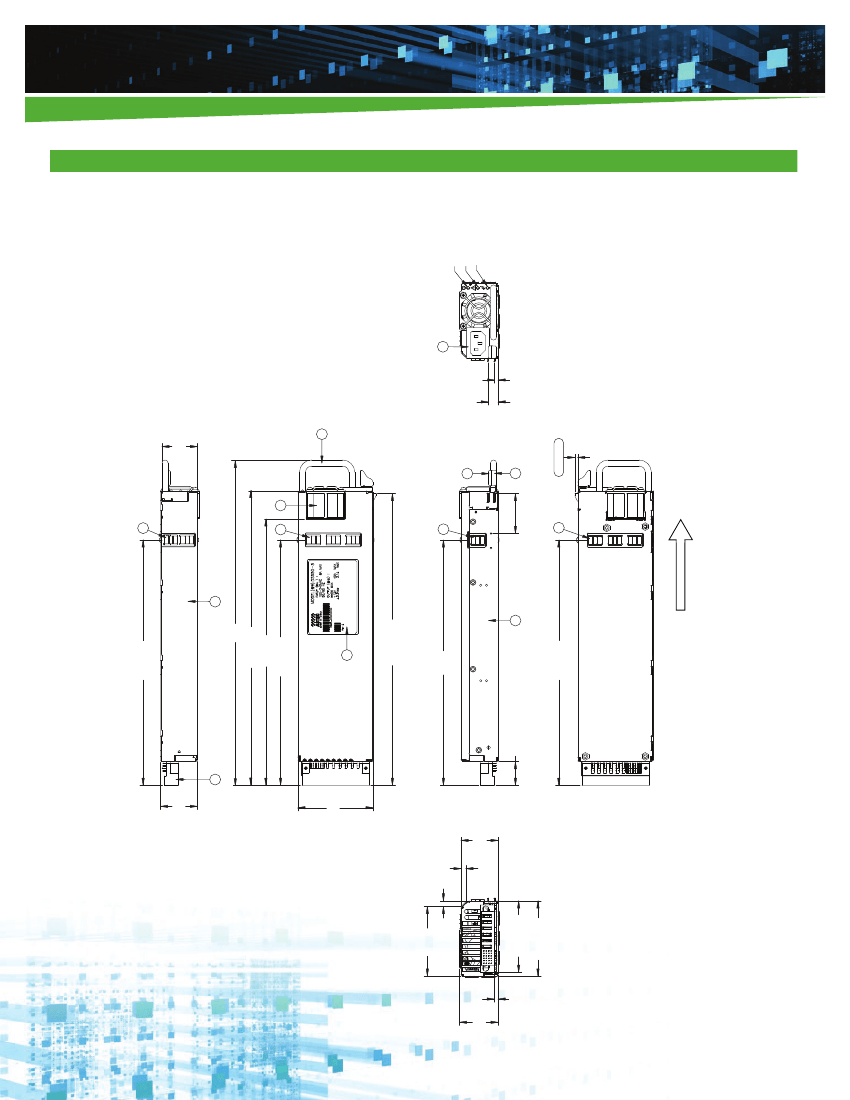

Mechanical Drawings
1.52"
(38.4)
1.453"
(36.9)
DS450-3/DS550-3 Data Sheet
J
G
13.29"
(337.6)
12.03"±0.3"
(305.6 ±0.8)
10.88"
(276.4)
(3X) 10.02"
(254.7)
F
E
D
3.07"
(78.0)
K
11.925" ±0.3"
(302.9 ±0.8)
2.84"
(72.2)
.228 ±.02
(5.8 ±0.5)
10.02"
(254.6)
F
B
.197" ±.02"
(5.0 ±0.5)
A
'POWER GOOD' GREEN
.3976" ±.028"
(10.1 ±0.5)
'FAULT' YELLOW
'AC GOOD' GREEN
1.575" ±0.3"
(40.0 ±0.8)
1.51" ±.03"
(38.4 ±0.8)
.1496" ±.02"
(3.8 ±0.5)
.972" ±0.2"
24.7 ±0.5
H
41.5 LATCH SPRING
DISTANCE (REF.)
2.913" ±.024")
(74.0 ±0.6)
C
.138" ±.020"
(3.5 ±0.5)
3.071" ±.03"
(78.0 ±0.8)
(3X) 254.6
F
3.0 ±0.3
STD AIRFLOW
DS450-3/DS550-3 Data Sheet
DC Output Connector Pinout Assignment
Male connector as viewed from the rear of the supply:
D1
C1
B1
A1
D2
C2
B2
A2
D3
C3
B3
A3
D4
C4
B4
A4
D5
C5
B5
A5
D6
C6
B6
A6
PB1
PB2
PB3
PB4
PB5
PB6
P1 - Power Supply Side
1
FCI Power Blade 51721 series
51721-10002406AA
Molex Power Connector
SD-87667 series
87667-7002
Mating Connector (System Side)
1
FCI Power Blade
51741-10002406CC
Strait Pins
FCI Power Blade
51761-10002406AA
Right Angle
2
2
Pin Assignments
Pin
PB 1
PB 2
PB 3
PB 4
PB 5
PB 6
A1
A2
A3
A4
A5
A6
B1
B2
B3
B4
B5
B6
Signal Name
+12 V Return
+12 V Return
+12 V Return
+12 V
+12 V
+12 V
PS_KILL
+12 V_Current Share
Logic Return
+3.3 V Stand-By
A0 (I
2
C Address BIT 0 Signal)
+3.3V Stand-By
Logic Return
Spare
Logic Return
+3.3 V Stand-By
SDA (I
2
C Data Signal)
PSON (Power Enable Signal)
Pin Assignments
Pin
C1
C2
C3
C4
C5
C6
D1
D2
D3
D4
D5
D6
Signal Name
Logic Return
Tach_1 (Fan Fail Signal)
Logic Return
+3.3 V Stand-By
SCL (I
2
C Clock Signal)*
VIN_GOOD (AC Input present)
-PS_Present (Power Supply Seated)
Spare
Logic Return
+3.3 V Stand-By
S_INT (Alert)
POK (Output Power Ok)
*Supports I
2
C standard mode (100 kHz) only
