WWW.PHIHONG.COM
10W Compact Fixed Blade Charger
Level VI Efficient USB Adapter
Features
•
Fixed Blade
•
Very low leakage
•
Level VI Compliant
Applications
•
Tablets
•
Portable GPS Devices
Safety Approvals
•
cUL/UL
•
CB
Mechanical Characteristics
•
Length: 47.5mm (1.88in)
•
Width: 37.8mm (1.48in)
Output Specifications
Model
PSAA10A-050QL6A
PSAA10A-050QL6W
2
DC Output
Voltage
5V
5V
•
•
•
•
•
•
•
•
•
Low Cost
5 Star Standby power <0.03W
OVP, OCP and short circuit protection
Personal Electronics
Digital Camera
BSMI
PSE
Height: 22.4mm (0.87in)
Weight: 40g (1.41oz)
Load
Min. Max.
0A
2.0A
0A
2.0A
Ripple
1
P-P (max)
150mV
150mV
Regulation
Line
Load
±5%
±5%
Note: (1) Measured after 10 minutes with by-pass capacitors 0.1uf // 10uf at output connector terminal and oscilloscope
set at 20MHz.
(2) Model in white in place of standard black
Phihong is not responsible for any error, and reserves the right to make changes without notice. Please visit our website
at
http://www.phihong.com
for the most up-to-date specifications and contact information.
Revised 6/2/2016
PSAA10A Characteristics
INPUT:
AC Input Voltage Rating
100 to 240VAC
WWW.PHIHONG.COM
Temperature
Operation
Non-operation
Humidity
0 to +40°C
-20 to +70°C
10 to 90%
AC Input Voltage Range
90 to 264VAC
Immunity
ESD:
RS:
EFT:
Surge:
Dip:
Harmonic:
Flicker:
EN61000-4-2.
EN61000-4-3
EN61000-4-4
EN61000-4-5.
EN61000-4-11
EN61000-3-2
EN61000-3-3
Level 2
Level 2
Level 3
Level 3
AC Input Current
0.28A (RMS) maximum at 115VAC input
0.16A (RMS) maximum at 230VAC input
Leakage Current
20μA maximum @254Vac/50Hz
Inrush Current (cold)
<60A for 240VAC at max. load
(Cold start @ ambient 25°C)
Dielectric Withstand (Hi-pot) Test
Primary to Secondary: 4250VDC for 1 minute 5mA
Insulation Resistance
Primary to Secondary: >10M ohm 500VDC
Input Power Saving
≦75mW
@no load at 230Vac/50Hz
OUTPUT:
Power
10W Continuous
FEATURES
Over-voltage Protection
Output voltage shall not exceed 8V
Over-current Protection
Efficiency
DOE Level VI
Output current shall not exceed 3A
Short Circuit Protection
Hold-up Time
6mS minimum at 115Vac/60Hz
Auto recovery and no component damage
DC Output Connector

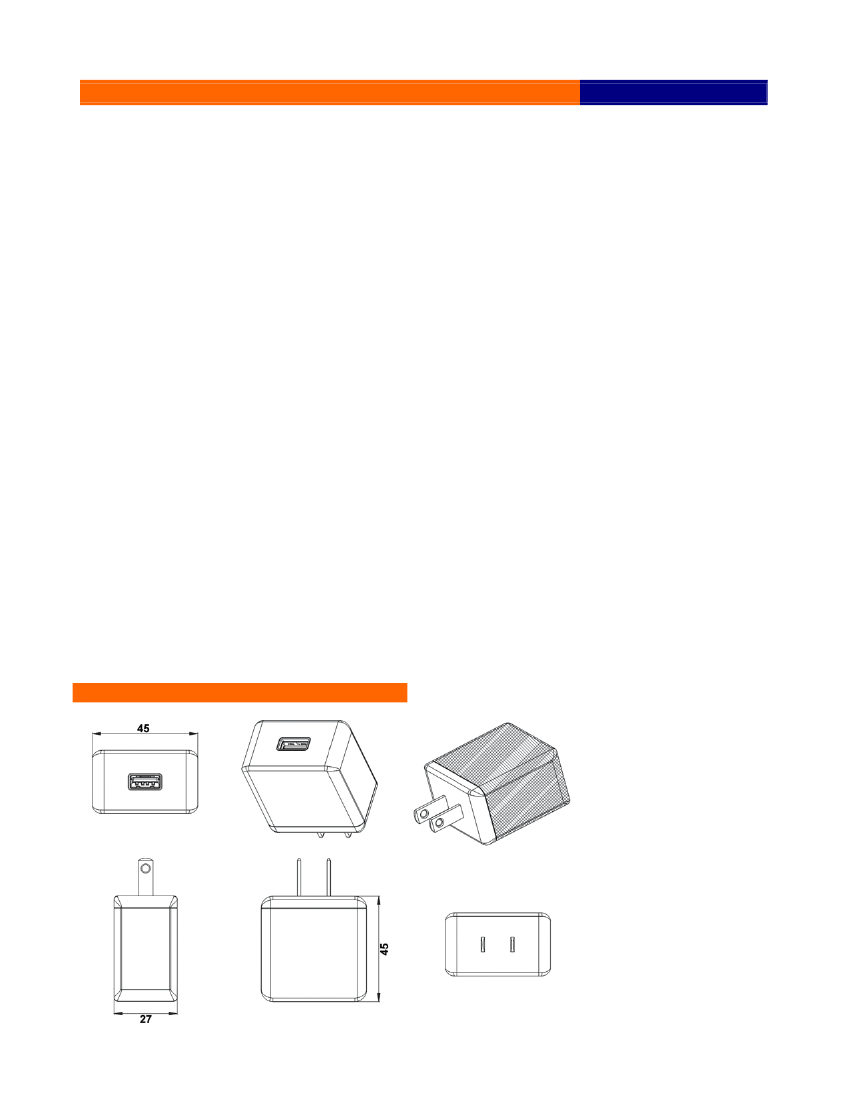

Dimension Diagram Unit: mm
USB A
Emissions
FCC Class B
EN55022 Class B
ENVIRONMENTAL:
