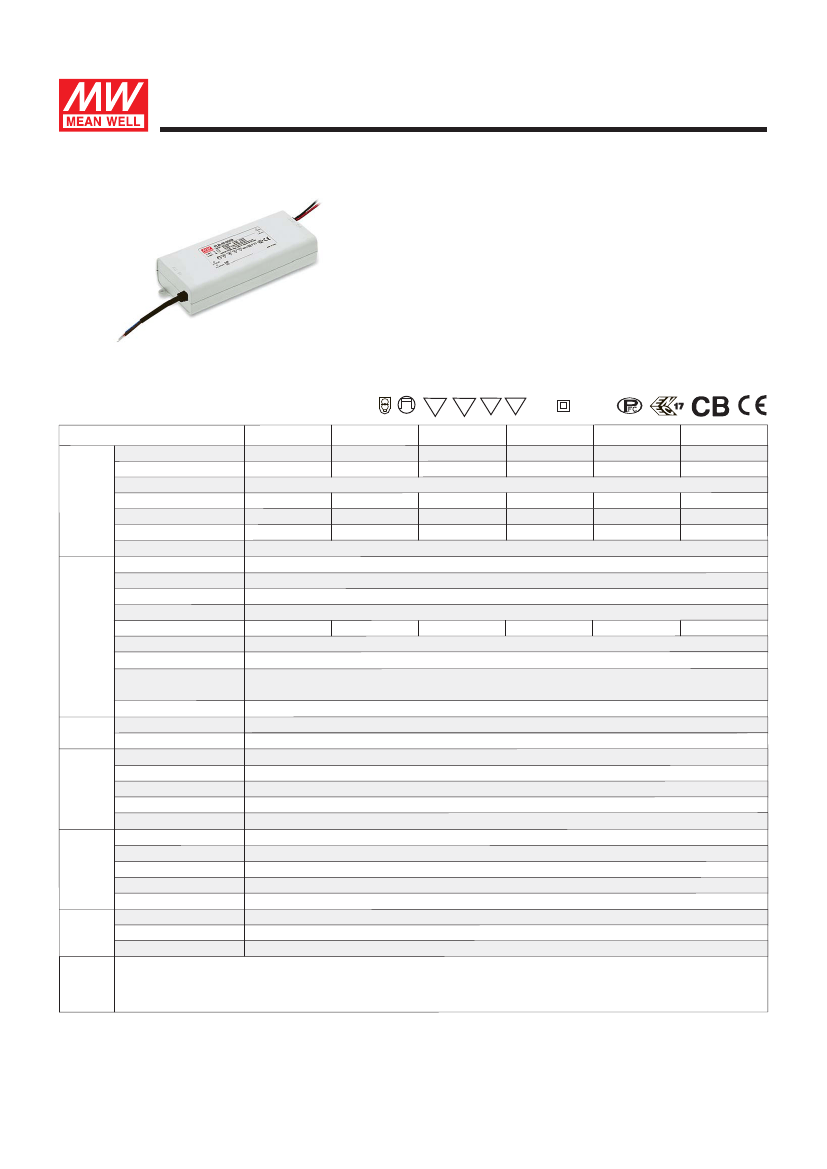

40W Single Output LED Power Supply

■

Features :

PLD-40

series

Built-in active PFC function

Constant current design

Protections: Short circuit / Over temperature

Cooling by free air convection

Fully isolated plastic case

IP42 design

Class

Ⅱ

power unit, no FG

Suitable for indoor LED lighting applications

100% full load burn-in test

Low cost

High reliability

3 years warranty

110

SPECIFICATION

MODEL

RATED CURRENT

CURRENT ACCURACY

RATED POWER

PLD-40-350B

350mA

±5.0%

37.8W

40W

5.0Vp-p

100V

39.9W

3.1Vp-p

63V

OPERATING VOLTAGE RANGE

70 ~ 108V

OUTPUT

PLD-40-500B

500mA

45 ~ 80V

PLD-40-700B

700mA

34 ~ 57V

SELV

IP42

PLD-40-1400B

1400mA

17 ~ 29V

40.6W

2.5Vp-p

35V

PLD-40-1750B

1750mA

13 ~ 23V

40.25W

2.4Vp-p

35V

PLD-40-1050B

1050mA

22 ~ 38V

39.9W

2.6Vp-p

50V

RIPPLE & NOISE (max.)

Note.1

9.5Vp-p

NO LOAD OUTPUT VOLTAGE (max.)

118V

SETUP TIME

VOLTAGE RANGE

FREQUENCY RANGE

POWER FACTOR (Typ.)

INPUT

180~295VAC

47 ~ 63Hz

500ms / 230VAC at full load

PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)

TOTAL HARMONIC DISTORTION

THD< 20% when output loading

≧

60%(PLD-40-350B loading

≧

65%)at 230VAC input and output loading

≧

75% at 277VAC input

87%

86%

88%

87%

86%

88%

EFFICIENCY (Typ.)

AC CURRENT (Typ.)

INRUSH CURRENT(Typ.)

MAX. No. of PSUs on 16A

CIRCUIT BREAKER

LEAKAGE CURRENT

SHORT CIRCUIT

OVER TEMPERATURE

WORKING TEMP.

0.35A/230VAC

0.3A/277VAC

COLD START 25A (twidth=60

s measured at 50% Ipeak) at 230VAC

47 units (circuit breaker of type B) / 47 units (circuit breaker of type C) at 230VAC

<0.5mA / 240VAC

Hiccup mode, recovers automatically after fault condition is removed.

Shut down o/p voltage, auto-recovery

-30 ~ +50

℃

(Refer to "Derating Curve")

20 ~ 95% RH non-condensing

-40 ~ +80

℃

, 10 ~ 95% RH

0.03%/

℃

(0 ~ 50

℃

)

10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

ENEC EN61347-1, EN61347-2-13 independent, EN62384, IP42 approved

I/P-O/P:3.75KVAC

I/P-O/P:100M Ohms / 500VDC / 25

℃

/ 70% RH

Compliance to EN55015, EN61000-3-2 Class C ; EN61000-3-3

Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level(Surge 2KV), criteria B

865.176Khrs min. MIL-HDBK-217F (25

℃

)

128*60*31.5mm (L*W*H)

0.22Kg;30pcs/7.6Kg/0.58CUFT

PROTECTION

WORKING HUMIDITY

ENVIRONMENT STORAGE TEMP., HUMIDITY

TEMP. COEFFICIENT

VIBRATION

SAFETY STANDARDS

SAFETY &

EMC

WITHSTAND VOLTAGE

ISOLATION RESISTANCE

EMC EMISSION

EMC IMMUNITY

MTBF

OTHERS

DIMENSION

PACKING

NOTE

1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.

3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently

connected to the mains.

File Name:PLD-40-SPEC 2015-08-21
