iHA48013A240V-001-R: DescriptionIsolated DC/DC Converters DC-DC, PCB Mount, Half Brick, Input 48VDC, Output 24V 13A, 312W; Categorysemiconductor Power management; File Size548KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric Compare View All

iHA48013A240V-001-R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	iHA48013A240V-001-R	-	-	View	Buy Now

iHA48013A240V-001-R Overview

Isolated DC/DC Converters DC-DC, PCB Mount, Half Brick, Input 48VDC, Output 24V 13A, 312W

iHA48013A240V-001-R Parametric

Parameter Name	Attribute value
Product Category	Isolated DC/DC Converters
Manufacturer	TDK Corporation
Number of Outputs	1 Output
Output Power	312 W
Input Voltage	48 V
Output Voltage-Channel 1	24 V
Output Current-Channel 1	13 A
Mounting Style	PCB
Length	3.35 in
Width	9.92 in
Height	1.61 in
Product	Isolated
Unit Weight	3 oz

Preview

Download Datasheet

View All

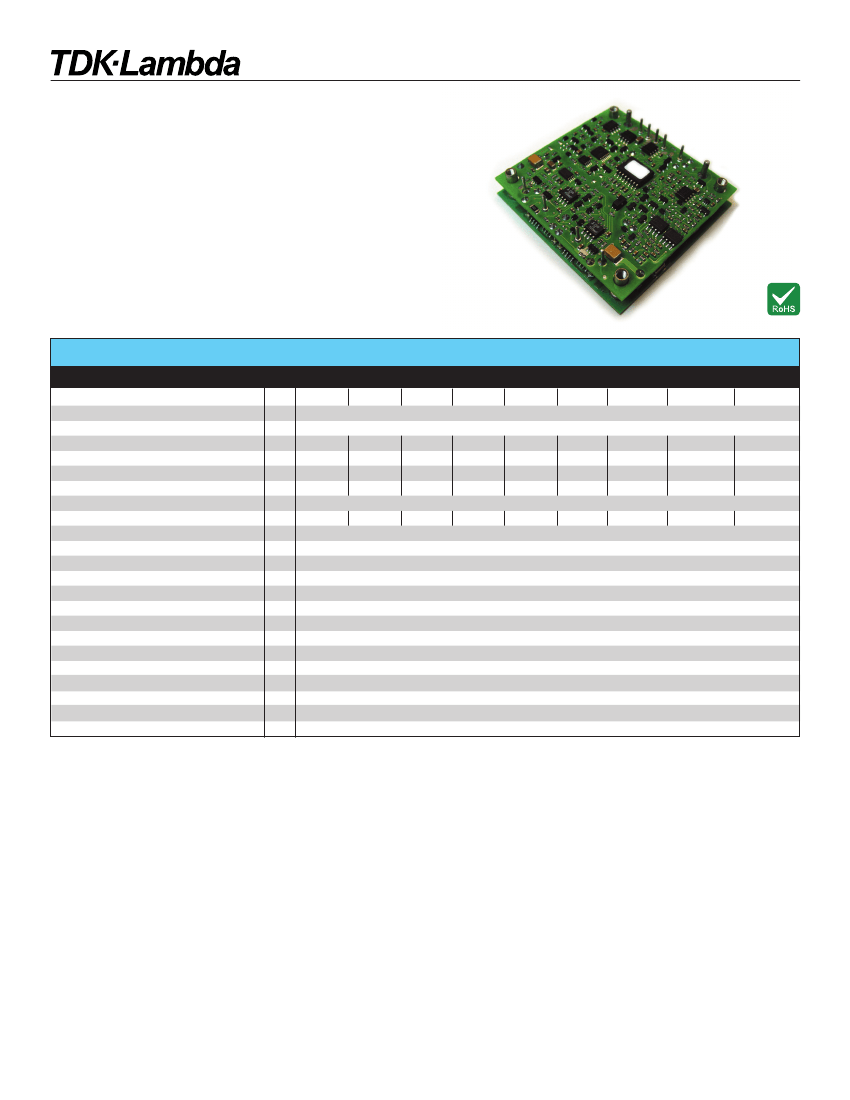

iHA Series

72 - 448W Half Brick Converter

Features

u

Standard Half Brick Footprint

u

36-75VDC Input

u

1.2V 60A - 28V 16A Nominal Outputs

u

Through Hole Mounting

u

Low 12.7mm Proﬁle

u

1500VDC Basic Isolation

u

High operating efﬁciency (up to 93.5%)

u

Constant switching frequency

u

Baseplate

Speciﬁcations

Model

iHA48

Nominal Output Voltage

VDC

1.2

1.5

1.8

2.5

3.3

5

12

24

28

Input Voltage Range

VDC

36 - 75 (28V/16A: 40 - 60)

Input Current (max)

A

2.6 - 12.8 Amps model dependent

Output Voltage Tolerance

VDC 1.16 -1.24 1.46 -1.55 1.75 -1.85 2.43-2.58 3.20 -3.40 4.84-5.15 11.64 -12.36 23.28 - 24.72 27.16 -28.84

Ripple & Noise (max)(pk to pk) (1) mV

60

80

75

55

70

100

600

675

Line Regulation (max)

mV

2

4

5

6

8

15

25

30

Load Regulation (max)

mV

6

8

10

25

50

Overload Protection (typ)

%

Inception- 113-156% of rated output; Short circuit auto recovery

Overvoltage Protection (typ)

VDC

1.5

1.8

2.2

3.0

4.0

6.0

14.5

29.0

33.0

Remote Sense

-

Yes

Remote On / Off

-

Positive or Negative Logic available, see Feature Set

Temperature (operating)

°C

-40 to 115 for Vo ≤ 5.0V; -40 to 110 for Vo ≥ 12V

Temperature (storage)

°C

-55 to 125

Humidity (operating)

-

20-95% RH Non condensing

Humidity (storage)

-

10-95% RH Non condensing

Cooling

-

Convection or forced air

Isolation Voltage

VDC

1500V Input to output & baseplate, 500V Output to baseplate

Vibration (non operating)

- 5 to 50Hz @ 0.5g (4.9m/s

2

), and 50 to 500Hz @ 1.5g (14.7m/s

2

) per Bellcore TR-EOP-000063-5.4.4

Shock

-

196.1m/s

2

Safety Agency Approvals

-

UL60950 (US and Canada), VDE0805 (IEC60950), CB scheme (IEC60950), CE Mark (LVD)

Weight (max)

g

85

Size

mm

57.9 x 61.0 x 12.7

Warranty

-

3 years

Notes: See website for detailed speciﬁcations

(1)

Measured across 47µF +1µF +0.1µF ceramic caps for 1.2-5Vo, across 1µF

+0.1µF ceramic caps +10µF Tan cap for 12Vo, across 200µF Al electrolytic

+10µF +1µF +0.1µF ceramic caps for 24-28Vo; BW = 20MHz

OBSOLETE

1-800-526-2324 • www.us.tdk-lambda.com/lp/

13

Disclaimer: us.tdk-lambda.com/lp/legal.htm
